Product Overview
Description
Potentiometer Electronics, Precision Multiturn Wirewound Potentiometer 534
Vishay Potentiometer 534-1-1 534-2-204 10 turns 2watt 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 50 100 ohm b5k b10k b20k b50k b100k
Vishay Potentiometer 534-1-1 534-2-204 10 turns 2watt 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 50 100 ohm b5k b10k b20k b50k b100k
Product Description
Wirewound Potentiometer 3590S
Multi-turn wire wound potentiometer 534 series, 534-11101 100R 534-11102 1K 534-11103 10K 534-11201 200R 534-11202 2K 534-11203 20K 534-11501 500R 534-11502 5K 534-11503 50K Wxd534-103-LF potentiometer resistance 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 50 100 ohm, WXD534 potentiometer rated power 2W, Vishay The original genuine MOD 534 potentiometer is made of high-quality materials, with high precision and long service life. It supports customization, and samples are available. Welcome to consult and place an order.

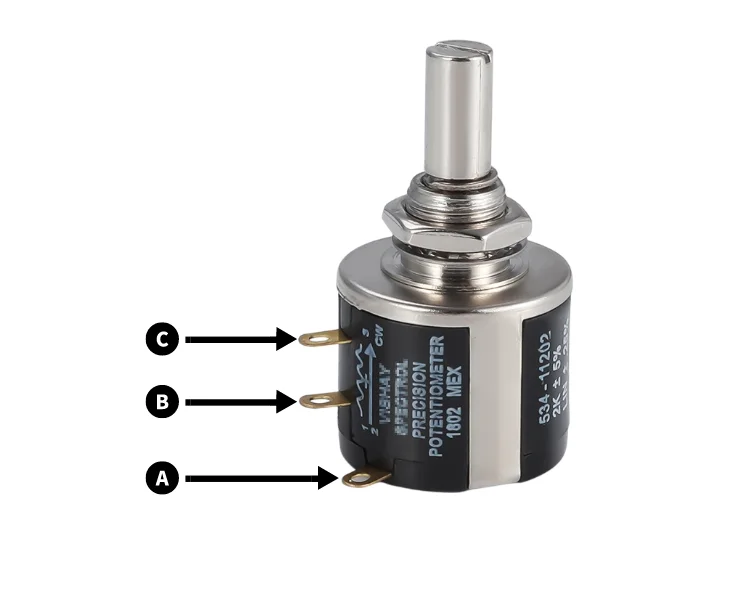

Wirewound potentiometer 534 wiring method
The B terminal is the middle tap of the potentiometer, and B is connected to the speed control port when wiring
A and C arbitrarily choose one to connect to COM
Use the AB or BC terminal to adjust the speed, the potentiometer rotates in the opposite direction
If AB is connected clockwise rotation speed increases
Then, when the BC terminal is connected, the rotation speed increases counterclockwise.
A and C arbitrarily choose one to connect to COM
Use the AB or BC terminal to adjust the speed, the potentiometer rotates in the opposite direction
If AB is connected clockwise rotation speed increases
Then, when the BC terminal is connected, the rotation speed increases counterclockwise.
Specification
Electrical Characteristics
Range of nominal resistance:100Ω~100KΩ
Resistance tolerance:±2%, ±5%Terminal resistance:≤±0.2%R or 5Ω
Peak Noise:≤100Ω
Insulation resistance:≥ 200MΩ (100V AC)
Withstand voltage:500V (DC or AC peak value)
Electrical angle:3600° ± 10 °
Environment Characteristics
Rated power:2W ( 300V 70 °C )
Temperature range: -55°C~+125°C
TCR:±100×10-6/°C
Collision (390m/S2, 4000 times):ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h):ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles):ΔR≤±2%R,
ΔUab/Uac≤±2%R
Climate category (IEC68-2-2):ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (2W, 1000h):ΔR≤± 3%R
Mechanical endurance (200 cycles):ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Temperature range: -55°C~+125°C
TCR:±100×10-6/°C
Collision (390m/S2, 4000 times):ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h):ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles):ΔR≤±2%R,
ΔUab/Uac≤±2%R
Climate category (IEC68-2-2):ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (2W, 1000h):ΔR≤± 3%R
Mechanical endurance (200 cycles):ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h):ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Total mechanical travel:3600° ± 10 °
Rotational torque:2-10mN.m
Standard package:50 pcs /box
Rotational torque:2-10mN.m
Standard package:50 pcs /box
Electrical Characteristics | Range of nominal resistance | 100Ω~100KΩ |
Resistance tolerance | ±2%, ±5% | |
Terminal resistance | ≤±0.2%R or 5Ω | |
Peak Noise | ≤100Ω | |
Insulation resistance | ≥ 200MΩ (100V AC) | |
Withstand voltage | 500V (DC or AC peak value) | |
Electrical angle | 3600° ± 10 ° | |
Environment Characteristics | Rated power | 2W ( 300V 70 °C ) |
Temperature range | -55°C~+125°C | |
TCR | ±100×10-6/°C | |
Collision (390m/S2, 4000 times) | ΔR≤±1%R | |
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |
Electrical endurance (2W, 1000h) | ΔR≤± 3%R | |
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m | |
Physical Characteristics | Total mechanical travel | 3600° ± 10 ° |
Rotational torque | 2-10mN.m | |
Standard package | 50 pcs /box |
product details

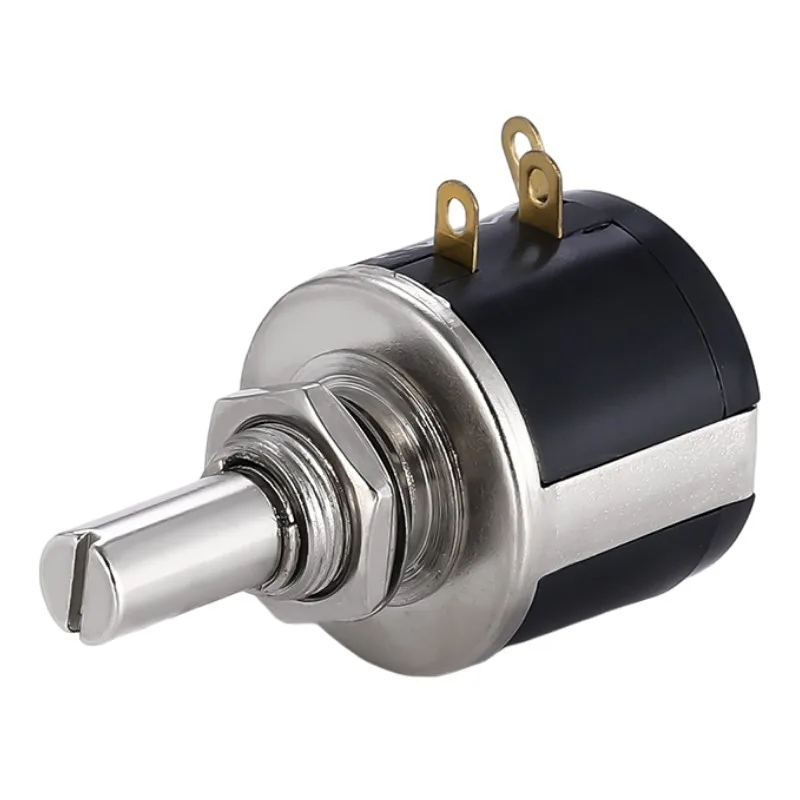

Stainless steel shaft
Wire wound potentiometer 534 shaft adopts stainless steel shaft, anti-rust and wear-resistant, long service life
Pure copper pins silver plated contacts
Using pure copper pin silver contacts, good conductivity, high precision and long service life

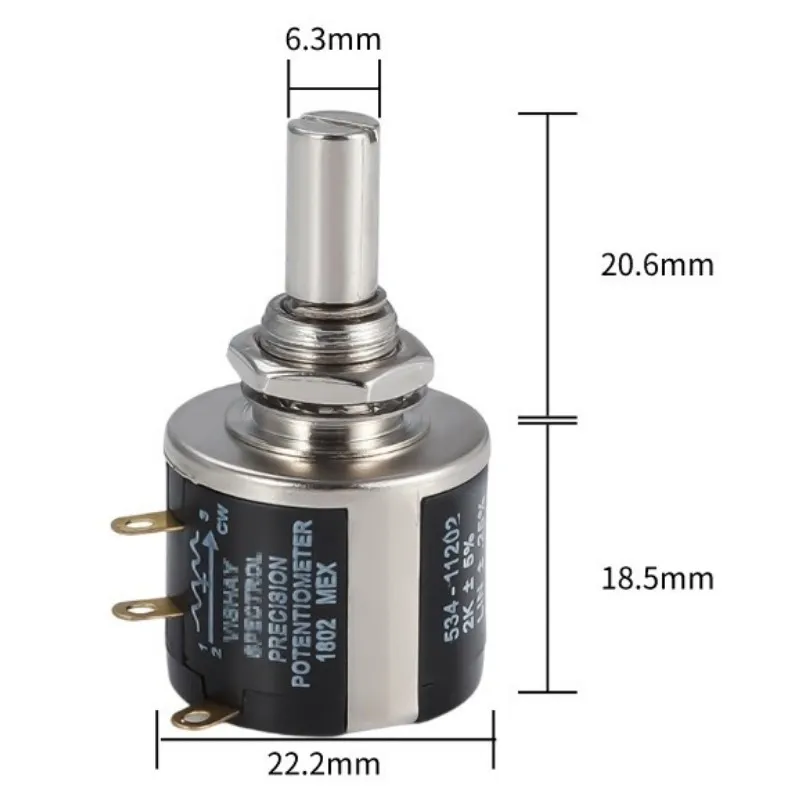

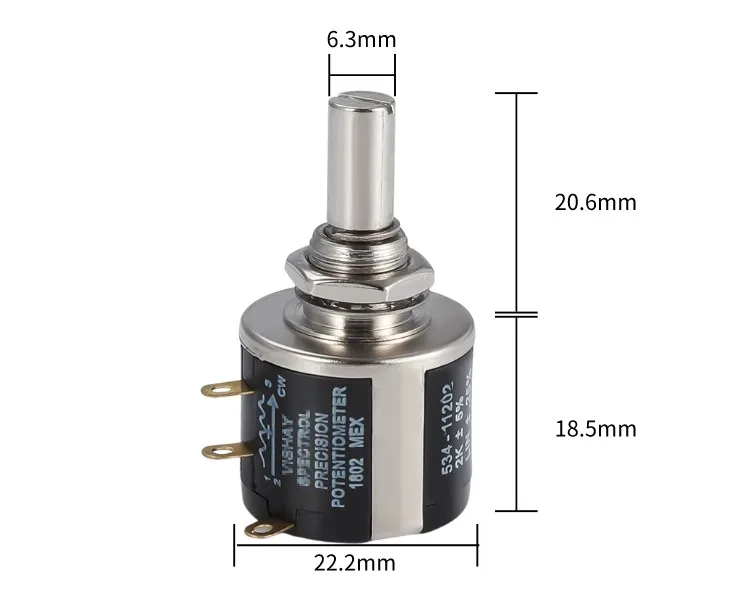

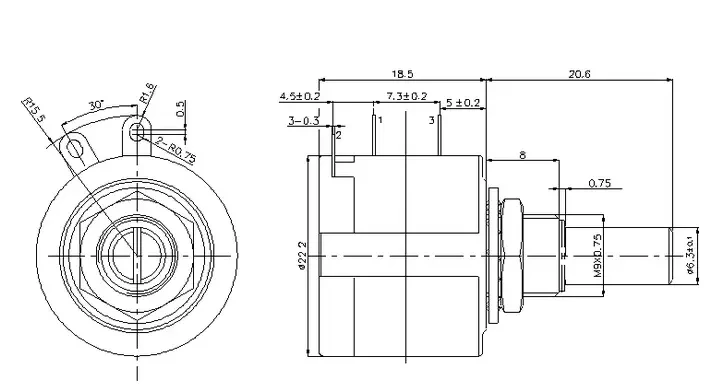

Dimensions
Packing & Delivery

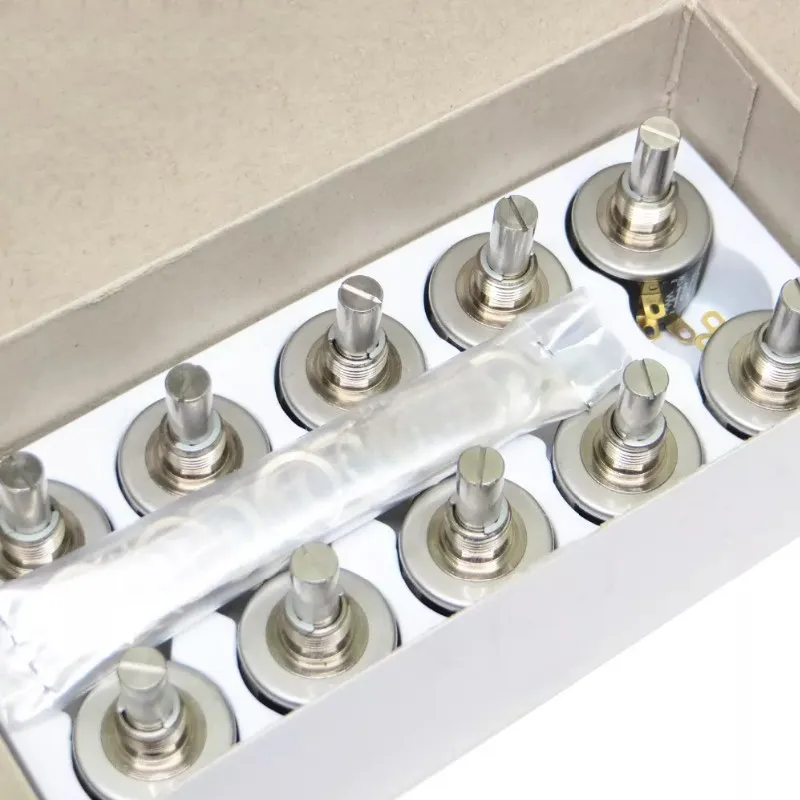

Wirewound potentiometer 534 is packed in carton, 50 pcs/box, 12 boxes/carton
Generally, it will be shipped within 3-5 working days after receiving the full payment (the specific delivery time depends on the order quantity and requirements)
