Factory price small batch ceramic clay ball mill 600x700 manufacturer price
- Category: >>>
- Supplier: Henan Xingyang Mining Machinery Manufactory
Share on (62084477522):
Product Overview
Description
Introduction

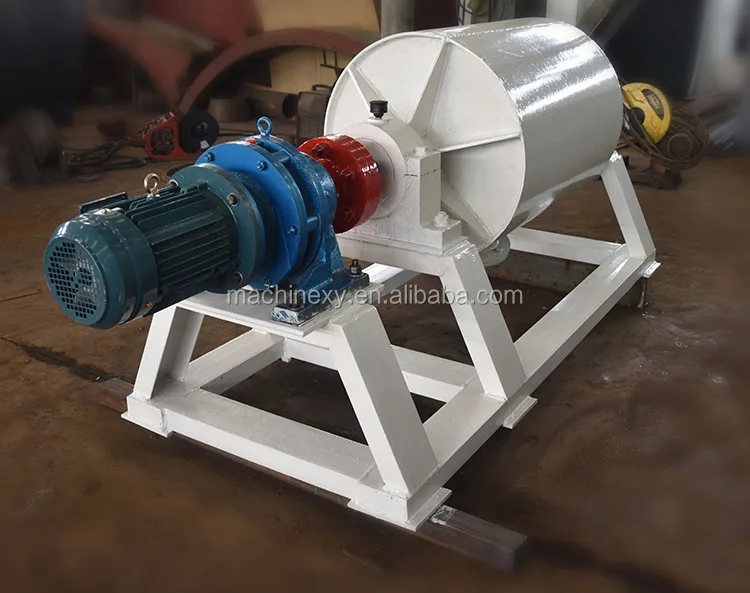

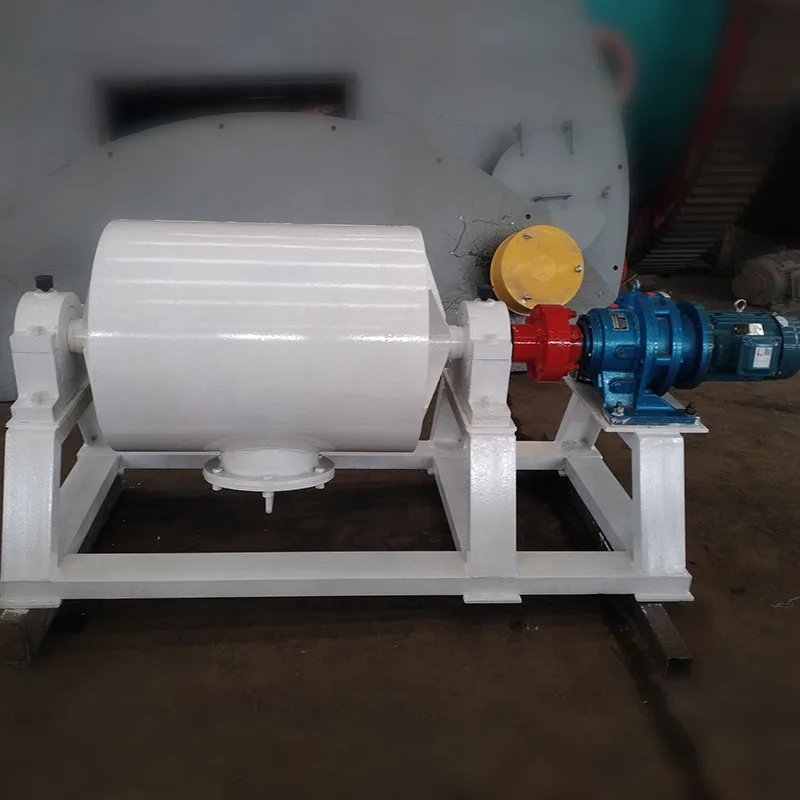

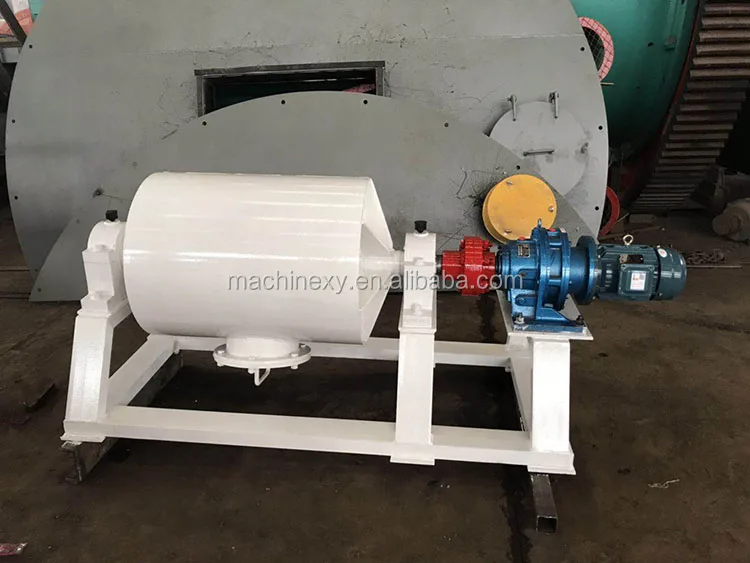

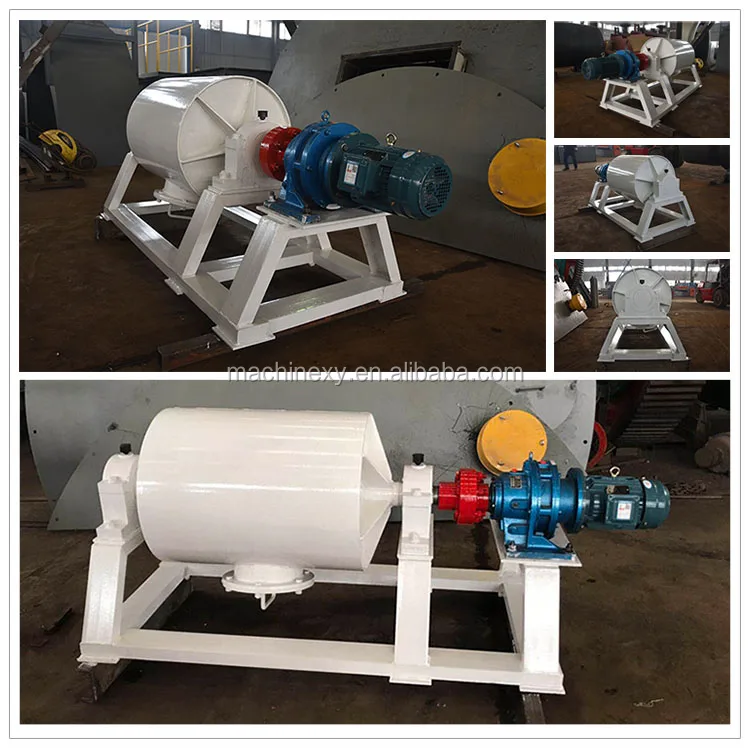

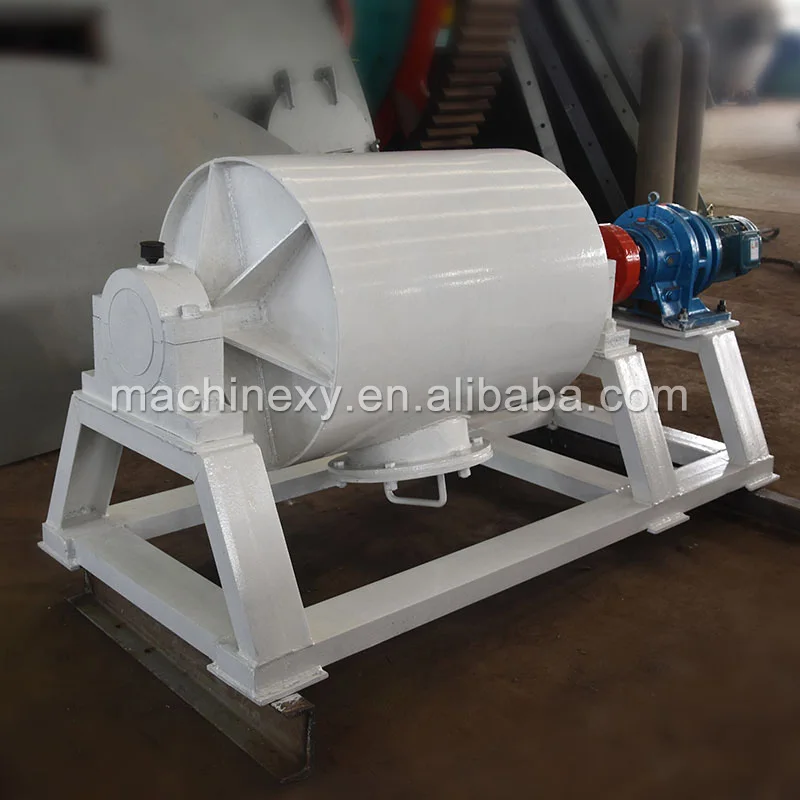

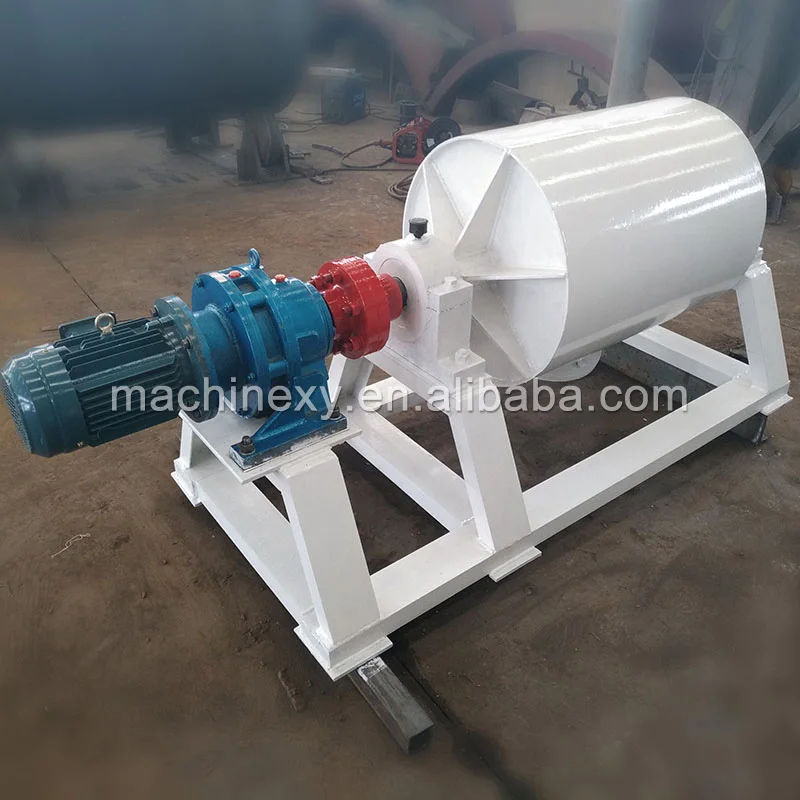

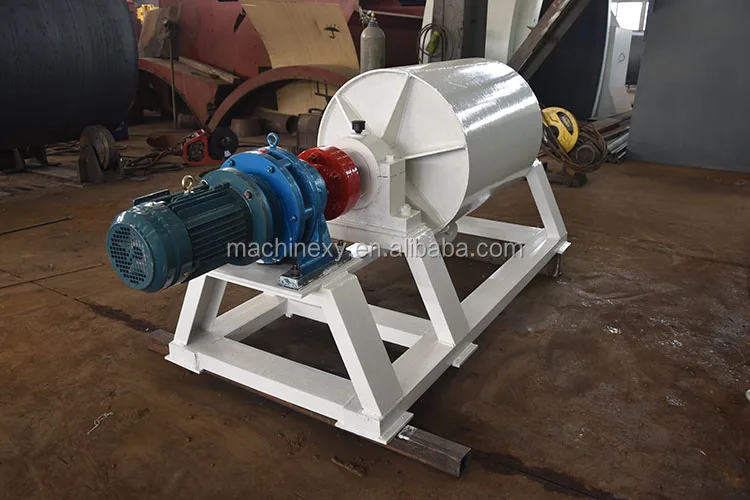

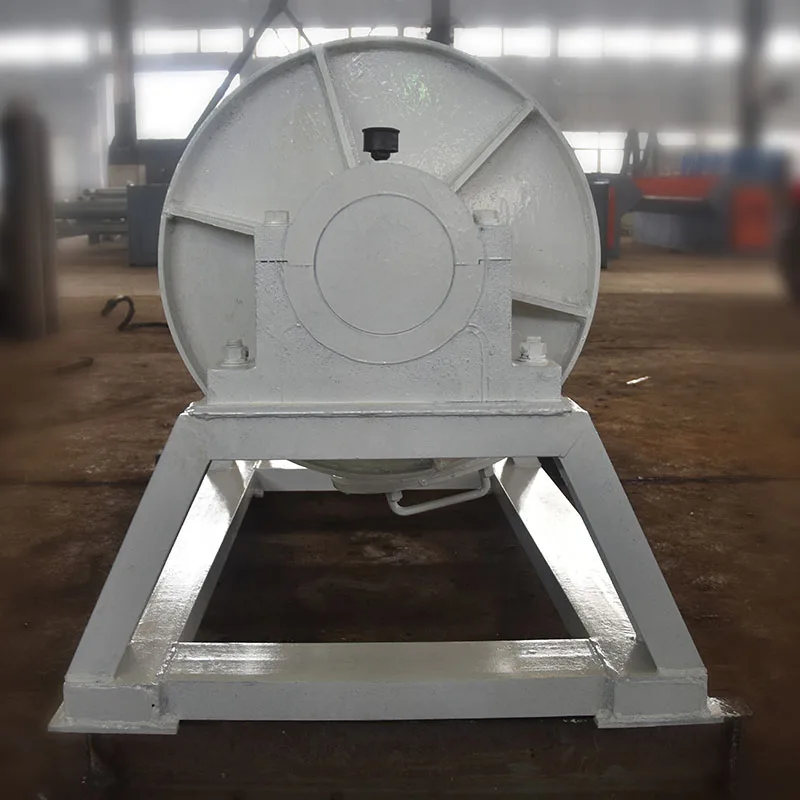

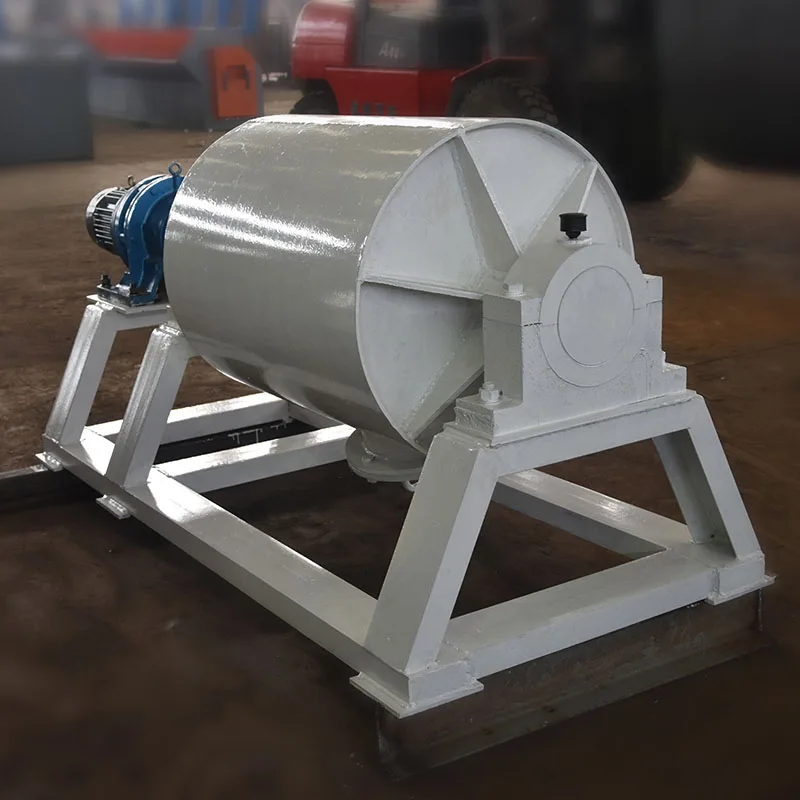

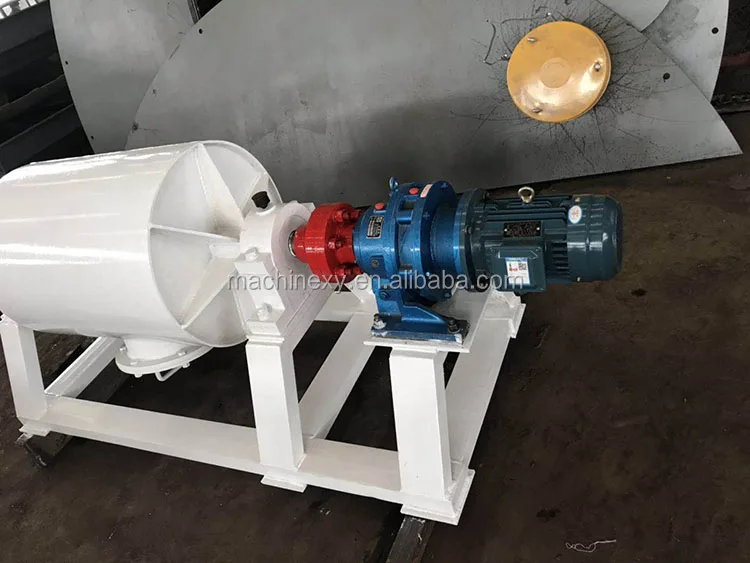

Ceramic ball mill is mainly used for mixing and grinding of materials.
You can choose either dry or wet grinding.This machine can adopt different types of lining board according to production needs to meet different needs.The fineness of the grinding operation is controlled by the grinding time.
Application

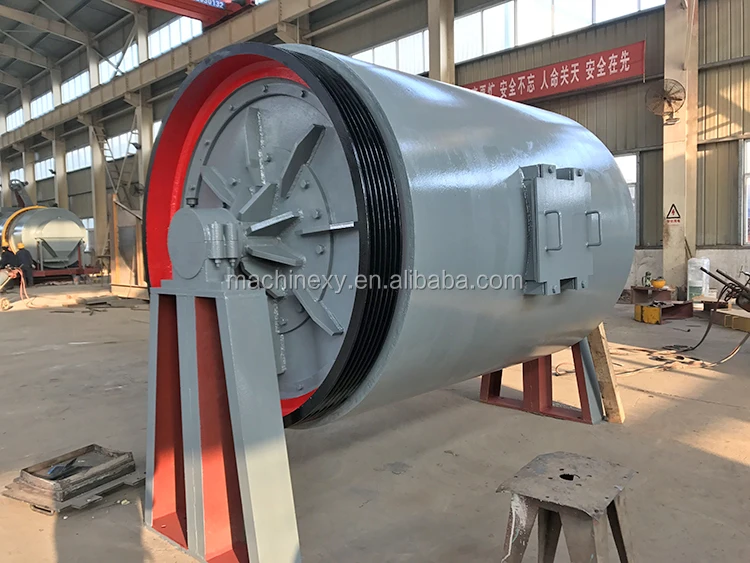

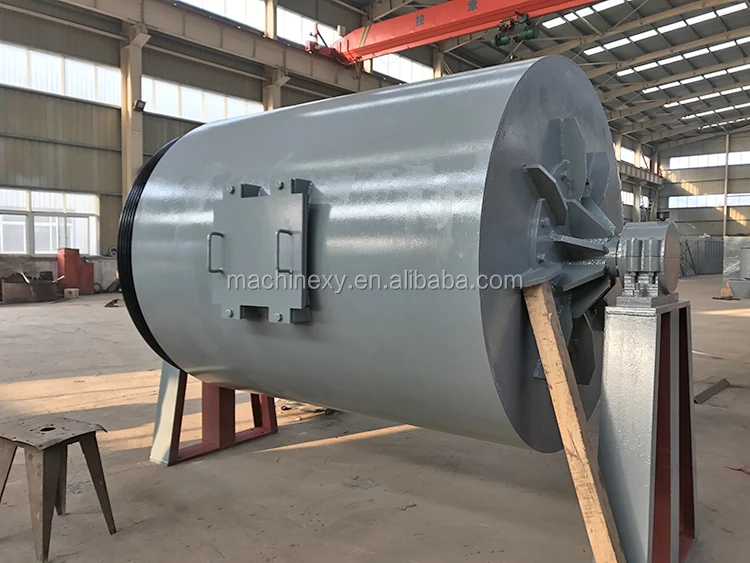

Batch Ball Mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
Advantage
- Wet and dry intermittently to mill, mix, discharge material
- Large processing volume
- It is mainly used for ceramic raw material grinding,such as feldspar, quartz,clay,etc.
- The slurry can pass through 1000 sieve pore
- It is a super fine grinding mill, so the material should be medium size or below to get the best grinding efficiency
Paramater
Main technological parameters of ball mill:
|
Specification |
Cylinder size (mm) |
Output size (mm) |
Weight of loading (t) |
Speed of bucket (r/min) |
Power (kw) |
Piece Weight (kg) |
|
0.2T |
Φ910×1120 |
0.075-0.89 |
0.2 |
35 |
2.2 |
1910 |
|
0.5T |
Φ1200×1420 |
0.075-0.4 |
0.5 |
31.45 |
4 |
2500 |
|
1T |
Φ1400×1800 |
0.075-0.4 |
1 |
27 |
7.5 |
3000 |
|
1.5T |
Φ1800×2100 |
0.075-0.4 |
1.5 |
23 |
11 |
4500 |
|
2.5T |
Φ2200×2200 |
0.075-0.4 |
2.5 |
20 |
18.5 |
6500 |
|
3T |
Φ2200×2600 |
0.075-0.4 |
3 |
20 |
22 |
7000 |
|
5T |
Φ2500×3000 |
0.047-0.4 |
5 |
16 |
37 |
13000 |
|
8T |
Φ2800×3400 |
0.047-0.4 |
8 |
13.8 |
45 |
19000 |
|
10T |
Φ2800×4000 |
0.047-0.4 |
10 |
13.8 |
55 |
20000 |
|
15T |
Φ3000×5000 |
0.047-0.4 |
15 |
13 |
75 |
28000 |
|
18T |
Φ3100×5000 |
0.047-0.4 |
18 |
12 |
90 |
28500 |
|
20T |
Φ3200×5800 |
0.047-0.4 |
20 |
13 |
90 |
29900 |
|
30T |
Φ3400×6500 |
0.047-0.4 |
30 |
14.2 |
110 |
32000 |
|
40T |
Φ3600×7000 |
0.047-0.4 |
40 |
13 |
132 |
36000 |
|
50T |
Φ3800×8000 |
0.047-0.4 |
50 |
11 |
200 |
45000 |
|
60T |
Φ4000×8500 |
0.047-0.4 |
60 |
10 |
200 |
52000 |

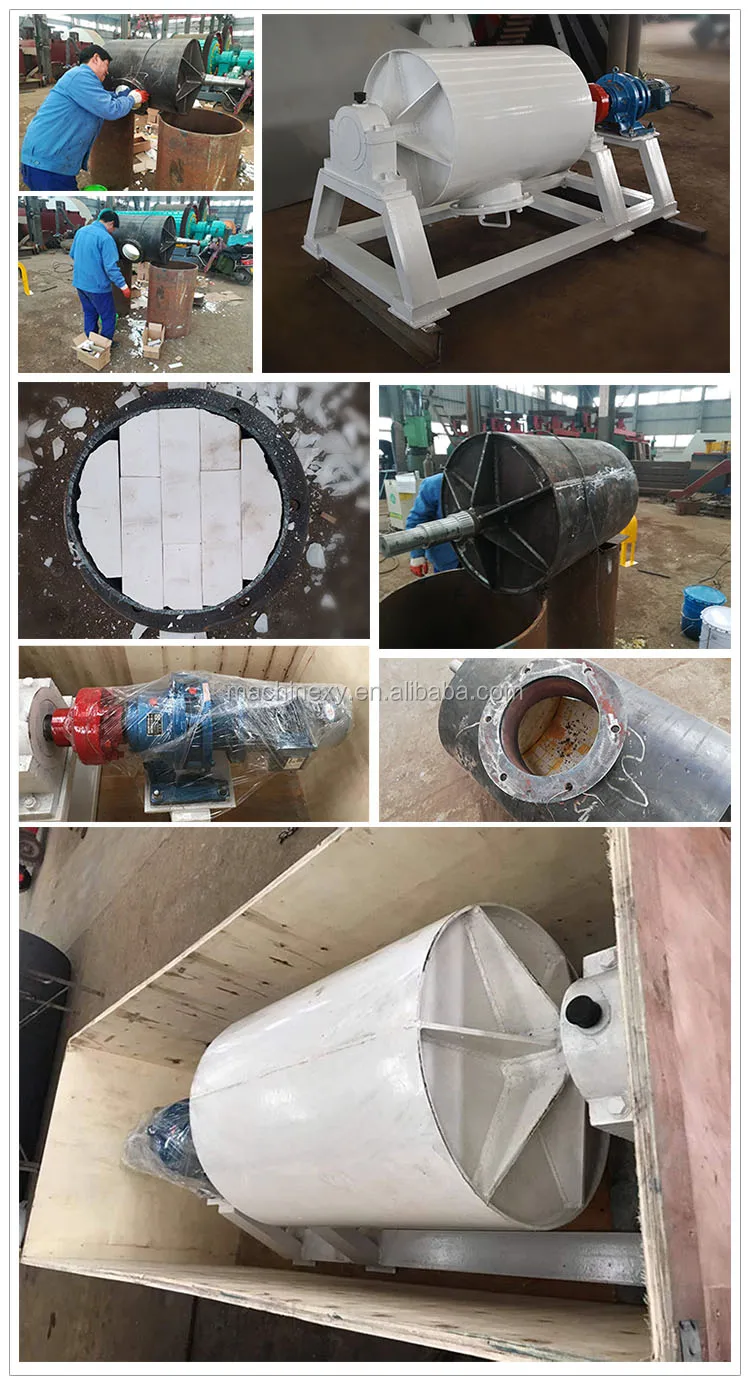

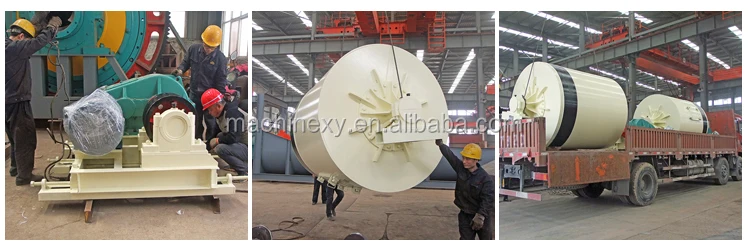

Workshop

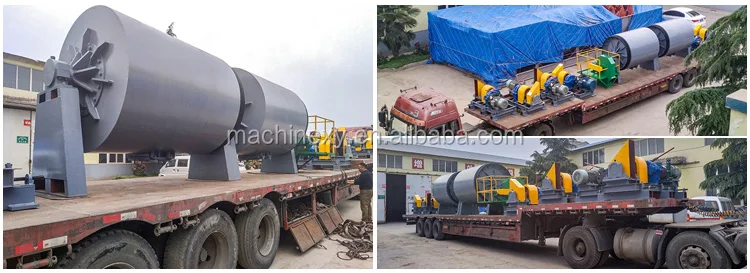

Packing
