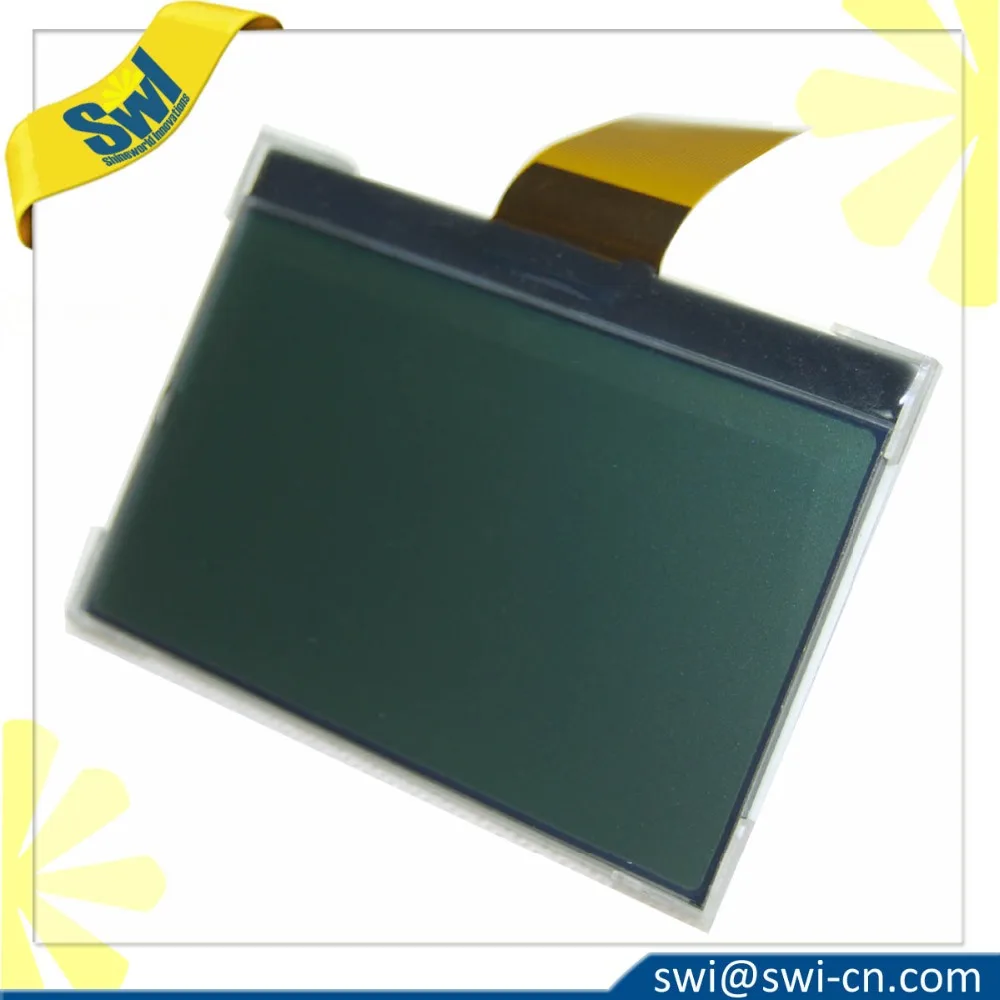

Customized 240*128 FSTN COG LCD display with white LED backlight for Electronic Scale
- Category: Used Computers & Accessories >>>
- Supplier: Dongguan Shineworld Investment Ltd.
Share on (62084532454):
Product Overview
Description
Product Description
Display Feature
| Structure | COB |
| LCD Display Mode | 1/128duty,1/12bias |
| Viewing Direction | 12 O'Clock |
| Driving Method | FSTN,Positive,Transflective |
| Backlight type & Color | LED,White |
| Control/Drive IC | St7529 |
| LCD Connection | FPC |
Mechanical Data
| Area | Size |
| Outline | 84.00×60.60×5.50mm |
| Viewing Area | 78.00×48.00mm |
Electrical Condition
| Item | MIN. | TYP. | MAX. |
| Operating Voltage (V) | 2.8 | 3.0 | 3.3 |
| LCD Vop (V) | 16.5 | ||
| Backlight Vf (V) | 3.1 | ||
| Backlight If (mA) | 60 |

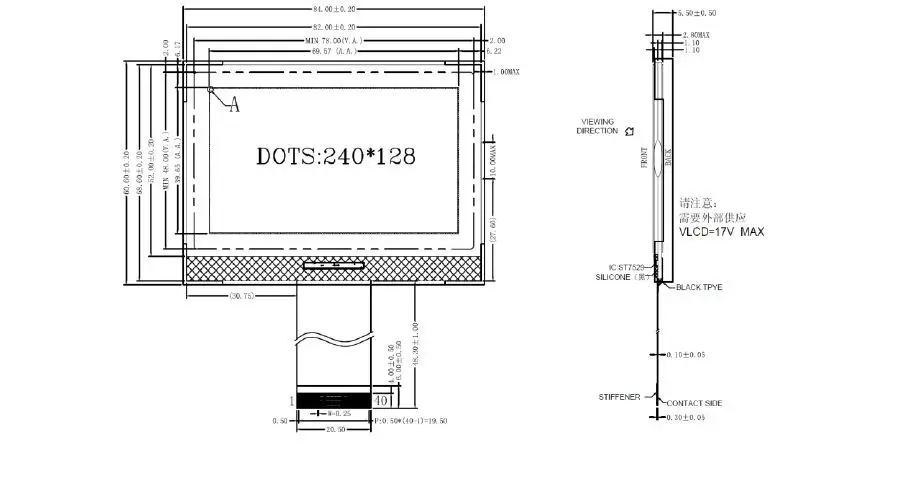

Outline Drawing
Company Information

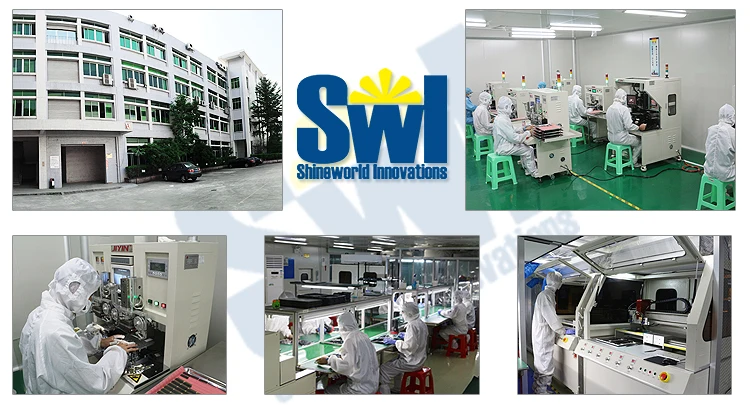

ABOUT US
We are a professional manufacturer of LCD and OLED displays and modules since 2003. Our two factories are located in Liaobu and Dalang town, Dongguan City, China. Our products include: TN, HTN, STN, FSTN, TN(VA) LCDs, COB, COG, TFT LCD modules, OLED displays and capacitive touch panels. Waterproof TV.For more information regarding our company, please visit our website: www.swi-cn.comor checked our video posted on Youtube: https://www.youtube.com/watch?v=WI-wDEqcndA&t=52s
More Products

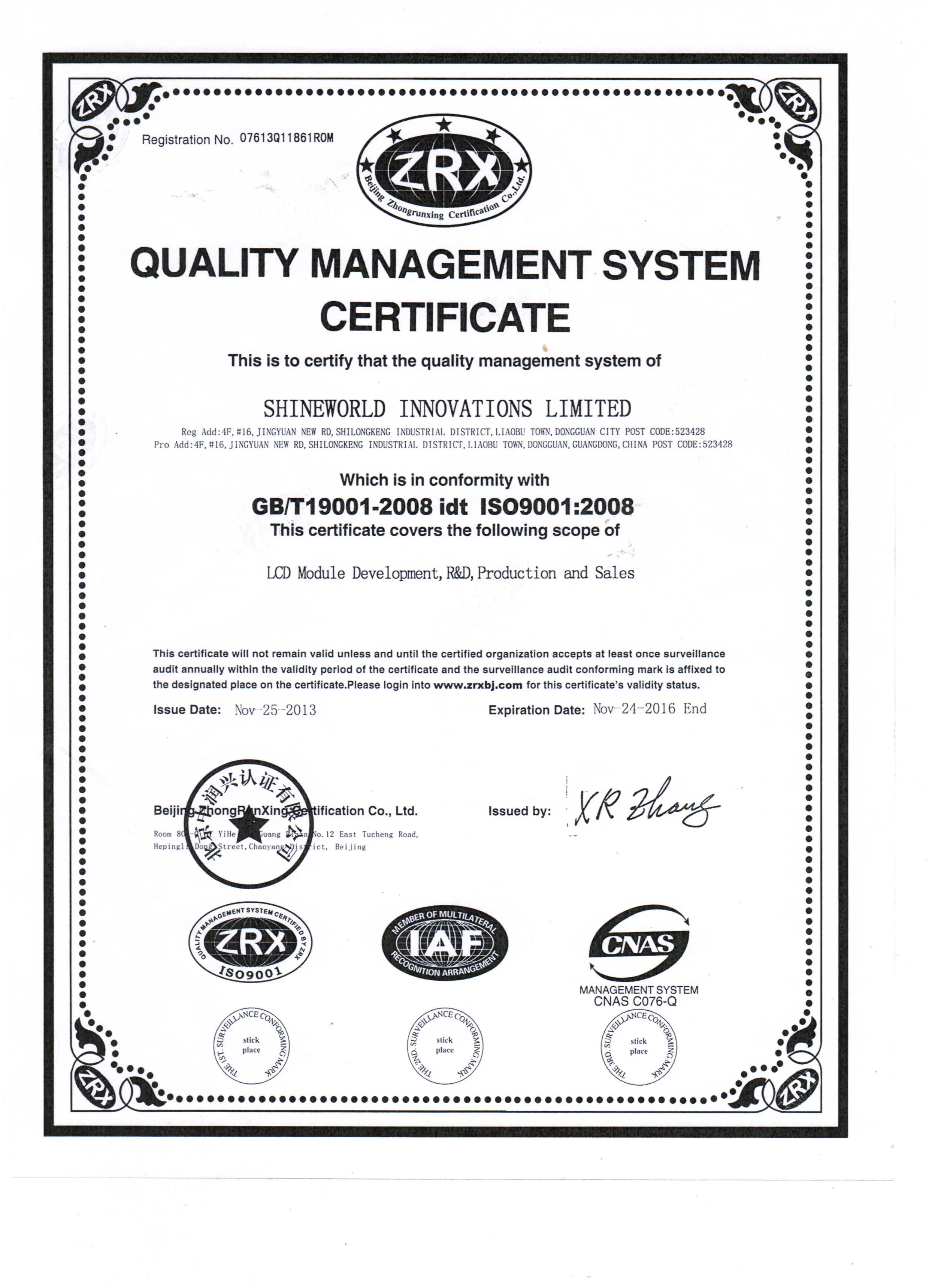

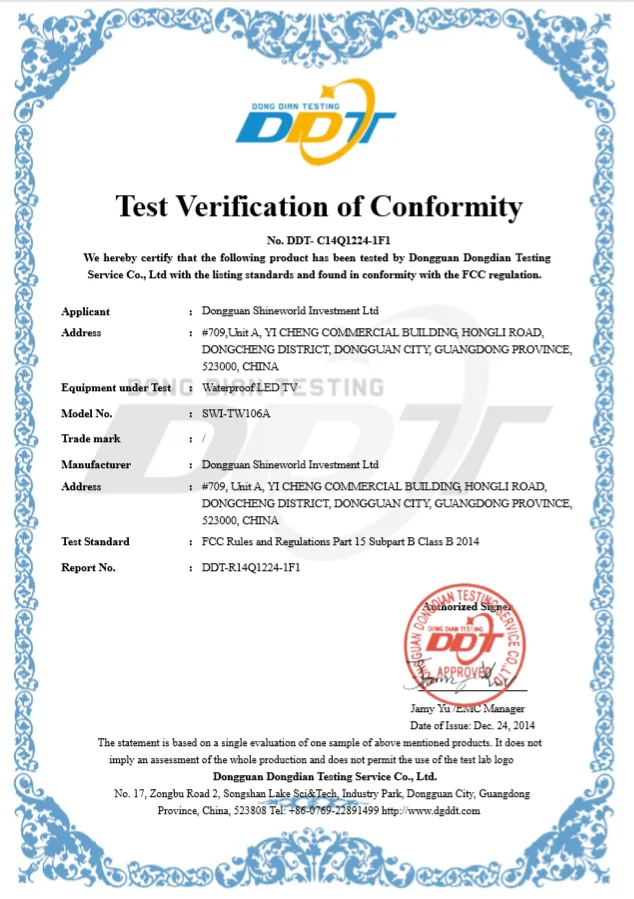

Certifications
