Leisu 360 intelligent automatic PLC control touchless/touchfree car/vehicle wash cleaning machine with quality warranty

Share on (62084604113):


Price:$23,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

     Along to the rise of labor cost, more and more vehicle maintenance shop owner choose the intelligent equipment foe car cleaning. Our auto car washer use the high pressure water, intelligent soap mixing system, non-touch for the whole process for cleaning.  Cooperate with the top brand in the world to ensure all the parts running life exceeded expected and avoid stupid mistakes. like the electric motor, we use the Siemens brand which have highest stable performance, so we can use lower power model to save the cost for machine buyer.

\t
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
\t
Item No
\t
Leisu 360 Plus
\t
Leisu360
\t
Leisu 360 SE
\t
Main Machine Size
\t
7600*(4200-4700)*3370MM
\t
7500*(3850-4500)*3350MM
\t
6.494
\t
Total Power
\t
45KW
\t
37KW
\t
5.9/4.0
\t
Water pump motor power
\t
22KW/pressure85KG
\t
15-17KW/pressure70KG
\t
<=35
\t
Air fan motor power
\t
20.5KW full pressure 11KPA
\t
20.5KW full pressure 11KPA
\t
11.3
\t
Longitudinal motor power
\t
0.37KW VFD promise control
\t
0.37KW VFD promise control
\t
50.1
\t
Transverse motor power
\t
0.75KW Servo drive system
\t
0.75KW Servo drive system
\t
161
\t
Rotary motor power
\t
0.75KW Servo drive system
\t
0.75KW Servo drive system
\t
125
\t
Metering system motor power
\t
1.5KW
\t
1.5KW
\t
\t
CPU
\t
Industrial PLC embedded central processor + dual-core system
\t
Industrial PLC embedded central processor + dual-core system
\t
\t
Drive system
\t
Servo drive system
\t
Servo drive system
\t
\t
Detection System
\t
Intelligent three-dimensional detection system
\t
Intelligent three-dimensional detection system
\t
\t
Sensor system
\t
Ultrasonic sensor+ absolute value digital encoder
\t
Ultrasonic sensor+ absolute value digital encoder
\t
\t
Rinse speed
\t
28S/vehicle
\t
28S/vehicle
\t
\t
U0  pre-soak
\t
28S/vehicle
\t
28S/vehicle
\t
\t
U9 pre-soak
\t
28S/vehicle
\t
\t
\t
Soft water film wax
\t
30S/vehicle
\t
30S/vehicle
\t
\t
Magic shampoo glazing
\t
30S/vehicle
\t
30S/vehicle(Shampoo)
\t
\t
Over glow Hi-gloss
\t
30S/vehicle
\t
30S/vehicle(over glow)
\t
\t
50Air drying
\t
50S/vehicle
\t
50S/vehicle
\t
\t
Chassis wash water consumption
\t
30-50L/vehicle
\t
30-50L/vehicle
\t
\t
U0 pre-soak consumption
\t
200-350L/vehicle
\t
\t
\t
U9 pre-soak consumption
\t
20ml-50ml/vehicle
\t
\t
\t
Crystal was consumption
\t
20ml-40ml/vehicle
\t
20ml-40ml/vehicle
\t
\t
Magic shampoo consumption
\t
50ml-100ml/vehicle
\t
50ml-100ml/vehicle
\t
\t
Overglow shampoo consumption
\t
70ml-100ml/vehicle
\t
70ml-100ml/vehicle
\t
\t
Electricity consumption
\t
1.5-1.8KWH/Vehicle
\t
1.2-1.5KWH/vehicle
\t
\t
Complete car wash water consumption
\t
200-350L/vehicle
\t
200-350L/vehicle
\t

Main Features

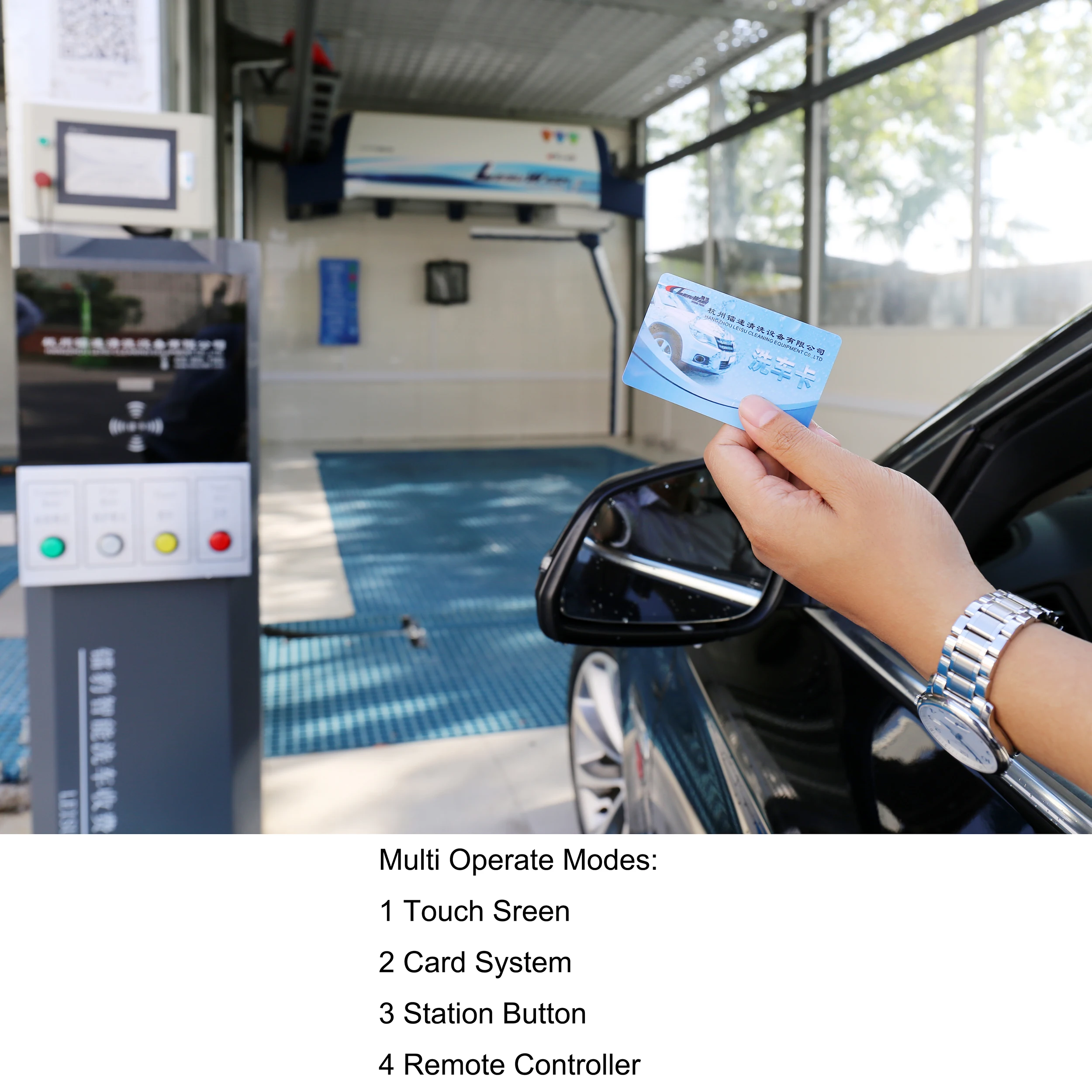

1. Intelligent unmanned systems, self-service card payment system.

2. Smart 360 technology.

3. Intelligent chemical mixing system.

4. Innovative suspension system without resistance rails.

5. Unique embedded fast air drying system.

6. Digital voice security alarm system.

7. Faulty self-checking system.

8. One key anti-frozen system

Detailed Images

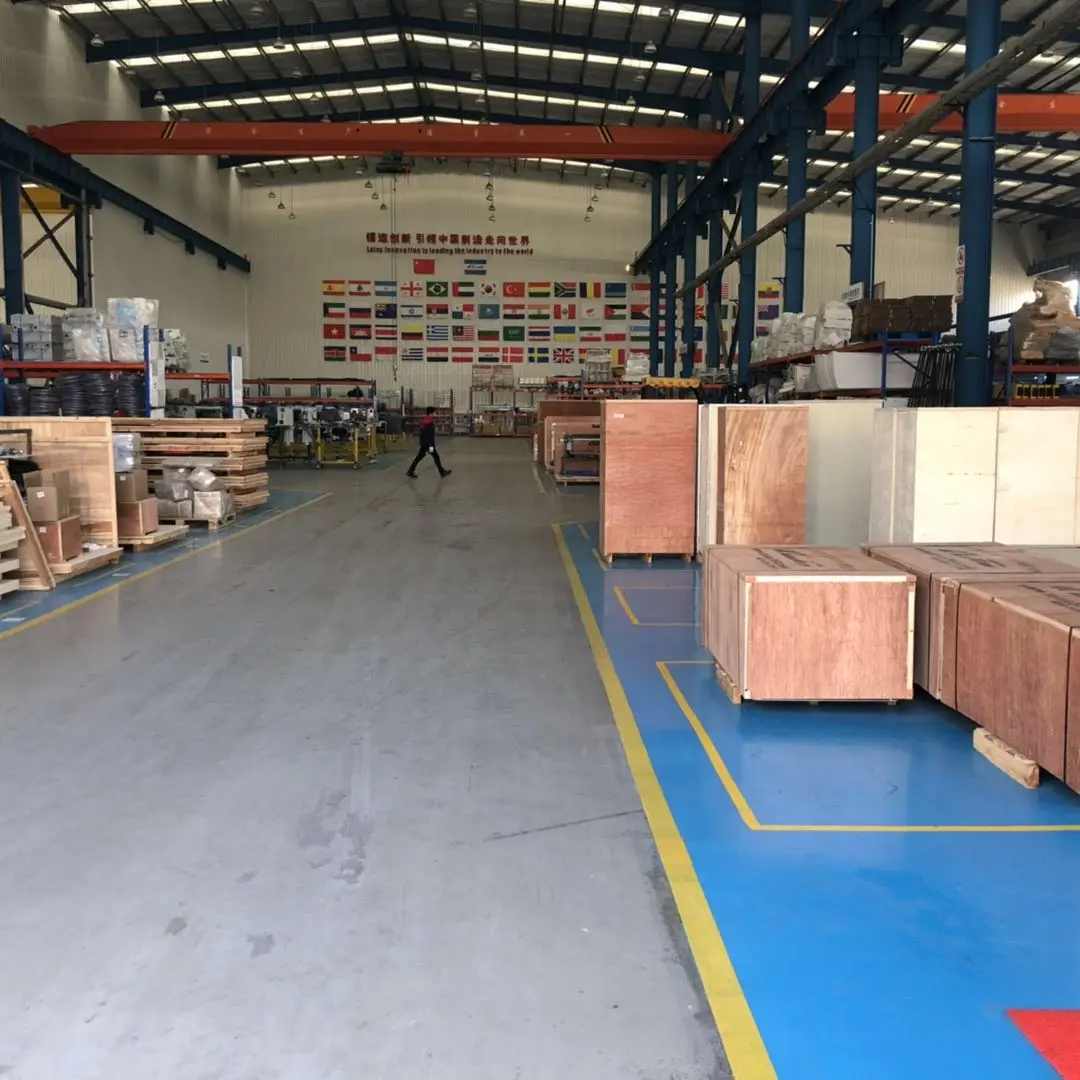

Clear workshop

Name: workshop

Brand: leisu

Original: China

Use the manage rules to make the workshop be clear and comfortable, all the parts be sort on the right place.

Main Frame

Name: Frame
Brand: 304# stainless steel
Original: China
The machine frame is working in the humid environment everyday, Use the 304# stainless steel as the frame to supply the long running life of the whole machine.

Process control

Name: Process control card
Brand: Leisu
Original: China
Use the process control card to control each process be checked and signed by the worker, avoid the fault machines be sent to customer.

Main Features

Name: Electrical parts
Brand: Siemens
Original: Germany
All the electrical parts use the top brands like Siemens, Schneider, Omron...

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
