16,8 V 5A литиевая батарея зарядное устройство для электронной велосипед Скутер електричюеского инструмента мотоцикла 12V 14,4 V 4S зарядное устройство для литий ионного аккумулятора
- Category: Battery Charger >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62084609295):
Product Overview
Description
16.8V 5A E-bike Battery Charger
1). for 4S Lithium Battery Pack

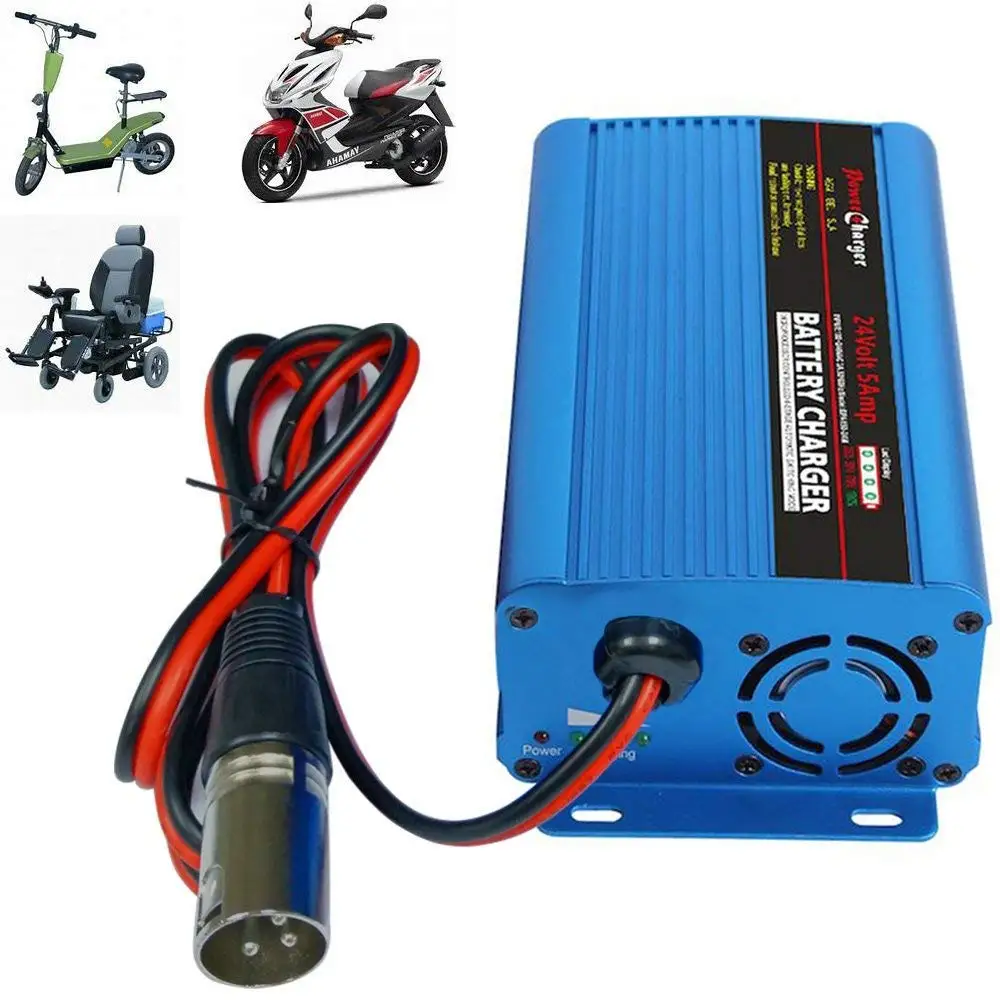

2). for Electric Car, Electric Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift, E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more

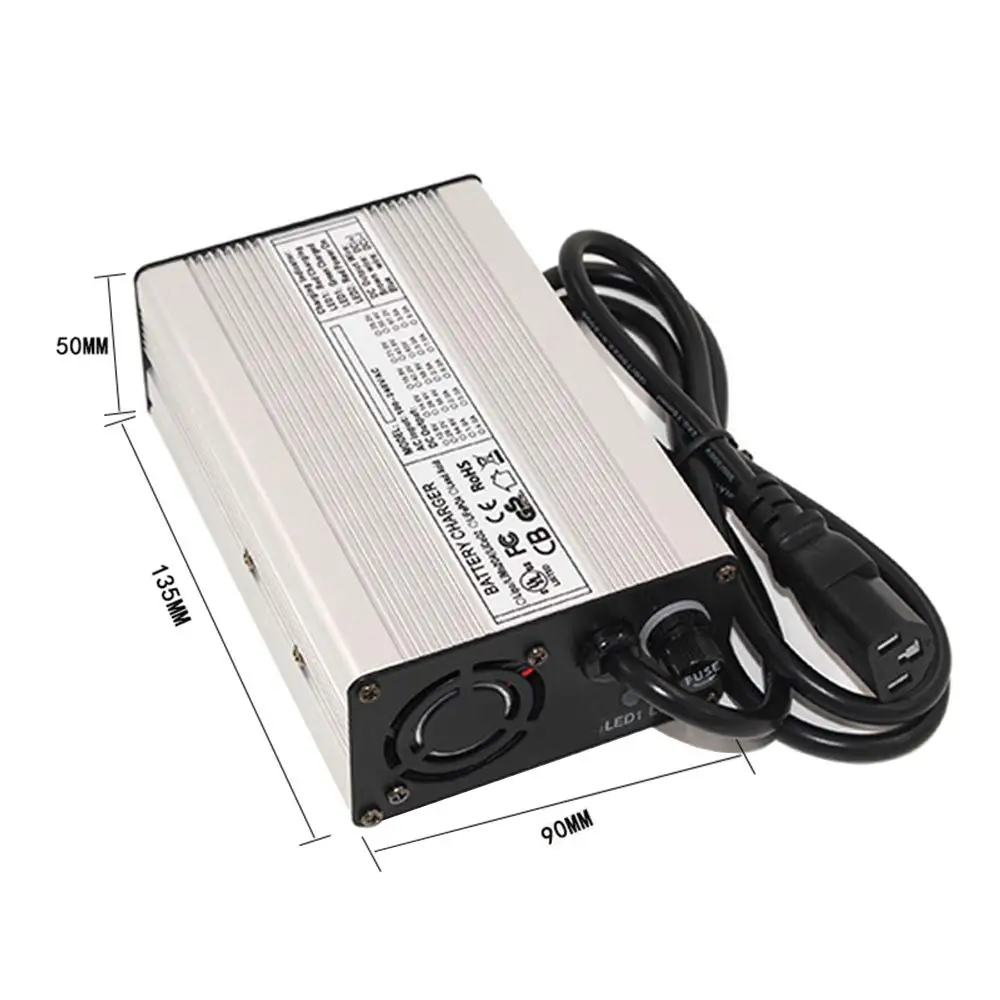

Dimension: L130xW90xH50 mm
Net weight: 900g
Color: Black, White
Model Number | CV-120 | Case Material | Aluminium |
Input Voltage | 100-240Vac 47-63Hz | Warranty | 2 Years |
Output | 12V, 24V, 36V, 48V @6A max. | Operating Temp | -20℃ ~ +50℃ |
Charge Method | CC/CV, Float/cut-off | Storage Temp | -40℃~ +80℃ |
Weight | 0.8KG | Certificate | CE, FCC, RoHS |
Size | L135xW90xH50 mm | Approval Standard | EN60335 EN55014 EN61000 |
Efficiency | ≥88 % | Cooling Method | Fan |
Charging Indicator | LED in red: charging, LED in green: charge full | ||

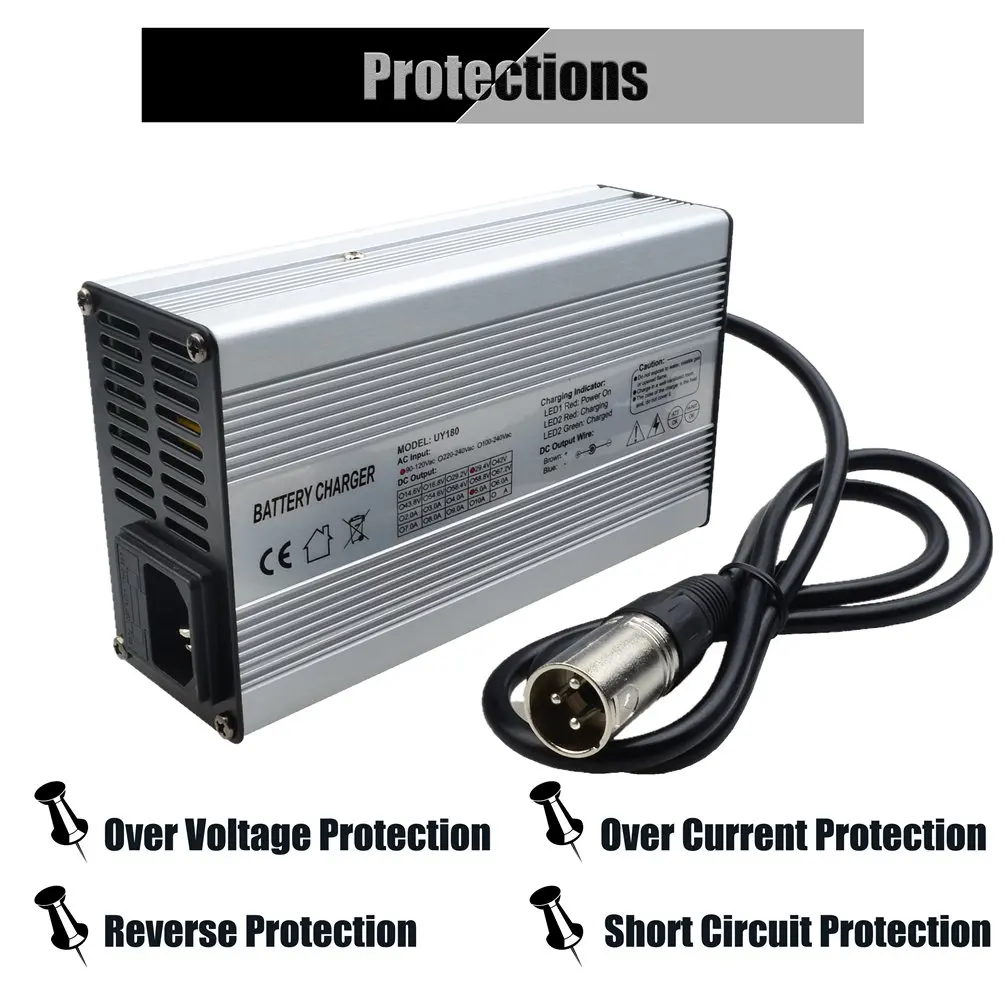

Protection | Over current protection, Over voltage protection, Short Circuit Protection, Reverse Connection Protection | ||
Application | E-Scooter, E-cleaner, E-forklift ,E-car E-boat , E- motorcycle, USP Battery Charger | ||
No. | Output | Constant Voltage (CV) | Constant Current (CC) | Transition / Cut-off Current | |||
Lead Acid | Li-MnO2 | LiFePO4 | Lead Acid (A) | Li(A) | |||
1 | 12V | 14.7V | 16.8V | 14.6V | 6A | 1.2/1.6 | 0.3/0.4 |
2 | 24V | 29.4V | 29.4V | 29.2V | 3A | 0.8/1.0 | 0.2/0.25 |
3 | 36V | 44.1V | 42.0V | 43.8V | 2.5A | 0.6/0.8 | 0.15/0.2 |
4 | 48V | 58.8V | 54.6V | 58.4V | 2A | 0.5/0.6 | 0.125/0.15 |
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%. | |||||||
FAQ:
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
