17 19 22 inch POG WMS FOX340 T340 game touch monitor with 3M ELO protocol bezel optional

22 inch 1680*1050 game touch monitor for POG or WMS or FOX 340

Style NO

 YJ22INCH

Aspect Ratio

 16:10

Native resolution

 1680 x 1050

Number of colors

16.7 million

Number of touches

 Single-touch ( multitouch optional)

Brightness

 250cd/m²

Response

5 msec

Viewing angle

178/178(°)

Contrast ratio

1000:1

Backlight lifetime (hours)

 LED / 50,000

Touch panel

Touch  style :

 Infrared

Touch interface

 USB/RS232

Touch panel  protocol

 compatible with 3M/ELO

Sureface hardness

7H

power

Power source

Input AC110 ~ 240V

Power consumption

25W

output

DC12V/4A

Frenquency

55Hz-75Hz

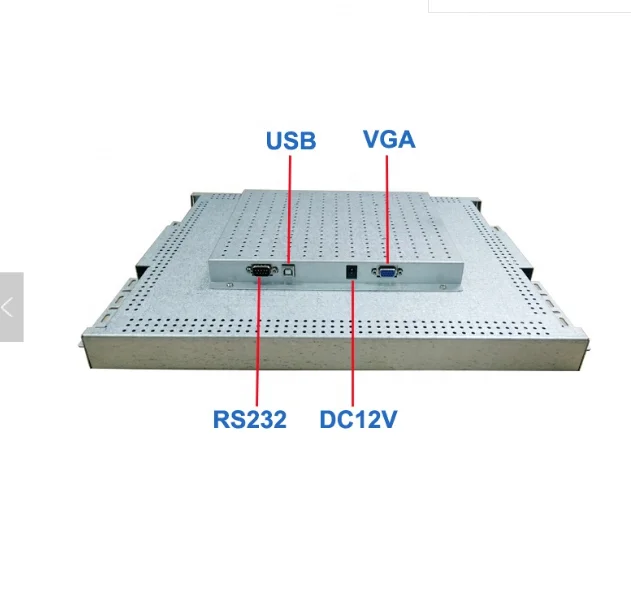

External connectors

connectors

12V DC-IN

video

 CGA / VGA / HDM1

Touch connector

USB/RS232

Operation

Temperature

-10 ~ +65(°C)

Humidity range

10%-90%

Housing material

metal

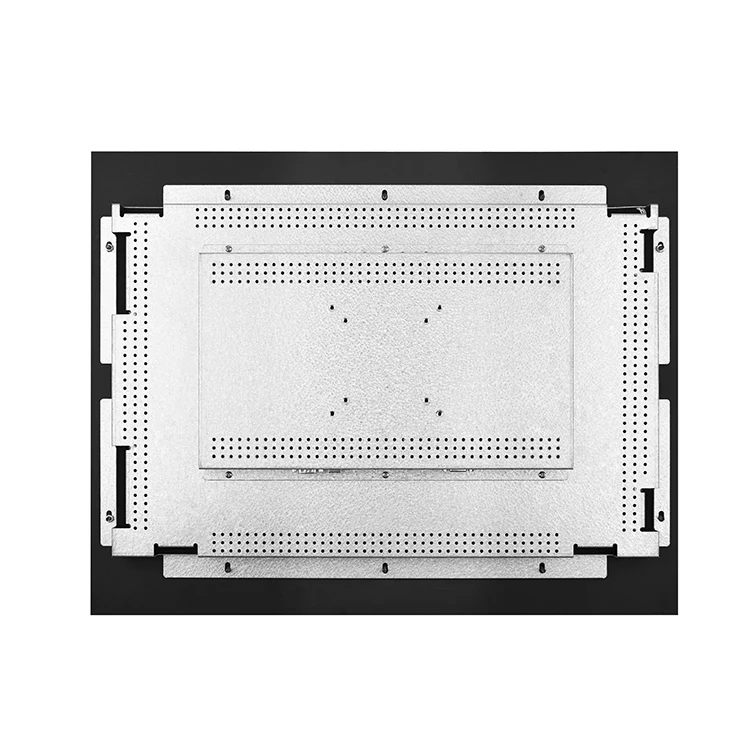

Mounting

1)75mm and 100mm VESA mount; Rear mount ; 2)Flush mount with included brackets  ;
