New Design Toilet Roll Core Strech Film Roll Core Cutting Machine Paper Tube Cutter
- Category: >>>
- Supplier: Jota Machinery Industrial (Kunshan) Co. Ltd.
Share on (62084777056):
Product Overview
Description
Product Description

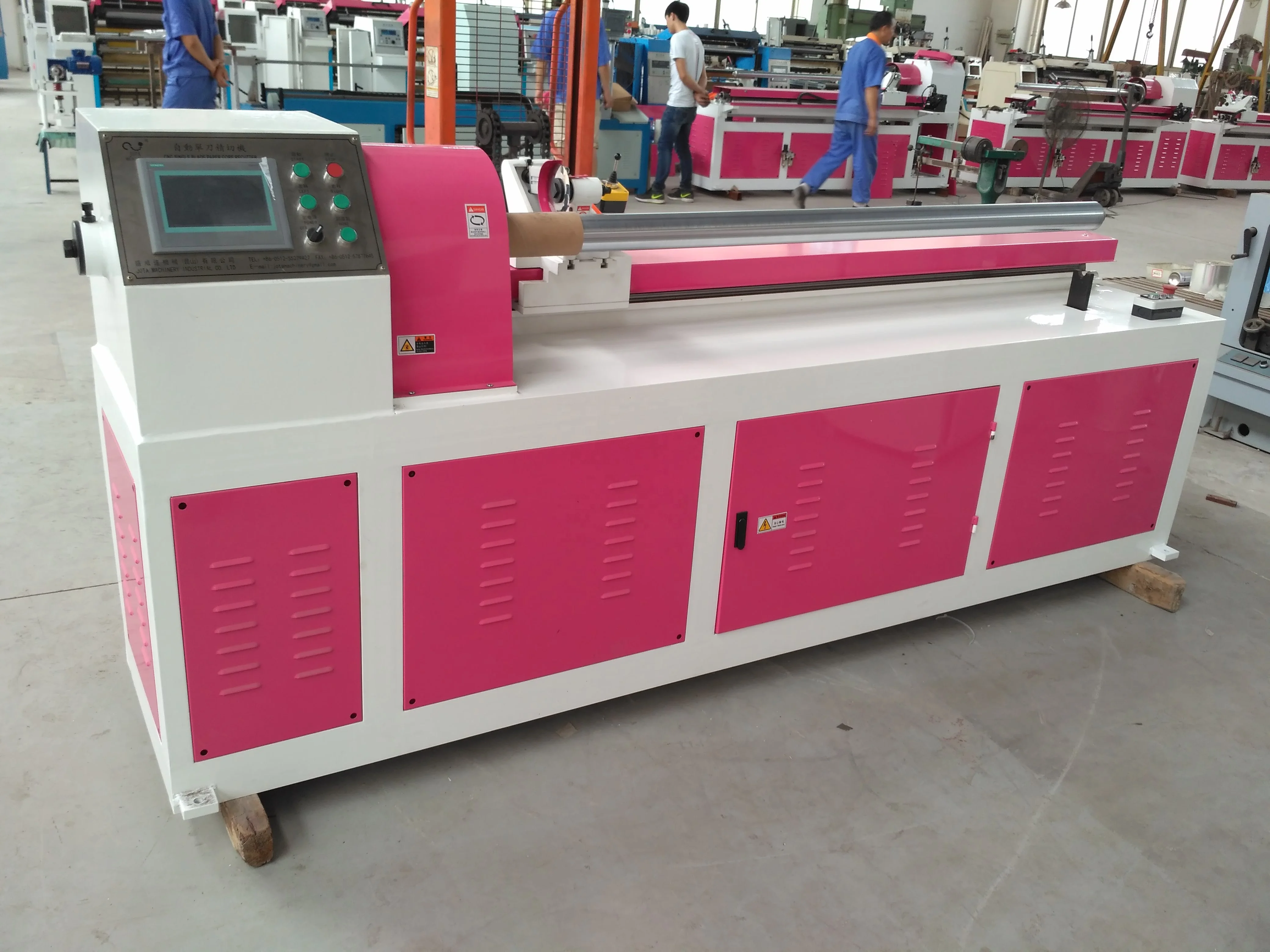

New Design Toilet Roll Core Strech Film Roll Core Cutting Machine Paper Tube Cutter
Parameters:
Jumbo Tube length | 2000mm |
Paper Tube Inner Dia | 50-152mm |
Paper Tube Thickness | 4-15mm |
Cutting Length | 10-2000mm |
Cutting Speed | 60 cuts/min |
Turret Movement Speed | 1.8 m/min |
Working Pressure | 0.6Mpa |
Voltage | 380V 3 Phase 50Hz |
Power | Paper tube turn; knives and axes do not turn |
Cutting Mode | Paper tube turn; knives and axes do not turn |
Operator | 1 person |
Mould | 2 sets |
Uploading/Unloading | Hand control |
Dimension | Main Body: 3900mm*1000mm*2100mm |
Weight | 1200kgs |
Specification:
Machine adopts Delta PLC and Touch Screen control system, all the parameters are displayed on the touch screen, and it runs automatically. |
It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control. |
It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head. |
It adopts double round blades to cutter. |
It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head. |
It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head. |
It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components. |
Paper tube clamping adopts automatic chucks. |
Application:

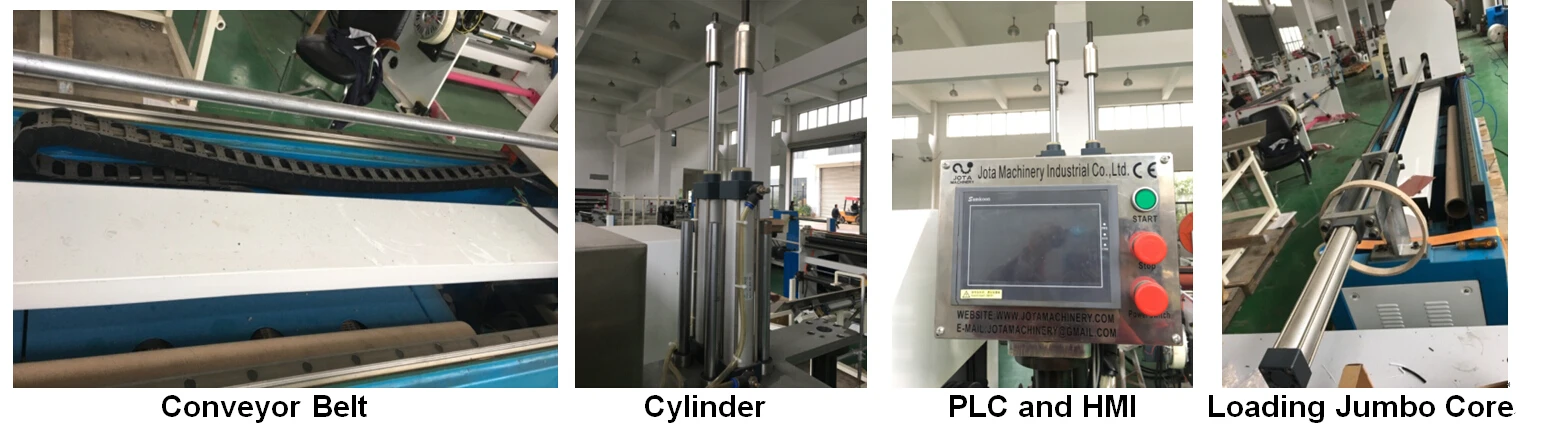

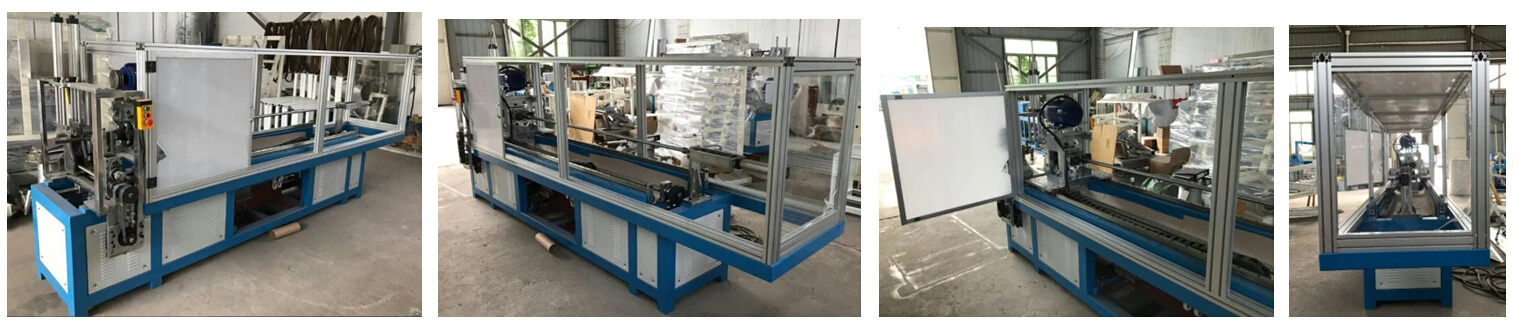

Detailed Images

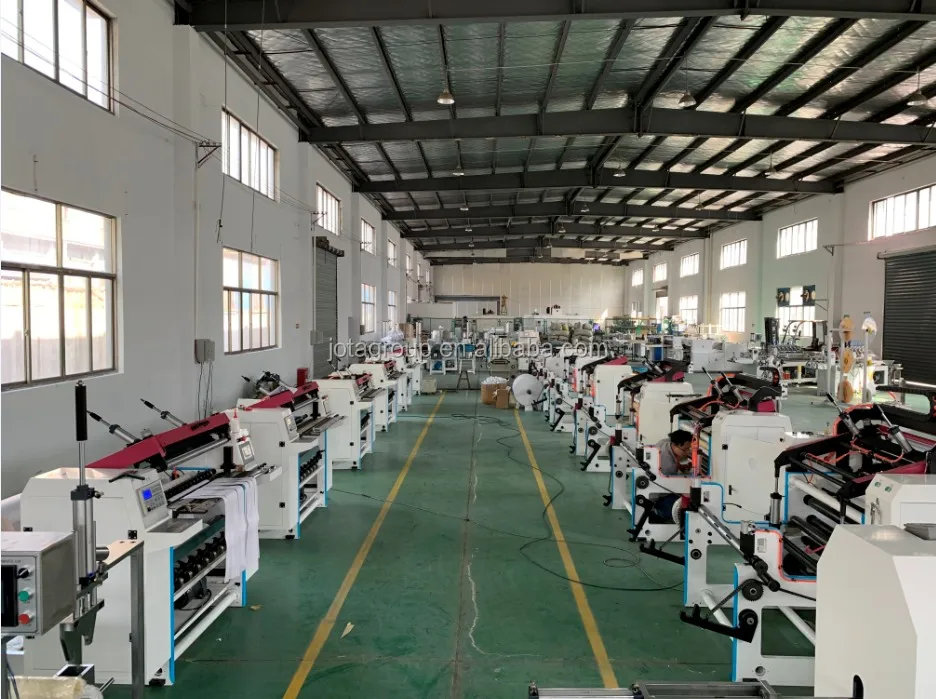

Processing Center

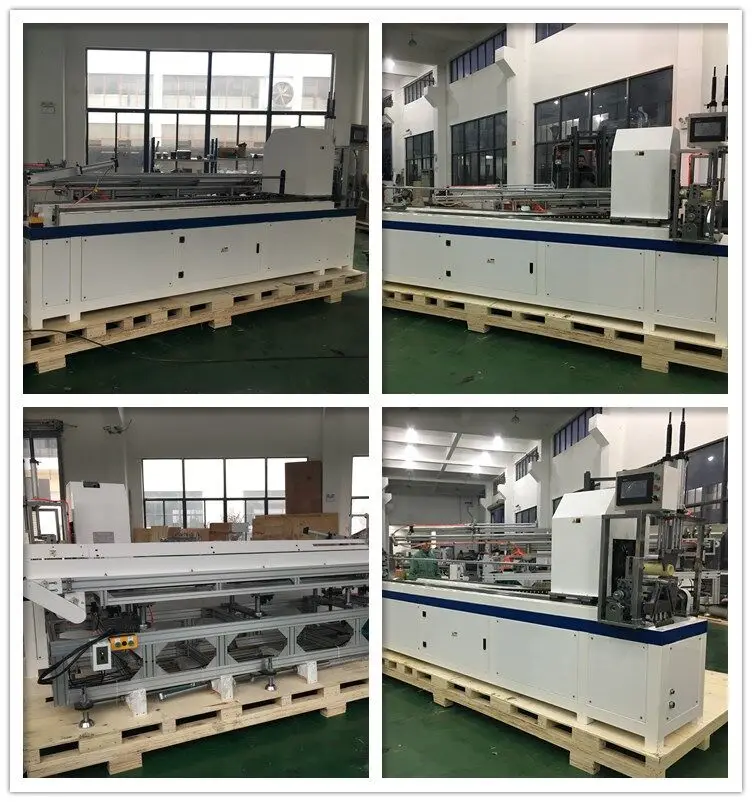

Packaging & Shipping
Packing Details: New Design Toilet Roll Core Strech Film Roll Core Cutting Machine Paper Tube Cutter, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Menu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 15 days after received 30% deposit receipt by T/T. New Design Toilet Roll Core Strech Film Roll Core Cutting Machine Paper Tube Cutter.
Customer Factory
Exhibition
Company Information
Jota Machinery Industrial(Kunshan) Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
FAQ
1, Are you trading company or manufacturer?
· We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
· Yes we have CE, SGS etc.
3,What's the delivery time?
· Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
· Sure of that, it is our honor to work for you, and control the goods quality
Our Service:
Q1:what's payment terms ,trade terms you accept ?
· Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.
Q2. If the machine's spare parts broken ,where can i get ?
· We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free
Q3. If the machine's spare parts broken ,where can i get ?
· We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will send you for free
