This line is of high automation,large capacity,low energy consumption,labor-saving,small area occupation,easy operation,good quality and high profit.

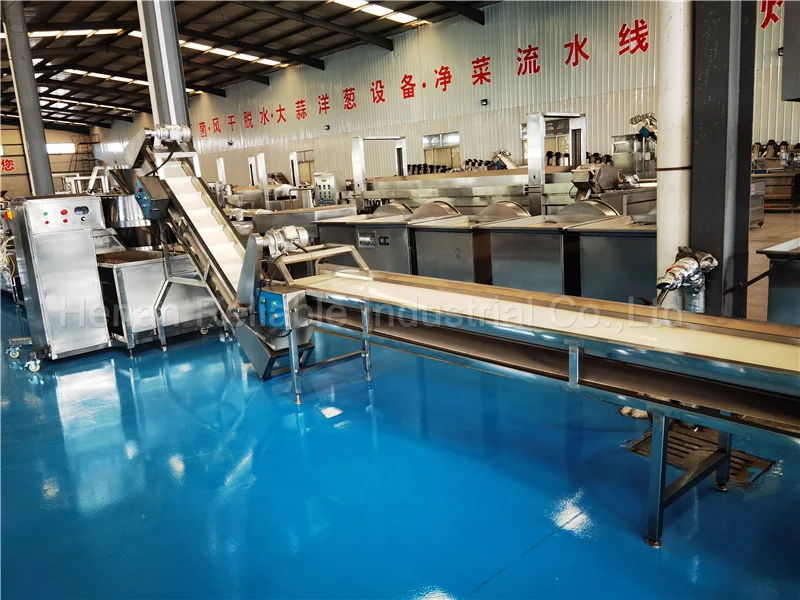

The line mainly include the process of potato washing peeling machine,cutting machine,air bubble washing,blanching machine,dewatering machine,frying machine,de water and de oiling ,flavoring machine and automatic packing machine.
We will provide formula and technology guide free of charge to make sure you can make high quality and delicious potato chips. (With small changes and add freezer to the line,you can make frozen french fries)
Main Technical Parameters for 100kg Automatic Potato Chips Production Line | ||||||
No. | Product Name | Overall Dimension | Electric Power | |||
1. | Loading elevator | 2500x700x2500mm | 0.37kw, 380V,50 Hz | |||
2. | Washing and peeling machine | 2835x700x1600mm | 2.75kw,380V,50Hz | |||
3. | Potato pick up and trimming machine | 3000x740x1100mm | 0.37kw,380V,50Hz | |||
4. | Loading elevator | 1700x700x1600mm | 0.37kw,380V,50Hz | |||
5. | Potato chips (french fries cutting machine) | 745x590x1385mm | 0.75kw,380V,50Hz | |||
6. | Bubble Washing Machine | 2500*1300*1400mm | 1.87kw,380V,50Hz | |||
7. | Electric heating type blanching machine | 4000*1000*1400mm | 54.37kw,380V,50Hz | |||
8. | Rinsing and cooling machine | 2500*1300*1400mm | 1.87kw,380V,50Hz | |||
9. | Air cooling and drying machine | 4000*950*1600mm | 6.75kw,380V,50Hz | |||
10. | ELectric heating type frying machine | 5000*1700*2250mm | 125kw,380V,50Hz | |||
11. | Air cooling and de-oiling machine | 4000*900*1700mm | 6.75kw,380V,50Hz | |||
12. | Potato chips pick up line | 2500x740x1100mm | 0.37kw,380V,50Hz | |||
13. | Drum type potato chips flavoring machine | 2800x850x2200mm | 1.12kw,380V,50Hz | |||
14. | Automatic potato chips packing machine | 1800*1200*1900mm | 4.75kw,380V,50Hz | |||

◆The whole line uses Stainless Steel 304 material with food conatcting part.
◆ Excellent potato chips quality with bright colour.
◆ Proven technology for easy and safe operation.
◆ The frying machine is equipped with automatic filter machine, fried potato chips keeps in bright color, good taste, improve product grade.
◆ Less oil residue for the potato chips.
◆ Professional personnel give full-course guidance and installation, we also provide free training for operators.
◆ The exclusively researched formula for making crispy potato chips will be provide for customers at free of charge.
◆ We use national standard elecric copper motor, the conveying speed can be adjustable as per cutomer's demands
