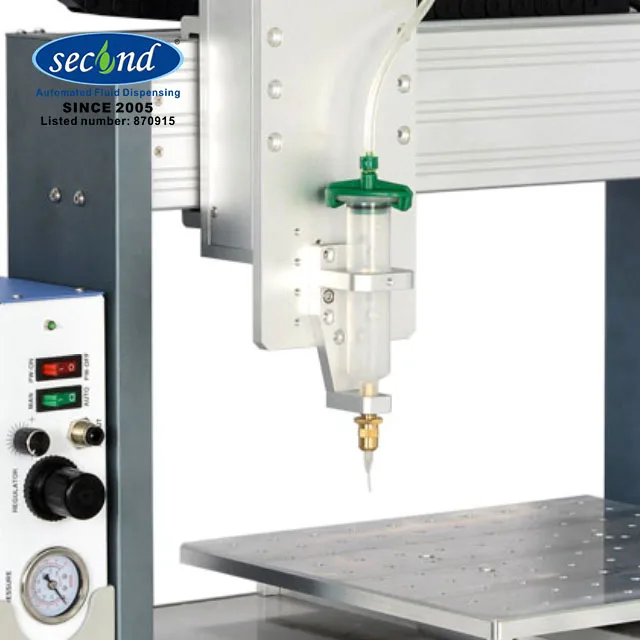

High precision 3 Axis XYZ CE certificated automatic dispensing robots glue dispenser for LCD and LED
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (62084811022):
Product Overview
Description
Product Description
Specification
Model | SEC-400EDN | ||||||
Work Area | 400(X)╳400(Y)╳100(Z)mm | ||||||
Size | 590(L)*628(W)*679(H)mm | ||||||
Y/Z(Max load) | 7kg/3kg | ||||||
Travel speed | 400mm/sec(XY)/200mm/sec(Z) | ||||||
Drive mode | Stepping motor + belt + precise linear guide rail | ||||||
XYZ Repeatability | ±0.025mm | ||||||
Resolution | 0.01mm | ||||||
Program capacity | 999 parameter files, 65535 points per file | ||||||

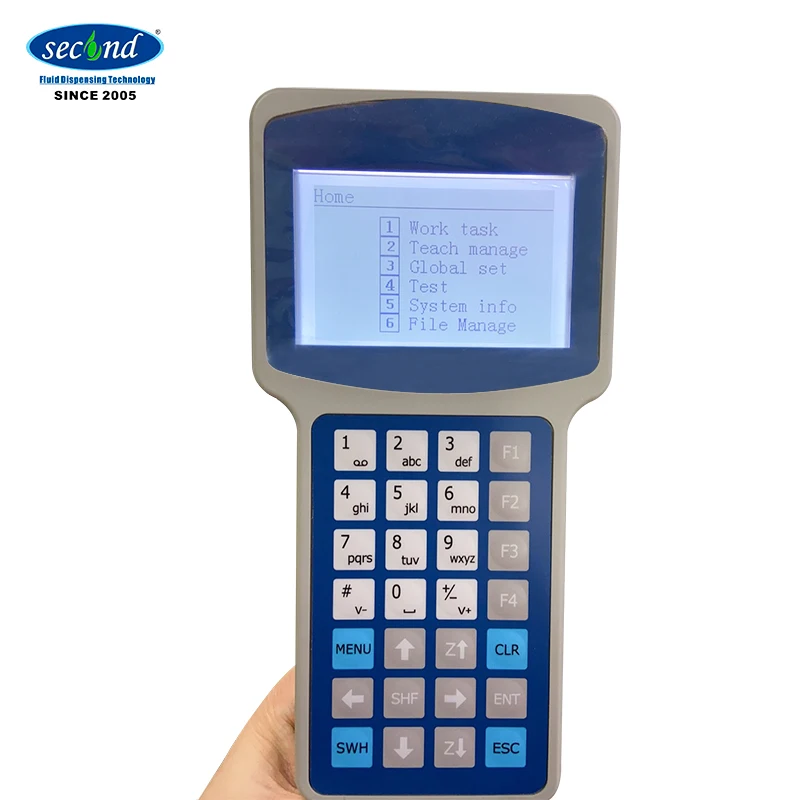

Operation system | LCD panel /Teach pendant | ||||||
Motor | micro stepping motor | ||||||
Movement pattern | 3 axis point to point, continuous line, arc | ||||||
I/O Signal ports | 4 inputs/4 outputs | ||||||
Power supply | AC220V 50/60Hz 0.5kw | ||||||
Work condition | Temperature 0-40℃;relative humidity 20-90% | ||||||
Weight | About 45KG | ||||||
Packing & Delivery
Generally, we pack our machine with proper ply-wooden box. However, if client has special requirement, we can customize.
Company Profile
Second Intelligent Equipment was found in 2005. The factory is able to provide total solution for industrial adhesive glue dispensing, and potting automated machines, e.g. desktop, stand-alone, inline,and robot dispensers.
Second Inelligent is support by strong engineering teams (software, hardware) since the beginning of the company's establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware, CNC, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the SECOND, because we believe customer is the FIRST.
Second Inelligent is support by strong engineering teams (software, hardware) since the beginning of the company's establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware, CNC, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the SECOND, because we believe customer is the FIRST.
