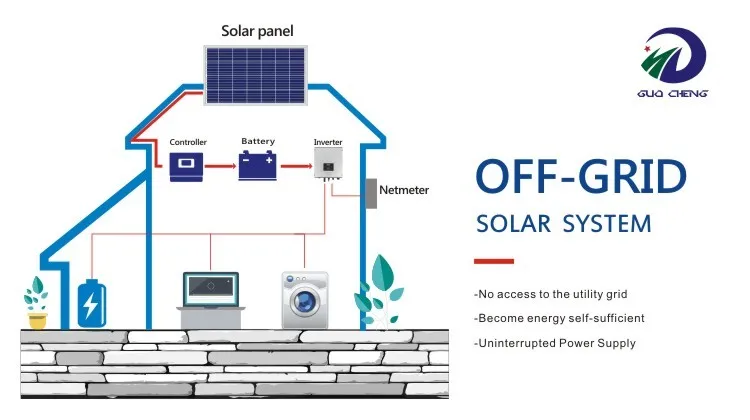

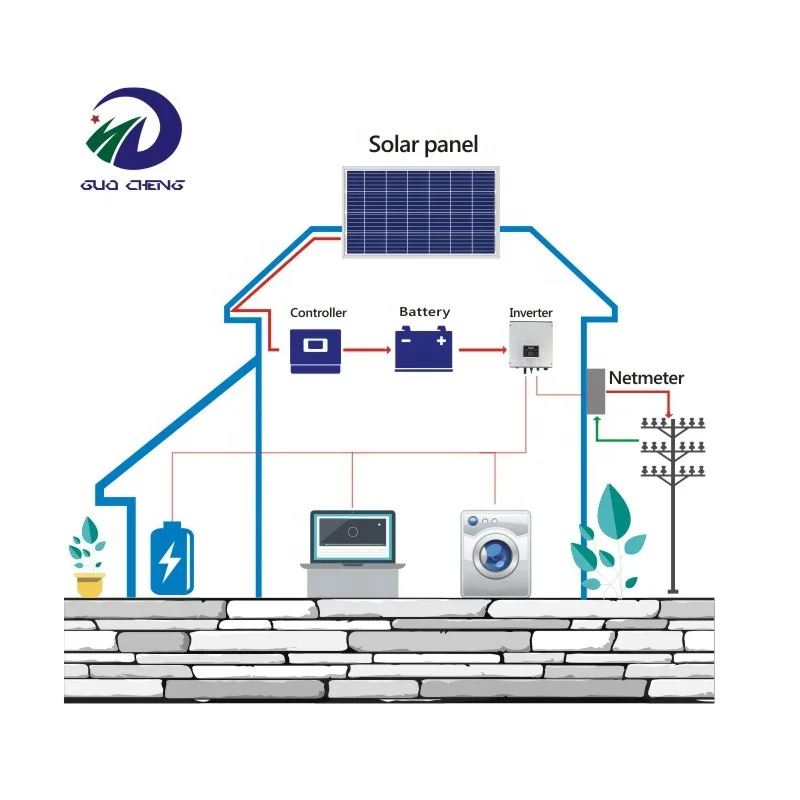

The off-grid power generation system consists of a solar panel, a battery and a charge and discharge manipulator, and an off-grid inverter. The solar power controller controls and controls the power generated, and on the other hand sends the adjusted energy to the DC load or communicates. The load, on the other hand, sends the remaining energy to the battery pack for storage. When the generated power is not satisfactory for the load demand, the controller sends the battery power to the load. After the battery is filled with electrical energy, the controller must control the battery not to be overcharged. When the stored energy of the battery is discharged, the controller must control the battery not to be over-discharged to protect the battery.
Item
System Components
specification
Quantity
1
Solar panel
Poly 300w solar module
4pcs
2
Inverter
1KW
1set
3
Charger Controller
24V 50A(MPPT or PWM)
1pc

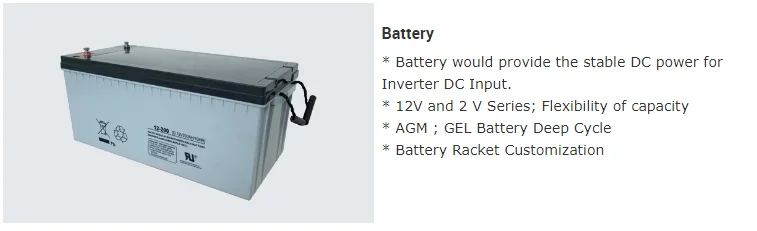

4
Battery
12V,100AH
2pcs
5
Mounting Structure
Roof/ Gound Mounting Structure
1set
6
breaker
40A/2P
1
7
Surge protector
SPD
1
8
power cable
ZRYJV 1m*6mm2
3m
9
DC cable
PF 1m*4mm2
1m
Main Component

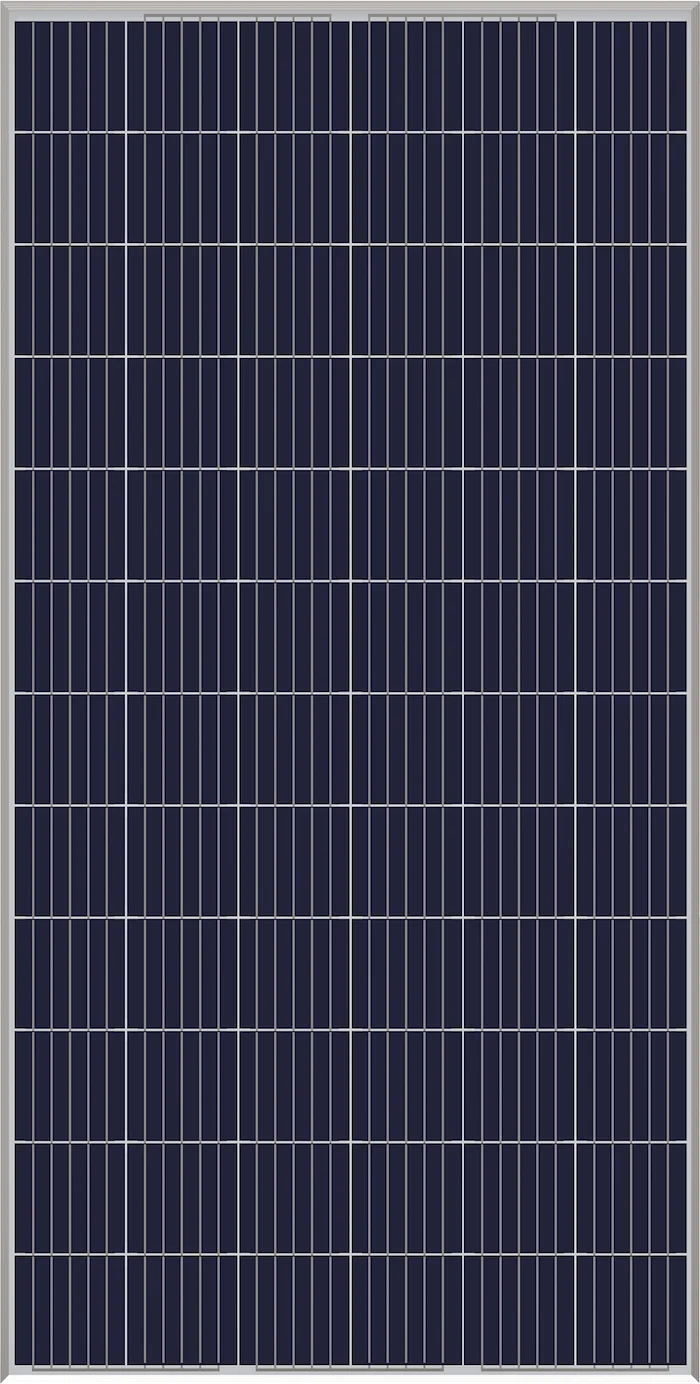

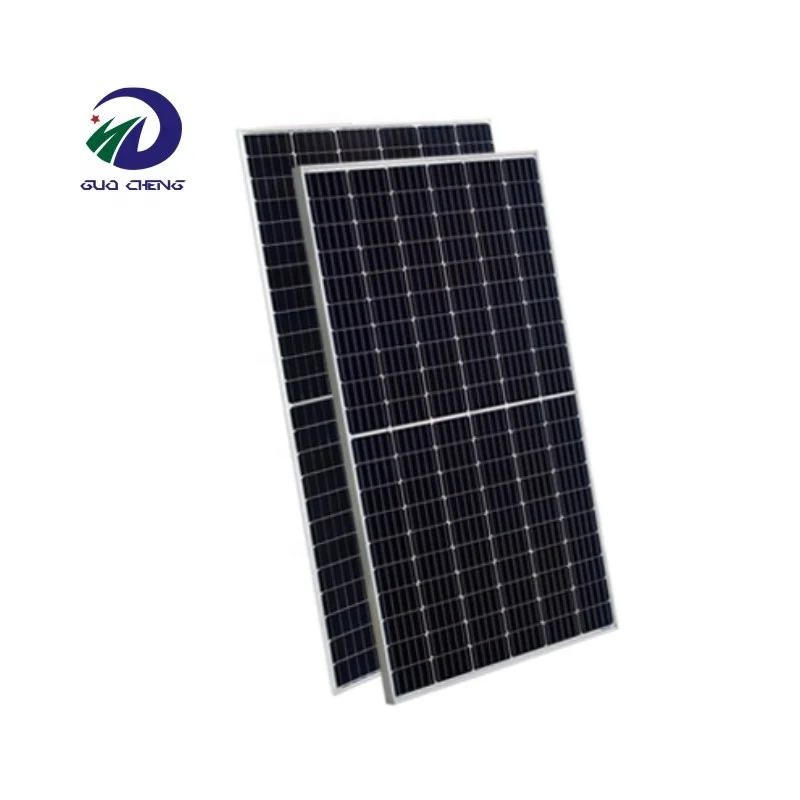

Solar panel
* High Efficiency PV Module of 17%-18% * Anti-Reflective Glass Increase Light Absorption
* Certified Anti Salt-mist, Anti Ammonia Corrosion by TUV
* Smart Module Compatible, Maximum Optimized System Power Output.
Inverter
* Overload Over-Voltage Over-Temperature Short Circuit Protection * Normal Voltage Over Voltage Auto Recovery * Wide DC Input Voltage from 12V to 360V * High Efficiency of DC - AC Conversion

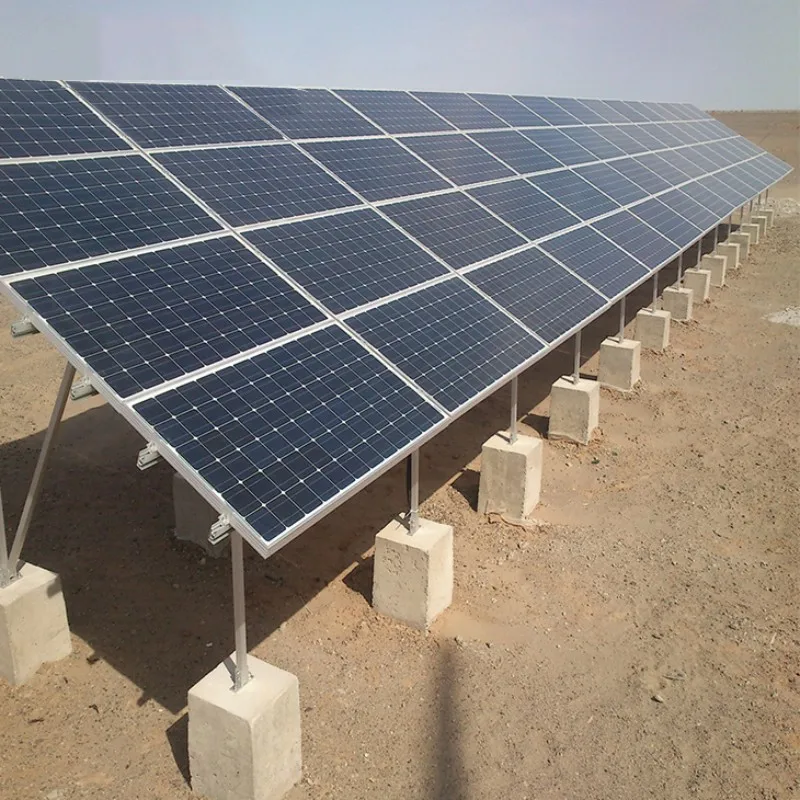

Mounting Structure
For the mounting bracket, we do not only offer a single style of choice. Depending on the space you are using, we offer a customizable mounting bracket to ensure that the solar panel is safe, stable and aesthetically pleasing.
Payment & Delivery

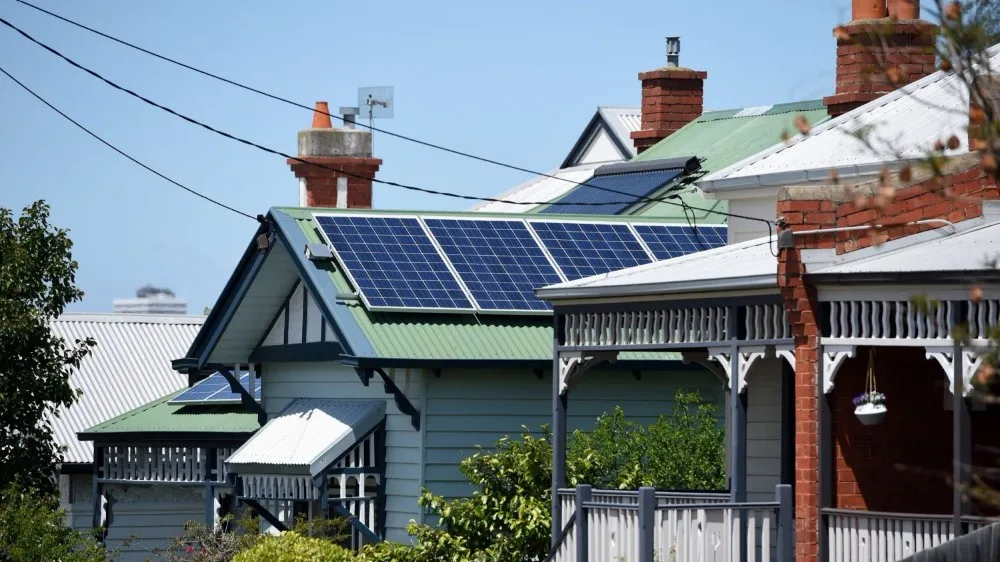

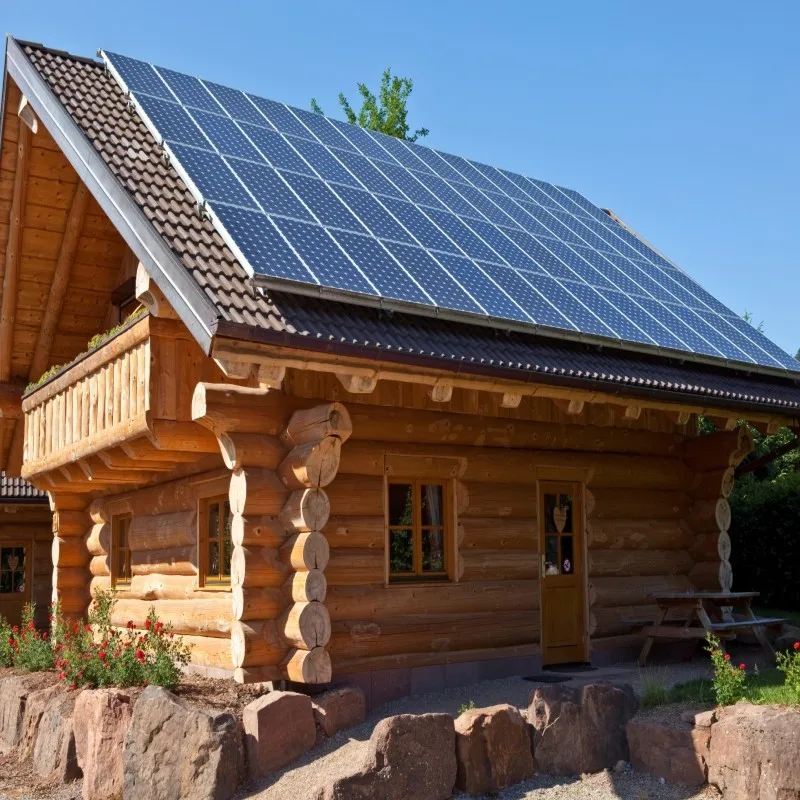

Application
Our Company
Related Products
Certifications
FAQ
Q1: Are you a manufacturer or a trading company? We are both a manufacturer and a trading company. Our factory has great production capacity. The number of solar panels produced can reach more than 10,000 pieces per day.
Q2: What is your main product? Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.
Q3: How many employees in your company? We have about 100~120 employees, including office staff, R&D engineers, production line workers.
Q4: Can we request sample for your products before ordering? Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: What is the general lead time? Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.
If you have any other questions,
You can contact us and we will do our best to meet your requirements!
