Introduction

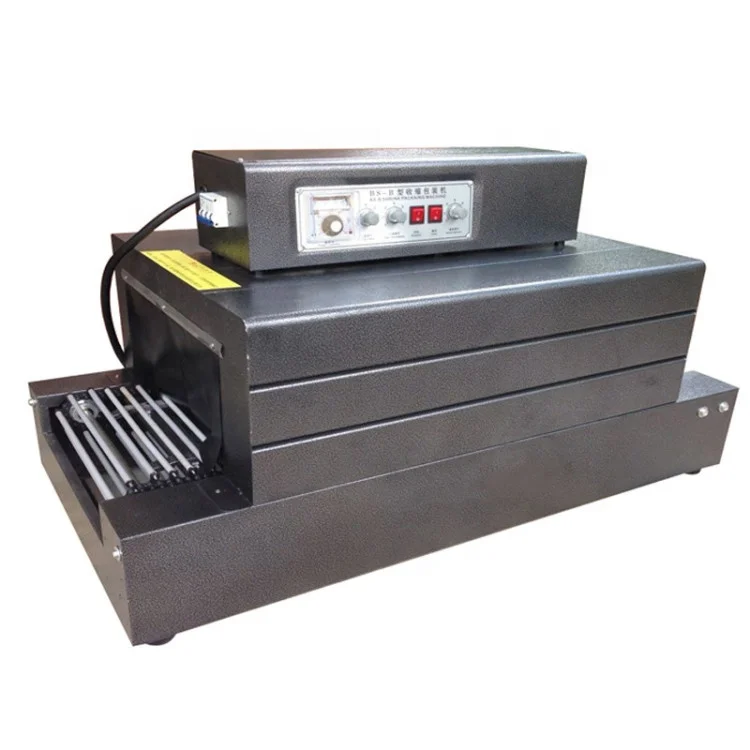

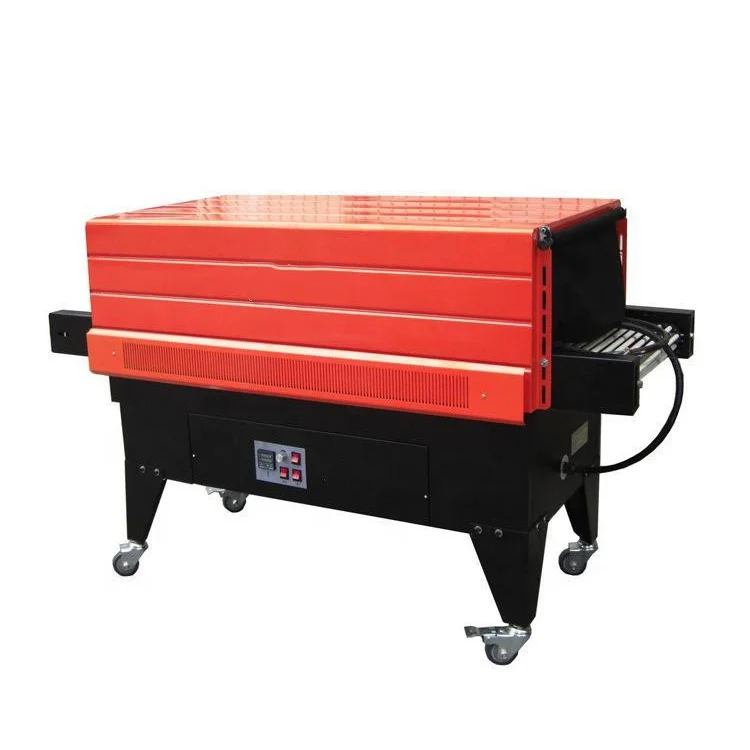

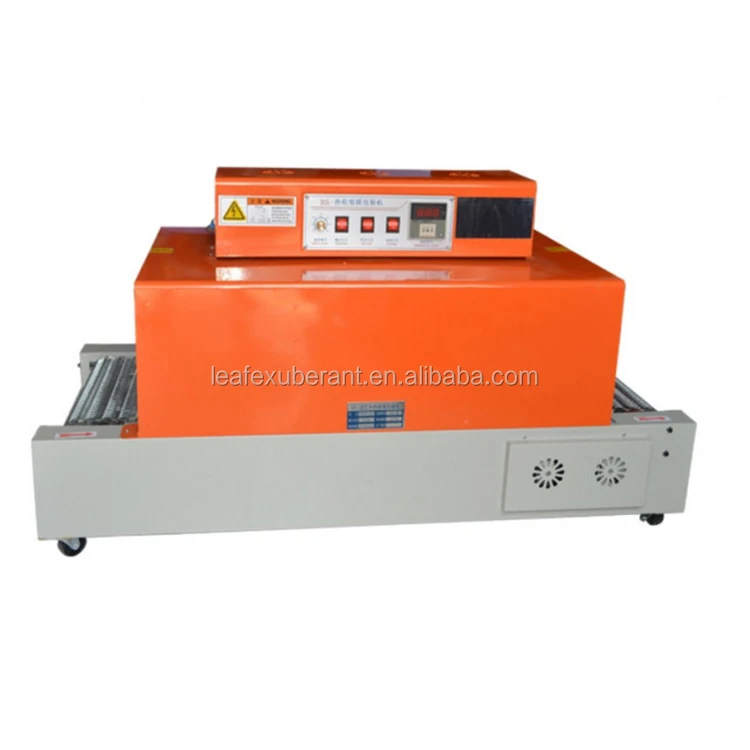

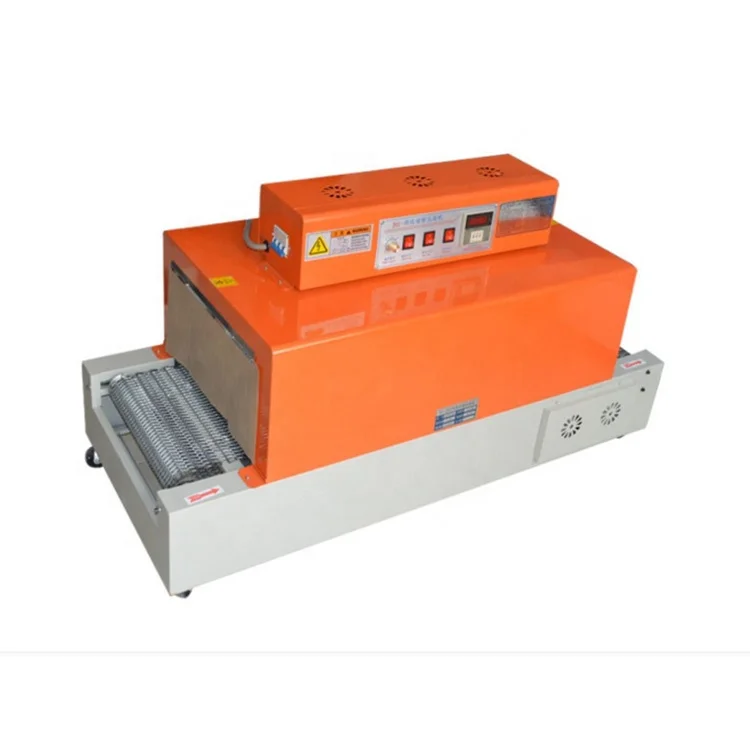

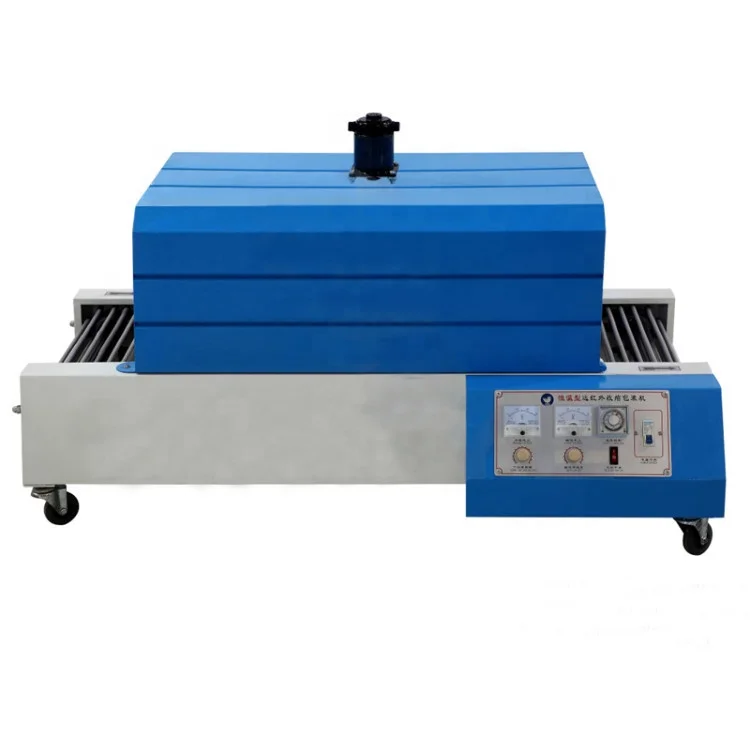

1. BS-400 Wrapping Heat Shrink Tunnel Machine is suitable to shrink thin shrink films such as POF, PVC, PP, POP, etc with far-infrared radiation.
2.The thickness of shrink film should be in the range of 0.01-0.04 mm.

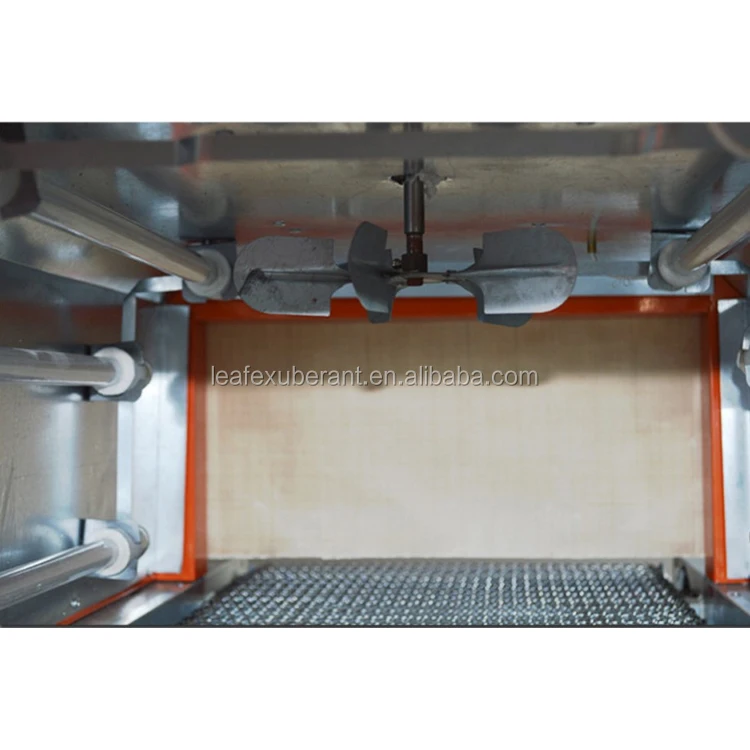

3.Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel.

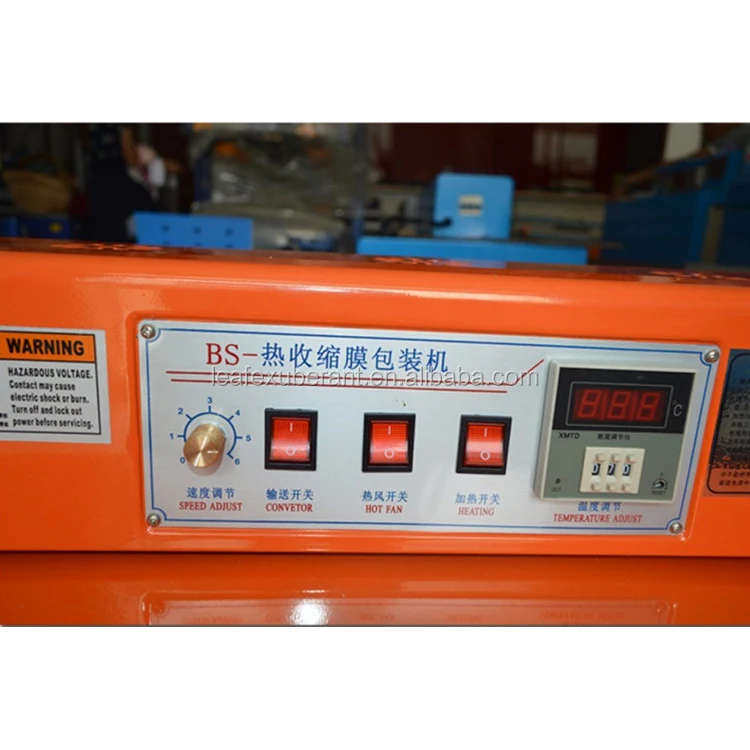

4.The temperature of the shrink room and the speed of the conveyer are adjustable.
5.And the size of shrink tunnel can be customized.

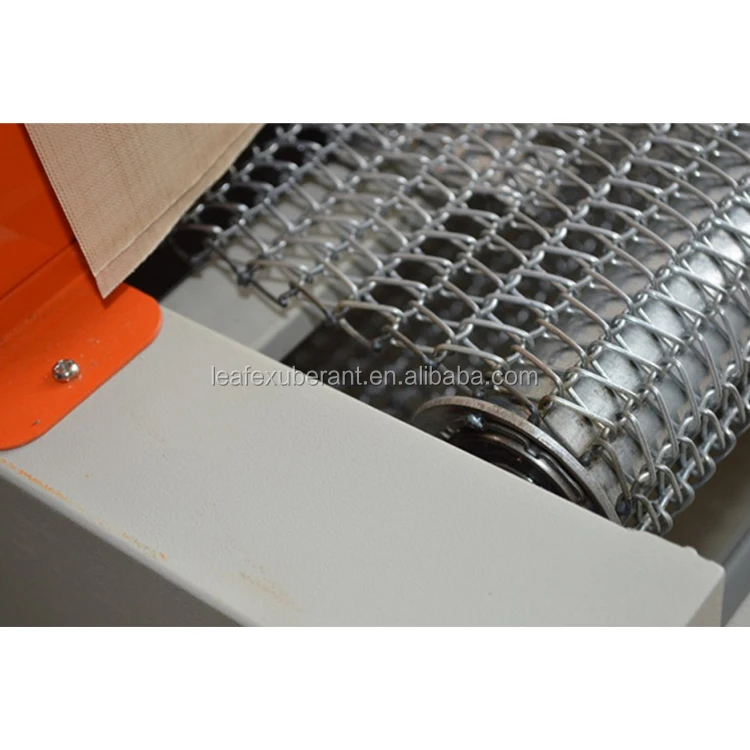

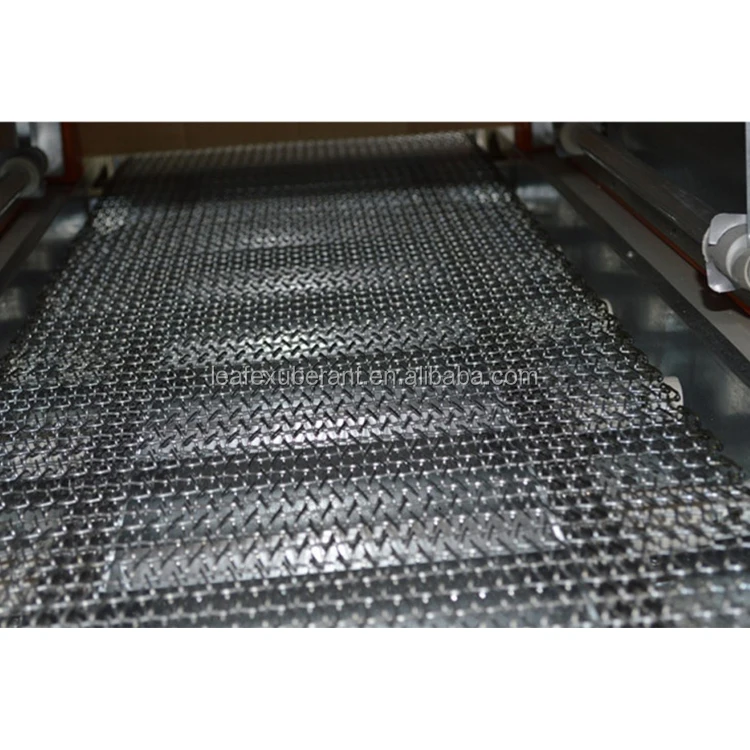

6.Conveyor has option of chain roller and iron net conveyor for choice.
2.
Parameters
Model | BS-400 |
Voltage | AC220V or 380V /50-60Hz |
Power | 6kw |
Shrinking temperature | 0-300℃ |
Tunnel size | 800*400*200mm |
Loading weight | 15kg |
Working speed | 0-10m/min |
Dimensions | 1100*570*730mm |
Machine weight | 65kg |
Film | PVC, PP, POF |
