High Quality mini lathe machine cnc original Manufacturer PX1 SIEG
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (62085199490):
Product Overview
Description
Product Description---High Quality mini lathe machine cnc original Manufacturer PX1-SIEG
Product details

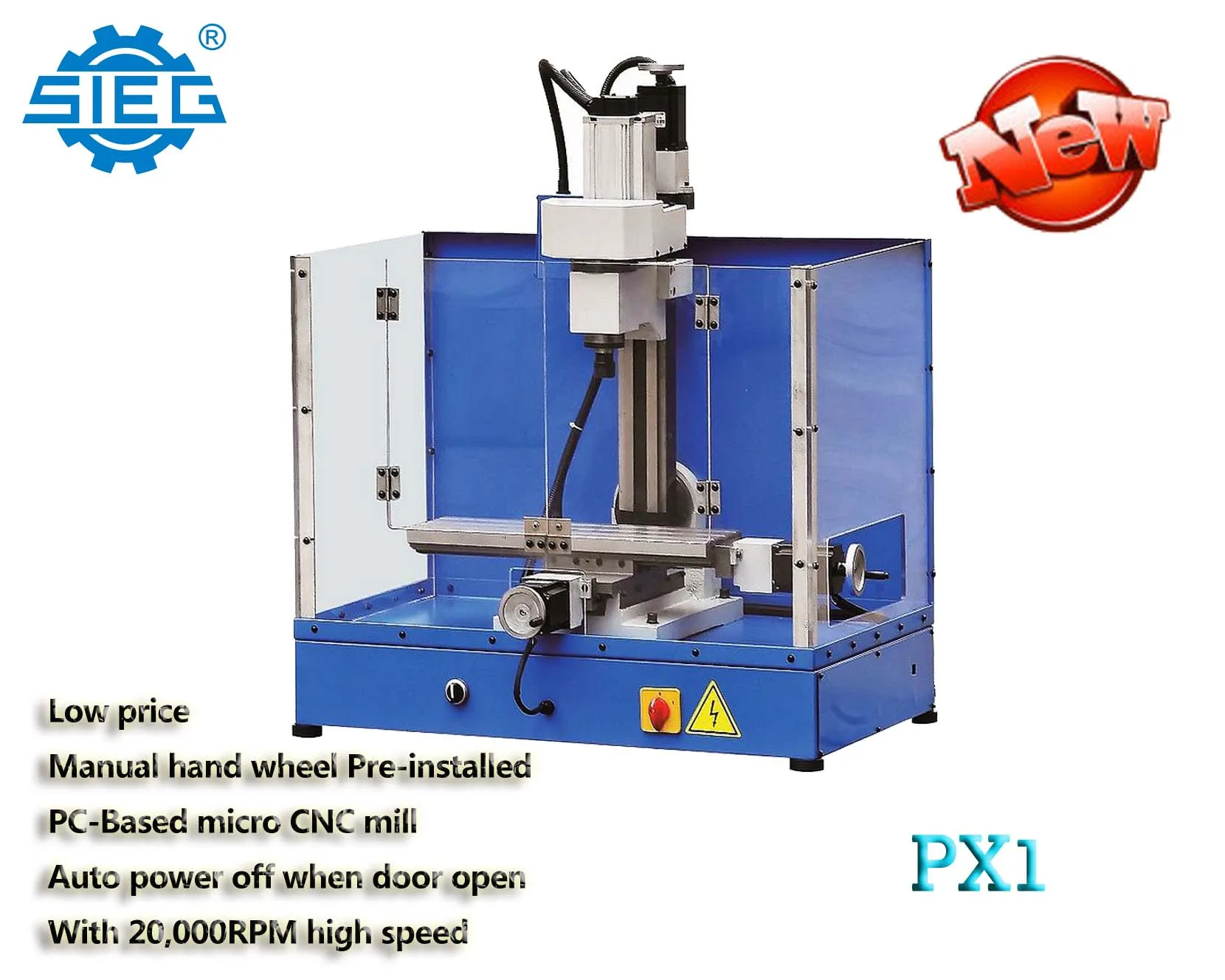

Key features
High spindle speed 20000 r/min

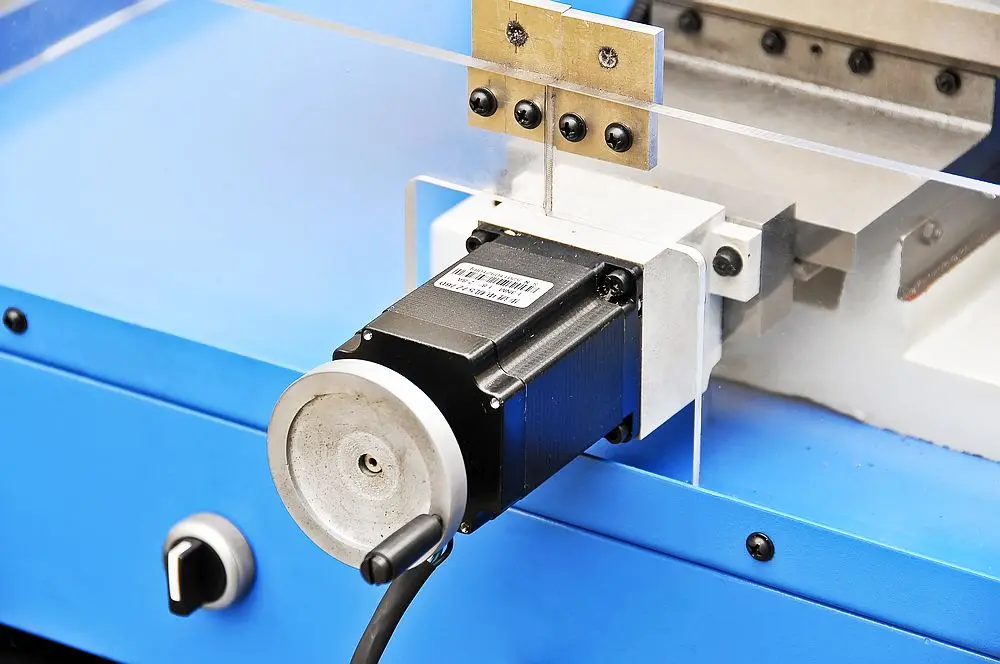

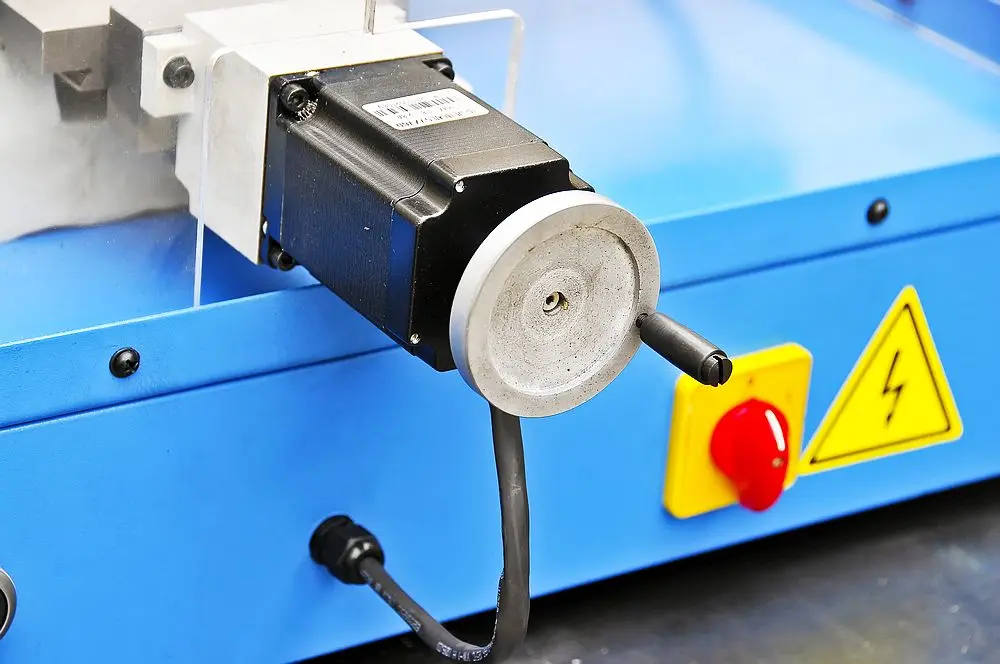

Standard manual hand wheel
Specification

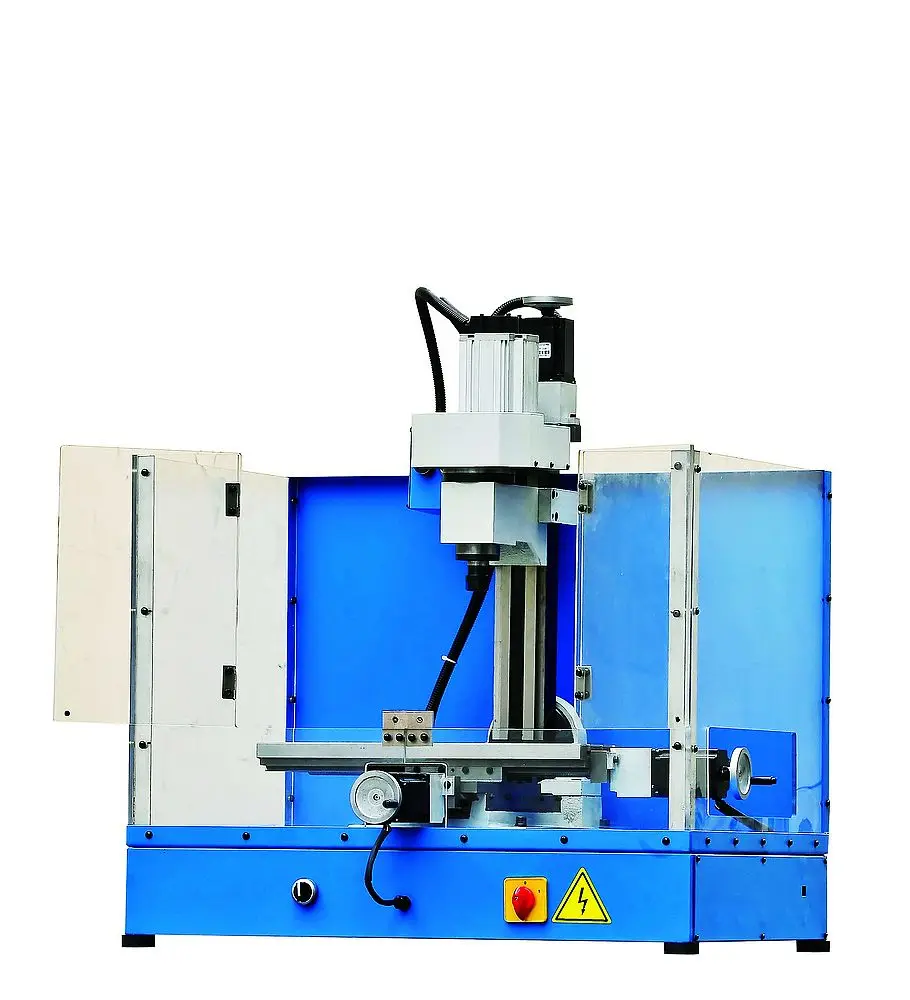

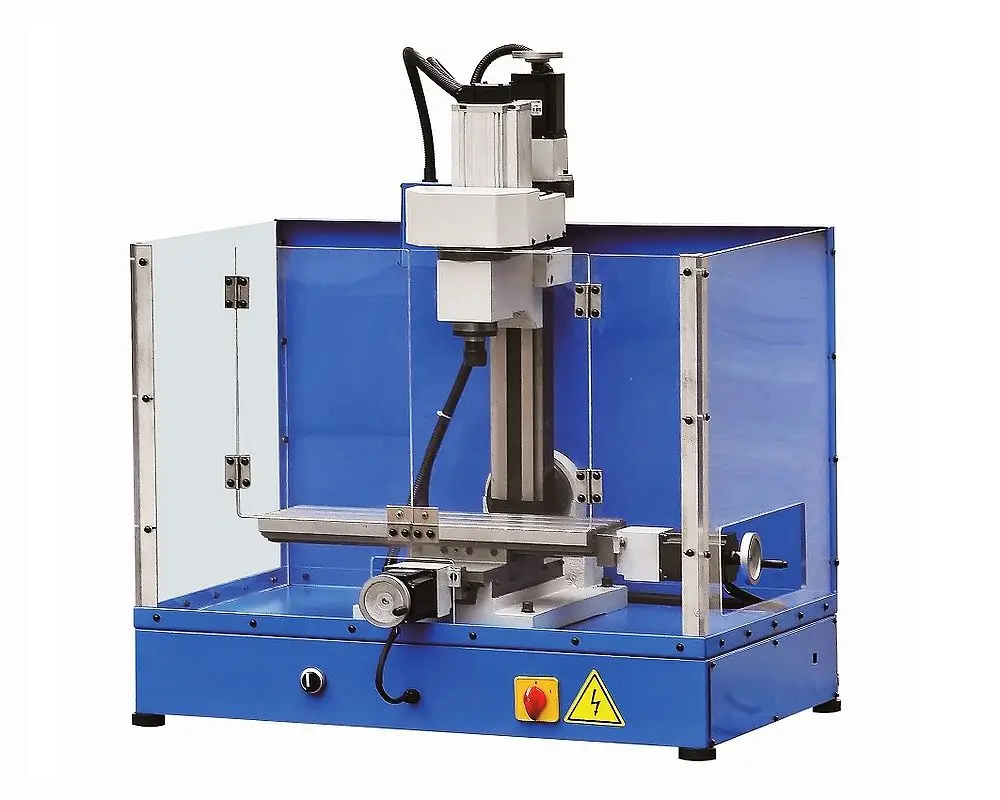

| PX1 Baby CNC Milling Machine | ||
| TABLE | Table size | 400×145mm |
| T slot (amount×width×distance) | 3×8mm×45mm | |
| Max. load | 20kg | |
| TRAVEL | X travel | 230mm |
| Y travel | 120mm | |
| Z travel | 230mm | |
| Spindle nose to table | 45mm-275mm | |
| Spindle center to column | 140mm | |
| SPINDLE | Spindle taper | ER16 |
| Spindle motor | 500W | |
| Spindle speed | 300-20000r/min | |
| FEED | The max moving speed | 300mm/min |
| The max feeding speed | 200mm/min | |
| Power of X/Y/Z | 1.35Nm | |
| ACCURACY | Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm | |
| OTHERS | Power | 230V/120V |
| Weight(NW/GW) | 90/120kg | |
| Overall dimension | 560×680×800mm | |
| Packing size | 660×780×900mm | |
Our company
Liuzhou Gluck Imp&Exp Co., Ltd is an office(located in Liuzhou City,Guangxi Province) of Shanghai SIEG CNC Machinery factory,which belong to SIEG Group, was founded in 1988.
As we have professional in exporting machine equipment, such as milling machines, lathe machine, engraving machines. Especially, we have a lot of experience in providing CNC and manual machines for hobby DIY, education and light industry. We know exactly "What you want" and "How you want it".
Certifications
Packing & Dilivery
Related Products
FAQ
Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.
Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.
Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.
Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.
Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales
