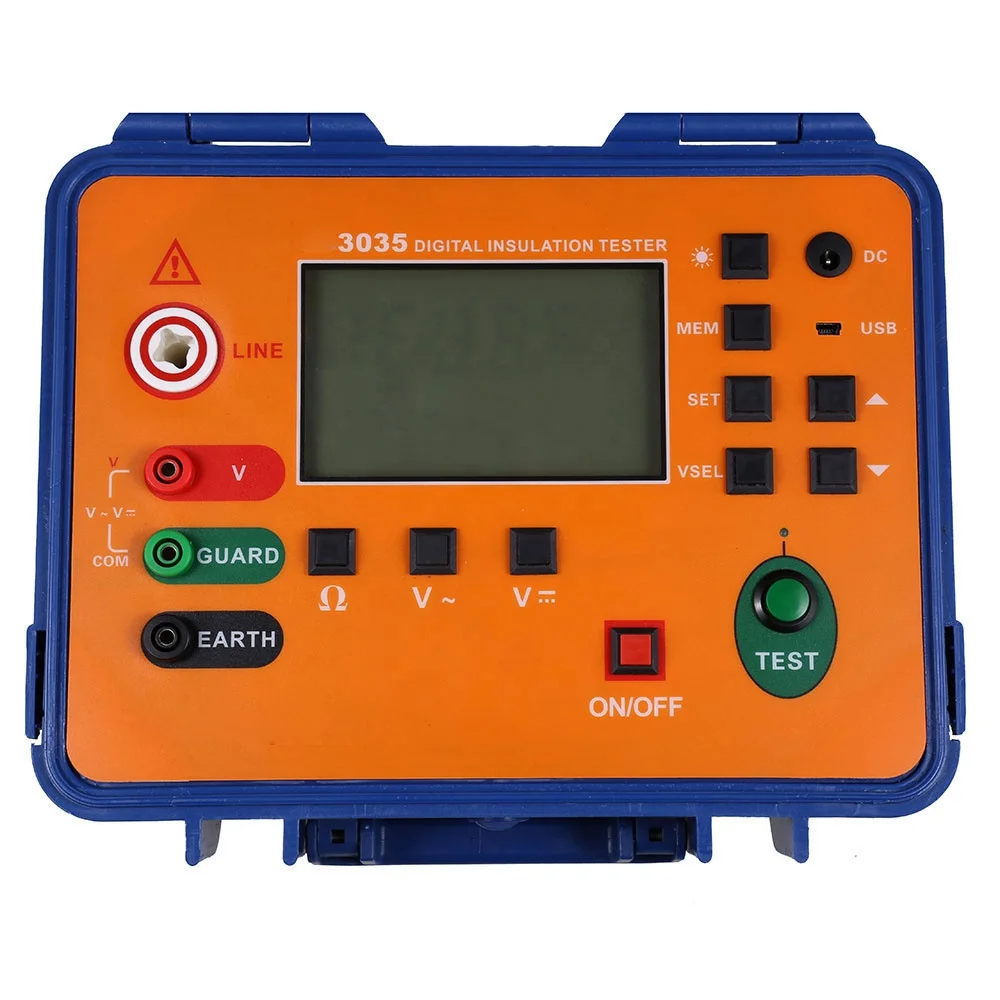

5000V Insulation Tester Digital Insulation Resistance Tester 5KV Megger Tester
- Category: >>>
- Supplier: Dongguan Hong Tu Instrument Co. Ltd.
Share on (62085207040):
Product Overview
Description
5000V Insulation Tester Digital Insulation Resistance Tester 5KV Megger Tester
Specification
| Function | Insulation resistance test, voltage test |
| Base conditions | 23°C±5°C,below 75%rh |
| Rated voltage(V) | 100;250;500;1000;2500;5000V accuracy±3%rdg±5dgt |
| Test Voltage(V) | rated voltage×(1±10%) |
| Insulation Resistance Range(GΩ) | 0.01MΩ~1000GΩ accuracy±3%rdg±5dgt |
| Insulation Resistance Resolution | 0.01MΩ |
| DC Voltage Range | 0~1000V |
| DC Voltage resolution | 0.1V |
| AC Voltage Range | 0~750V |
| AC Voltage resolution | 0.1V |
| Output short-circuit Current | ≥5mA(5000V) |
| Absorption Ratio and Polarization Index Measurement | Have |
| Power Supply | 12V rechargeable battery |
| Backlight | Controllable gray screen backlight, suitable for use in dim places |
| Dispaly mode | 4-bit large LCD display, gray screen backlight |
| LCD display size | 108mm×65mm |
| Instrument size | L/W/H:277.2mm×227.5mm×153mm |

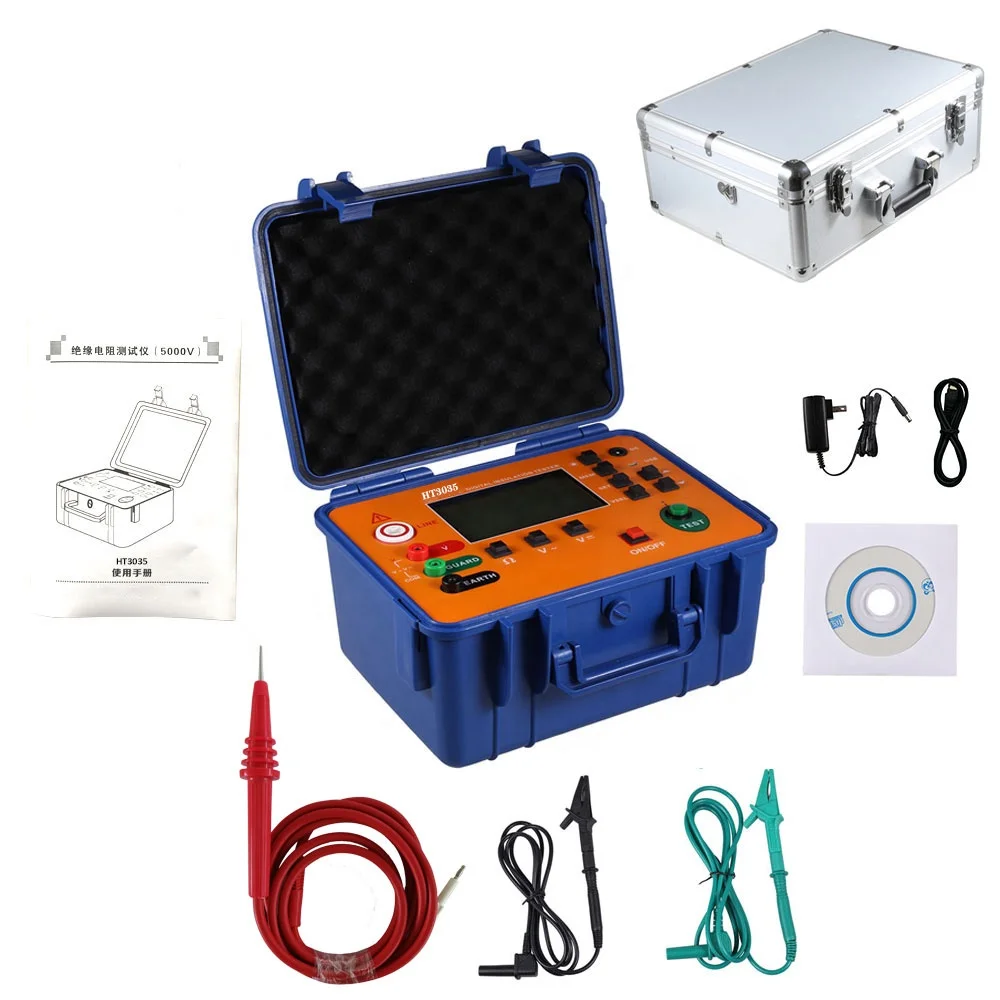

| Test Line | High voltage test line red 1 meter, black 1 meter, green line 1 meter |
| Data Storage | 500 groups, "FULL" symbol indicates that storage is full |
| USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save the print |
| Communication Line | USB communication line 1PC |
| Data Review | Data review function: "MR" symbol display |
| Overflow Display | Exceed measurement range overflow function: “OL ” symbol display |
| Alarm Function | Alarm when the measured value exceeds the alarm setting value |
| Power Consumption | Standby: 30mA Max(backlight off) |
| Turn on backlight: 42mA Max | |
| Measure:200mA Max(backlight off) | |
| Instrument weight | 2720g(including battery) |
| Battery voltage | |
| Automatic shut-down | automatic shutdown after 15 minutes boot |
| Insulation Resistance | ≥50MΩ(between Measuring line and housing) |
| Pressure Resistance | AC3kV/50Hz 1min |
| Working Temperature and Humidity | -10℃~+50℃<85%RH |
| Storage Temperature and Humidity | -15℃~+55℃<90%RH |
| Suitable for Safety Regulations | IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V |
