Product Overview

Description


Product Description

Brief Introduction of lightweight hollow core wall board making machine

This is multi-functional production line, can be full automatic and semi automatic. Can produce different kinds of finished products, including: GRC, gypsum block; Mgo/MgSO4 hollow core wall panel; cement hollow wall panel, etc.

\t
Machinery Parameters
\t
Capacity
\t
20,000sqm~600,000sqm per year
\t
Finished board size
\t
Lightweight hollow core panel
\t
Thickness
\t
90-200mm thickness. special sizes need to be customized
\t
Length
\t
2440-3000mm, special sizes need to be customized
\t
Width
\t
610mm, special sizes need to be customized
\t
Raw material
\t
There are mainly three different types
1. Cement+fly ash/eps/slag/ceramsite(optional, can choose to add or not add)
2. Gypsum
3. MGO+chloride /sulfate+foaming agent+wood chip(optional )
\t
Configuration
\t
Full automatic/semi automatic
\t
Electrical components
\t
Siemens or Schneider or famous domestic brand

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Main Equipments

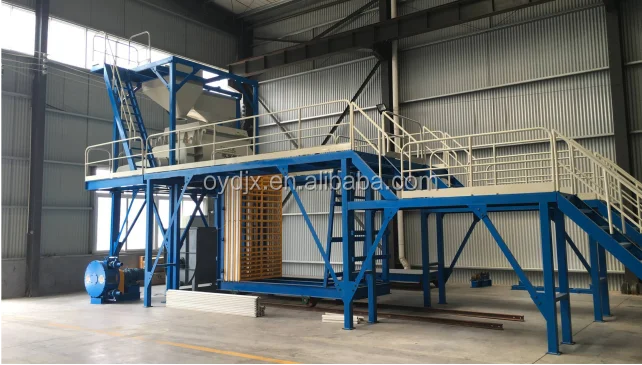

Name: full automatic mixing platform

Brand: OYD brand

Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process. We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

Main Features

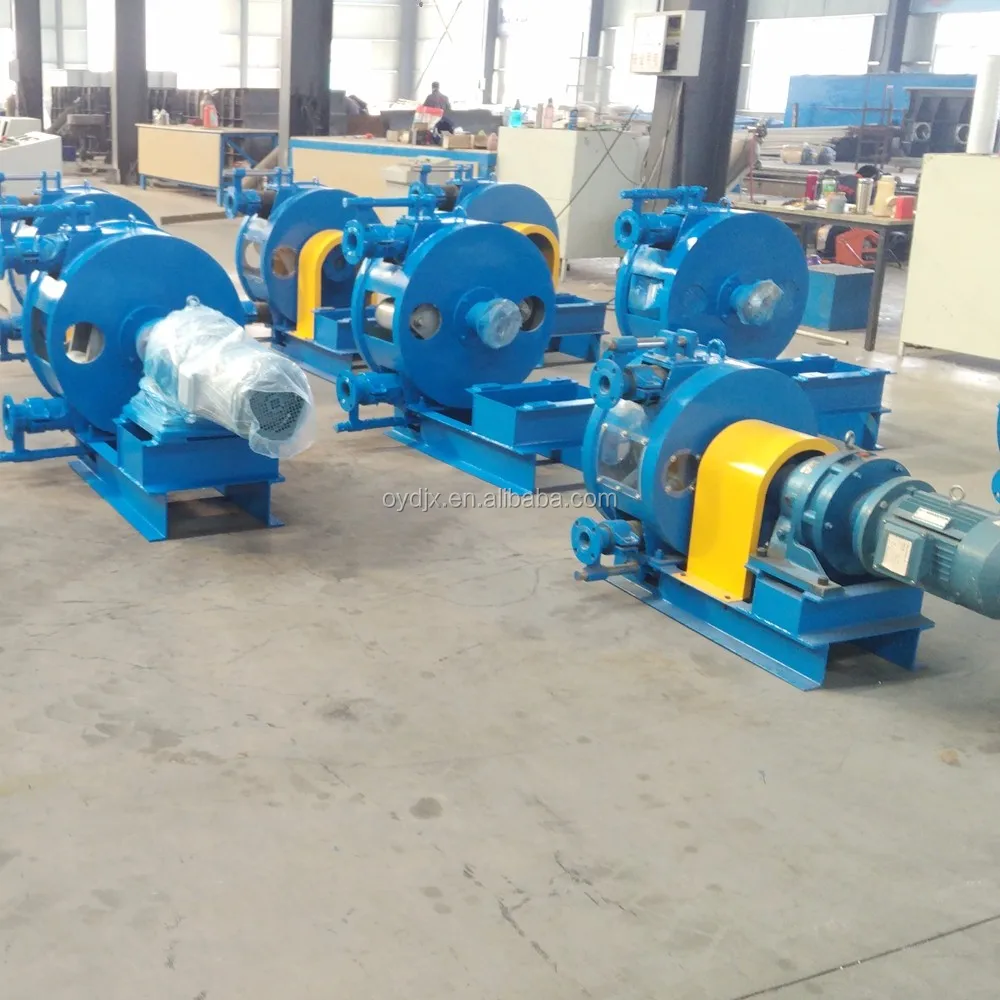

Name: Pumping system
Brand: OYD brand
used to paste into the mold, can avoid the air holes.

Machine Parts

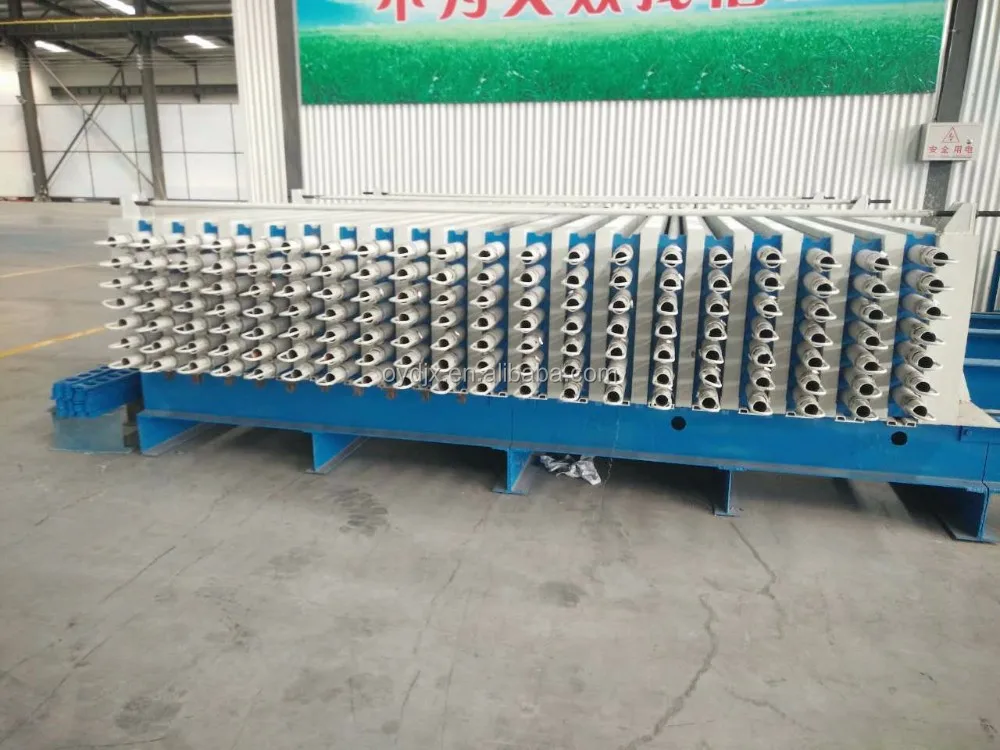

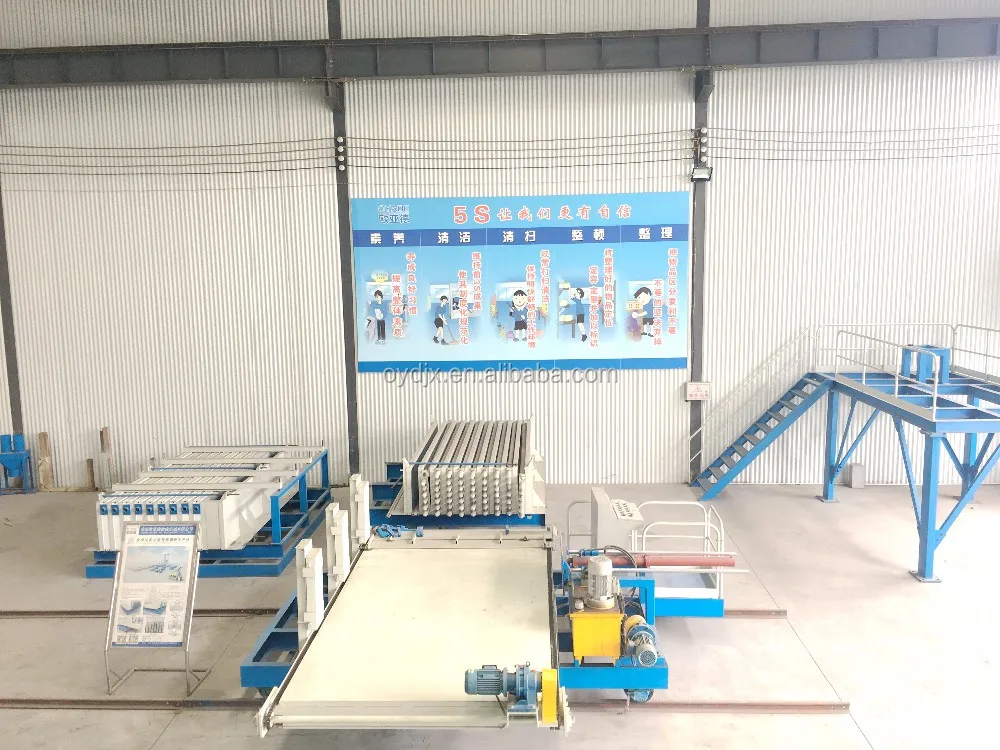

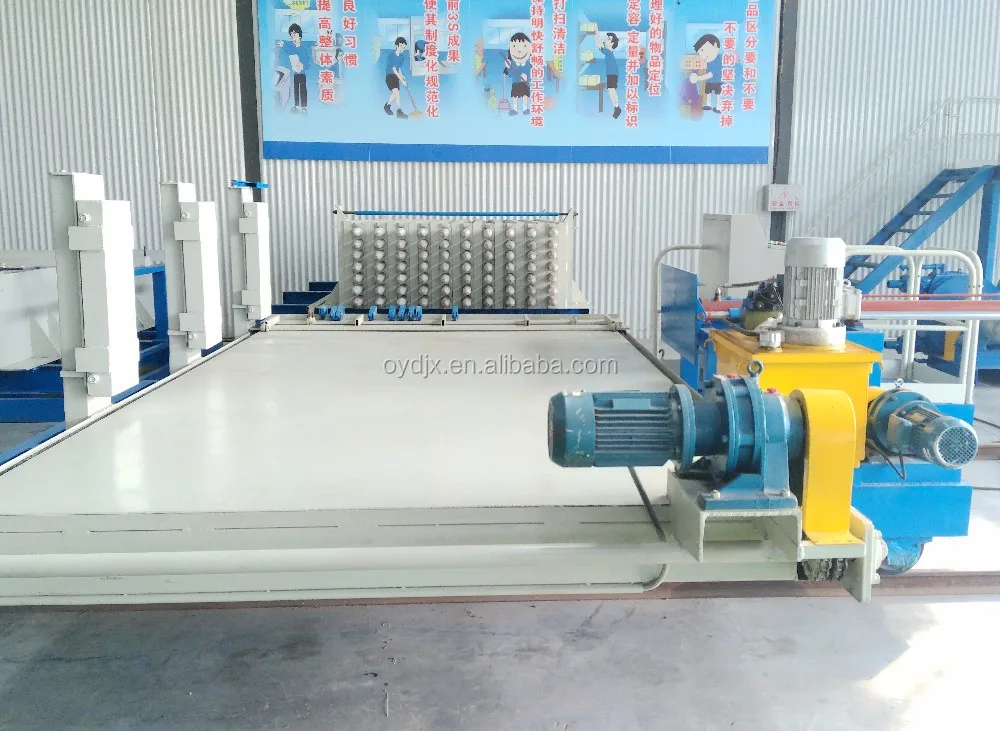

Name: Full automatic mould car
Brand: OYD brand
Automatic open mold, automatic unloading board,automatic flip demolding.

Main Features

Name: Automatic unloading machine
Brand: OYD brand
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Mold car traction system

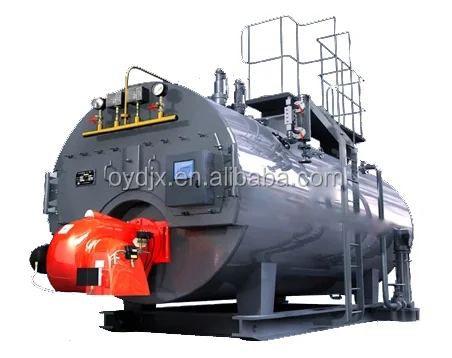

Boiler system

EPS foaming machine


Certifications

We have over 10 patented technology in our country.Would love to show to you when you come.

Packing & Delivery
We have very mature skill for the exporting required package. Never worry about the damage during sea transportation.

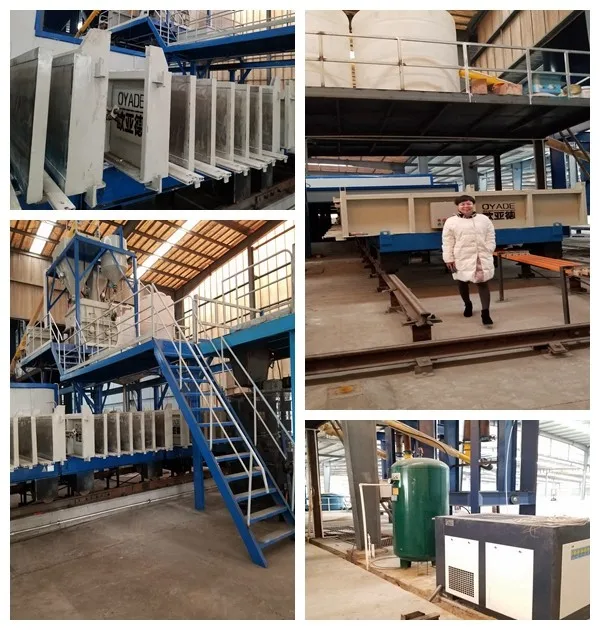

Sample Project

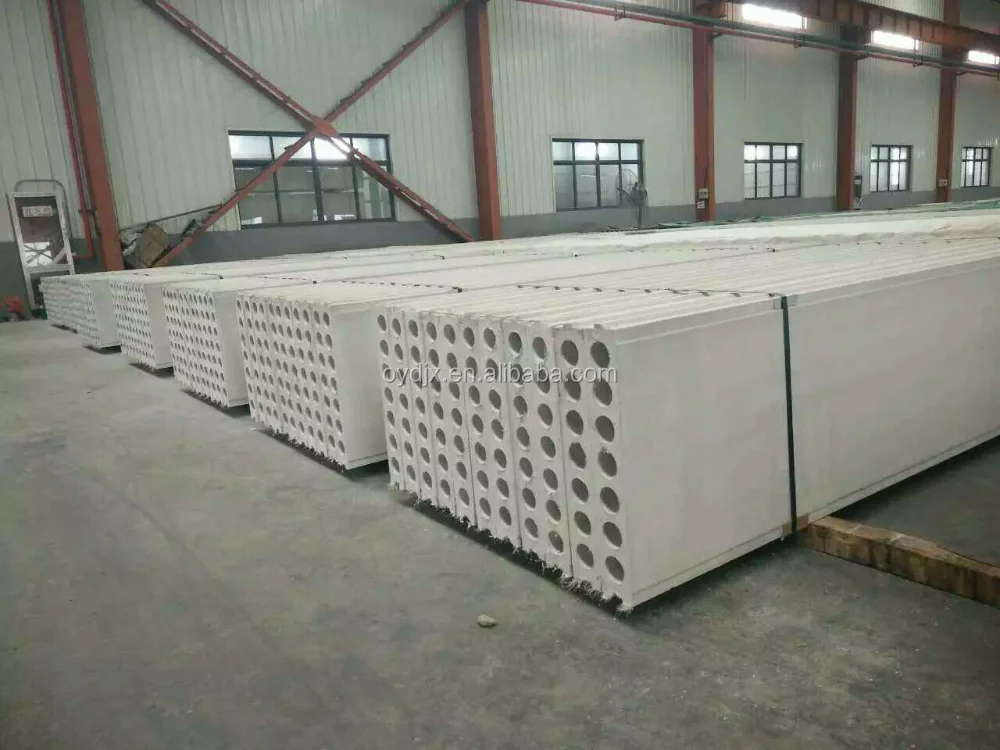

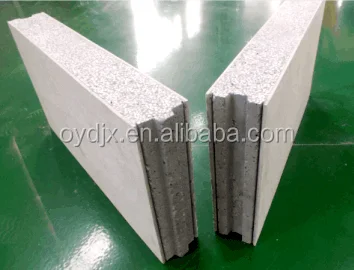

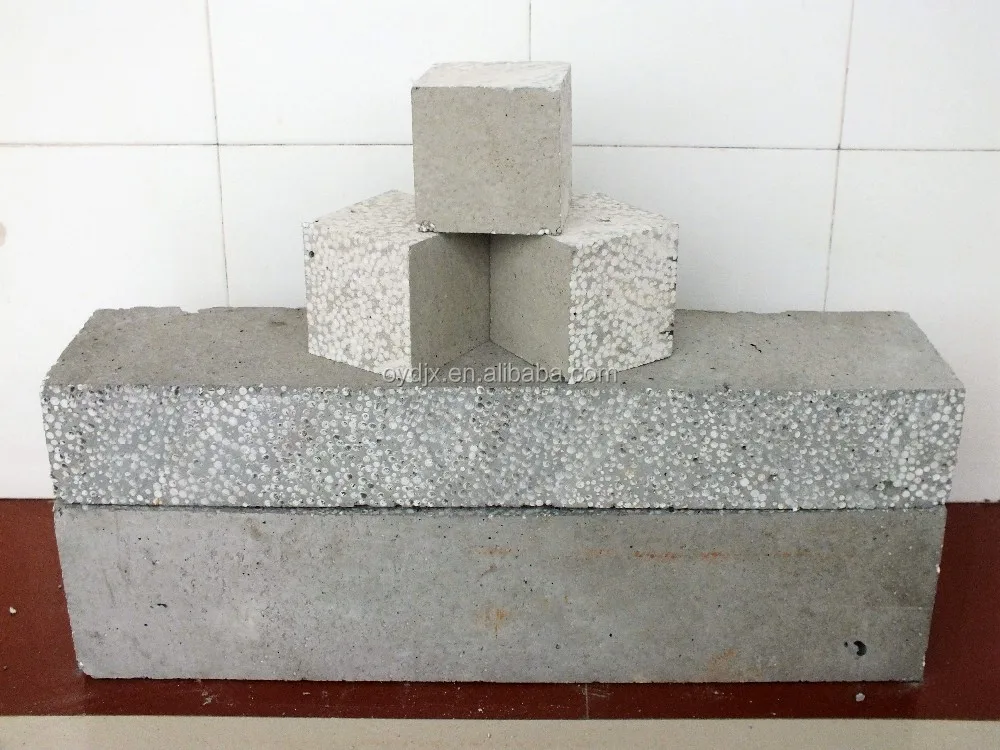

Finished Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Main parameters

Popular product Specifications

EPS Lightweight wall panel

\t
Panel thickness(mm)
\t
Panel width(mm)
\t
Panel length(mm)
\t
60
\t
610
\t
2440-3000
\t
75
\t
610
\t
2440-3000
\t
90
\t
610
\t
2440-3000
\t
100
\t
610
\t
2440-3000
\t
120
\t
610
\t
2440-3000
\t
150
\t
610
\t
2440-3000
\t
180
\t
610
\t
2440-3000
\t
Raw material
\t
Name
\t
Cement
\t
Fly ash
\t
Sand
\t
Polystyrene particles
\t
Admixtures
\t
Calcium silicate board
\t
Water
Note: using normal cement, no steam curing facilities, the temperature is about 20 ° C
\t
Mold car specification
\t
Panel thickness
\t
Panel width
\t
Panel length
\t
Quantity(block/each car)
\t
Sqm/car
\t
50
\t
610
\t
2440
\t
66
\t
98.2
\t
60
\t
610
\t
2440
\t
58
\t
86.3
\t
75
\t
610
\t
2440
\t
48
\t
71.4
\t
90
\t
610
\t
2440
\t
42
\t
62.5
\t
100
\t
610
\t
2440
\t
38
\t
56.6
\t
120
\t
610
\t
2440
\t
34
\t
50.6
\t
150
\t
610
\t
2440
\t
28
\t
41.7
\t
180
\t
610
\t
2440
\t
24
\t
35.7
Note: if mold car works with conversion and traction system, it can realize automatic mobile transportation.
Our Factory Contact

Products
Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise
After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
