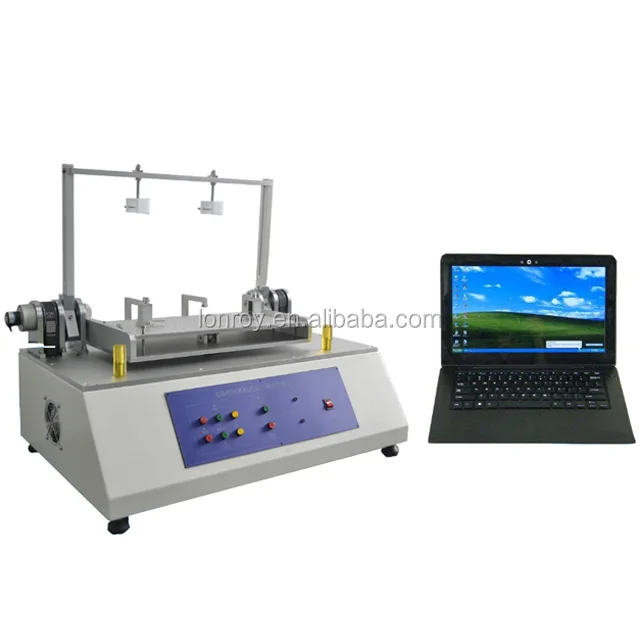

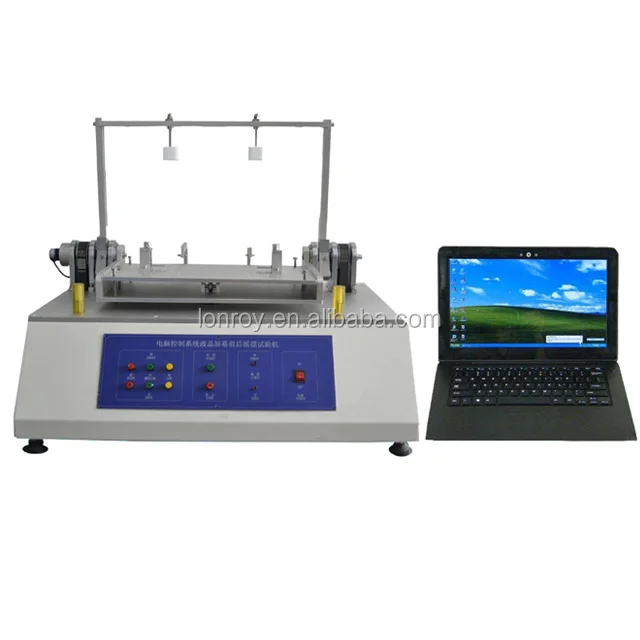

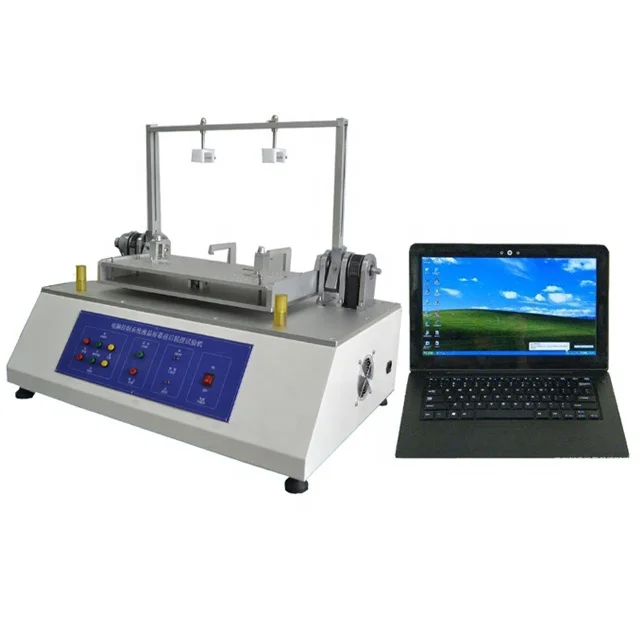

Notebook computer/laptop shaft torsion testing machine

Product Overview

Description

Notebook computer/laptop shaft torsion testing machine



Computer automatic shaft torque endurance tester can test Notebook cover on many times

After opening and closing, the torsion of the shaft declines. The value of torsion of the shaft can be measured and recorded each time

Line change and draw the curve of torsion attenuation life

The inconvenience of measuring torsion.Windows window screen setting, easy to operate, and by

Data can be stored (test condition, torsion - Angle curve, life curve, check)

The report...Etc.).



Notebook computer/laptop shaft torsion testing machine

Machine features:

You can print and store graphs (torsion - Angle curve, torsion attenuation curve, inspection report).

Test data storage and hard disk drive (each data can be stored, no limit of times).

Test conditions are set by the computer screen (including opening Angle, speed, times, pause time...Etc.).

The contents of the title of the inspection report can be modified at any time (both in Chinese and English).

Check the report can be transferred to Excel for editing.

Record every torsion - Angle curve.

Both torsion - Angle curve and torsion attenuation curve are displayed.

The Notebook test location can be adjusted by itself.

Unilateral or bilateral force can be selected.



Notebook computer/laptop shaft torsion testing machine

Technical parameters:

Maximum test torque is 50kgf.cm

Minimum display torque 0.01 kgf.cm

Test Angle range 0-180 degrees

Minimum display Angle 0.5 degree

Test speed range 0-200rmp/min

Drive the motor servo motor

Appearance size: 850W 650D 780H

The machine weight is 120Kg

Use AC220V power supply
