SY F005A Gynecological Clinical Diagnostic Instruments video vagina colposcope
- Category: Medical Optical Instruments >>>
- Supplier: Sunny Medical Equipment Limited
Share on (62085386842):
Product Overview
Description
Product Description

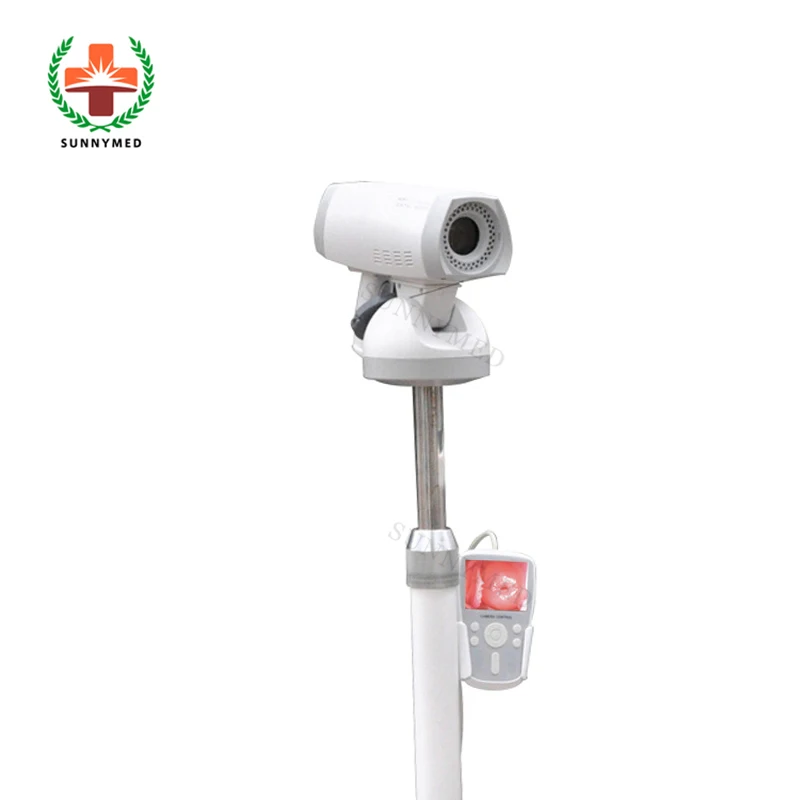

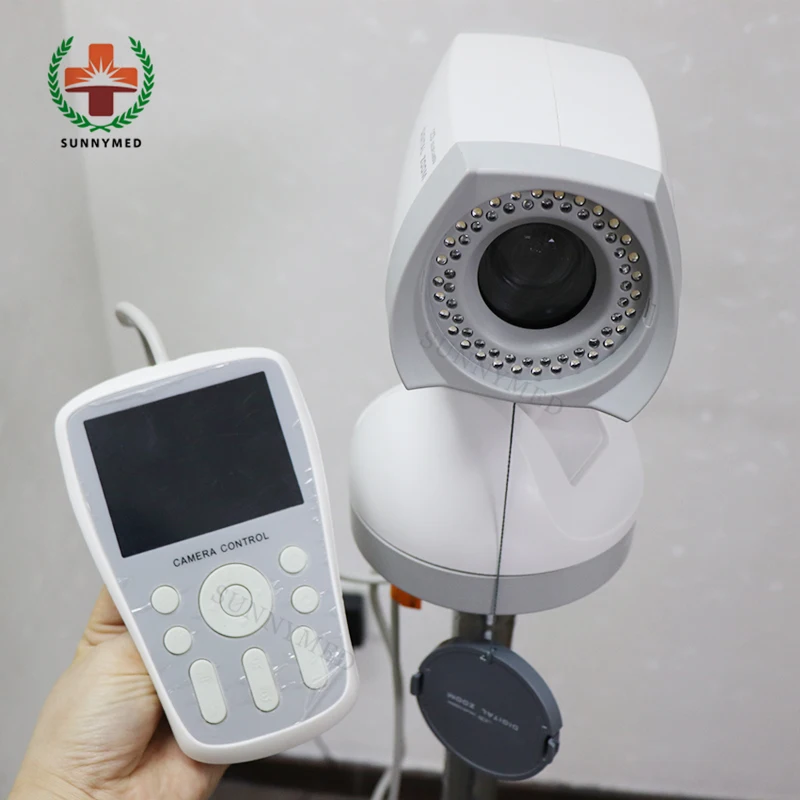

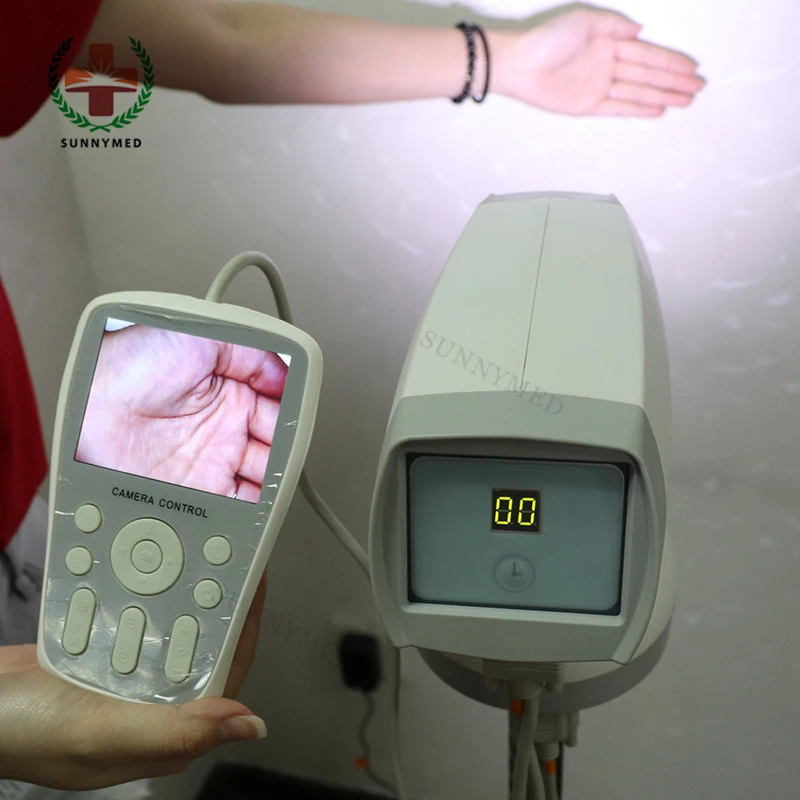

SY-F005A Gynecological Clinical Diagnostic Instruments video vagina colposcope
Contact for the cheapest price!
Feature of colposcope:
Adopting the ring fiber lens
Adopting the halogen cold light source (15V, 150W)
Adjustable brightness and a green filter
Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images.
With the editing functions of access images, freezing, collection, delete images, etc.
Images can be collected continuously, and display a number of images on the same screen and convenient to contrast, full-screen display.
The reports can be printed into multiple formats
CE certificate
Application :
The device is used for checking pathological changes in vulva, vagina and cervix, filtering cervix cancer by fluorescence indirectly and images management.
Specification of colposcope:
| Lens lighter type | LED |
| Lens video-output | PAL, VBS-standard 1.0Vp-p |
| Power Requirements | AC220V ±10% |
| Power Rating | 500W |
| Brightness adjustment | Automatic electronic shutter |
| Ambient temperature | -40°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Relative Humidity | 30~80%RH |
SONY color digital CCD , 800,000 pixel;
1-128 magnification image continuously variable adjustment;
White LED power with super and even brightness;
More than 60% than the traditional halogen lamp in the brightness and color temperature;
Lifetime: 100 ,000 hours;
Vivid color;
Special designed image halo filtering tech ensure clearer image;
Easy edit and maintenance of diagnostic words, easy operation;
Storage of normal clinical images for easy diagnostic contrast;
Support video-out of diagnostic report and true color image;
Super-large memory, max. 1 million cases can be stored;
Convenient check of cases and statistics;
Lens resolution: 1/4"super HAD color CCD,80,0000 pixel;
Lens axial resolution: 470 lines;
Lens S/N: 50dB;
Lens focus distance: standard 100~400mm; support: 10~1000mm;
Scan range: 2.5mm-20mm-320mm;
Depth of Field: 15mm-40mm 15mm-480mm;
Lens zoom: 1~128;
Lens fouse: AF/MF;
Lens white balance: AWB;
Lens image output interface: Video, S-video, PAL;
Lens lighter type : LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours)
Standard Configuration:

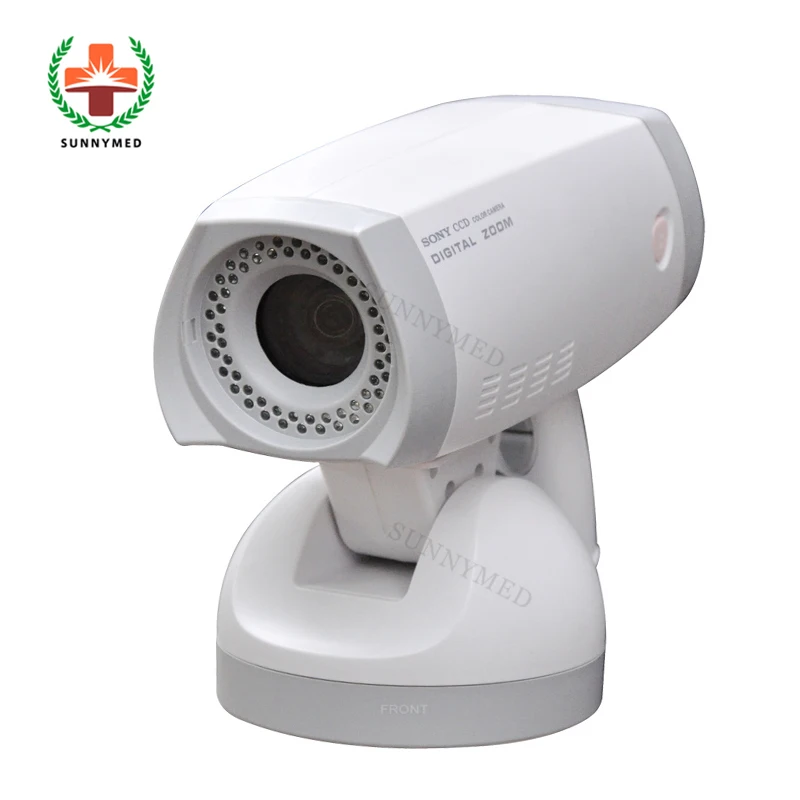

. Sony Camera: 1pc

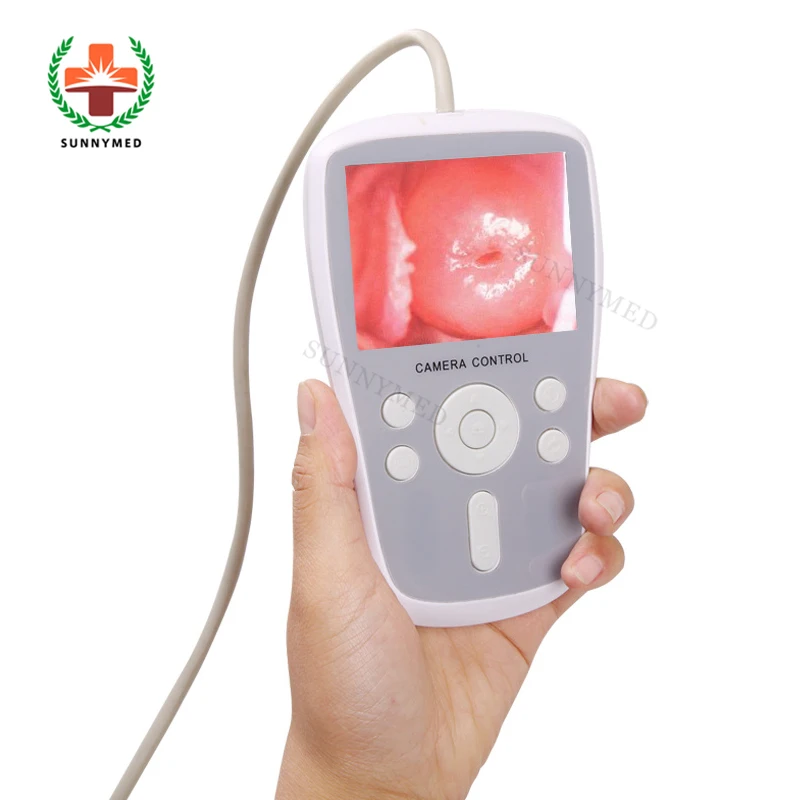

. Camera Control Screen: 1pc
. Tripod: 1pc
Packaging & Shipping
1.We ship the colposcope by air or sea for you.
2.Our colposcope with standard export packing.
3.No matter what delivery way , all depending on your actual requirements.
Why Choose Us
1. For all your inquires about us or our colposcope , we will reply you in detail within 24 hours
2. We own professional team have professional attitude to recommend products and services, introducing the colposcope for you.
3. Our colposcope have various type and function , We will recommend to you that according to your requirements ;
4. We offer OEM services. Can print your own logo on the colposcope .
5. We have very experienced engineers, can help you better use our colposcope .
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Our Advantage:
1. Top Quality: We have strict quality control system and enjoy good reputation in the market.
2. Excellent Service: We treat clients as friend and aims at building long term business relatiionship.
3. OEM Accepted : We Can print your own logo on the products.
4. Unbeatable Price: We always ensure high price performance to benefit our customers.
5. Timely Delivery: Your order shall be shipped once finished .
