LED outdoor indoor full P3 P4 P5 P6 P8 P10 P16 P20 rental stage exhibition display led module/led video display module

Product Overview

Description

   P6 OUTDOOR SMD LED MODULE TECHNICAL SPECIFICATIONS



1.Our Service



1)Your inquiry related to our products or price will be replied in 24hrs



2)OEM&ODM,any your customized lightings we can help you to design and put into product



3)Distributoership are offered for your unique design and some our current models



4)Protection of your sales area,ideas of design and all your private information



5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win



2.Trade Terms



1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying



2.Shipping freight are quoted under your requests



3.Shipping port:ShenZhen,Mainland China



4.MOQ:1pcs

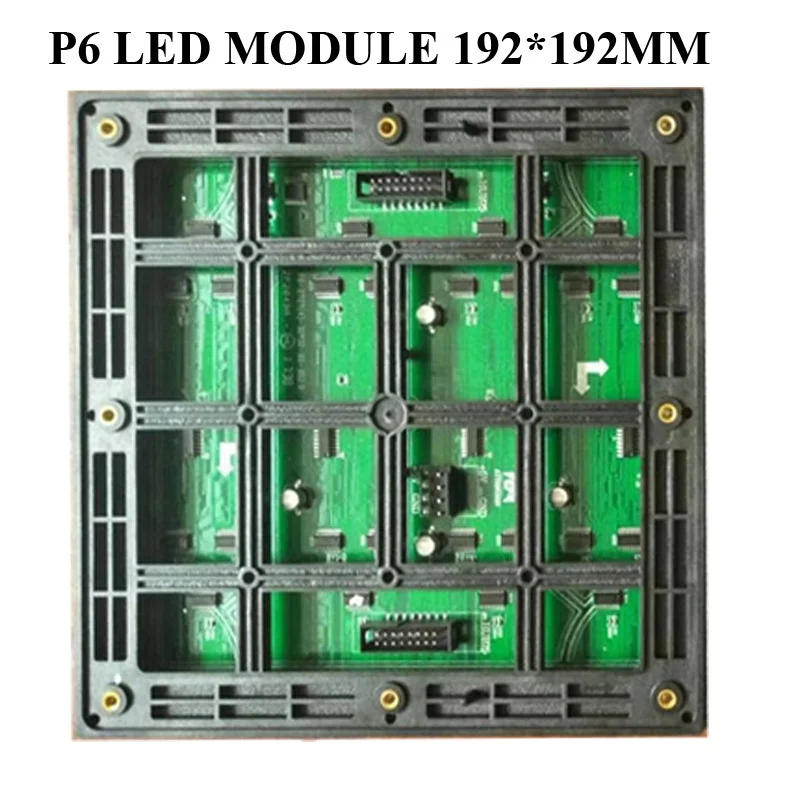

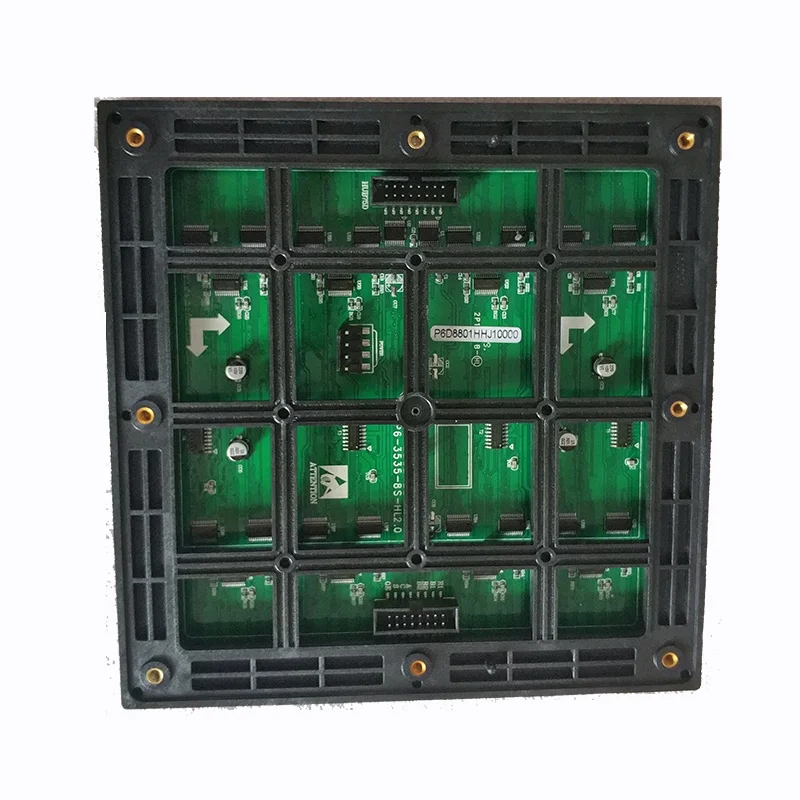

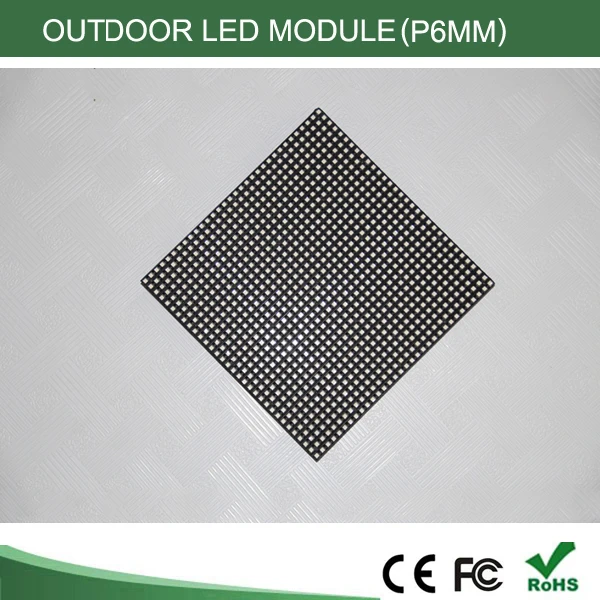

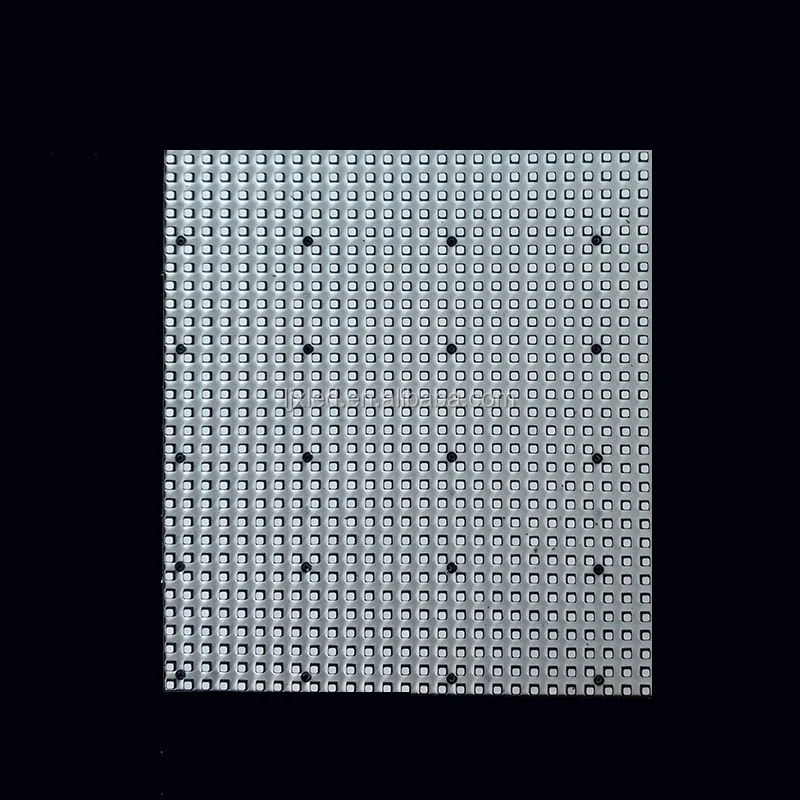

3.Outdoor smd 3 in 1 P6 led module technical parameter



Unit Module	Item	Parameter
	Module number	LJX-P6-8S
	Moule size	192mm x 192mm
	Pixel pitch	6mm
	Pixel density	27777dots/sqm
	Pixel configuration	1R1G1B
	Package mode	smd 3535
	Pixel resolution	32x 32 dots
	Max power consumpion	28w
	Module thickness	14.85mm(without magent)
		27.15mm(with magent)
	Module weight	0.504kg
	Driver method	constant drive
	Driver method	1/8 scanning
	Port type	HUB75
	Brightness	>6000cd/sqm
Bracket	Size	192mm x 192mm
Unit Cabinet	Cabinet size	960mm x 960mm
	Quantity of module	25pcs
	Power supply	5v/40A x 4pcs
	Thermal discharge	2pcs cooling fans
	Pixel per cabinet	160 x 160 dots
	Best viewing distance	10m-150m
	Best viewing angle	160°(w)120°(H)
	Temperature	storage:-35℃-+85℃
		working:-20℃- +50℃
	Opration humidity	10%-95%
	Thickness	85mm
Power	Working voltage	220V±10%
	Averange power consumption	140W/sqm
	Max. power consumption	420w/sqm
	Current	<20mA(single LED)

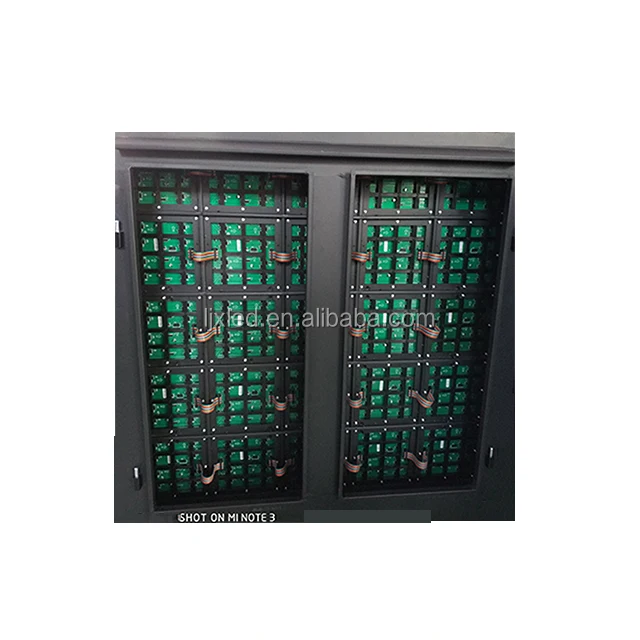

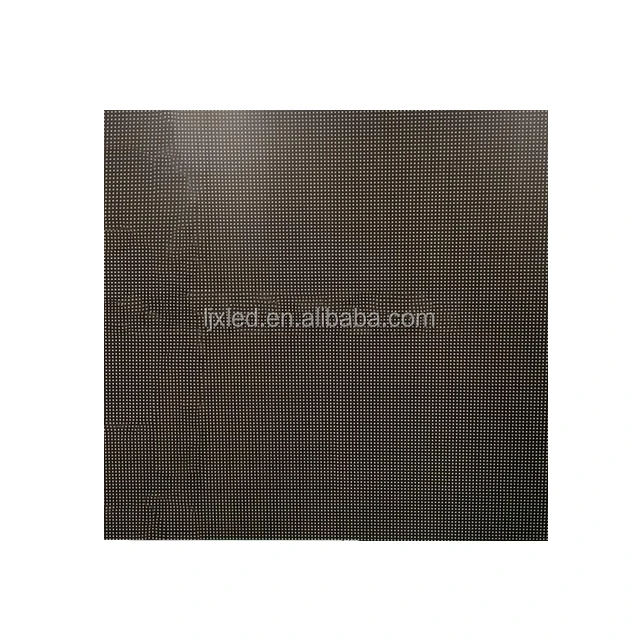

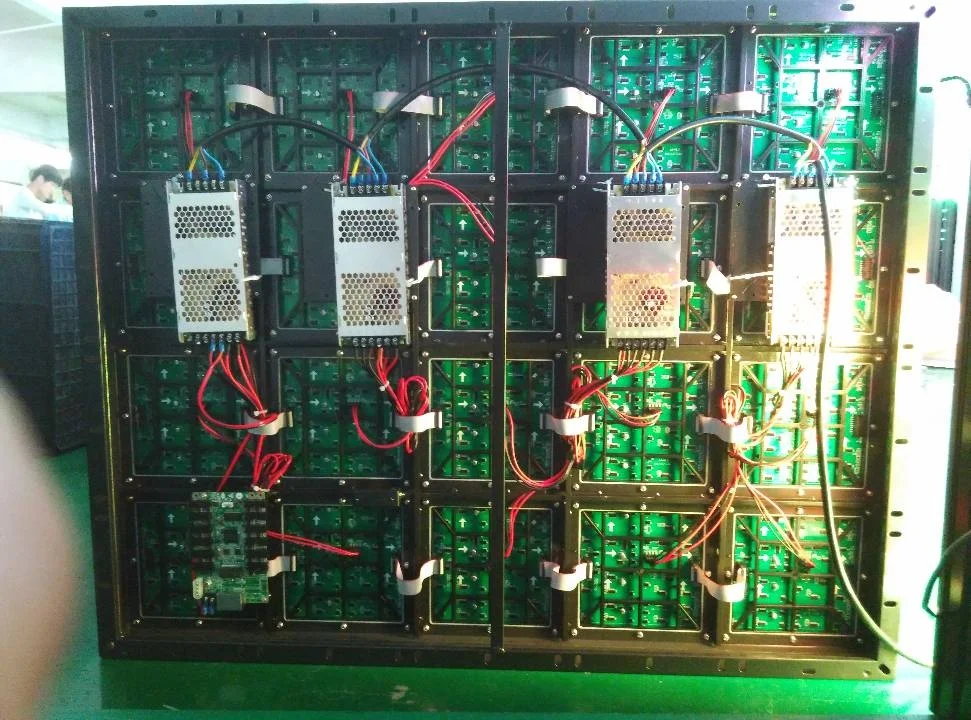

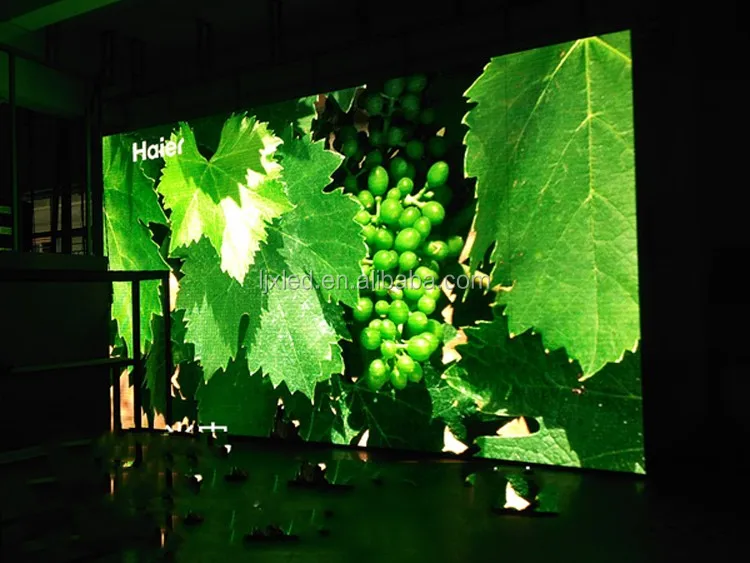

Photos of the display

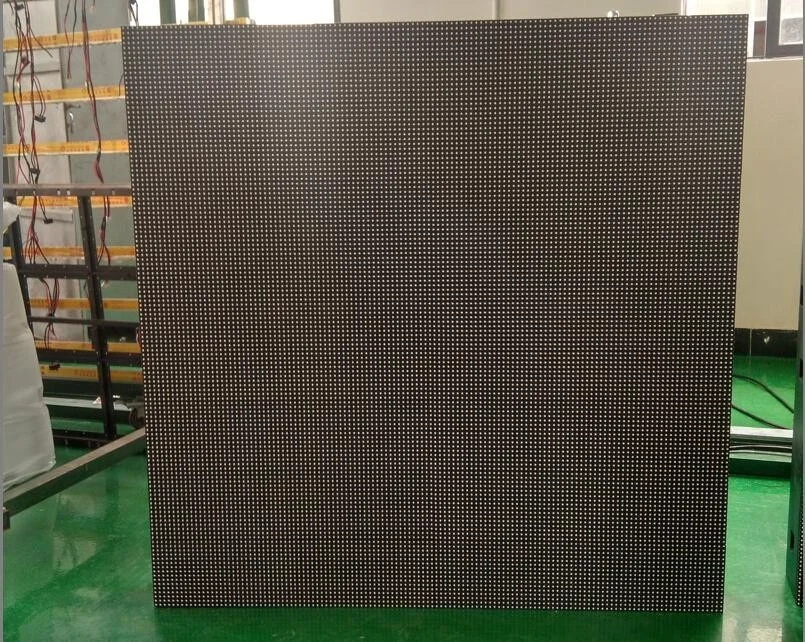

Cabinet without any gap

Glue one to waterproof

                                                           FAQ

Q1: What is the lead time?

 A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.



Q2: Is it all right to make customers’own brand name?

 A: That’s all right to make your own brand name.



Q3: Is it available for samples?

 A:  yes, of course. sample is free, and you may pay freight cost. that would be reasonable.



Q4:Is there a middle man draining your profit?

A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.



Q5:How to place an order?

1. Sample approval.

2. Client makes 30% deposit or open LC after receiving our PI.

3. Client approves our pp sample, and get the testing report if any necessary .

4. Mass Production.

5. Arrange shipment.

6. Supplier arranges necessary documents and sends copy of these documents.

7. Client effect balance payment.

8. Supplier sends original documents or telex release the good

Q6: What is the min.order ?

You can order any quantity you want .



Q7:The display could be customer made ?

Yes , of  course , any type you want , please tell me , we can disign and discuss together



If you like this , welcome to send us enquiry .
