Fanless Barebone i5 i7 mini pc Win10 3 Years Warranty Nuc Computer Intel Core i7 5550U i5 5250U 4K HTPC TV Box

General

CPU

l Onboard Intel Core i5 5250U 1.6GHz up to  2.7GHz(Turbo boost Technology) Dual Core Four Thread

l Onboard Intel Core i7 5550U 2.0GHz up to Turbo Frequency 3.0GHz Dual Core Four Threads

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

4MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel Broadwell-U

Memory

2* SO-DIMM DDR3L Slot

Support 4GB/8GB/16GB

Dual Channel, DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Win 7/Win 8/Win 10/Linux

Audio

ALC662 sound chip, 6-channel sound

Intel Panther Point HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 6000

I/O port

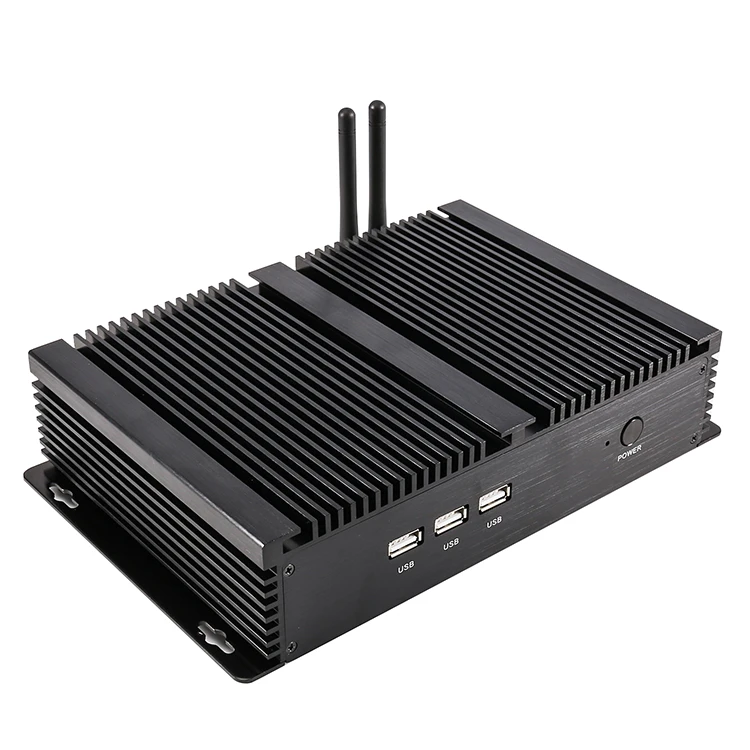

front panel ports

3*USB2.0, 1* Power indicator and switch

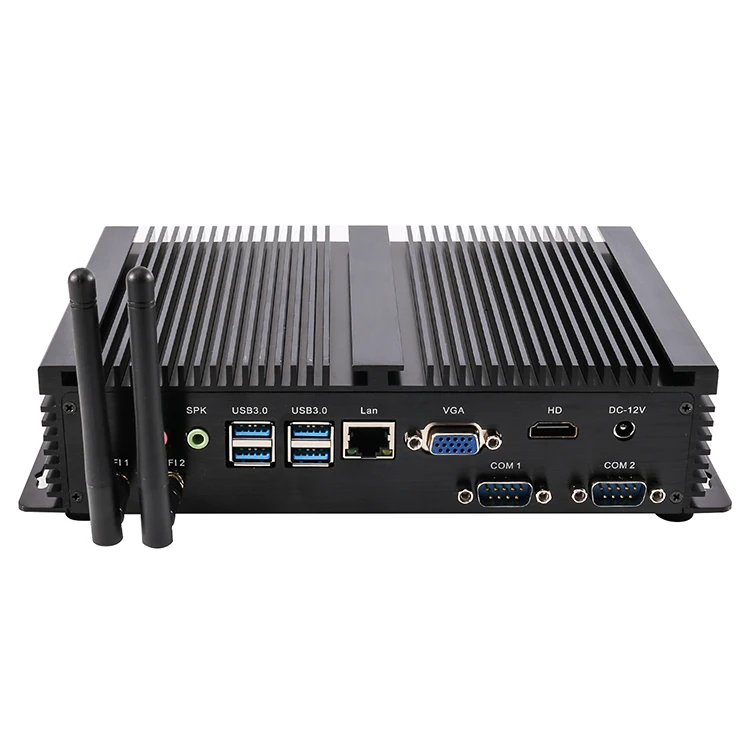

Backside ports

4*USB3.0, 1*HD, 1*VGA, 1*LAN, 1*MIC, 1*SPK, 2* RS232 COM, 2*WIFI, 1*DC IN

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

234*150*43mm

Weight

2.5KG

Consumption

15W

Shell

Black color aluminum alloy

Package Content

Mini PC device, power adapter, dual WiFi antennas(optional), a HD cable( as a gift), a Screw Bag
