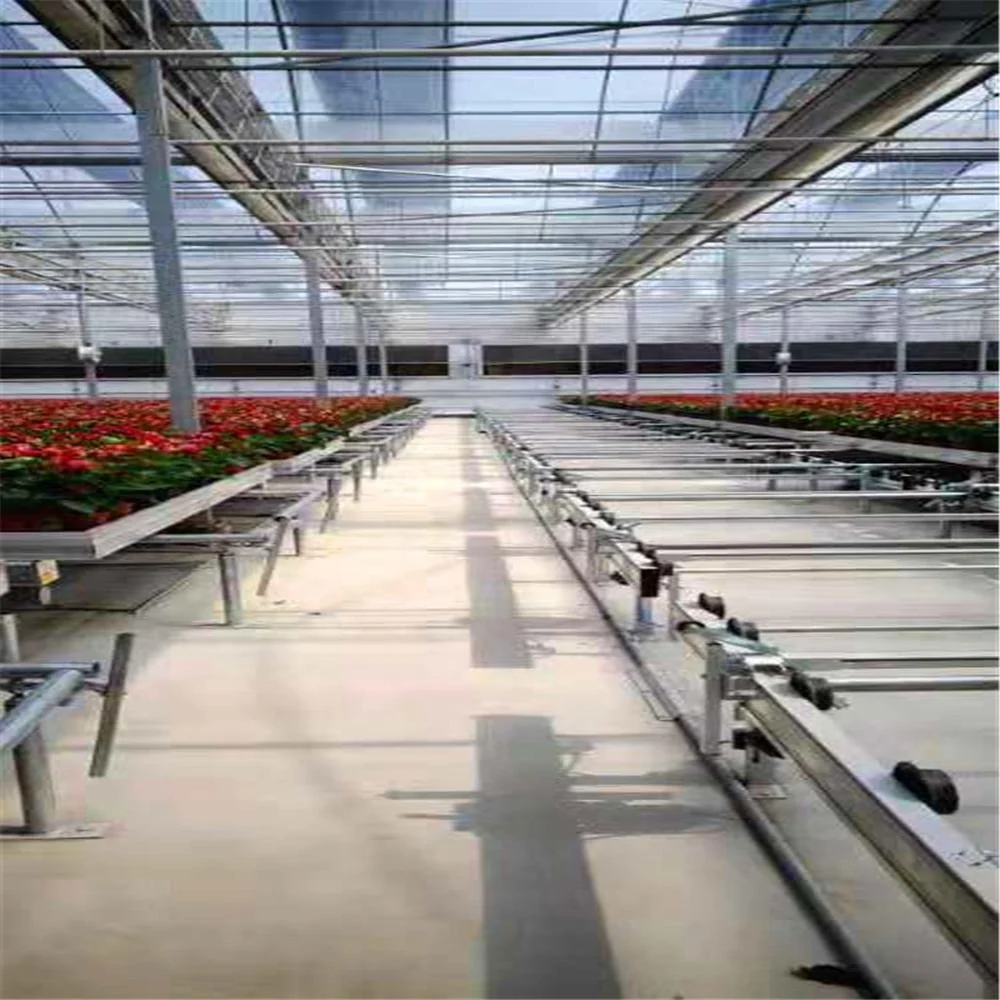

greenhouse table planting automatic transportable table seed rolling tables for garden

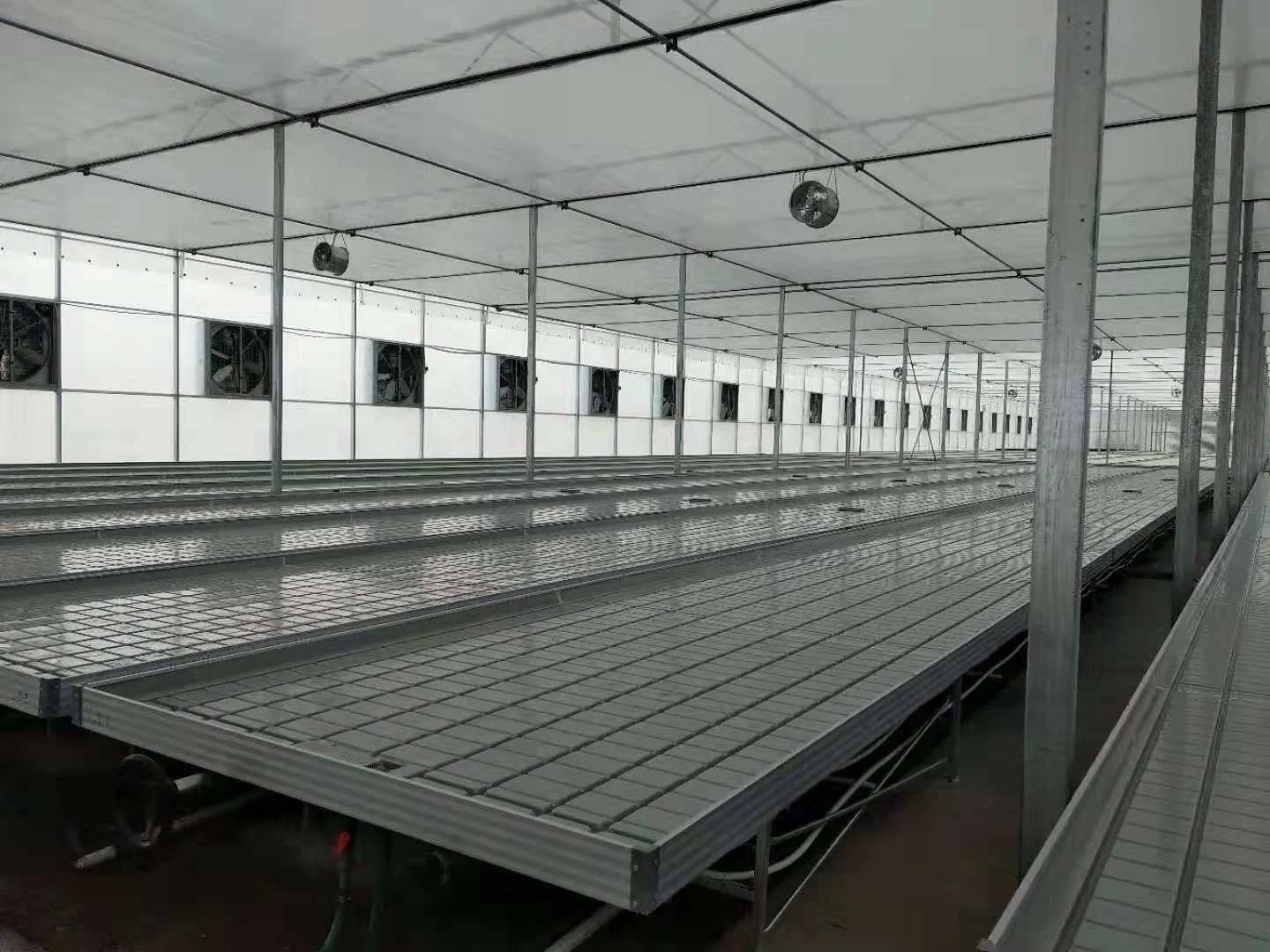

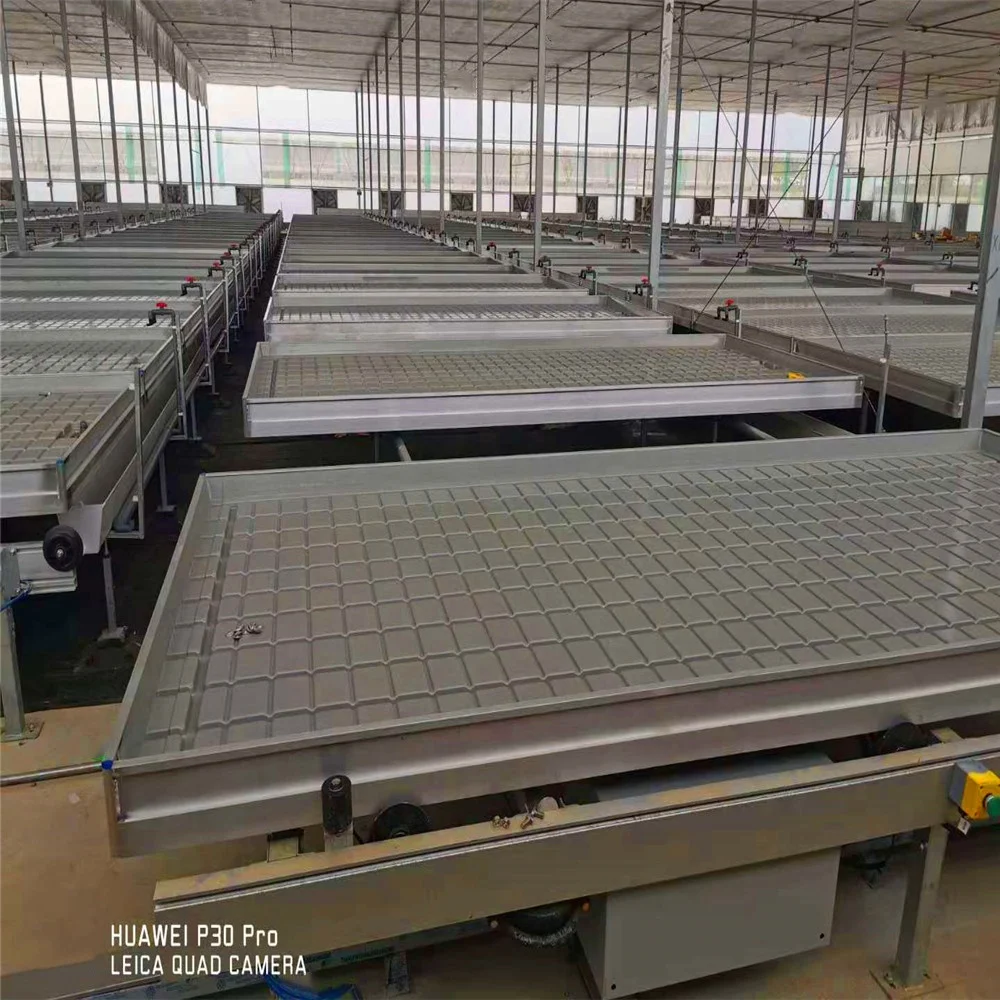

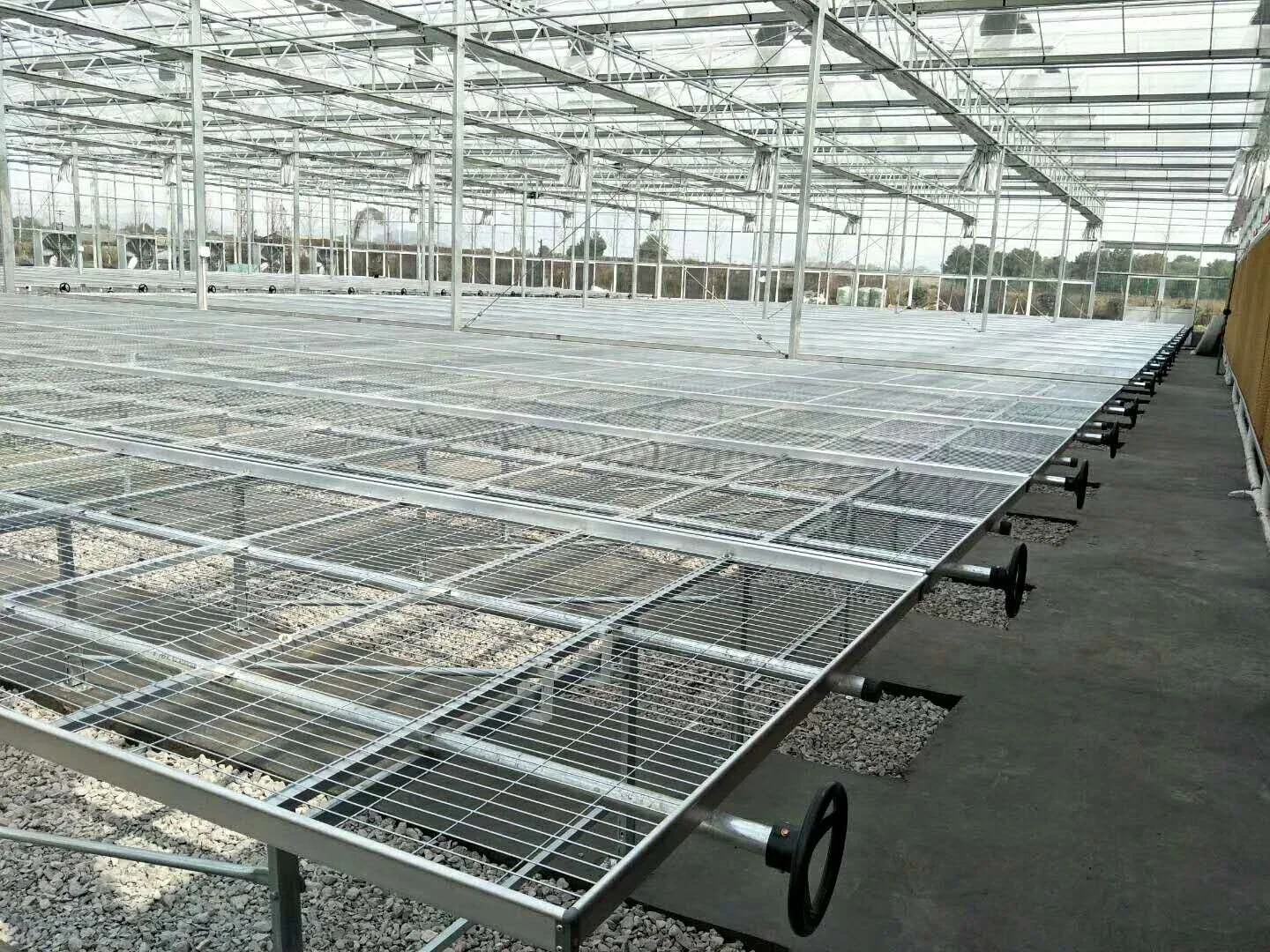

Introduction of automatic seedling bed (seedbed logistics system):The seedbed logistics system consists of a single seedbed, a seedbed guide, and a seedbed longitudinal transfer slide. The size of the seedling bed can be moved laterally on the guide rail of the seedbed, and special passages are set at both ends of the greenhouse. The longitudinal transfer device of the seedbed is arranged, and the longitudinal transfer of the seedbed is carried out by the pneumatic device to form a complete seedbed conveying system. Whether it is just the completion of the seedling transplanting, or the finished product of the potted flower, it can be done efficiently through this system.New logistics seedbeds In order to transport potted plants in the greenhouse, potted plants are placed in aluminum alloy seedbeds. The seedbed consists of two aluminum side panels, two aluminum alloy partitions, a bottom cross bracing and a chassis. There are four sets of rollers on the bottom of the seedbed that can be moved on the rails. The bottom of the seedbed is a food grade ABS tidal panel.Planting area guideThe seedbed is moved along the circular guide rail inside the planting area. The rollers at the bottom of the seedbed are supported by two parallel circular steel tubes. The planting area is divided into several areas by the moving line of the seedbed, and the seedbed is placed in each area. When a new seedbed is pushed onto the rail, the previously placed seedbed will be pushed and the seedbeds can push each other. The planting area guides are connected by a necked hot-dip galvanized steel pipe and supported by rail brackets. The rail bracket is fixed to the concrete floor by expansion bolts. The height of the rail can be adjusted up and down. The lateral movement of the seedbed is composed of multiple sets of moving line tracks. The seed bed transfer line is connected by a plurality of sets of moving line tracks. The moving line track consists of an aluminum alloy frame, legs, beams and rollers mounted on the sides of the frame to support the seedbed. The aluminum alloy frame is fixed at the desired position by the aluminum alloy legs, and there is an aluminum alloy beam between the frames.The seedbed can be moved from one set of tracks to another set of tracks. Each group of seedbed moving rails is equipped with two compressed air-driven lifting rails. When the rails are raised, the seedbeds can be moved along the lifting rails to the planting area rails. The disc bed system is equipped with a set of compressed air equipment, including: a screw air compressor, a refrigerated dryer, a gas tank, a high-efficiency precision filter, pneumatic piping and pneumatic joints. The compressed air device powers the platter system, lifting or dropping the seedbed through the cylinder and mechanical structure, so that the seedbed can switch the direction of movement between the lateral moving line track and the longitudinal planting area guide.
