Tunnel Mine Coal Construction Use Dry Type Pz Shotcrete Machine Manufacturer
- Category: Shotcrete Machine >>>
- Supplier: Jining China Machinery Import And Export Co. Ltd.
Share on (62085847701):
Product Overview
Description
Product Description
Tunnel Mine Coal Construction Use Dry Type Pz Shotcrete Machine Manufacturer
1.PZ Series Dry Shotcrete Machine is mainly used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, deep foundation, etc.
2.This Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box etc.
3.High wear resistance and longer use life consumable parts.
4.New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubber liner prevent concrete sticking and blocking in the machine.
Specifications
Model | PZ-3 | PZ-6 | PZ-9 |
Output | 2~3 m3/h | 4.5~5.5 m3/h | 7.5~8.5 m3/h |
Max.conveying dist. | 200 m | 200 m | 100 m |
Water cement ratio | < 0.4 | < 0.4 | < 0.4 |
Max.aggregate size | 15 mm | 20 mm | 20 mm |
Hose inner diameter | φ42/51 mm | φ51 mm | Φ57 mm |
Operating air pressure | 0.2-0.6 Mpa | 0.2-0.6 Mpa | 0.2-0.6 Mpa |
Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
Motor power | 3 KW | 7.5KW | 7.5KW |
Dimensions | 1400×780×1020mm | 1520×820×1280mm | 1520×820×1350mm |
Weight | 350kg | 600kg | 850kg |

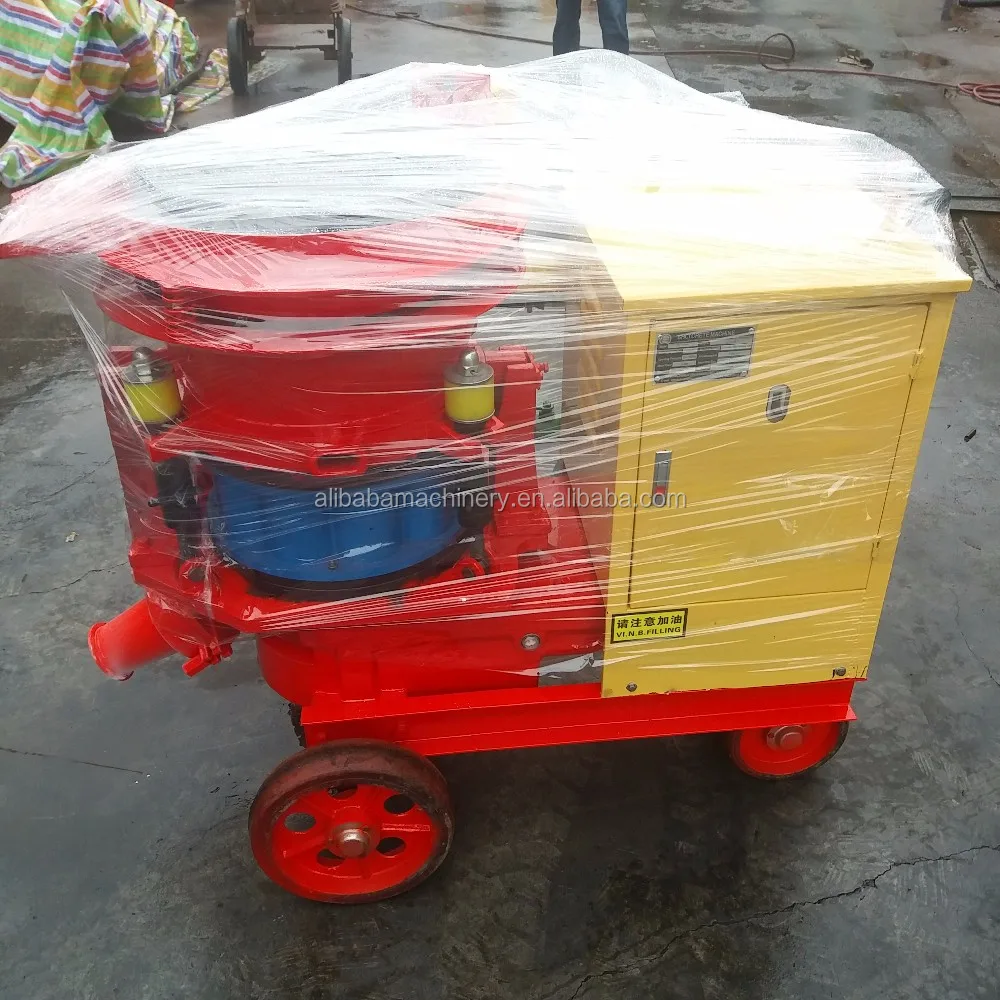

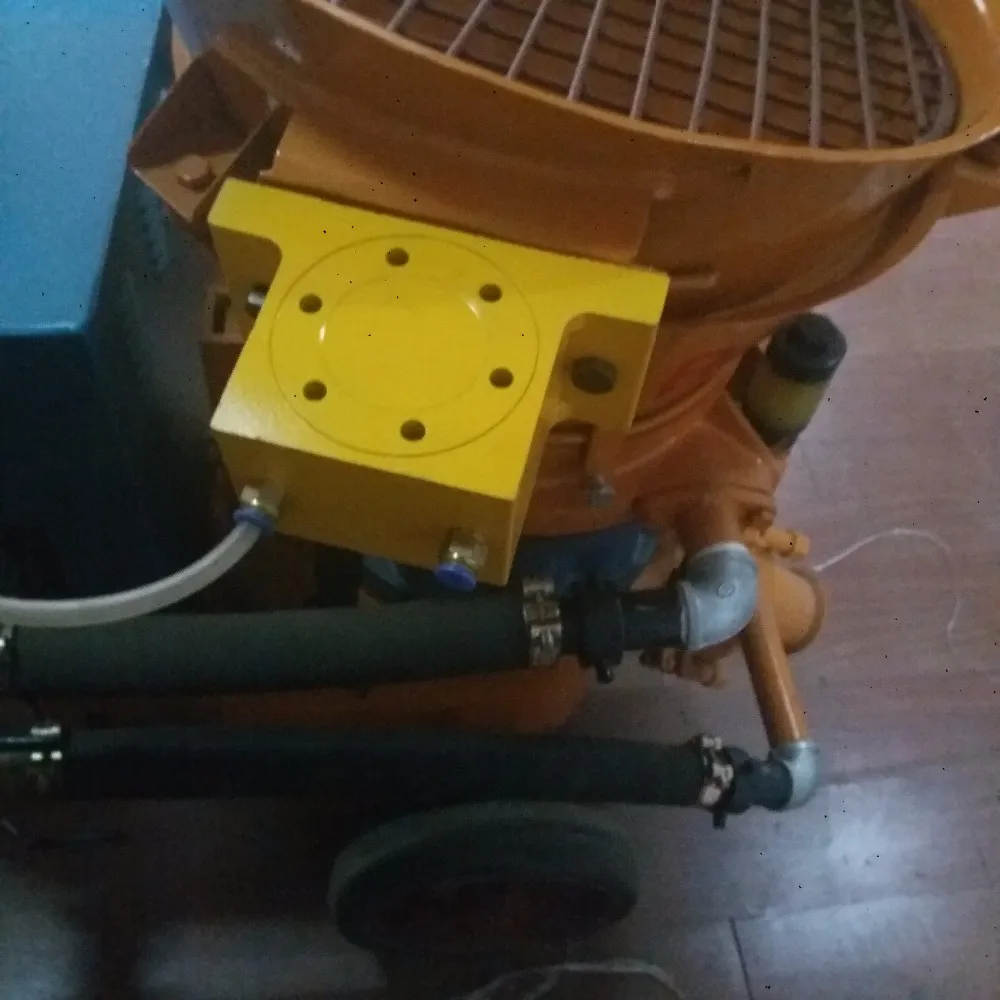

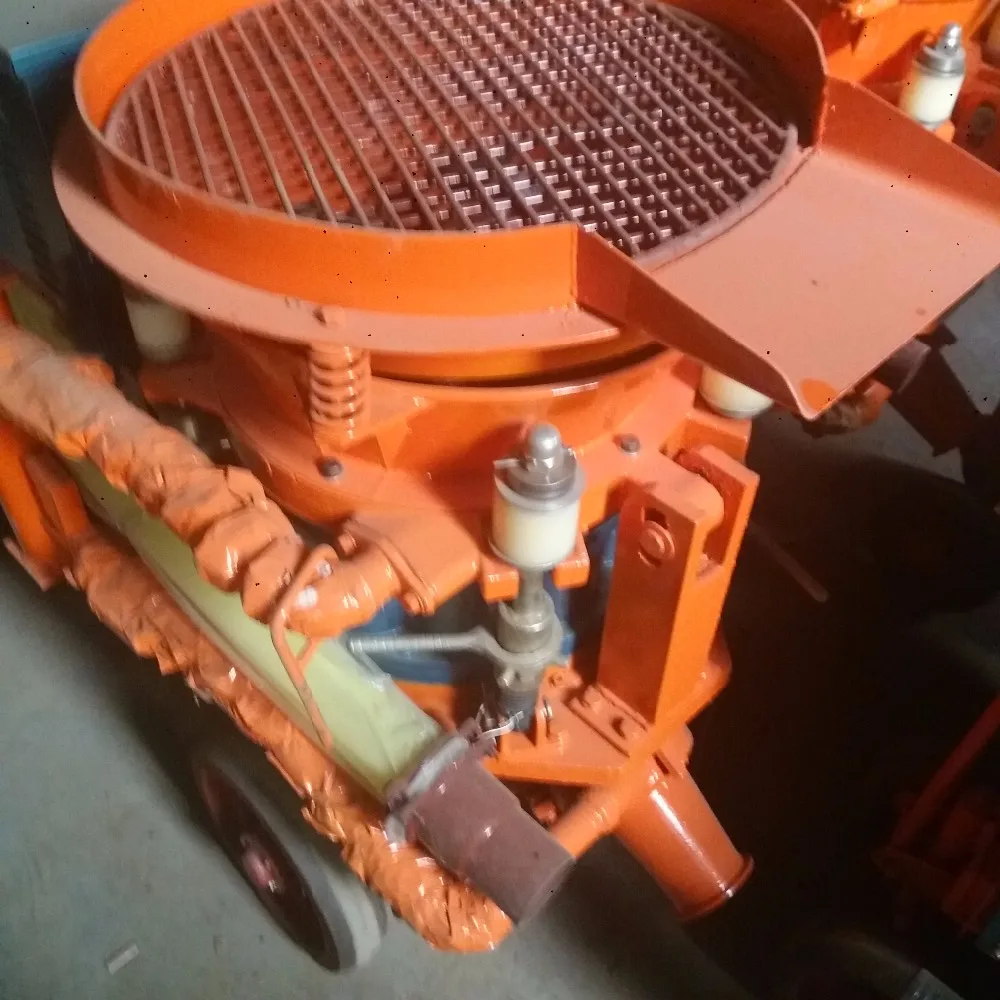

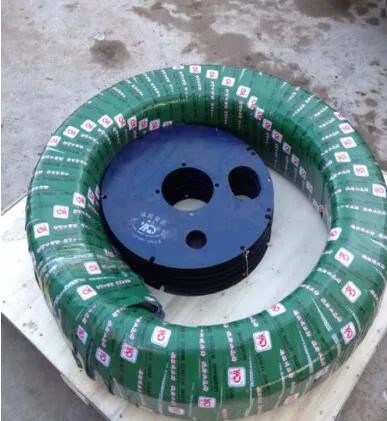

Detailed Images

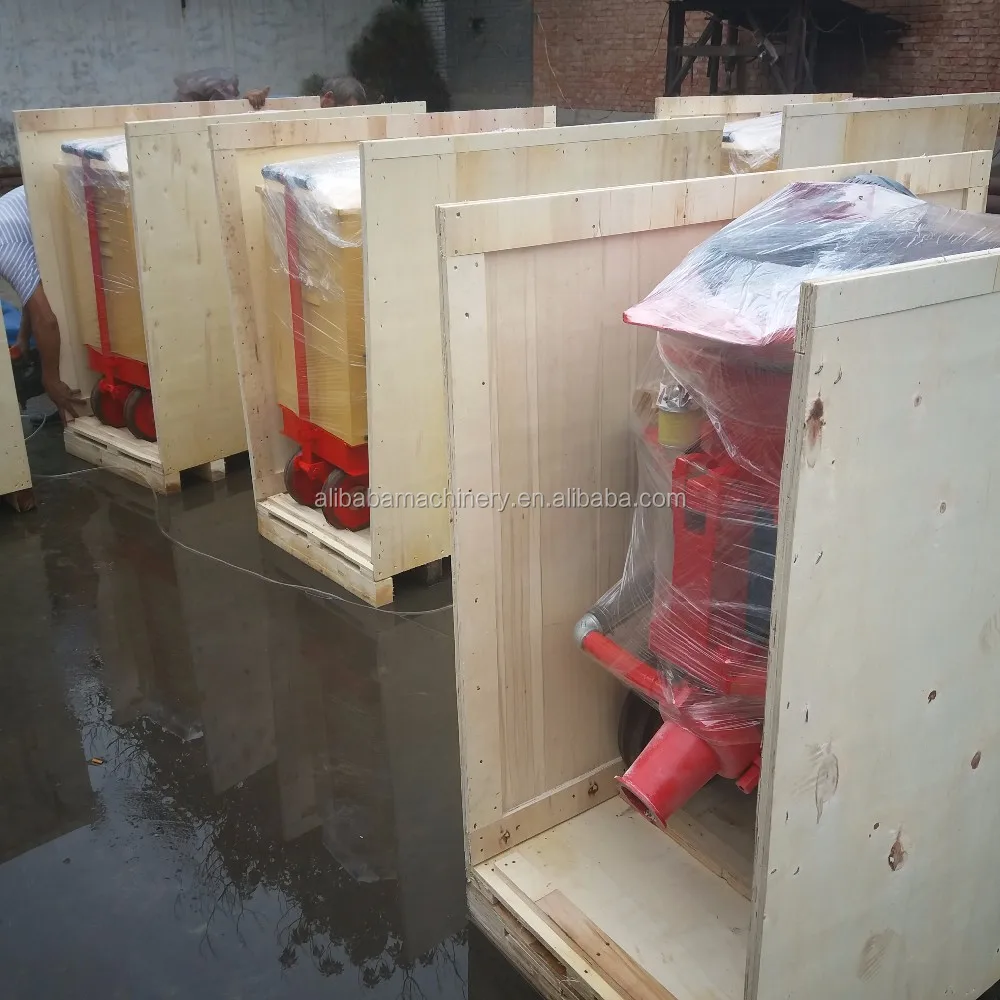

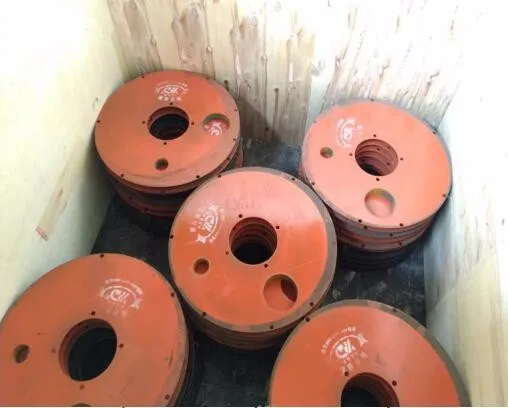

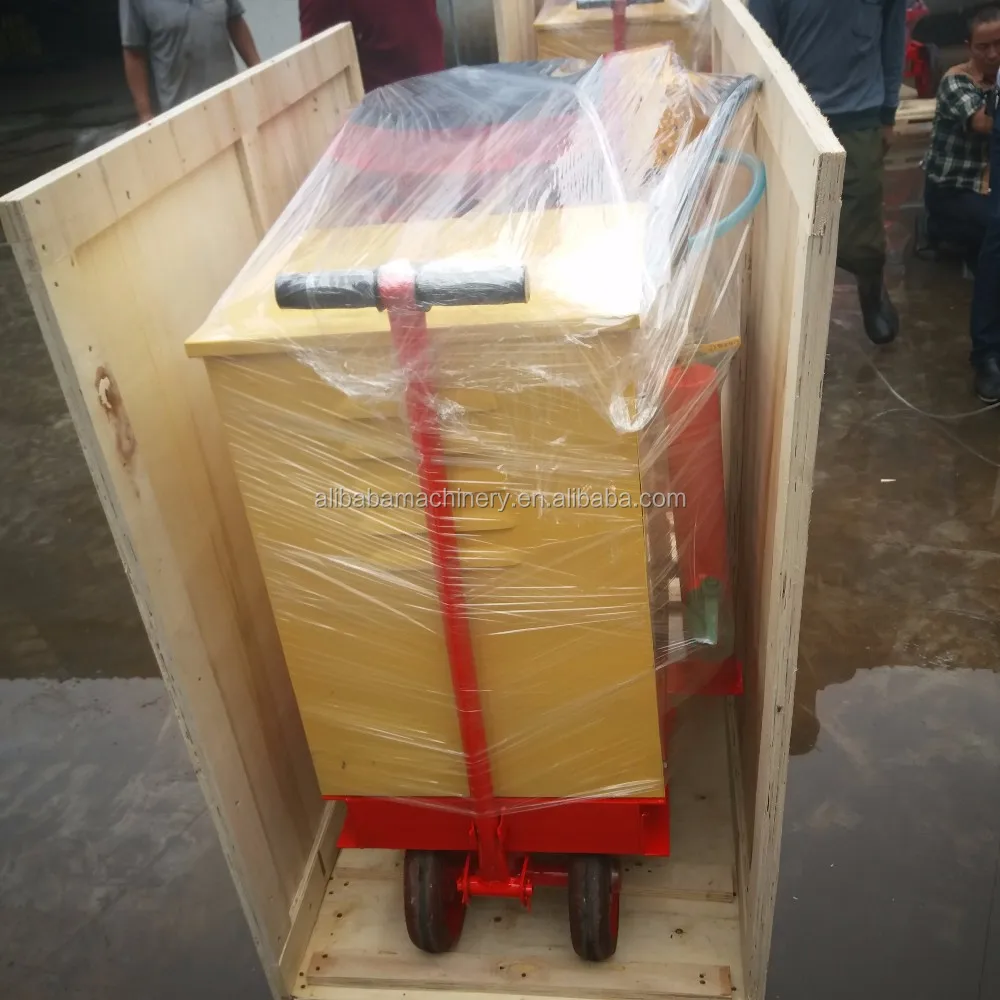

Packing & Delivery
Our Service

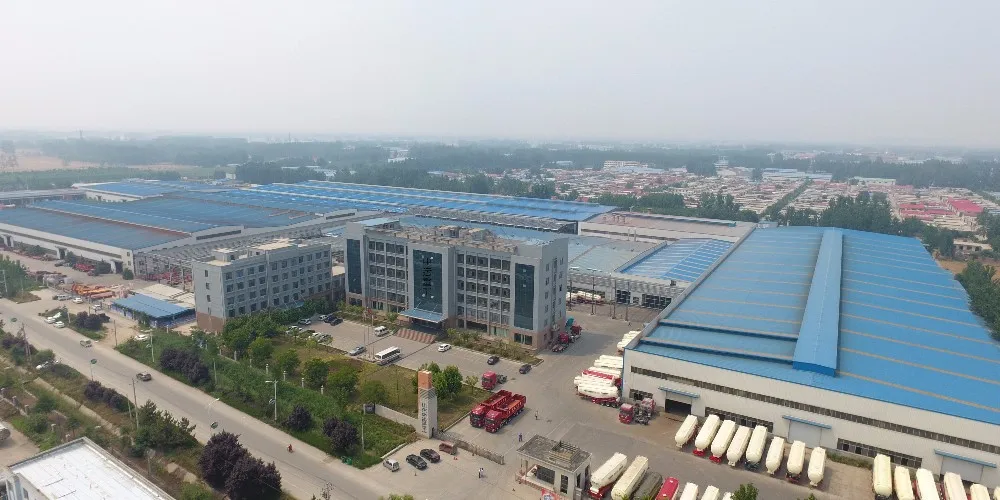

Our Company
Our company was established In 1953,we are the professional manufacturer of construction machine equipment in China. we have exported to many countries,like Philippines,Australia,Thailand,Turkey ,Peru,etc.and we have strict quality control system to ensure the excellent quality!
