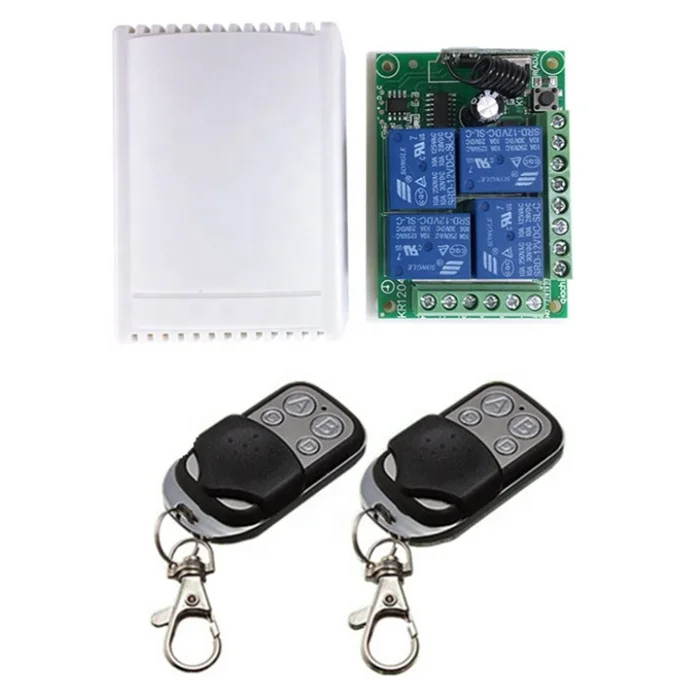

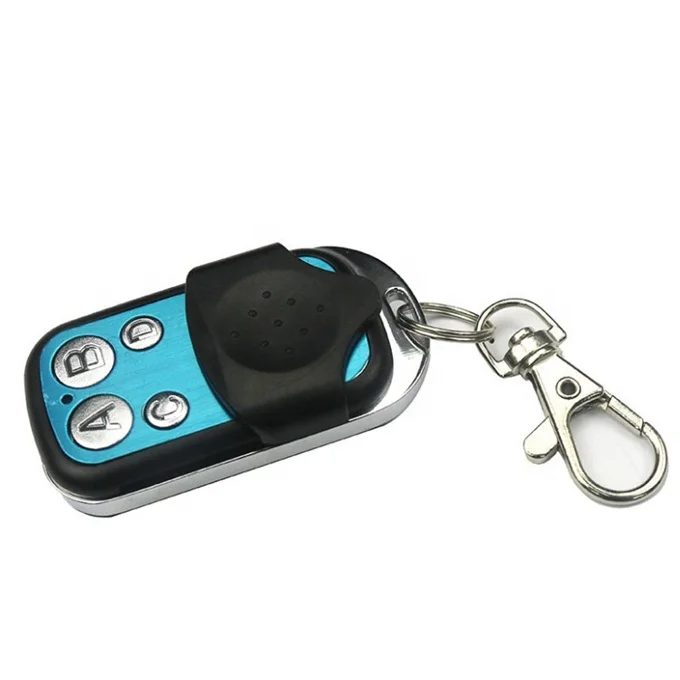

433Mhz Universal Wireless Remote Control Switch DC12V 4CH relay Receiver Module and 4 channel RF Remote Transmitter
- Category: Switches >>>
- Supplier: Shenzhen Ruiqi Electronic Co. Ltd.
Share on (62085948693):
Product Overview
Description
Product Description
433Mhz Universal Wireless Remote Control Switch DC12V 4CH relay Receiver Module and 4 channel RF Remote Transmitter
Specifications:
• Working voltage: DC 12 V
• Output voltage: Decided by the COM PIN INPUT
• Code: EV1527
• Loop current limit: 5A
• Quiescent current: 5mA
• Working frequency: 433 MHz
• Receiving sensitivity: -104dBm
• Function option: Momentary/toggle/latched
• Modulation mode: ASK
• Matching mode: Intelligent learning code
• Working voltage: DC 12 V
• Output voltage: Decided by the COM PIN INPUT
• Code: EV1527
• Loop current limit: 5A
• Quiescent current: 5mA
• Working frequency: 433 MHz
• Receiving sensitivity: -104dBm
• Function option: Momentary/toggle/latched
• Modulation mode: ASK
• Matching mode: Intelligent learning code

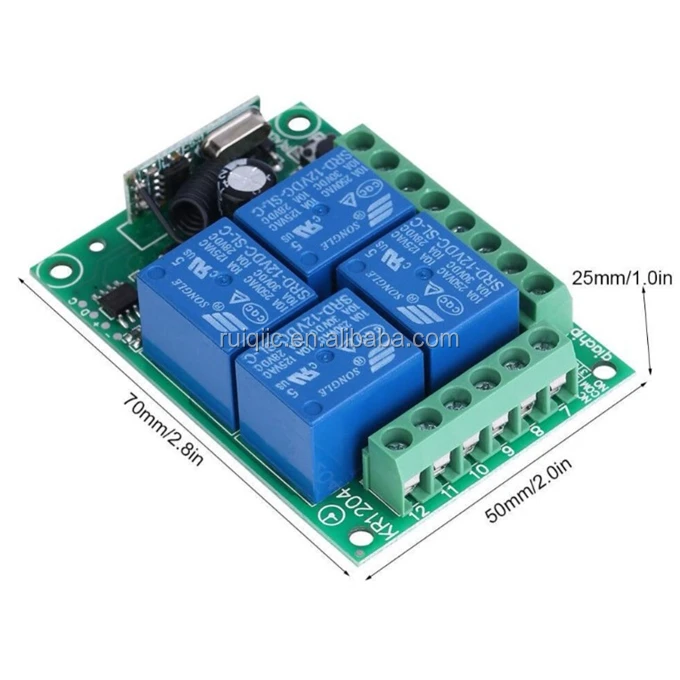

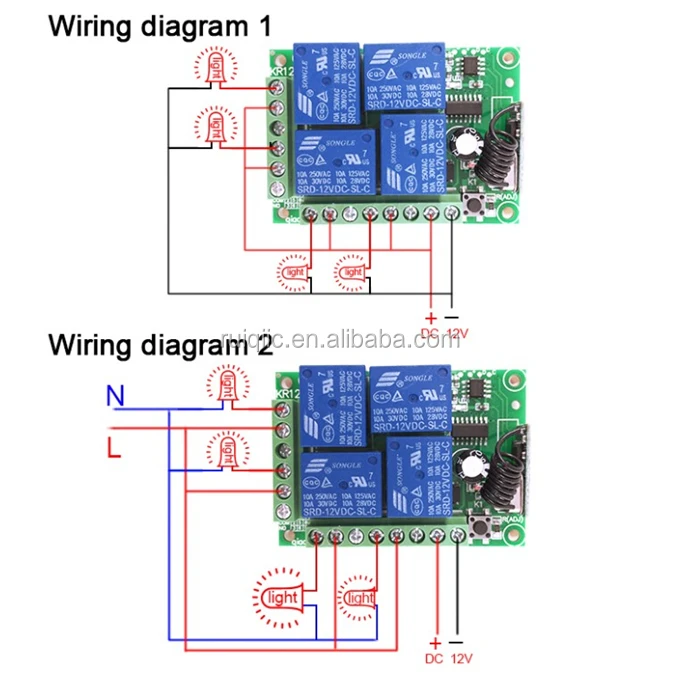

Terminal block function description:
1, (+V - positive input of power supply)
2, (GND - power supply negative input)
3, (1 - KC1 relay normally closed end)
(2-KC1 relay common terminal)
(3-KC1 relay normally open)
4, (4-KC3 relay normally closed end)
(5-KC3 relay common terminal)
(6-KC3 relay normally open)
5, (7-KC2 relay normally closed end)
(8-KC2 relay common terminal)
(9-KC2 relay normally open)
6, (10-KC4 relay normally closed end)
(11-KC4 relay common terminal)
(12-KC4 relay normally open)
1, (+V - positive input of power supply)
2, (GND - power supply negative input)
3, (1 - KC1 relay normally closed end)
(2-KC1 relay common terminal)
(3-KC1 relay normally open)
4, (4-KC3 relay normally closed end)
(5-KC3 relay common terminal)
(6-KC3 relay normally open)
5, (7-KC2 relay normally closed end)
(8-KC2 relay common terminal)
(9-KC2 relay normally open)
6, (10-KC4 relay normally closed end)
(11-KC4 relay common terminal)
(12-KC4 relay normally open)
Working mode setting
First, the receiver is connected to the line, the power is turned on, and the learning button on the receiving board is pressed 8 times in succession. The LED indicator on the receiving board will flash 8 times, and the existing remote controller is successfully deleted. Follow the prompts to select the desired mode and perform the code pairing.
1. Jog mode:
Press the learning button on the receiving board once (the LED on the receiving board simultaneously sends a signal), and then press any button on the remote control. The LED of the remote control signals three times, indicating that the jog mode is set.
2. Interlock mode:
Press the learning button on the receiving board twice (the indicator on the receiving board will send a signal at the same time), then press any button on the remote control, and the LED indicator of the remote control three times, indicating the setting of the interlock mode.
3. Self-locking mode:
Press the learning button on the receiving board three times (the LED on the receiving board will send a signal at the same time), then press the first remote button, press the second remote button, and pass the LED of the remote control three times. Representative set self-lock mode successfully
(The first button represents on and the second button represents off).
4. Two-way jog + two-way interlock:
Press the learning button on the receiving board four times (the LED on the receiving board simultaneously signals), then press any remote button, and the LED indicator of the remote control signals the setting success three times.
5. Two-way jog + two-way self-locking:
Press and hold the learning button on the receiving board five times (the LED on the receiving board simultaneously sends a signal), then press any button on the remote control, and the LED indicator of the remote control three times to inform the setting success.
6. Two-way interlock + two-way self-locking:
Press the learning button on the receiving board six times (the LED on the receiving board will send a signal at the same time), then press any remote button, and the LED indicator of the remote control will signal three times to inform the setting success.
7. Two-way self-locking + two-way interlocking:
Press the learning button on the receiving board seven times (the LED on the receiving board simultaneously sends a signal), then press any remote control button, and the LED indicator of the remote control three times to inform the setting success.
First, the receiver is connected to the line, the power is turned on, and the learning button on the receiving board is pressed 8 times in succession. The LED indicator on the receiving board will flash 8 times, and the existing remote controller is successfully deleted. Follow the prompts to select the desired mode and perform the code pairing.
1. Jog mode:
Press the learning button on the receiving board once (the LED on the receiving board simultaneously sends a signal), and then press any button on the remote control. The LED of the remote control signals three times, indicating that the jog mode is set.
2. Interlock mode:
Press the learning button on the receiving board twice (the indicator on the receiving board will send a signal at the same time), then press any button on the remote control, and the LED indicator of the remote control three times, indicating the setting of the interlock mode.
3. Self-locking mode:
Press the learning button on the receiving board three times (the LED on the receiving board will send a signal at the same time), then press the first remote button, press the second remote button, and pass the LED of the remote control three times. Representative set self-lock mode successfully
(The first button represents on and the second button represents off).
4. Two-way jog + two-way interlock:
Press the learning button on the receiving board four times (the LED on the receiving board simultaneously signals), then press any remote button, and the LED indicator of the remote control signals the setting success three times.
5. Two-way jog + two-way self-locking:
Press and hold the learning button on the receiving board five times (the LED on the receiving board simultaneously sends a signal), then press any button on the remote control, and the LED indicator of the remote control three times to inform the setting success.
6. Two-way interlock + two-way self-locking:
Press the learning button on the receiving board six times (the LED on the receiving board will send a signal at the same time), then press any remote button, and the LED indicator of the remote control will signal three times to inform the setting success.
7. Two-way self-locking + two-way interlocking:
Press the learning button on the receiving board seven times (the LED on the receiving board simultaneously sends a signal), then press any remote control button, and the LED indicator of the remote control three times to inform the setting success.
