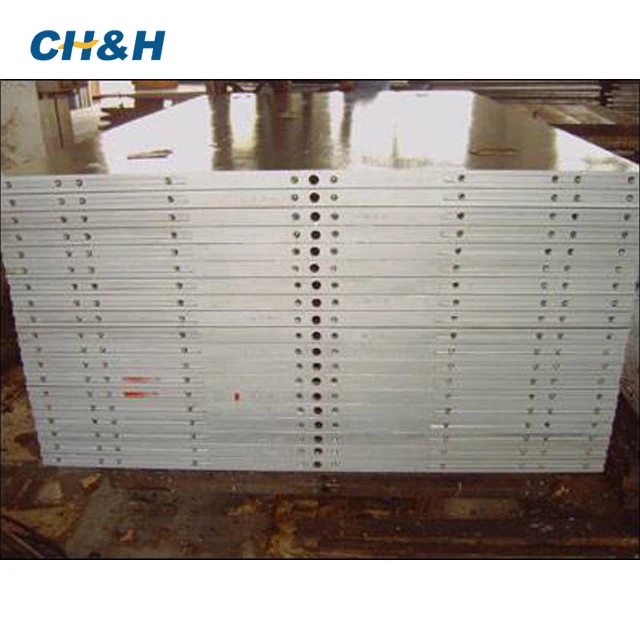

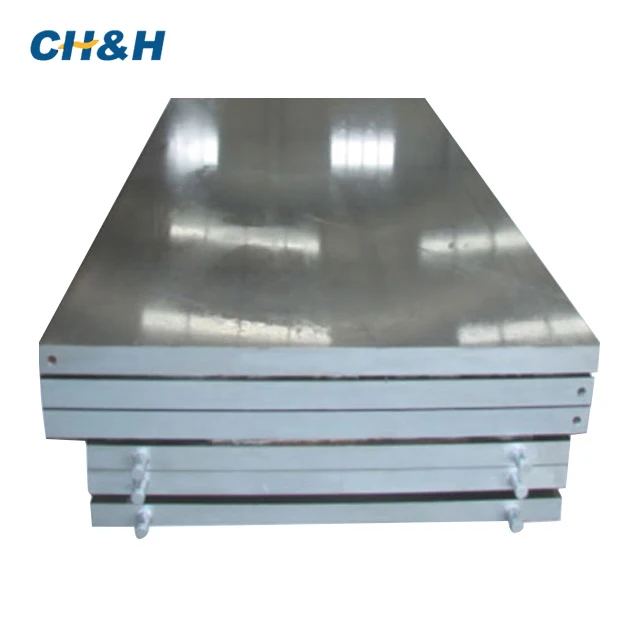

hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press
hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press

hot plate for plywood MDF melamine press steel heat plate hot pressing plate for mdf press

Share on (62085979972):


Price:$1,300.00 - $1,320.00

Quantity:


Product Overview

Description

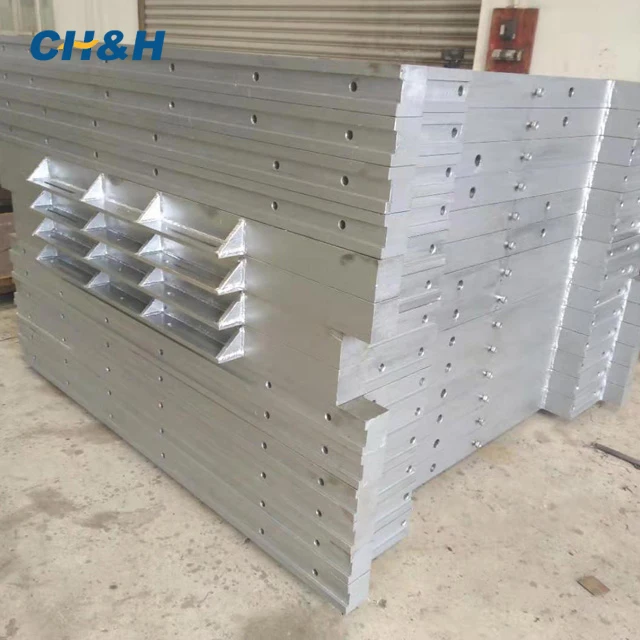

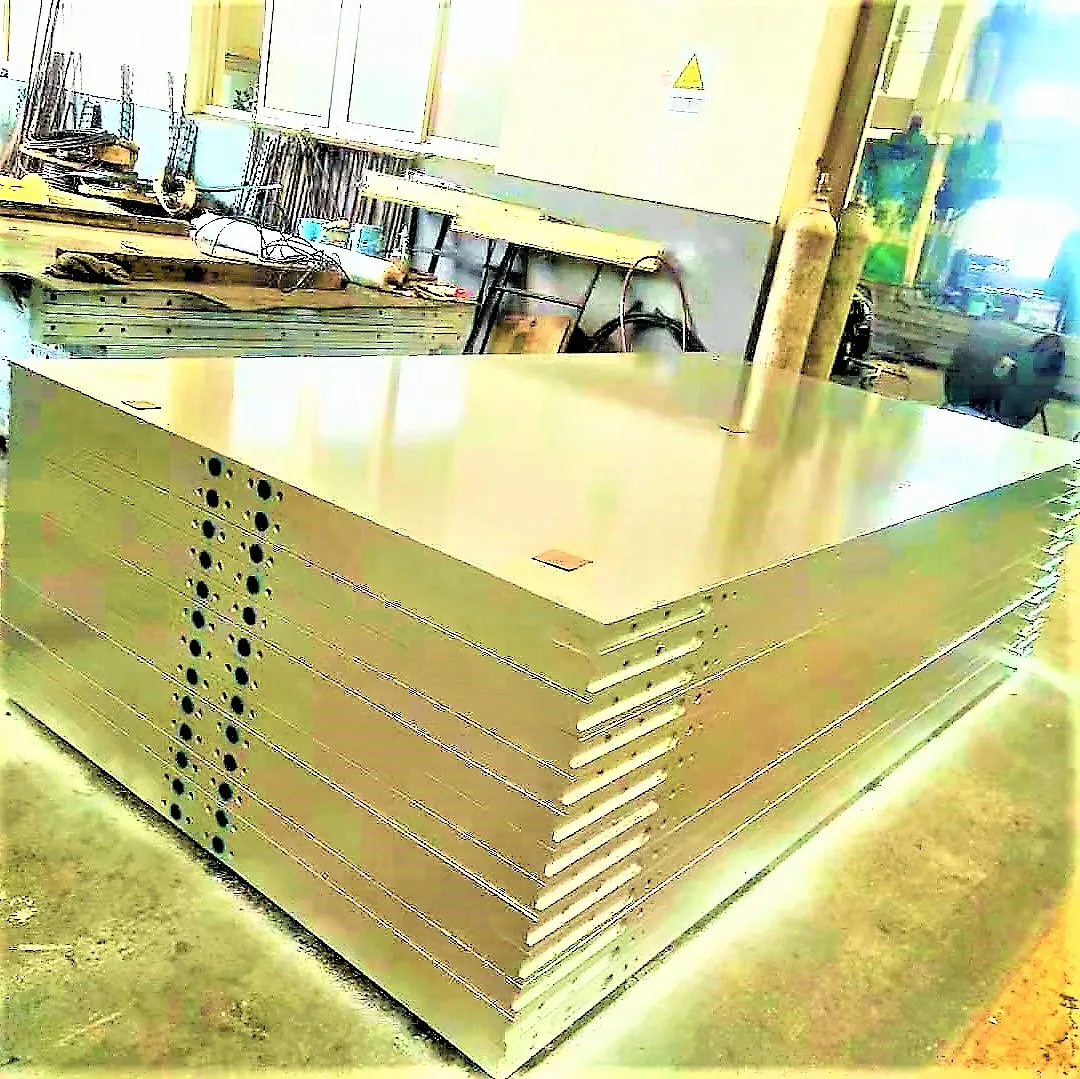

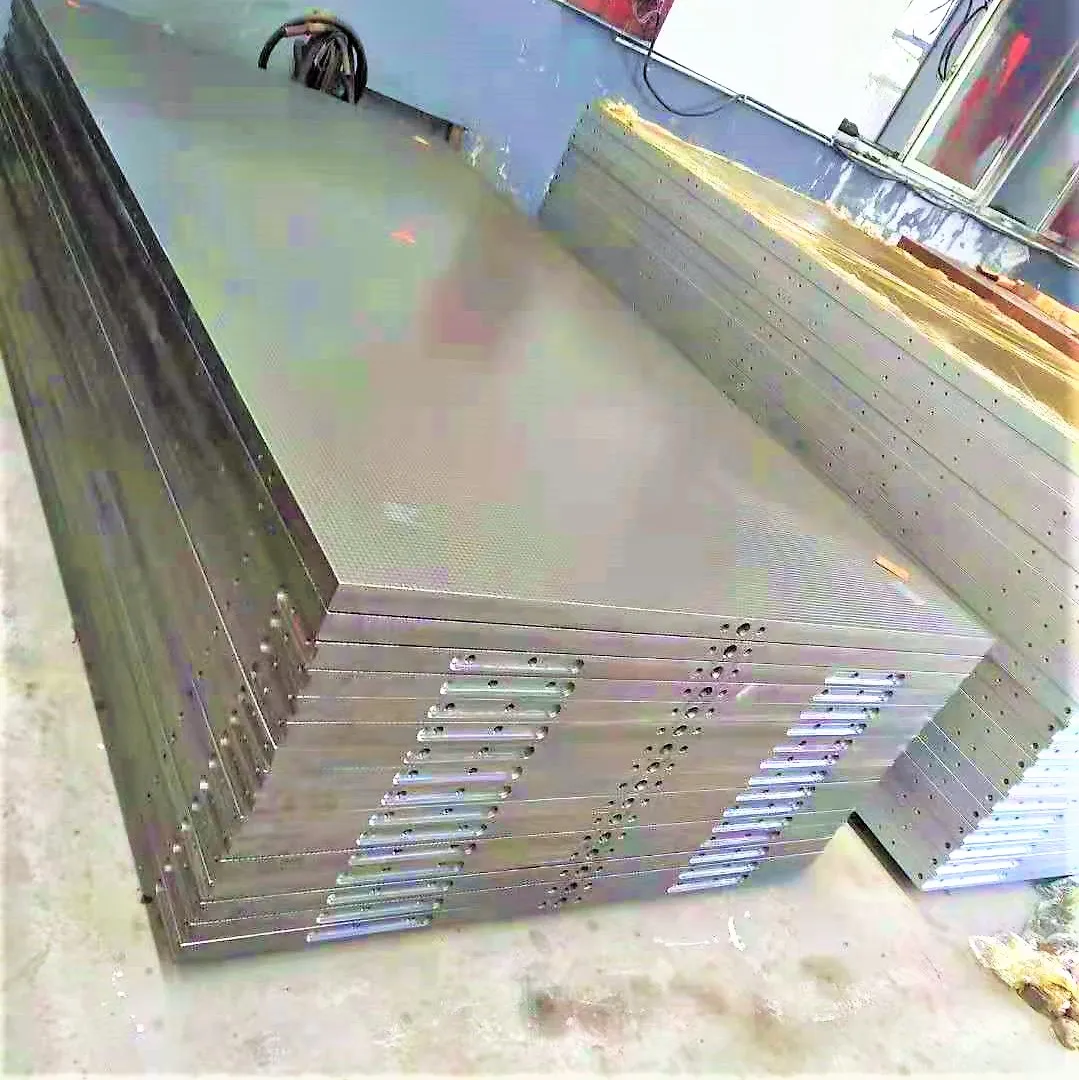

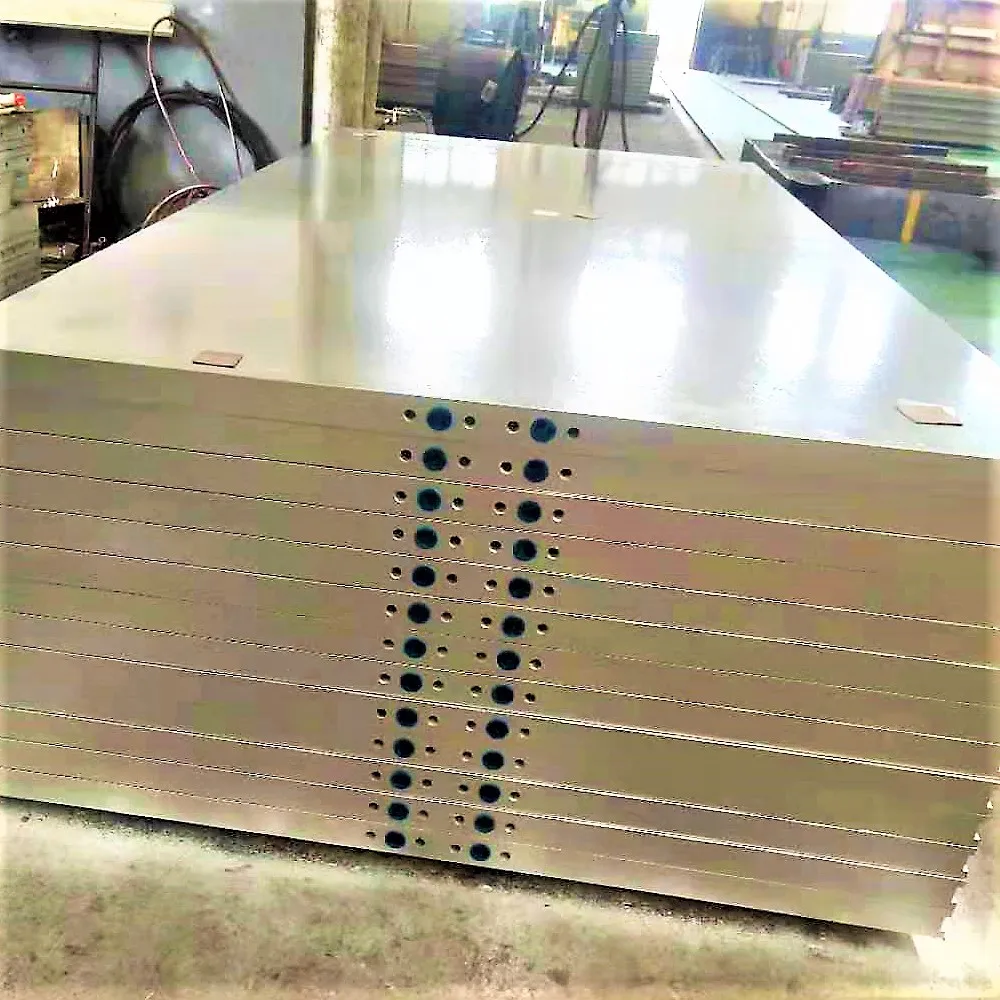

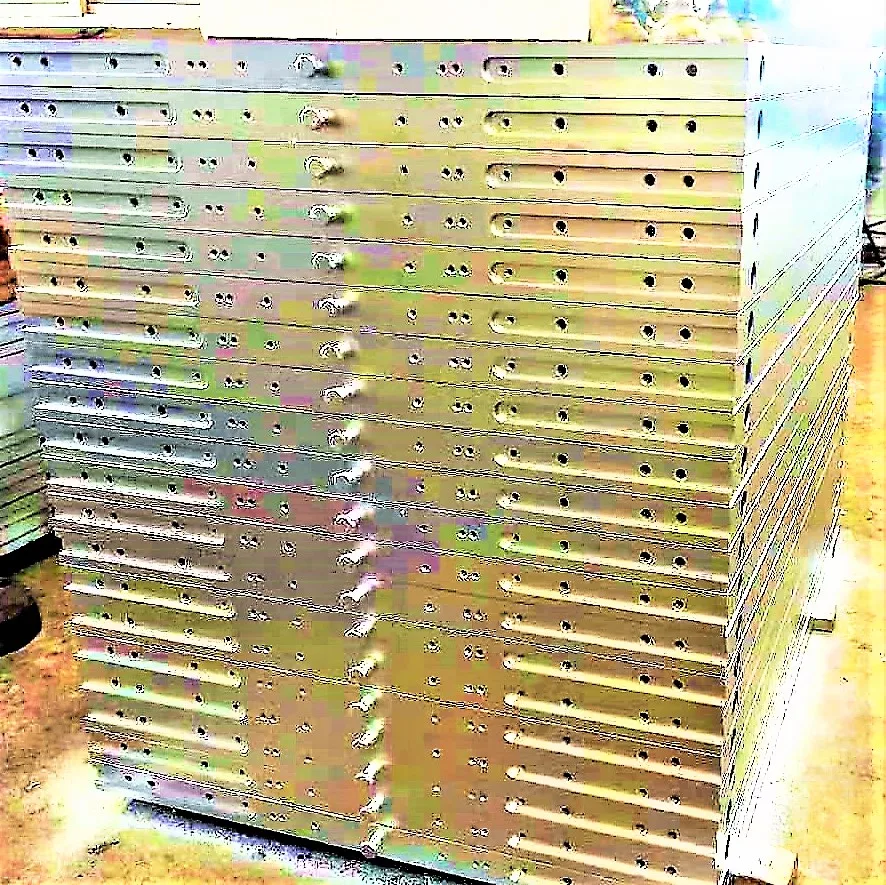

Details Images






MAIN FEATURE



Parallelism of surface tolerance: 0.03mm sqm
Smoothness accuracy less than 1.8 microns
Thickness tolerance: +/- 0.5mm
Diameter of cross holes internal: 30mm or 25mm
Distance between cross channels: 90mm
Accuracy of alignment inside channels: 0.033mm
Hydraulic pressure of welding gap: 30kg/cm2
The uniformity tolerance of surface temperature: 3°C


SERVICE STANDARDS

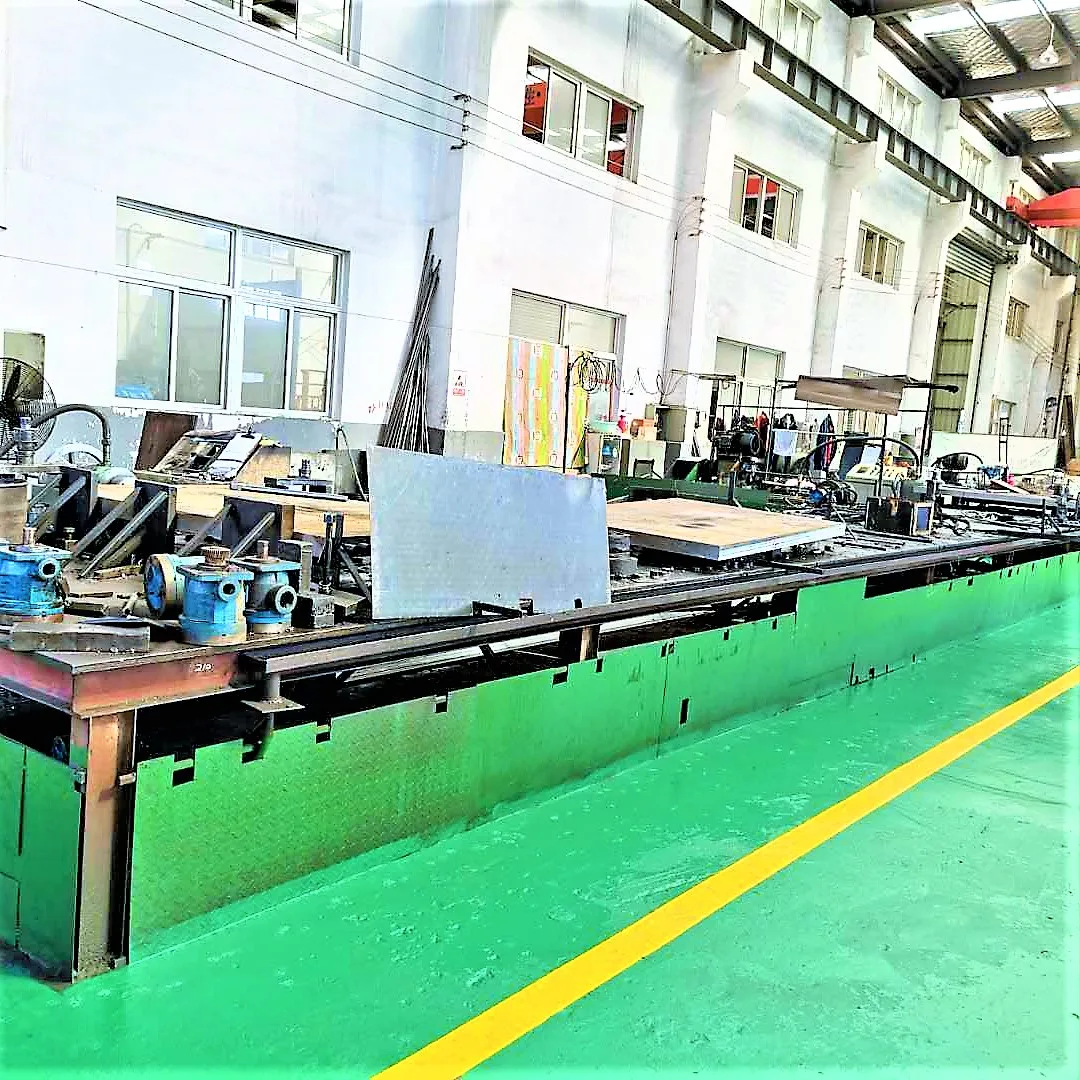

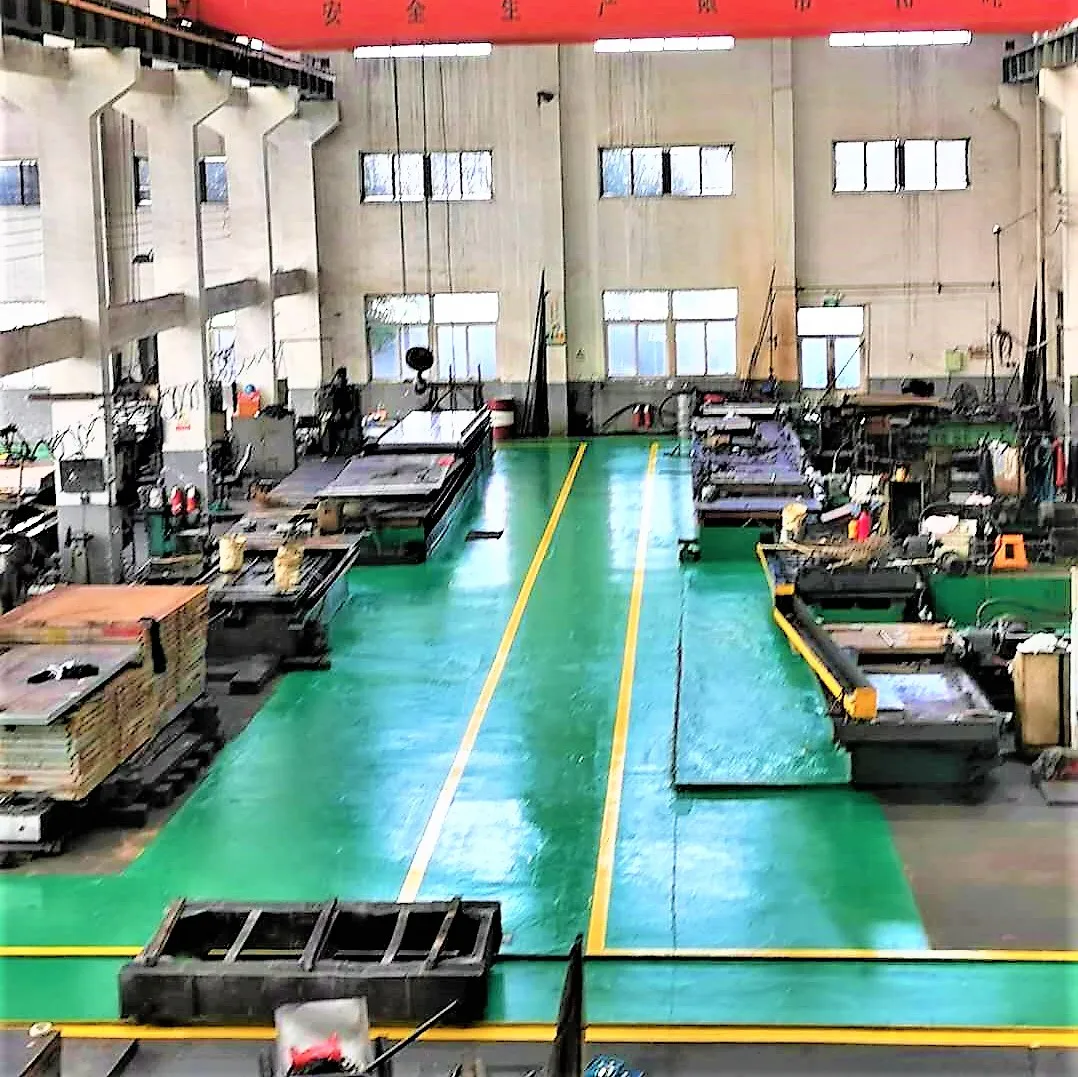

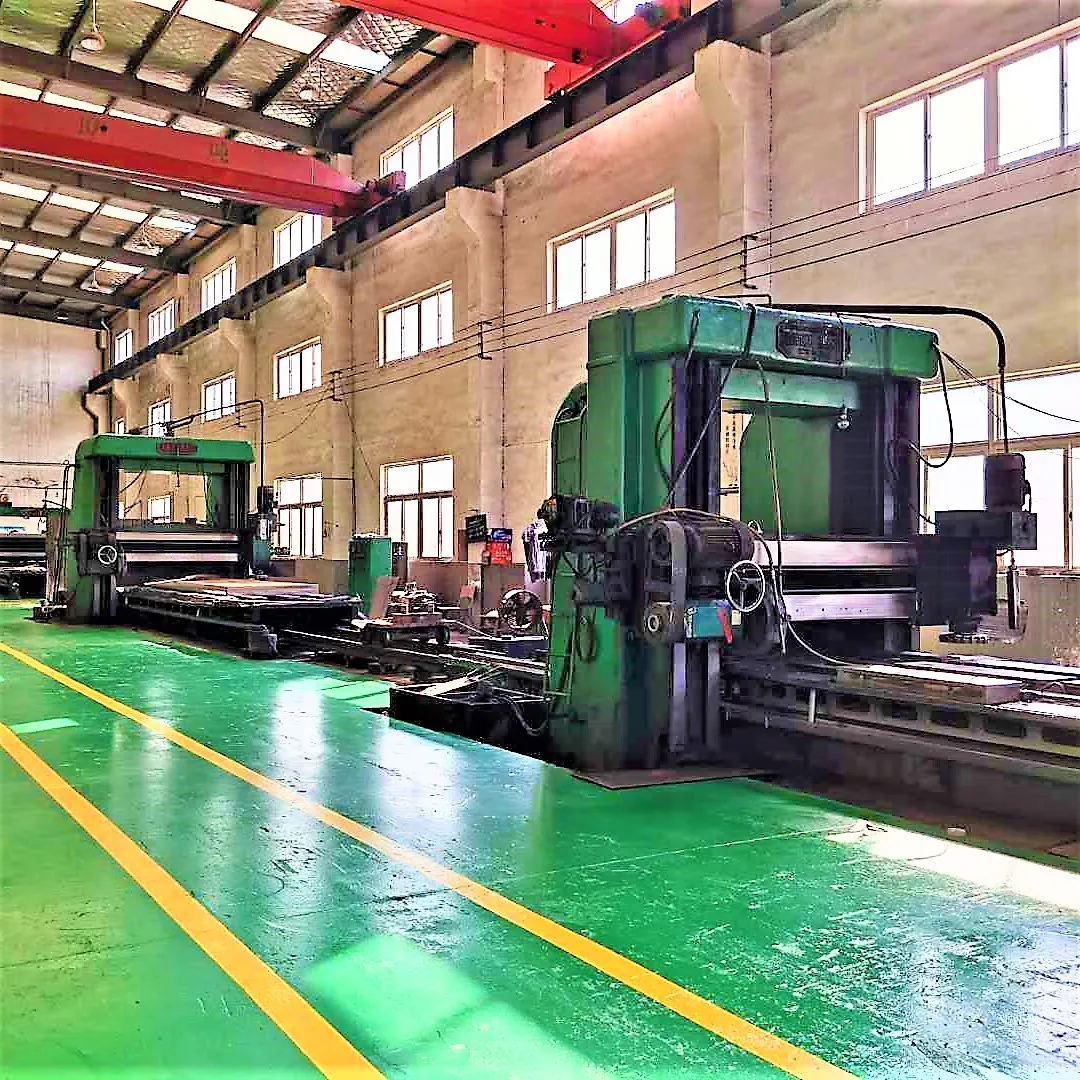

WORKSHOP




Product Paramenters


 Heat carrier
 Oil or Water or Steam
Steel material
Q235B or Q345
Size of hot platen
2100*1100*42mm
2700*1370*42mm
 2700*1370*52mm
2600*1500*120mm
 2600*1500*100mm
2600*1400*100mm
 2600*1400*120mm


FAQ


PLS GIVE LENGTHXWIDTHXTHICNESS OF YR HOT PRESSING PLATE AND ORDER QUANTITY TO OFFER
