high quality rgb 5054 specifications 5050 smd led
- Category: >>>
- Supplier: Shen Zhen Tengjie Optoelectronics Technology Co. Ltd.
Share on (62086018336):
Product Overview
Description
high quality rgb 5054 specifications 5050 smd led
Product Description
SMD LED 5050 specification:
Part NO
| Chip |
IR VR= 5V (Ua)
| IF=20-150mA/die |
Emitting angle (degree)
| ||||||
Material
|
Emitted Color
|
λd(nm) | Voltage (V) | Luminous intensity (mcd) | ||||||
Min | Max | Min. | Max. | Min. | Max. | |||||
TJ-5050QERC-U | Silica gel | red | 620 | 740 | 1 | 1.9 | 2.4 | 800 | 4500 | 120 |
TJ-5050QEOC-U | Silica gel | orange | 600 | 610 | 1 | 1.9 | 2.4 | 800 | 4500 | 120 |
TJ-5050QEYC-U | Silica gel | yellow | 585 | 595 | 1 | 1.9 | 2.4 | 800 | 4500 | 120 |
TJ-5050QEGC-U | Silica gel | green | 490 | 530 | 1 | 2.9 | 3.4 | 1500 | 5500 | 120 |
TJ-5050QEBC-U | Silica gel | blue | 460 | 475 | 1 | 2.9 | 3.4 | 800 | 4500 | 120 |
TJ-5050QEWC-U | Silica gel | white | 1500-20000K | 1 | 2.9 | 3.4 | 1500 | 6000 | 120 | |
Product advantage:
1.long life, high brightness
2.low light attenuation
3.conform to the SGS standard
4.strong antistatic ability
5.polished

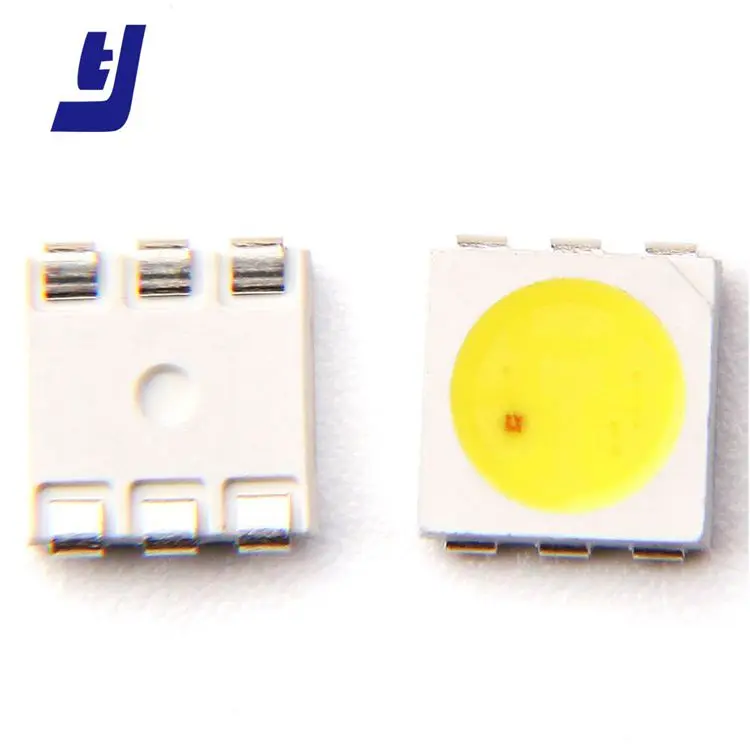

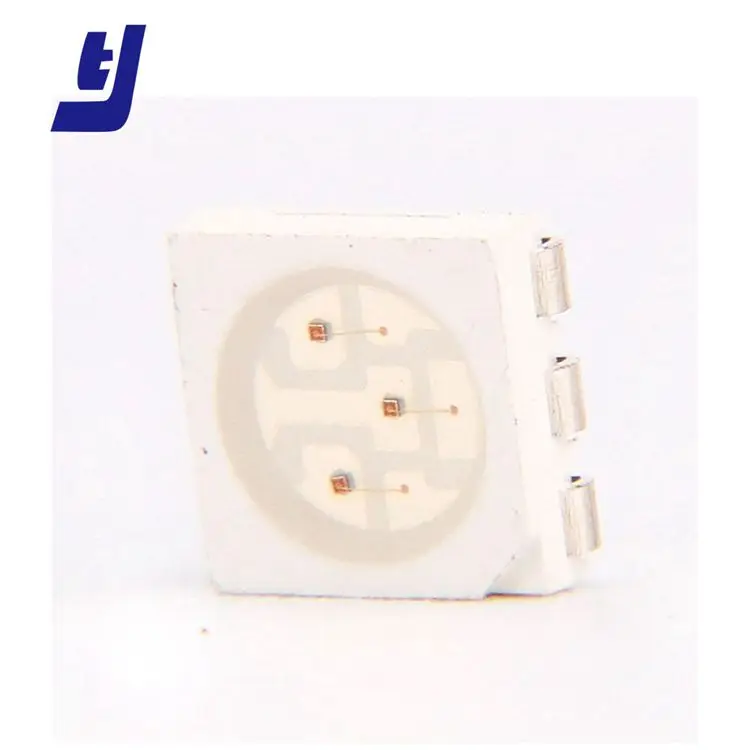

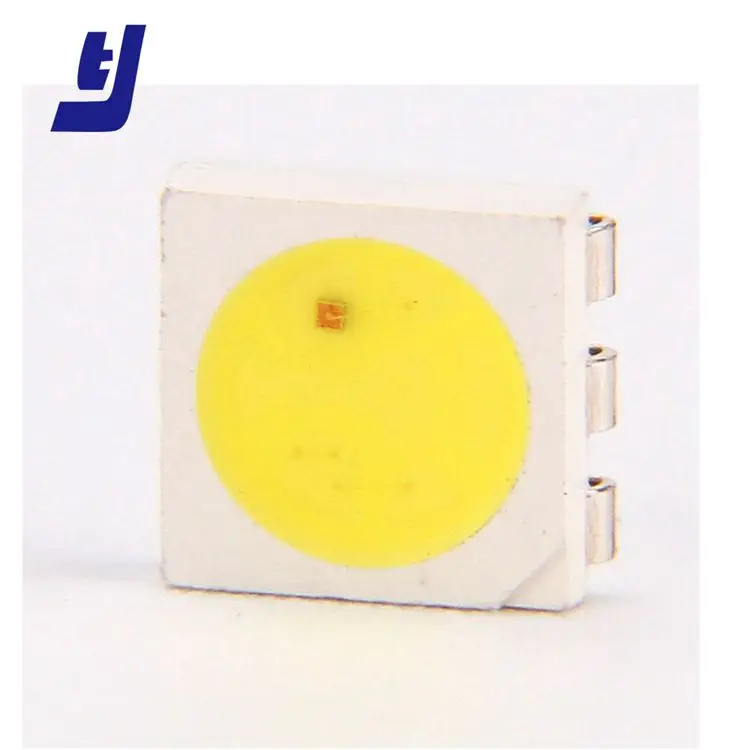

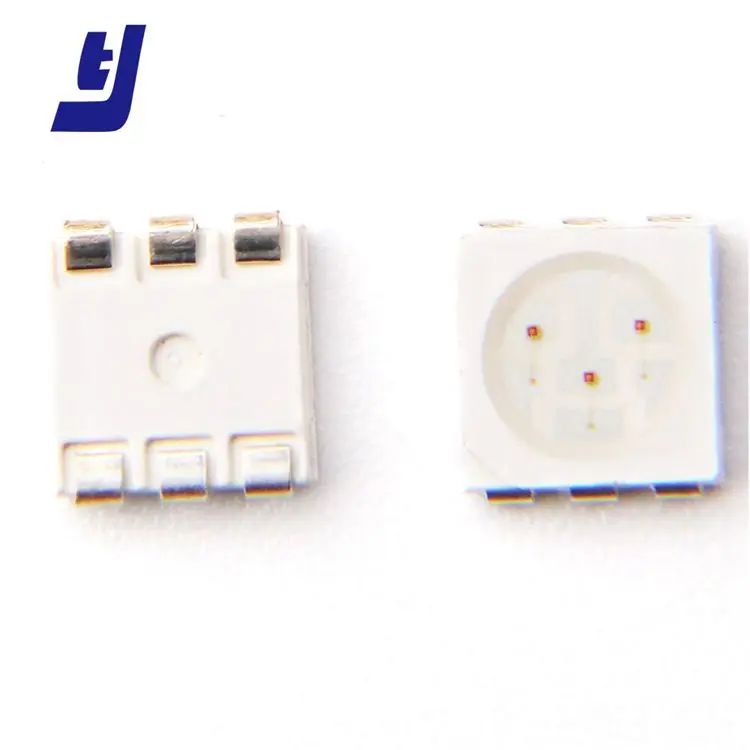

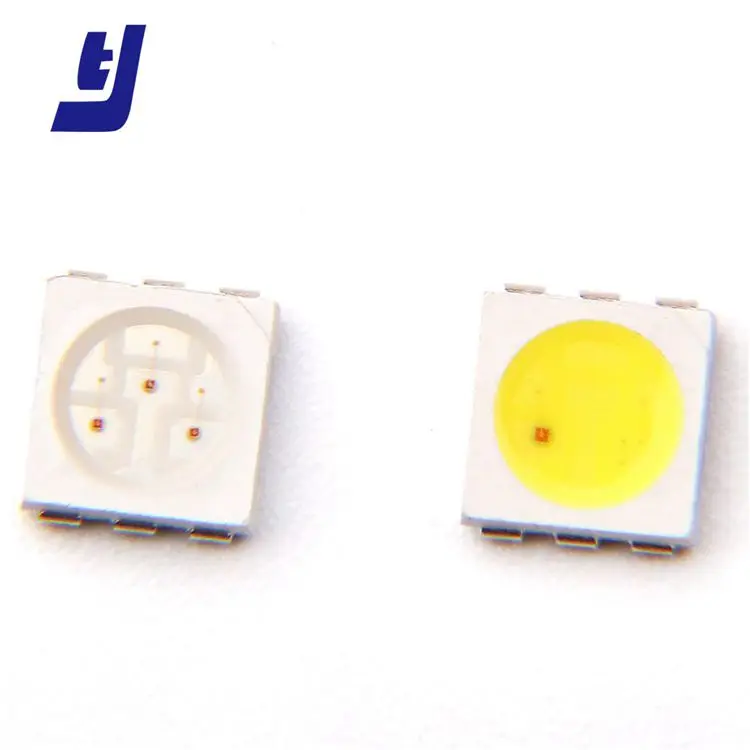

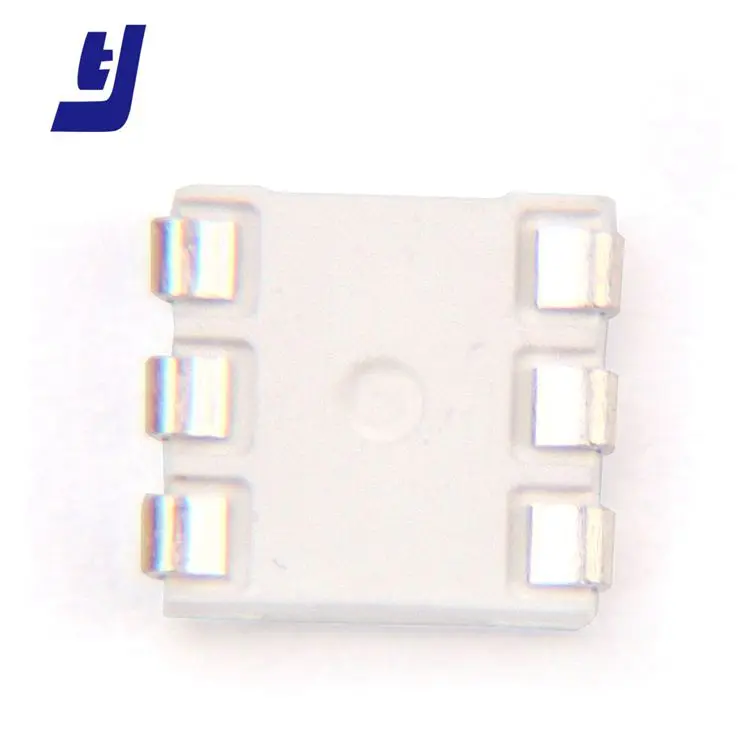

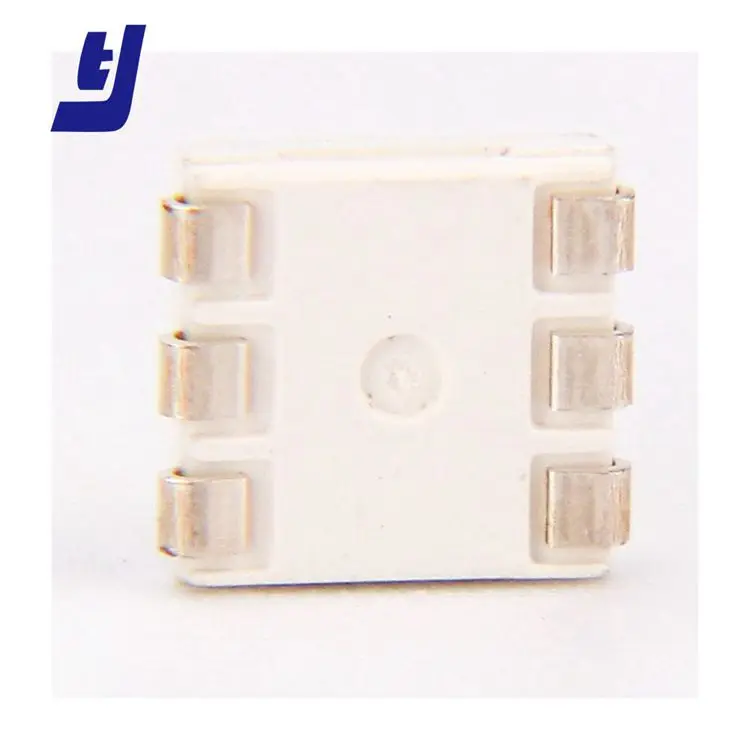

Product Image:
Related Products
Company Information
FAQ
Q1. How to get the product?
A1. Please kindly send enquiry to me, I'll be your guide.
Q2. When can I receive the product?
If we have product in stock, goods will be sent in 2 days. If we don't have in stock, it will take us 7~10 days to get your order ready.
Q3. How about your supply ability?
80000k per Month.
Q4. What is the MOQ(Minimum Order Quantity )?
For new customers, they can place a trial order to test the product’s quality and the sales in their markets.
Q5. If your company can custom product as my required and put my logo on?
All of our product are designed and customized as required including color, print, pattern and logo.
Q6. How about the warranty?
Normally we offer 24 months warranty, depends on products, some products have 12 months warranty.
Please contact me for more details.
Q7. How can I pay the order?
Usually we accept T/T, Western Union and PayPal. If you want to pay by other ways, Please contact me.
