Laser Cutting System for metal and nonmetal cutting

Description :

Auto focusing mix cutting metal and nonmetal cutting head for 150w-500W Power . It can use to  cut 4mm thin metal sheet material and 25mm non-metal material, It is high precision and efficiency.

Main Features

1. Can Use for large power cutting machine (130-500w power ).

2 .Can automatically adjust the focal length of the metal material

3.With cooling, protect the laser lens and mirrors do not heat over, and prolong the working  lifetime.

4. High precision, high quality, high efficacy.

5.With Oxygen gas assist function

6. It Moves automatically up and down by the rail in laser head according to the cutting material  thickness

. Advantage:

1. Double drawer structure

2. Water-cooled structure

3. Automatic sensor adjust the focus length

4. Can carry auxiliary gas

Specification

RDC6332M Controller

Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller.Employed with thin metal plate and non-metal laser cutting techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.

Adaptive software:  MetalCut

Technical parameters:

Digital laser control signals, differential output, TTL level, up to 20mA driving capability

PWM frequency can be adjusted from 2.5KHz to 100KHz. PWM duty ratio is 1%~99%

Laser power control: analog voltage, 0~5V adjustable according to the motor control signal differential output, TTL level, 20mA driving capability, the max. motor control pulse frequency is 500KHZ.

The USB max. transmission speed is 12 Mbps, the longest distance is 5 meter.

4-way generalphotoelectric isolation OC gate output, the max.drive capability is 600mA.

Linear/ circular/B Spline interpolation precision: +/-0.5pulse

4-way generalphotoelectric isolation, TTL level

Application Area:Metal and non-metal laser cutting

The Live focus system (Remarks: LFS-DM-T43

The Live Focus System

Model: LFS-DM-T56,LFS-DM-T43,LFS-AM-T43,LFS-ANM, etc.

Application Area

Metal cutting,non-metal cutting,uniaxial automatic control field

Technical Parameters

Digital quantity input detection, 24-bit precision;

Analog output +/-10V,12-bit precision;

General I/O output,photoelectric Isolation,high-power output to drive the relay,24V standard;

Dedicated motor interface,the limit switch input,pulse output frequency up to 500 KHZ;

2-way PWM output, 24V and 5V level can be configured, the output frequency up to 100 KHZ;

Quadrature encoder input, TTL level;

Single data acquisition time≤2ms.

Low pressure punching, gradual punching, low pressure cutting, etc.cutting method. LFS-DM-T43LFS-DM-T43

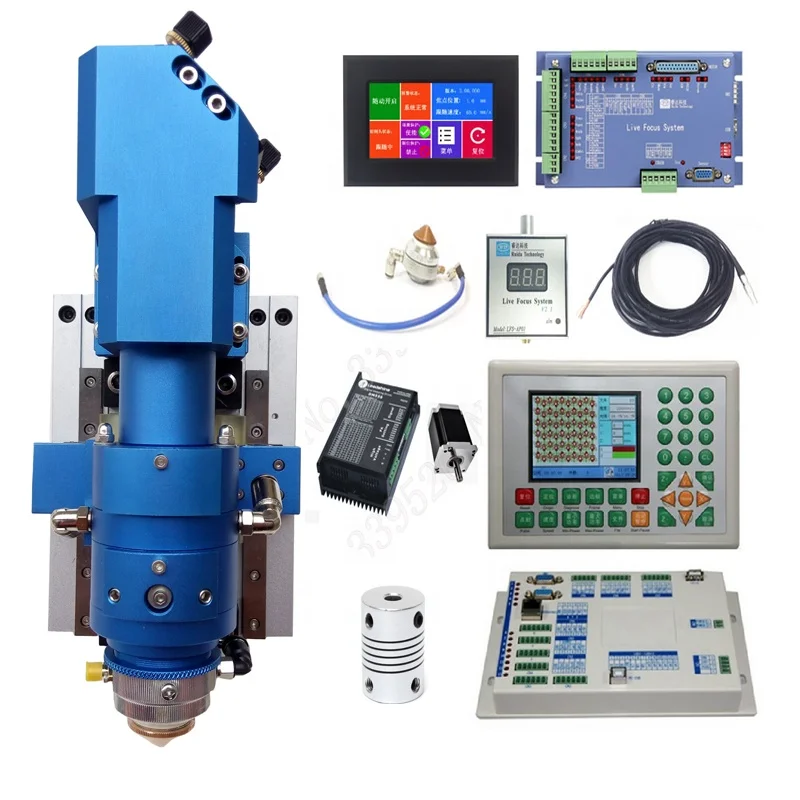

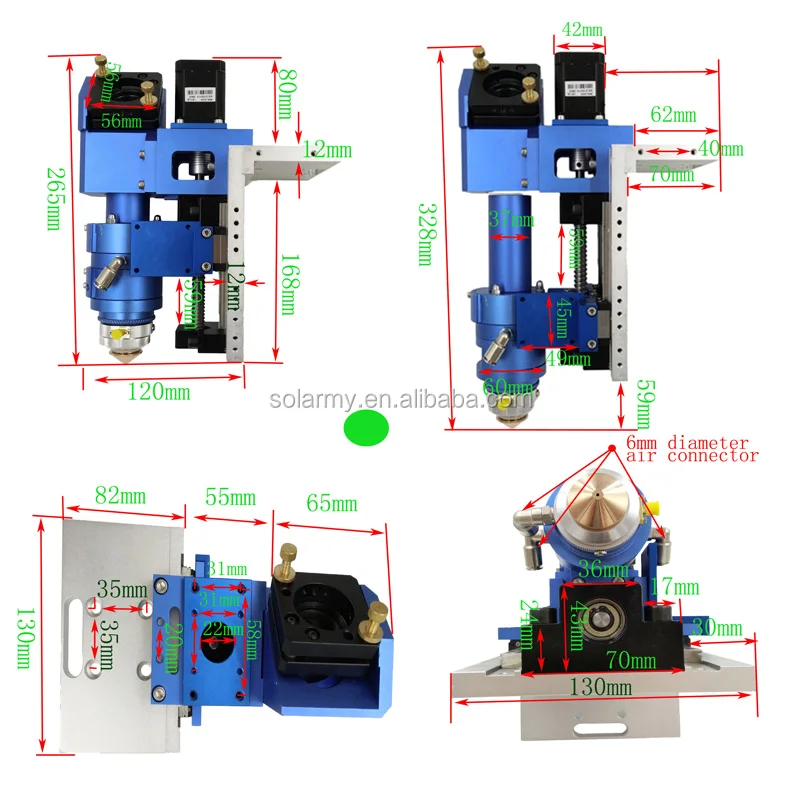

1 PCS autofocus CO2 laser metal cutting head

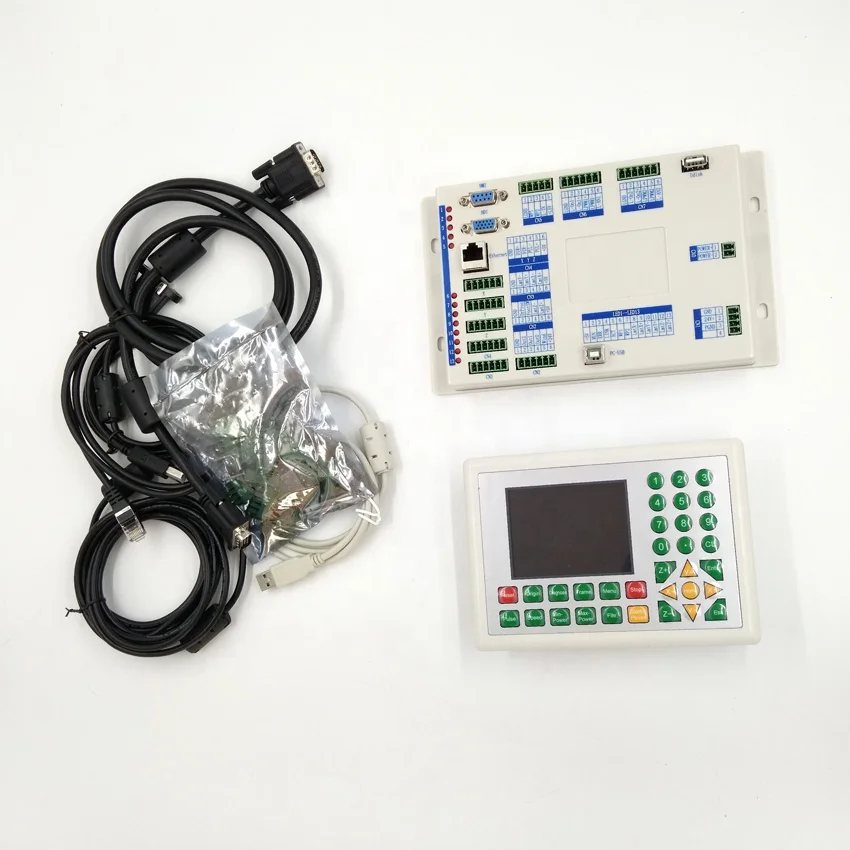

 1 set CO2 laser controller RDC6332M

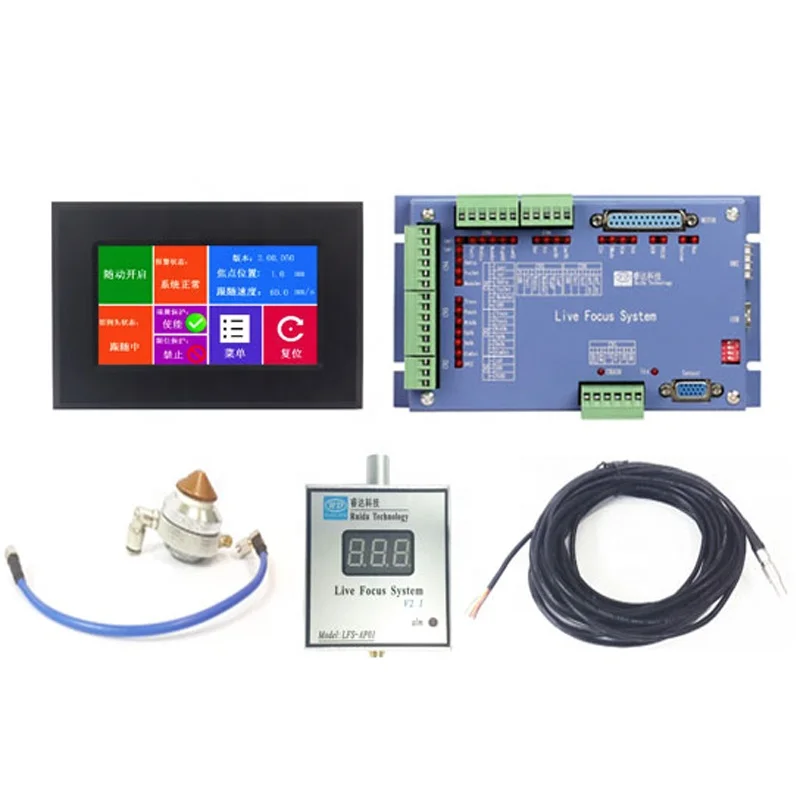

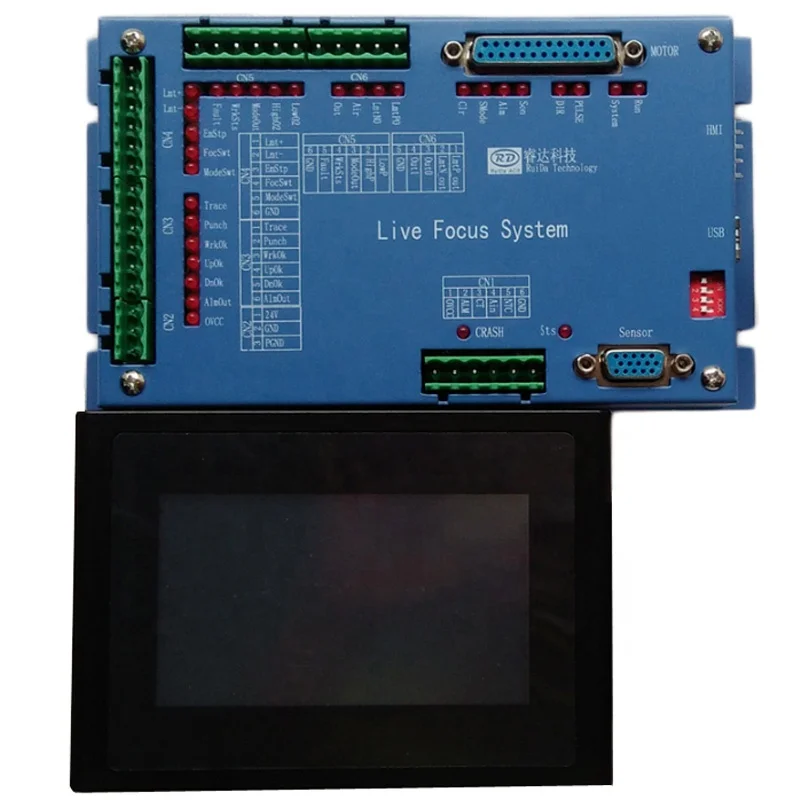

 1 set  LFS-AM-T43 autofocus sensor system

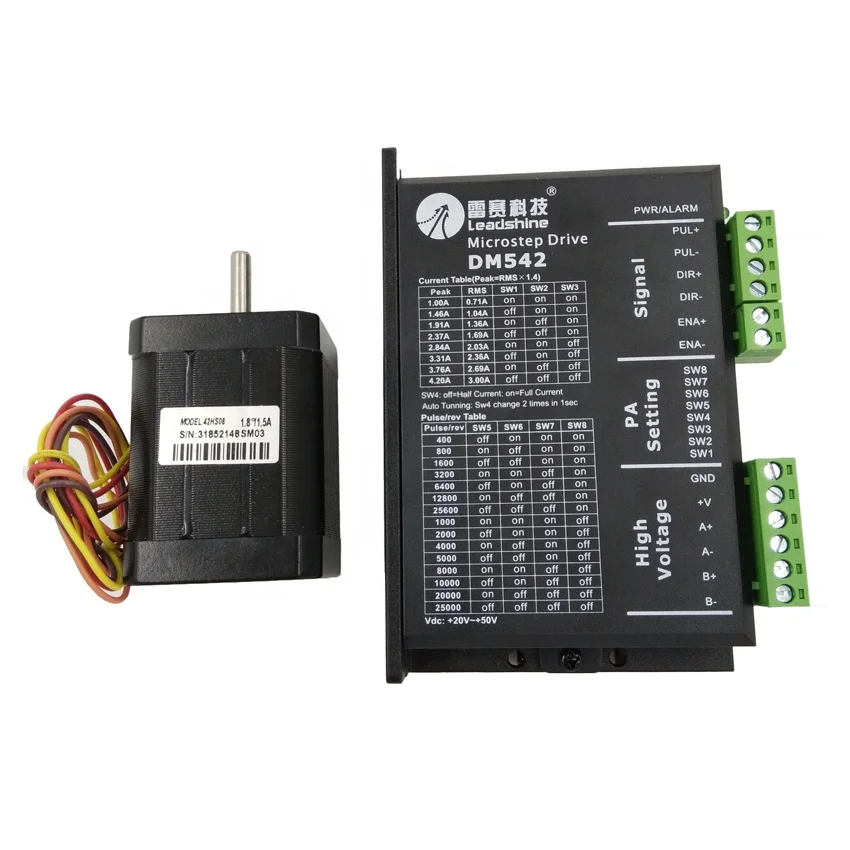

 1 set  2 phase motor (42HS08) and driver (DM556)

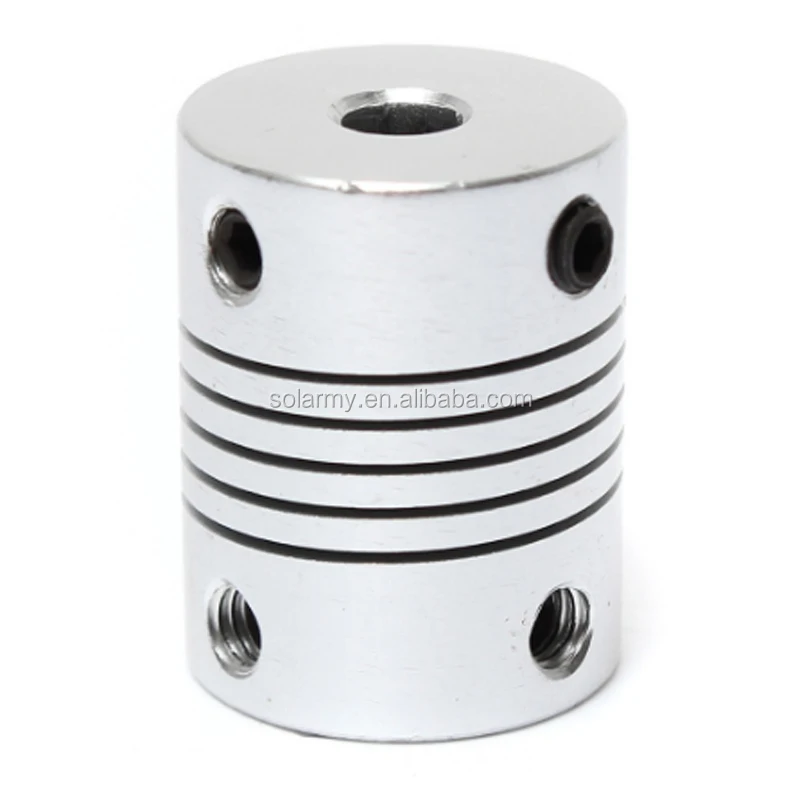

1 pcs 5*8mm shaft connector
 1pcs limit switch

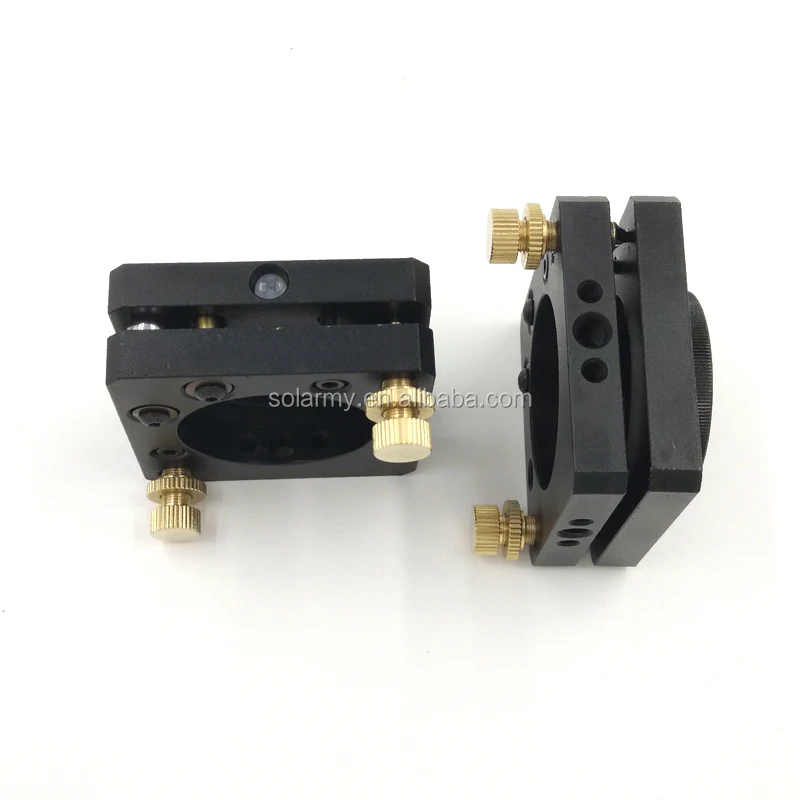

2pcs 30mm mirror mounts ,

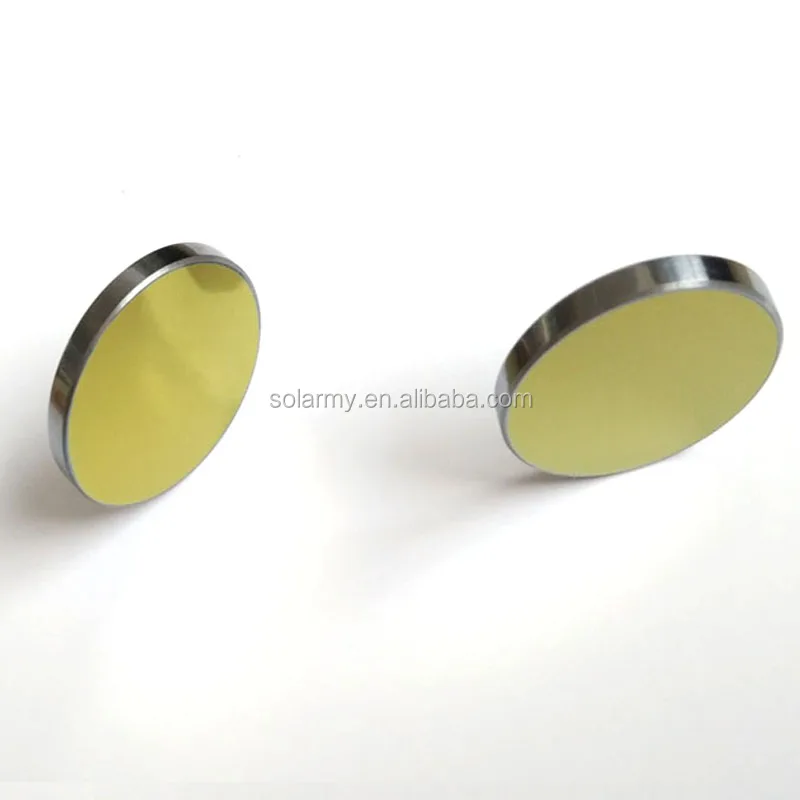

3PCS 30mm diameter  mirror ,

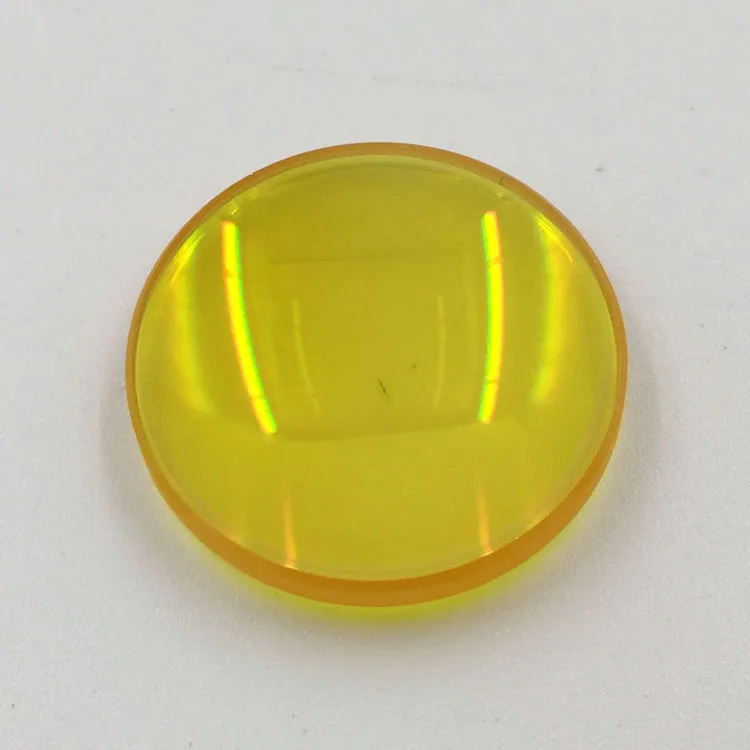

1pcs 25*63.5mm focus lens . (for metal cutting)
1pcs 25*100mm focus lens (for non metal cutting )

 metall cutting head

 LFS-AM-T43 autofocus sensor system

Co2 laser   controller card

Laser cutting stepper motor and driver

Laser focus lens and mirror

Mirror mount for 30mm diameter

 Shaft connector for motor and head
