Hot sellding heavy load capacity robotic arm industrial robot M-900 iB 700 for loading unloading and handing

This 6 axis model is a big lifter that also benefits from a generous work envelope. Capable of handing up to 700 kg, it is perfectly cut out for the kind of heavy loading, unloading and tending applications found in the metal, automotive and construction industries. Its inherent rigidity also makes it ideally suited to constant force applications.

Main Features

1.Ultra heavy payload processing

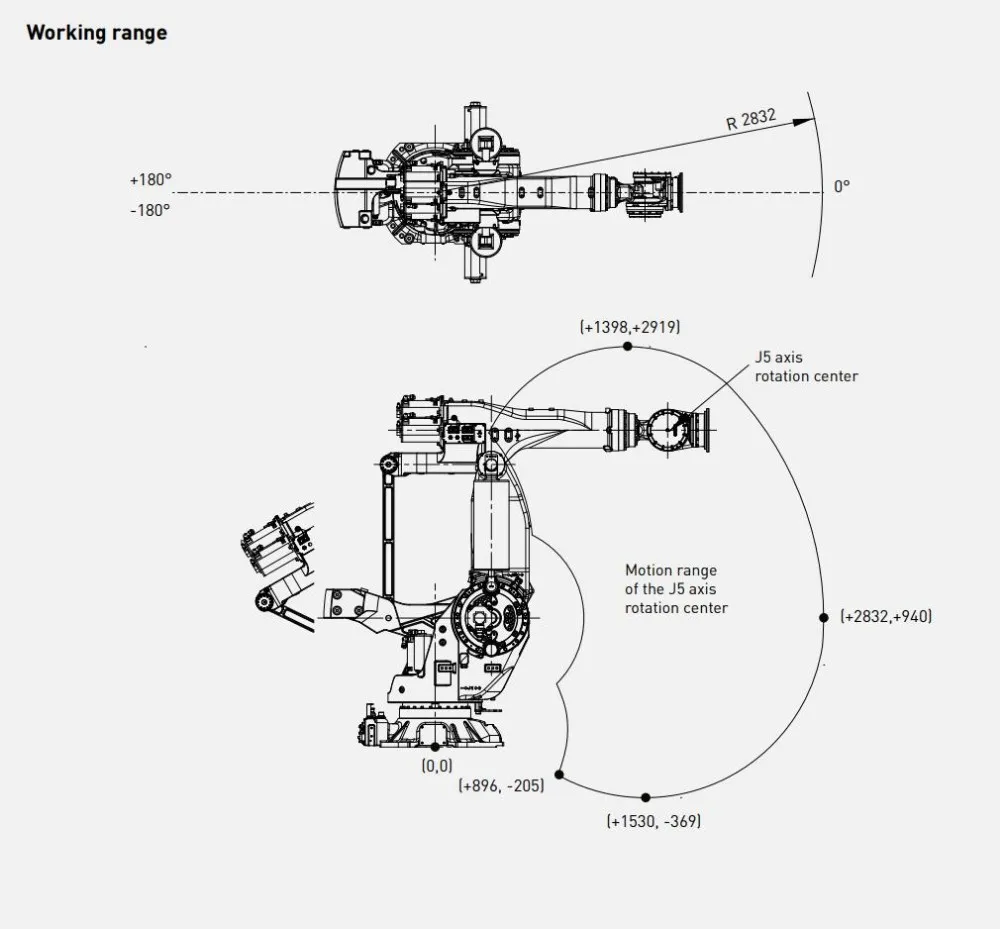

Boasting the heaviest payload capacity of the range, this model will lift up to 700 kg within an 2832 mm envelope.

2.Excellent accuracy and rigidity

Suitable for constant force applications such as routing, cutting, polishing, deburring.

3.Heavy-duty drilling with robots
Fitted with a second encoder, the M-900 is highly suited to high force drilling operations on workpieces such as windmill wings or aerospace parts.
Infinite possibilities

1.Roboguide simulations

Using RoboGuide software we model your production activities. That way you see exactly what you get, how it works and the benefits for productivity, cost and cycle times.


2.Optional severe dust and liquid protection (SDLP)

Enhanced severe dust and liquid protection package available for use in harsh environments.


3.Longer reach version available
Large and heavy parts handling within a huge a 3704 mm envelope using the M-900iB/400L model.
\t
Product name
\t
Hot sellding heavy load capacity robotic arm industrial robot M-900 iB 700 for loading unloading and handing
\t
Controlled axes
\t
6
\t
Max. payload at wrist
\t
700kg
\t
Repeatability
\t
±0.1mm
\t
Reach
\t
2832mm
\t
Mass (without controller)
\t
2800kg
\t
Drive method
\t
Electric servo drive by AC servo motor
\t
Installation
\t
Floor Inverted, Angle
\t
Matching controller / Input power capacity
\t
FANUC R-30iB Controller

FANUC R-30iB Mate Cabinet Controller

FANUC R-30iB iPendant Touch Controller

FANUC R-30iB A-Cabinet Controller

FANUC R-30iB B-Cabinet Controller
\t
                                                                              Robot Motion Speed
\t
J1
\t
110 °/s
\t
J2
\t
105°/s
\t
J3
\t
100°/s
\t
J4
\t
125°/s
\t
J5
\t
125°/s
\t
J6
\t
250°/s
\t
                                                                            Robot Motion Range
\t
J1
\t
±80°
\t
J2
\t
±80°
\t
J3
\t
±80°
\t
J4
\t
±100°
\t
J5
\t
±100°
\t
J6
\t
±160°
\t
Application
\t
Palletizing, Assembly, Machine Loading, Machine Tending, Milling, Part Transfer ARC Welding Dispensing Robots

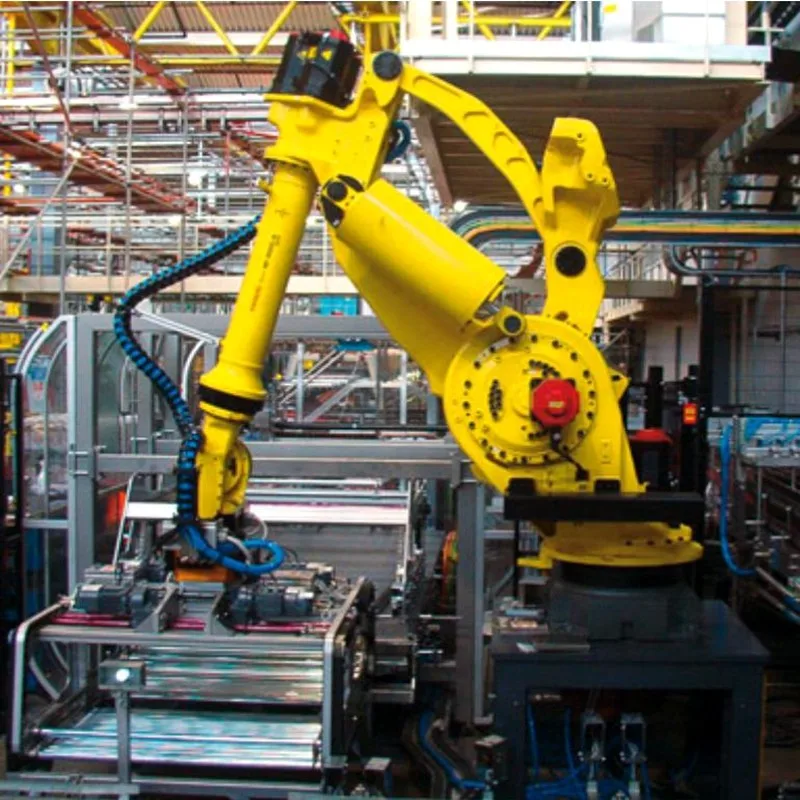

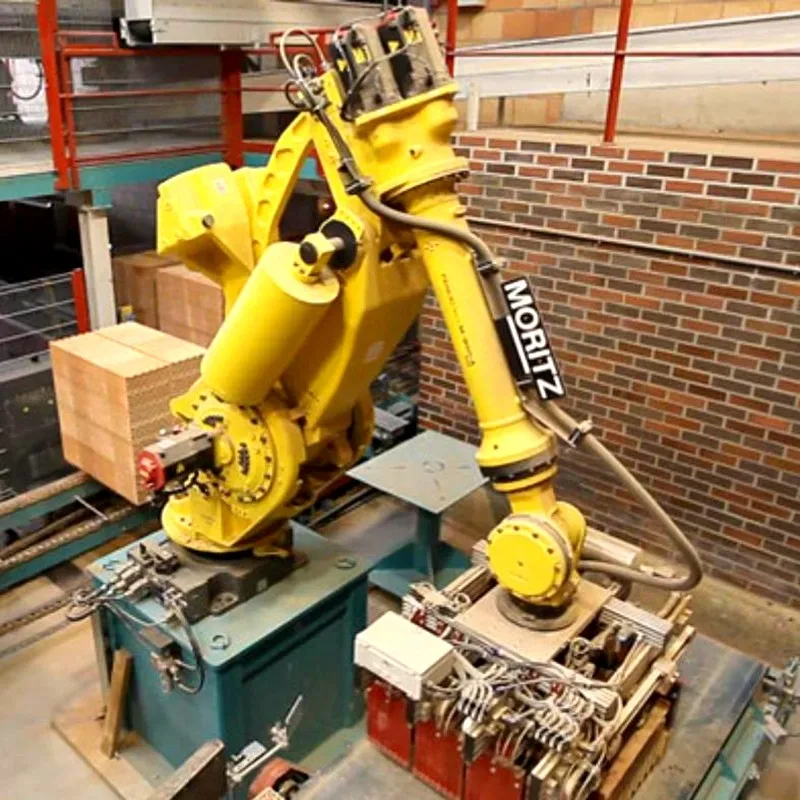

Detailed Images
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.

.
