Product Overview

Description

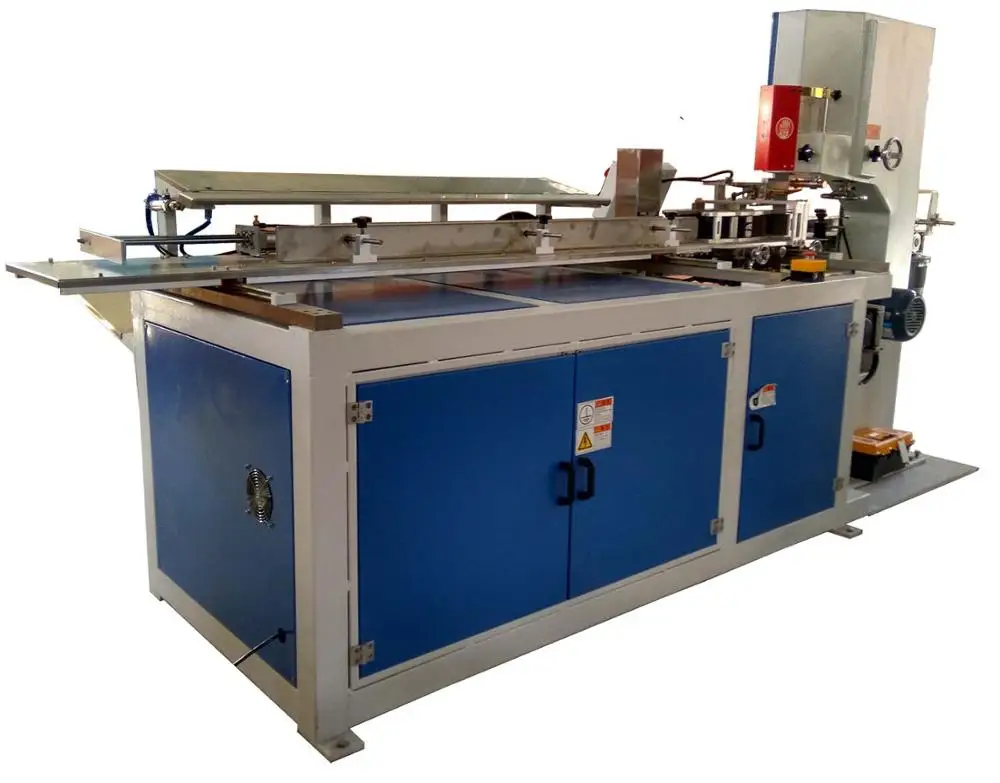

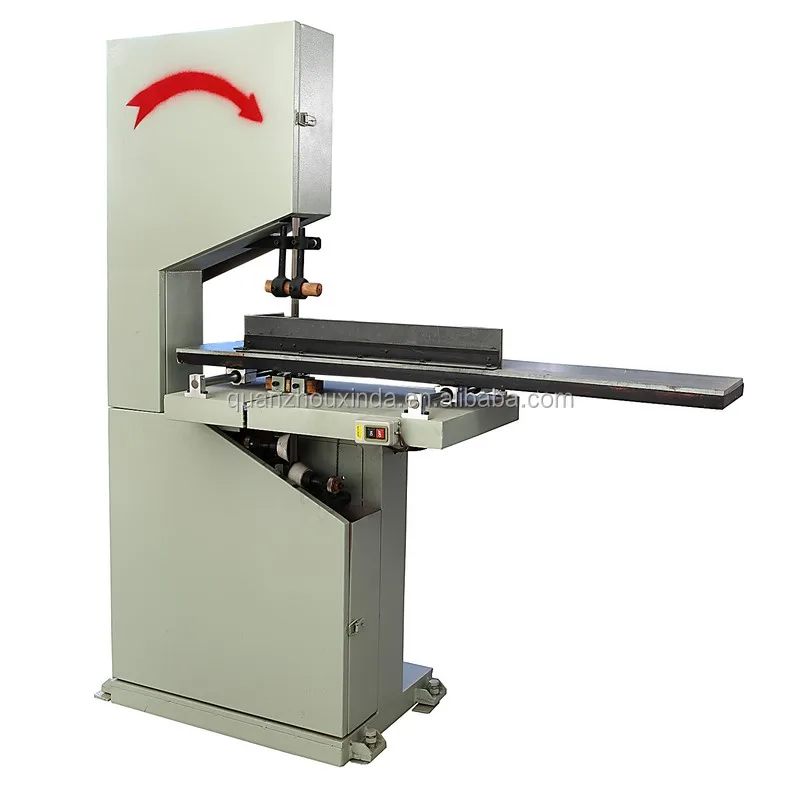

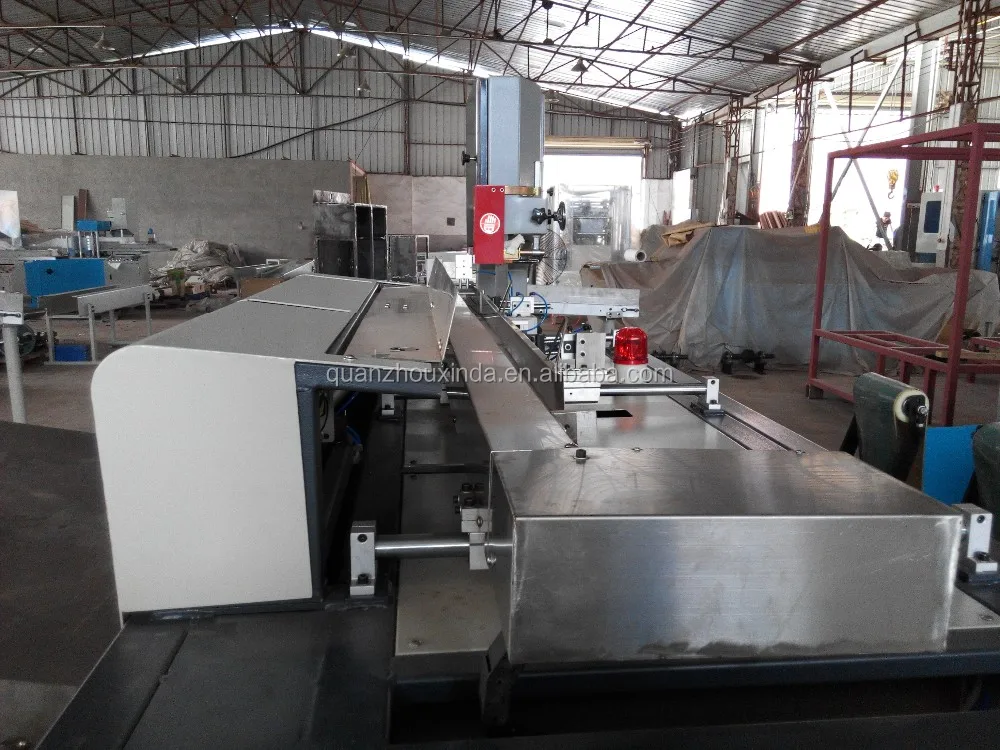

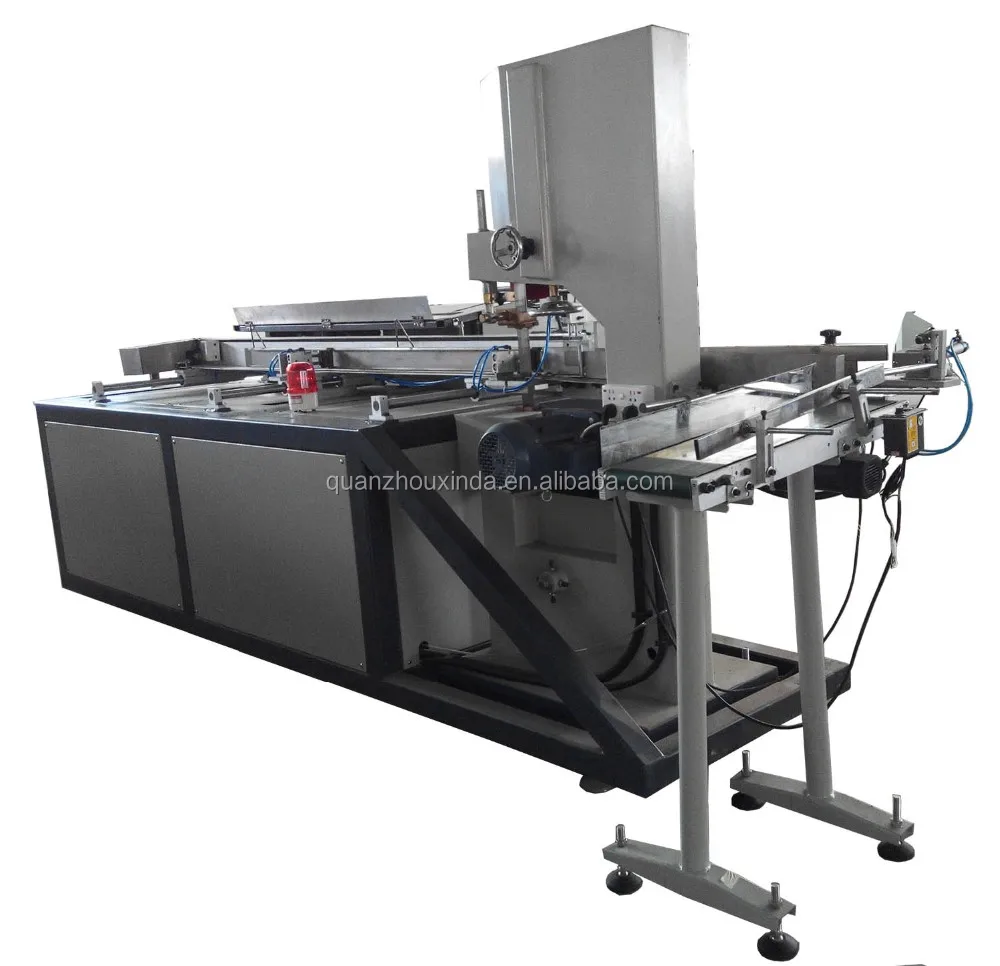

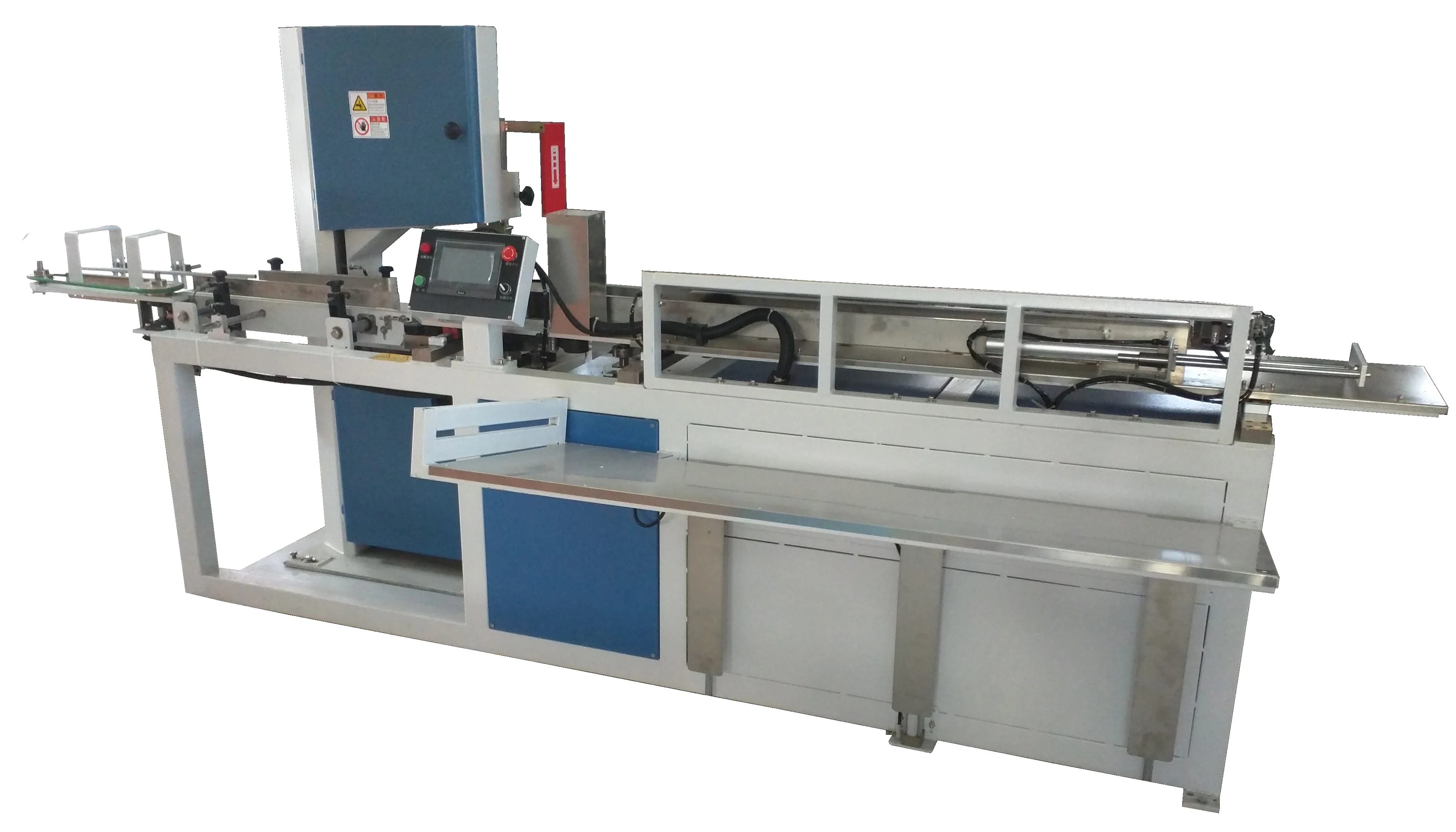

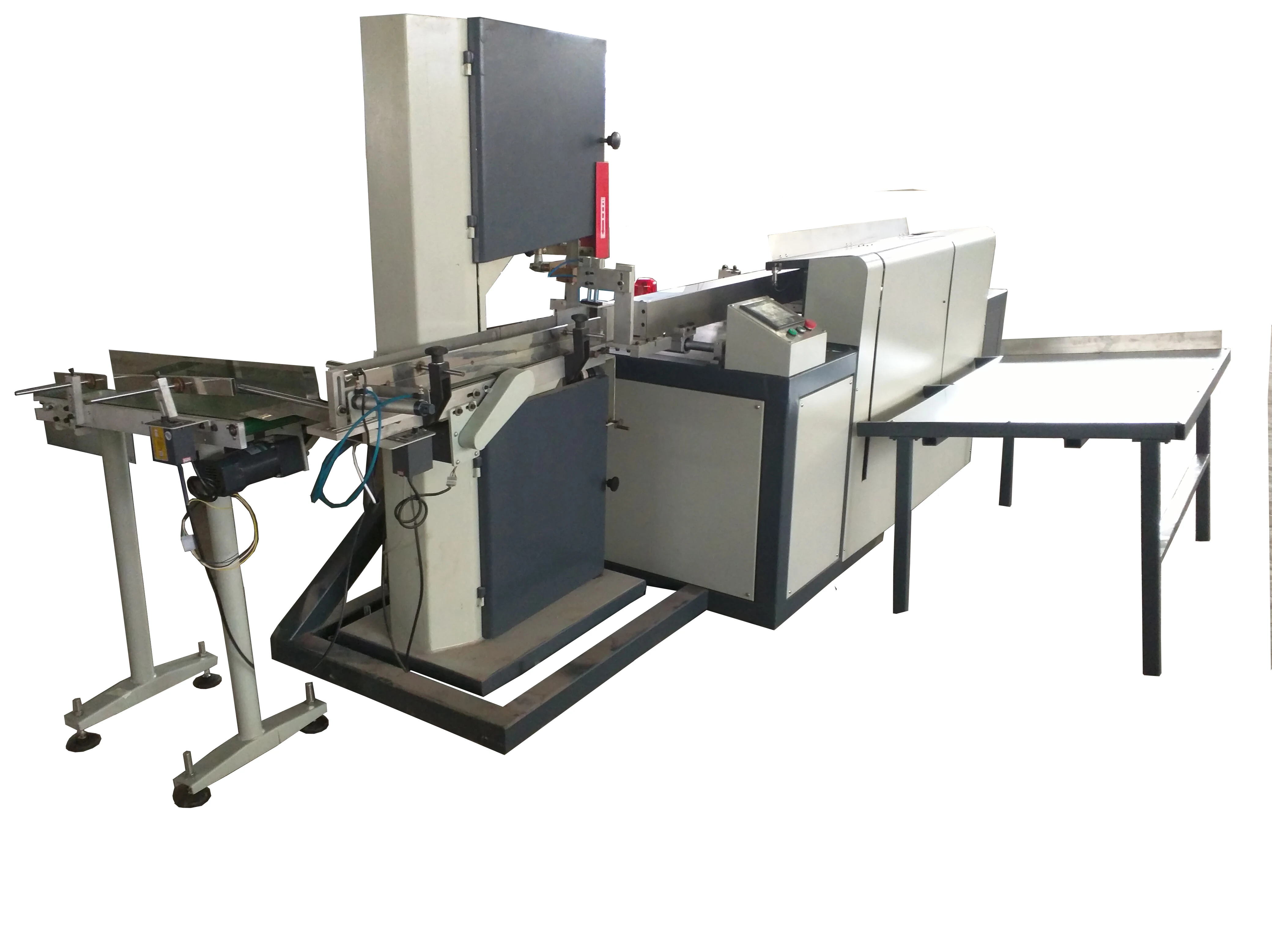

Toilet roll cutting machine Toilet tissue paper cutting machine





Technical performance characteristic;

The equipment is operated by using PLC program control,big screen true color human-computer interface. Theprecise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action,has good fault information prompt system, make the whole production line achieving the best working state.

1,The transducer independent driver is used in the main motor;

2,The cutting knife automatically stops and gives an alarm;

3,When the paper can not be cut down,the equipment will

4,The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product;

5,The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and the length of the finished product;

6,When data input is incorrect,the equipment breaks off and prompts to adjust on the interface;

7,The cut paper head and paper end can be automatically sorted;

8,Cut with knife is used in the equipment,which reduce the use cost of the user;

9,The automatic sharpening knife system is used in the equipment,can adjust the sharpening knife system according the requirement of paper being cut,which increase the cutting life;

10,The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

Video link:

https://www.youtube.com/watch?v=Gw7iFvQ2lQc&feature=youtu.be

Paramet data:

machine  weight            1100KG

cutting speed                  80~100cuts/min

cutting log channel         single channel

cutting blade                   band saw blade

cutting blade size            3850*40*0.6

log length                 2200mm(it can be made according to customer request)

tolerance                       ±1.5mm

cutting length                 300mm

cutting diameter             70 to 130mm

power supply                   5kw  3 phase 4line 380V 50HZ

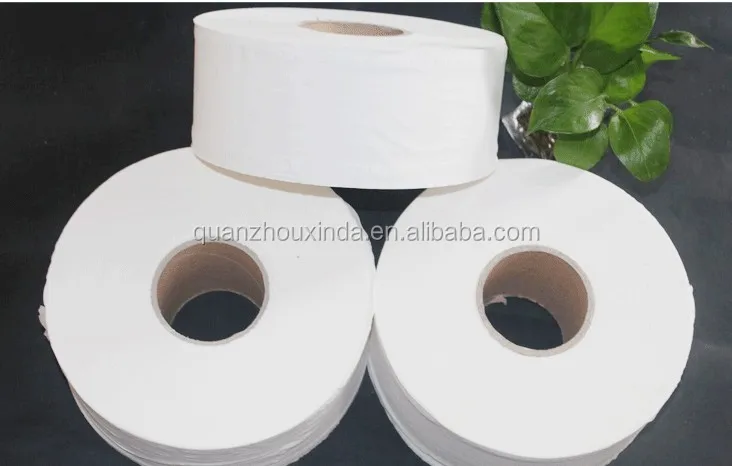

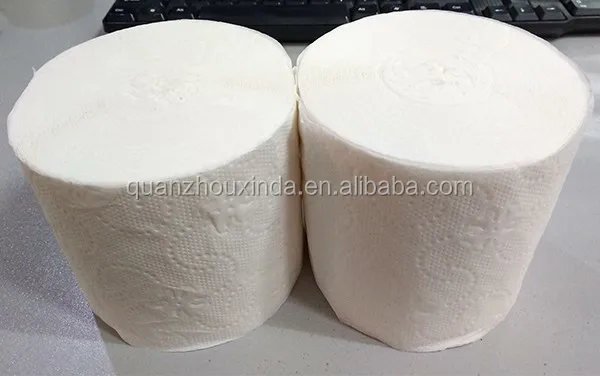

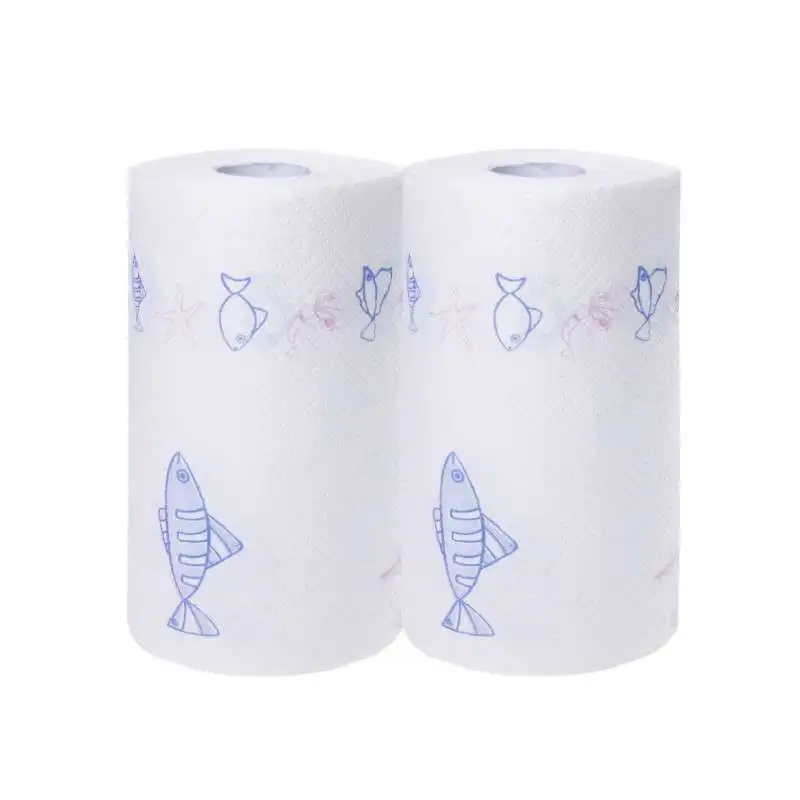

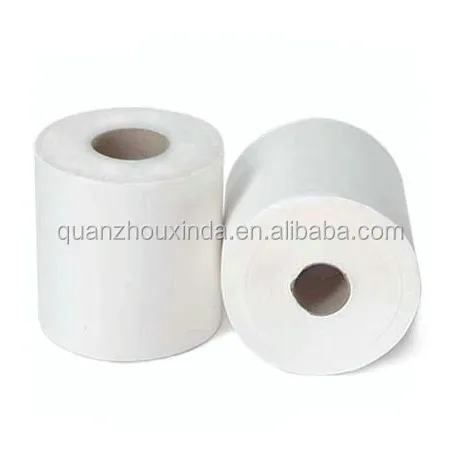

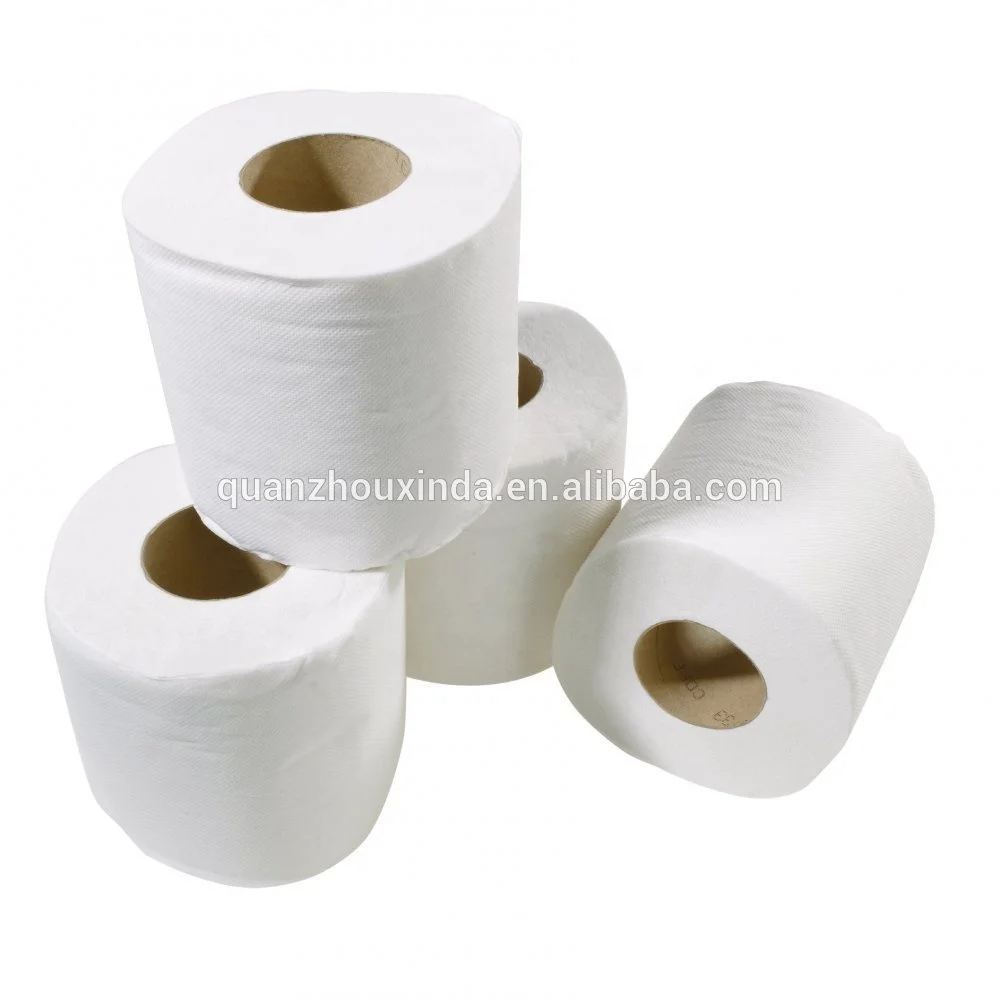

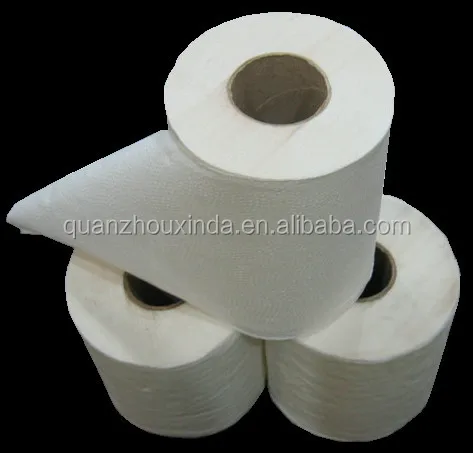

Finished Products:
