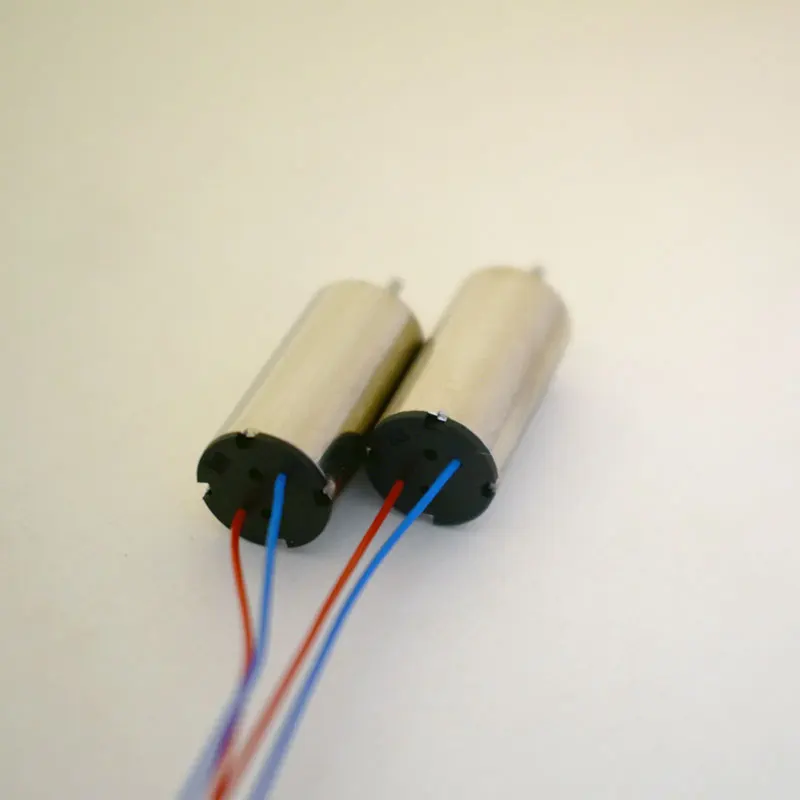

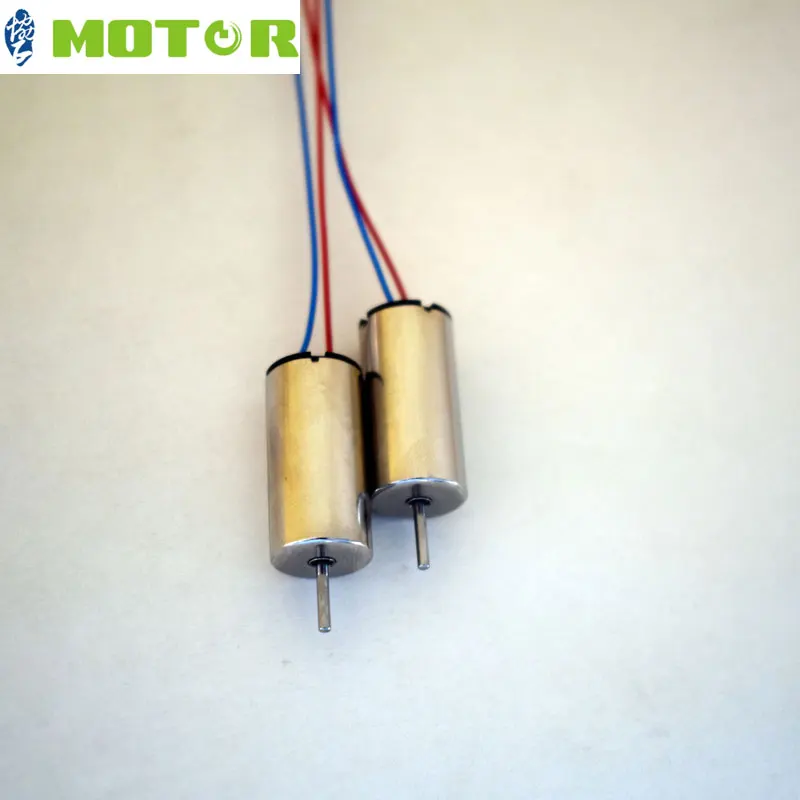

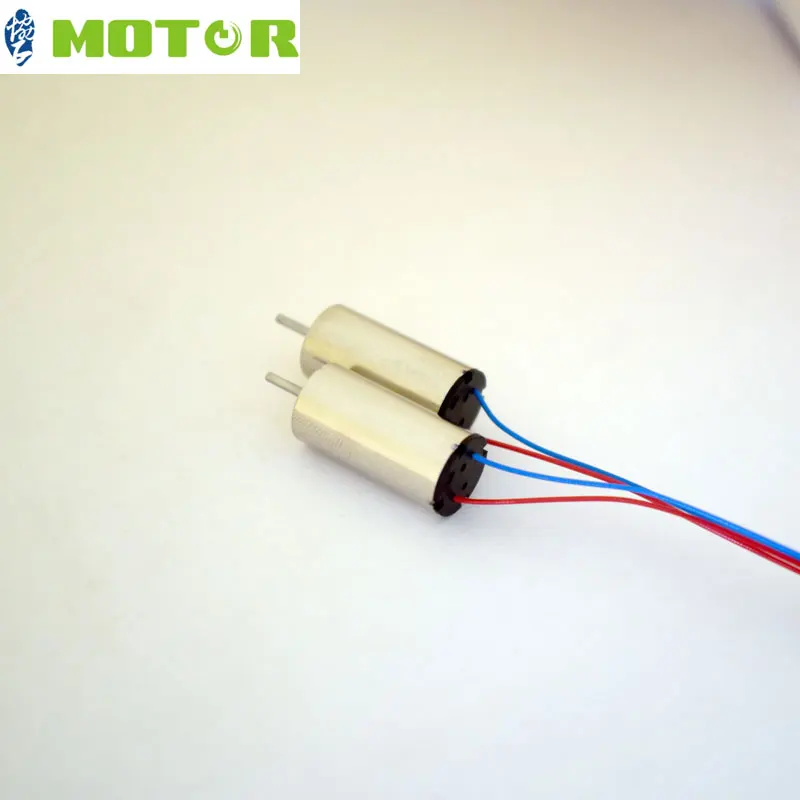

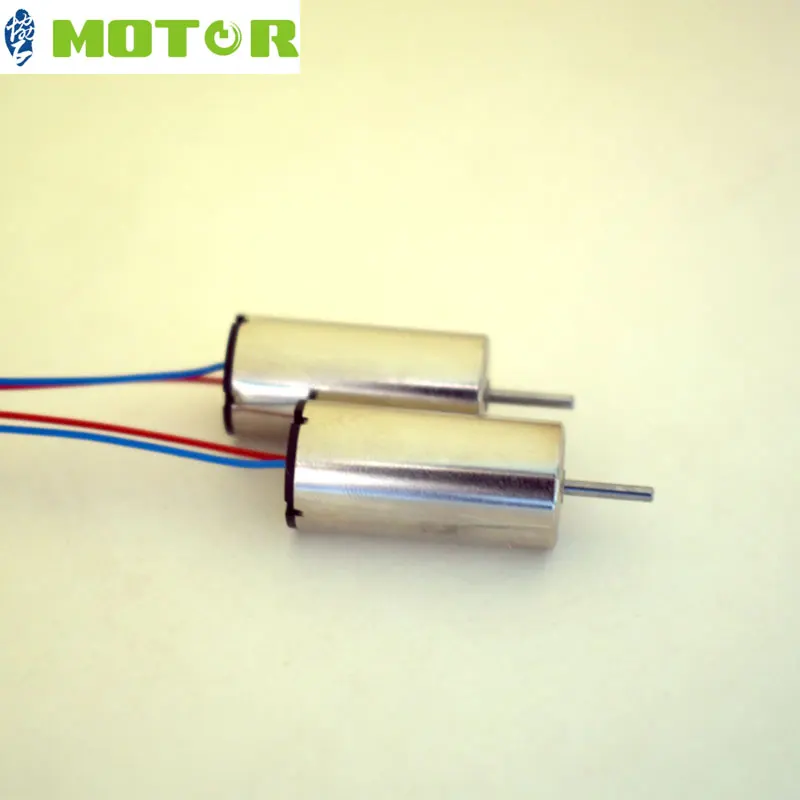

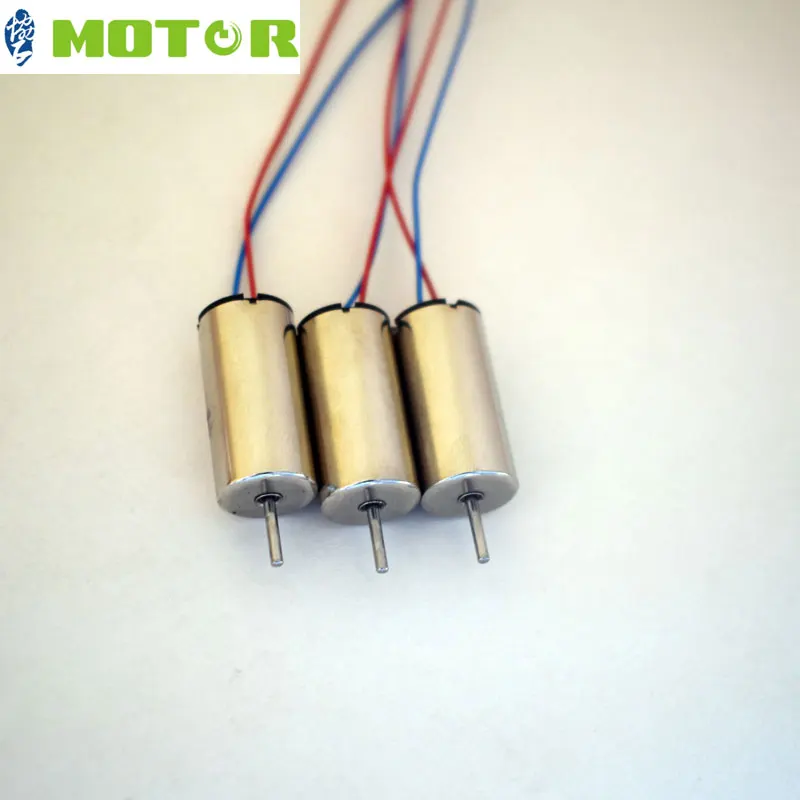

Factory Coreless Permanent Magnet Dc Robot Fan Small Motor
- Category: >>>
- Supplier: Chongqing Co-Well Electromechaical Co. Ltd.
Share on (62086334683):
Product Overview
Description
Quick Details
| Torque: | 232.2 g.cm |
| Protect Feature: | Totally Enclosed |
| Construction: | Permanent Magnet |
| Usage: | BOAT,Car,Electric Bicycle,FAN,Home Appliance,robot |
| Place of Origin: | Chongqing China |
| Warranty: | 3 months |
| No-load current: | 135 mA |
| Commutation: | Brush |
| Max efficiency: | 81% |
| Size: | 10*23 |
| No-load speed: | 50000 rpm |
| Model Number: | 1023-1-7.4 coreless motor |
| Certification: | CCC,ce,RoHS |
| Weight: | 9.2 g |
| Speed(RPM): | 50000 rpm |
| Brand Name: | XZJD |
| Type: | Micro Motor |
| Stall current: | 16820 mA |
| Efficiency: | IE 1 |
| Max output power: | 29.872 w |
| motor custom: | available |
| Stall torque: | 232.2 g.cm |
| Structure: | Precious metal brush and Commutation |
| Packaging Detail: | The motors is packed in small foam boxes, ten small foam boxes are shipped in thick carton. |
| Selling Units: | Single item |
| Single package size: | 39X26X26 cm |
| Single gross weight: | 12.0 KG |
| Package Preview: | https://sc03.alicdn.com/kf/HLB1y7N0R7voK1RjSZFDq6xY3pXaq.jpg_640x640.jpg,https://sc03.alicdn.com/kf/HLB1rW49R7voK1RjSZFwq6AiCFXaA.jpg_640x640.jpg |
