Support Intel lvy Bridge LGA 1155 Onboard Processors
Chipset
Intel B75 | Maximum power consumption:6W
Memory
2*240pin DDR3 UDIMM sockets support dual channel DDR3 1066/1333/1600 MHz (up to 16GB) | Not support ECC
BIOS
AMI EFI BIOS
Super I/O
Winbond W83627DHG-P 1* 2*5Pin programmable input/output interface (JGP) 2 *single-hole PS/2 sockets| purple for PS/2 keyboard socket| green for PS/2 mouse socket,COM3/DB9 1 *2x4Pin PS/2 keyboard, mouse pin connector (reserved)
Ethernet
2*RJ45 Gigabit network interface Intel I211 network chip | support adaptive 10/100/1000Mbps and WOL function
Graphic control
Intel lvy Bridge embedded GPU
Display interface
VGA:1*DB15 | Maximum resolution:1920*1200@60HZ HDMI:1*HDMI | Maximum resolution: 1920*1200@60HZ support VGA+HDMI Independent 2 displays 1*2*10Pin LPT parallel port pin interface Can be transferred out of the standard DB25 through the extension cable
SATA interface
1*SATA3.0, 3*SATA2.0
USB interface
2*USB3.0, 5*USB2.0 2*2*5Pin2.00mm can transfer to 4*USB2.0
Serial port
4*2x5 Pin 2.0mm 1*2x20 Pin 2.0mm contact pin(COM3_6)can transfer to DB9 COM1-COM6 extracted from IO, COM1-COM6 support RS232 COM2 support R422/RS485, COM3 can change to DB9/mouse interface or PS/2 keyboard
Realtek ALC662 audio control chip | support Two-channel stereo 1*Green is Line_out |1* Pink MIC_in |1* Blue Line_in
GPIO
8-bit programmable digital I/O pin
Expansion slots
1*PCle*16, 1*PCle*4, 5*PCl
Fan slots
1*4Pin CPU
Watchdog
255-level timer causes a reset when overflowed
Power requirement
24+4Pin ATX supply
Working environment
Temperature :0~60℃; Storage temperature:-40~80℃ Humidness:5%~95% Relative humidity with non-condensation
OS
Windows XP | Windows 7 | LUNIX*2.6

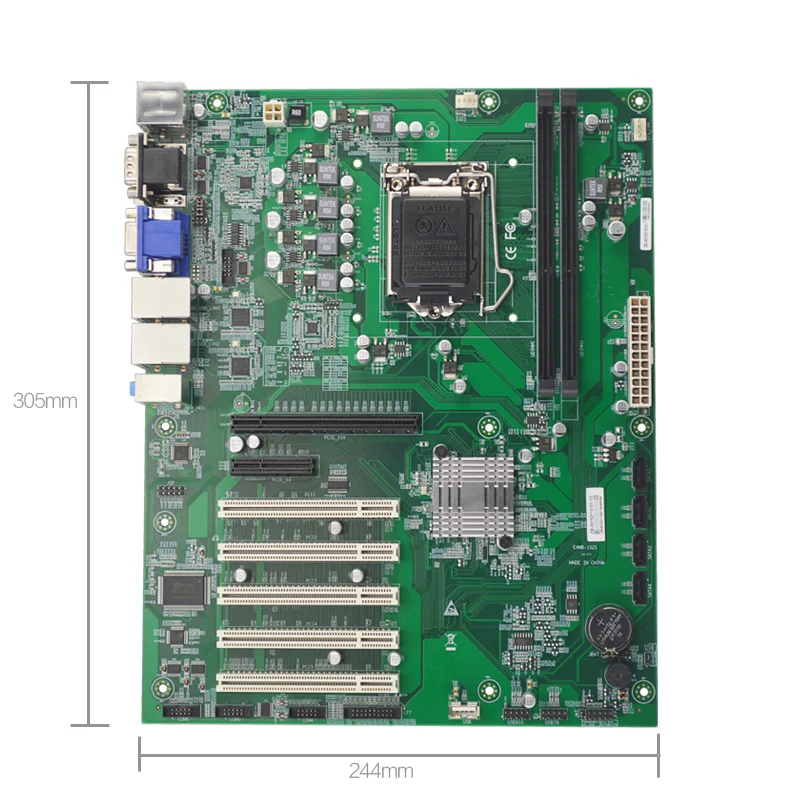

Size
305mm*244mm

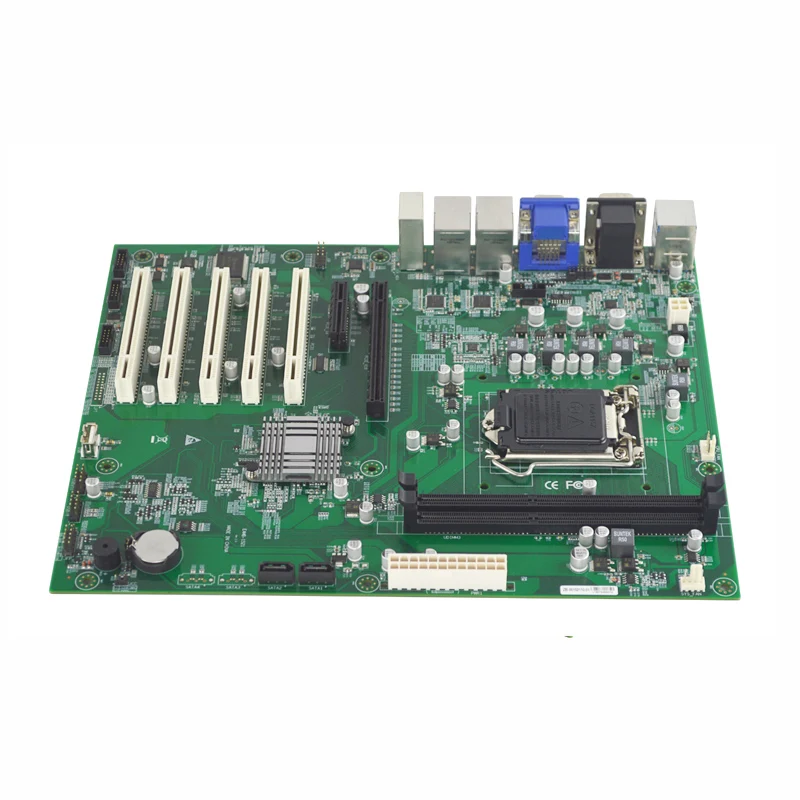

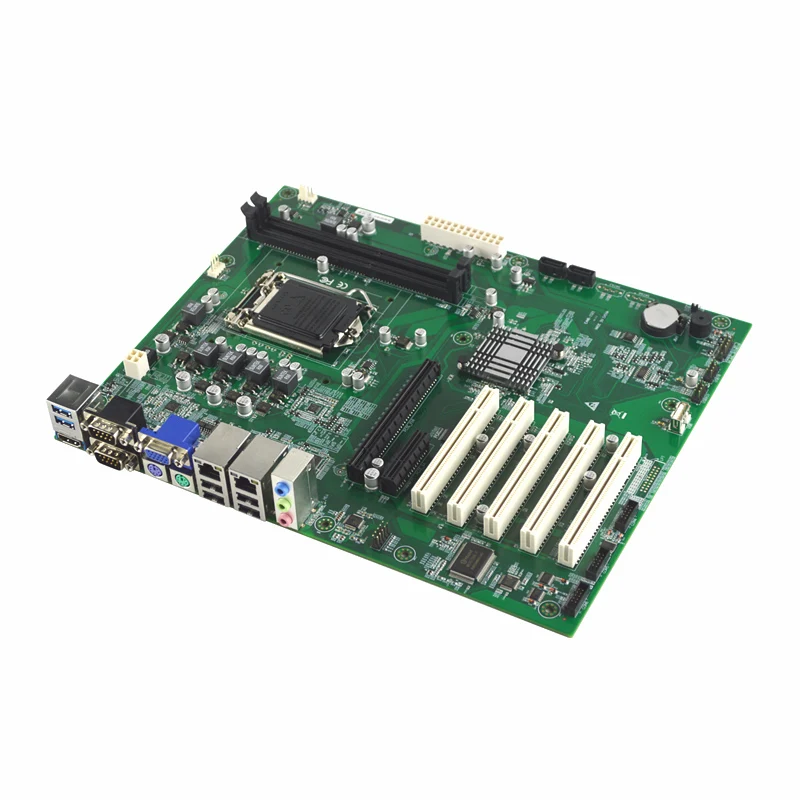

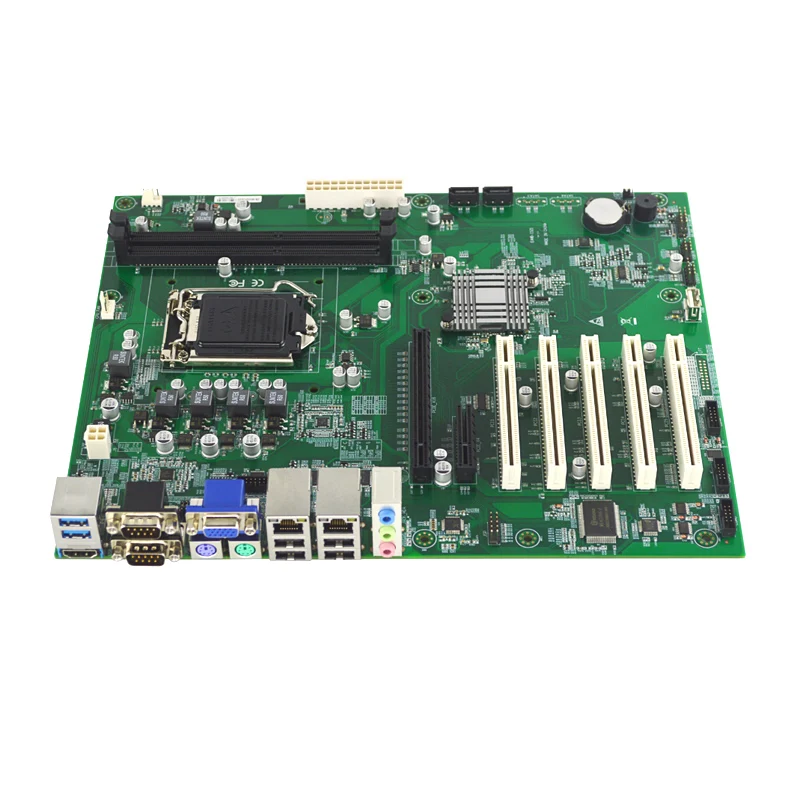

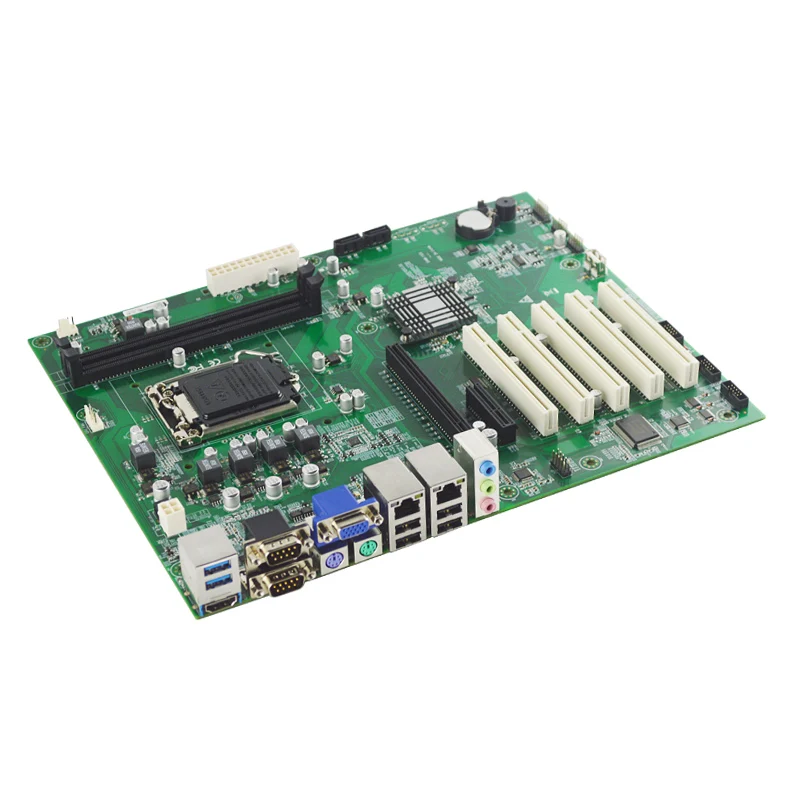

Detailed Images
Company Profile
Packing & Delivery
FAQ
1.What's your minimum order?
Re: Our minimum order quantity(MOQ) is 1pcs.
2.Can you provide OEM service?
Re: Sure, we can provide OEM.You can choose RAM, storage, WIFI interface port and OS freely.
3. Can you arrange the shipment? Since it's my first time to buy from China.
Re: Sure, we can arrange a trustworthy shipping company the arrange the shipment for you!
4. Can you put my brand name (logo) on these products?
Re: Yes,We support OEM/ODM service, the process of customization is as below: 1) provide your specific requirement. 2) our design engineer draw the design draft. 3) you confirm the design draft. 4) we start produce it.
