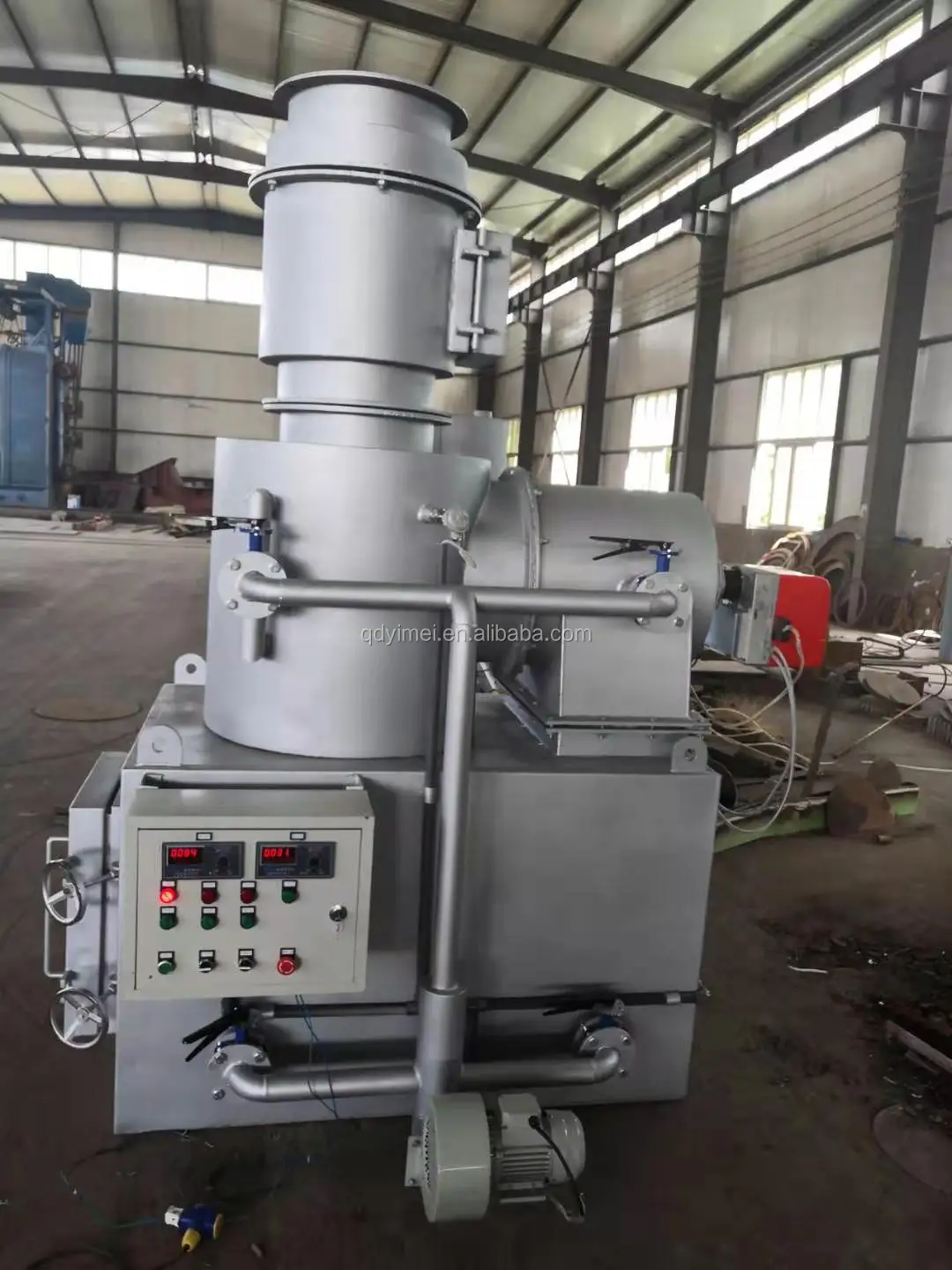

2019 Factory price Series Professional Gasified incineration Medical Waste Incinerator burning all kinds of waste for hospital

Product Overview

Description

 Professional Gasified incineration Medical Waste Incinerator burning all kinds of waste for hospital

Feature:
1, Smoke free, odorless, non-secondary pollution
2,No need of combustion adjuvant, spontaneous ignition(value: 3000kcal/kg),recovery of vapor, gas for heat generating.
3,8-10 years of life time of converter body.
4, Zero failure: low failure rate and cost of maintenance.
5, Easy operation: easy to learn, easy to burn, energy saving.
6,Sub-pressure design, no-backfire, consecutive feeding and large treating capacity.
7, High security: open type design for non-explosion, auto water and power-cutoff system as well as warning system.

Incineration material:
1, Industrial waste(polymer waste):PE,PU,rubber (tire),styrofoam, PET bottle, fiber, foam, cloth, resin, PMMA, leather, laminated board, bakelite, urea powdering, scouring pad, tape, painting, organics etc.
2, Medical waste: syringe, glove, bandage, gauze and infusion set
3, Ordinary waste: paper board, sawdust, foliage etc.
4, Special waste: waste oil, solution, sludge, iron painting, sieve residue





Techincal data:

Model item	LDF-20	LDF-30	LDF-50	LDF-100	LDF-150	LDF-300	LDF-500
Burning Capacity (3-6 times per day)	10-20KG/time	20-30kg/time	30-50kg/ time	50-100kg/time	100-150kg/ time	200-300kg/ time	300-400kg/ time
Size of the Burner (m)(L*H*B)	1.6*1.2*1.7m	1.45*0.9*1.75	1.8*1.15*3	1.8m*1.4m*3.4m	2*1.4*3.5	2.2*1.4*3.8	3*2*4.8
Size of the filling entrance (mm)	380*480	480*600	620*800	520*720	760*960	900*1100	1080*1280
Chimney(mm)	Ø280(OD)	Ø280(OD)	Ø280(OD)	Ø300(OD)	Ø300(OD)	Ø400(OD)	Ø460(OD)
Air-blower	0.25kw	0.37kw	0.37kw	0.5kw	0.5kw	1.1kw	1.1kw
Auxiliary machine	Power 0.11kw oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.22kw Oil consumption 7-14kg/h	Power 0.22kw Oil consumption 7-14kg/h
Re-burning machine	Power 0.11kw oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-6kg/h	Power 0.11kw Oil consumption 4-10kg/h	Power 0.22kw Oil consumption 7-14kg/h	Power 0.22kw Oil consumption 7-14kg/h	Power 0.37kw Oil consumption 10-20kg/h	Power 0.37kw Oil consumption 15-26kg/h
Running voltage	380V or 220V	380V or 220V	380V or 220V	380V or 220V	380V or 220V	380V or 220V	380V or 220V
Weigh(kg)	1600	2800	4500	6000	7600	8600	14500



 Besides, we offer more models for Professional Gasified incineration Medical Waste Incinerator burning all kinds of waste for hospital
