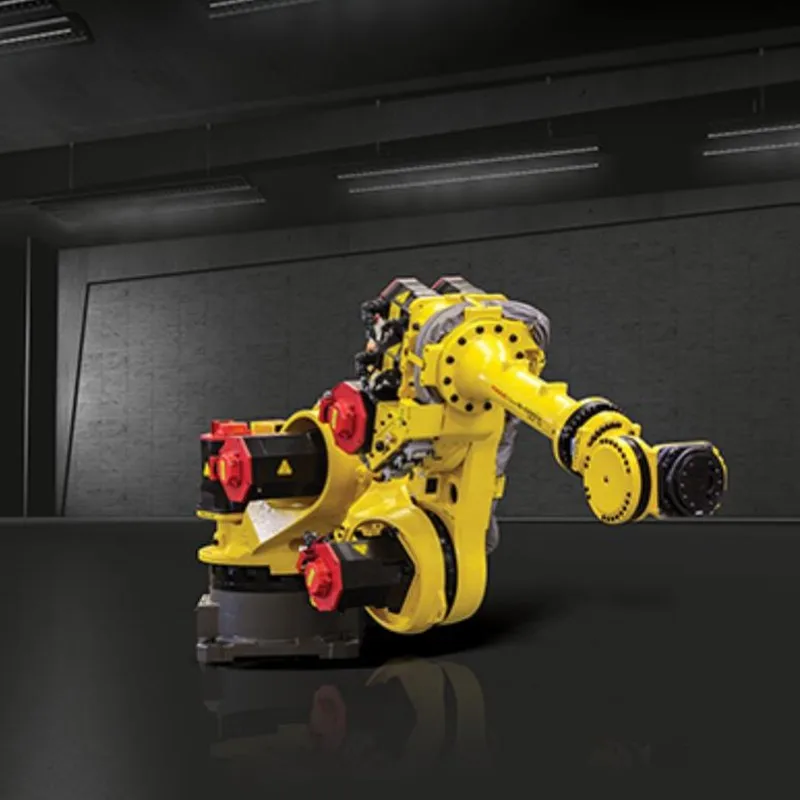

Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder

Based on an added seventh axis in its second arm, the R-1000iA/120F-7B gains more agility, making it ideal for material handling and spot welding. Nevertheless, its' compact design enables it to fully operate within small work cells, reaching the same cycle times as the six-axis.

Main Features

1.Compact, flexible design

Ability to fold and shorten its second arm due to seventh axis allowing it to work within small work cells and narrow environments. Its design prevents interference contours due to integrated services in the arm

2.Strong, sturdy and agile

Capable of handling heavy payloads due to an enhanced payload of 120 kg and possibility to fold back the arm without changing its gun positioning

3.Short cycles and high throughput
While handling the same payload (e.g. 100 kg), compared to the six-axes, the seven-axes can perform more complex tasks
Infinite possibilities

1.Built for speed

All components of the R-1000 series are purpose build for maximum speed and reliability.


\t
Product name
\t
Complex handling robot 7 axis robotic arm R-1000 iA 120F-7B with robot welder
\t
Controlled axes
\t
7
\t
Max. payload at wrist
\t
120kg
\t
Repeatability
\t
±0.03mm
\t
Reach
\t
2230mm
\t
Mass (without controller)
\t
790kg
\t
Drive method
\t
Electric servo drive by AC servo motor
\t
Installation
\t
Floor Inverted, Angle
\t
Matching controller / Input power capacity
\t
FANUC R-30iB Controller

FANUC R-30iB Mate Cabinet Controller

FANUC R-30iB iPendant Touch Controller

FANUC R-30iB A-Cabinet Controller

FANUC R-30iB B-Cabinet Controller
\t
                                                                              Robot Motion Speed
\t
J1
\t
130 °/s
\t
J2
\t
110°/s
\t
J3
\t
120°/s
\t
J4
\t
170°/s
\t
J5
\t
170°/s
\t
J6
\t
250°/s
\t
E1
\t
130°/s
\t
                                                                            Robot Motion Range
\t
J1
\t
±360°
\t
J2
\t
±200°
\t
J3
\t
±385°
\t
J4
\t
±720°
\t
J5
\t
±250°
\t
J6
\t
±720°
\t
E1
\t
±225°
\t
Application
\t
Palletizing, Assembly, Machine Loading, Machine Tending, Milling, Part Transfer  Robots

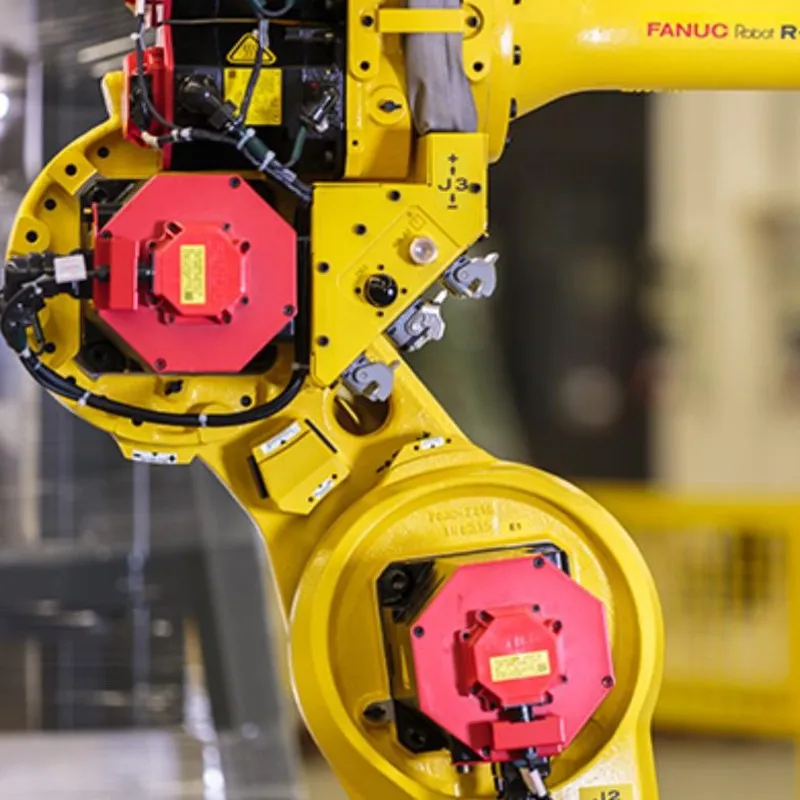

Detailed Images
