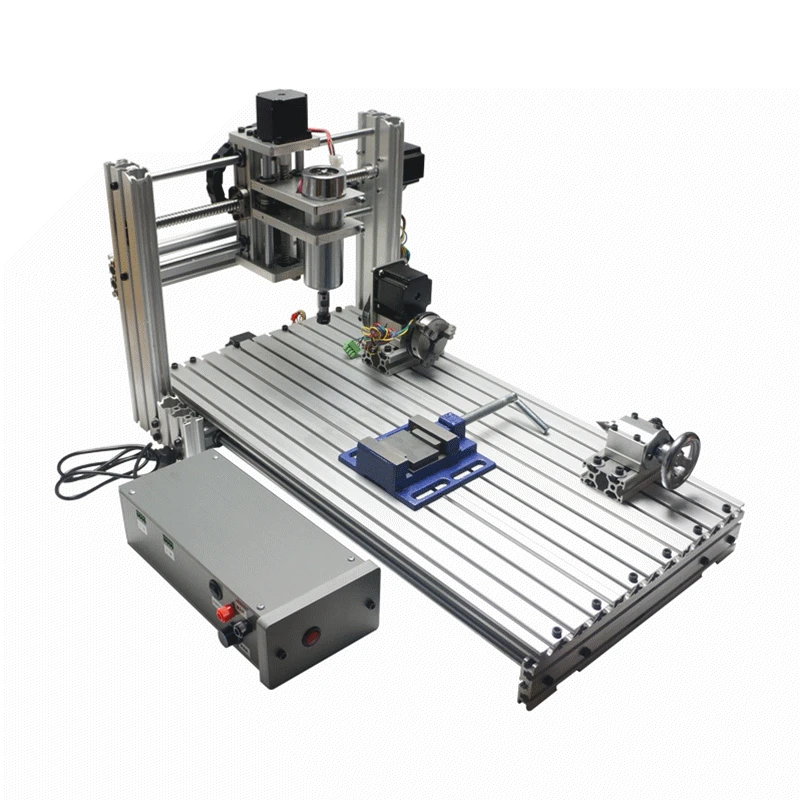

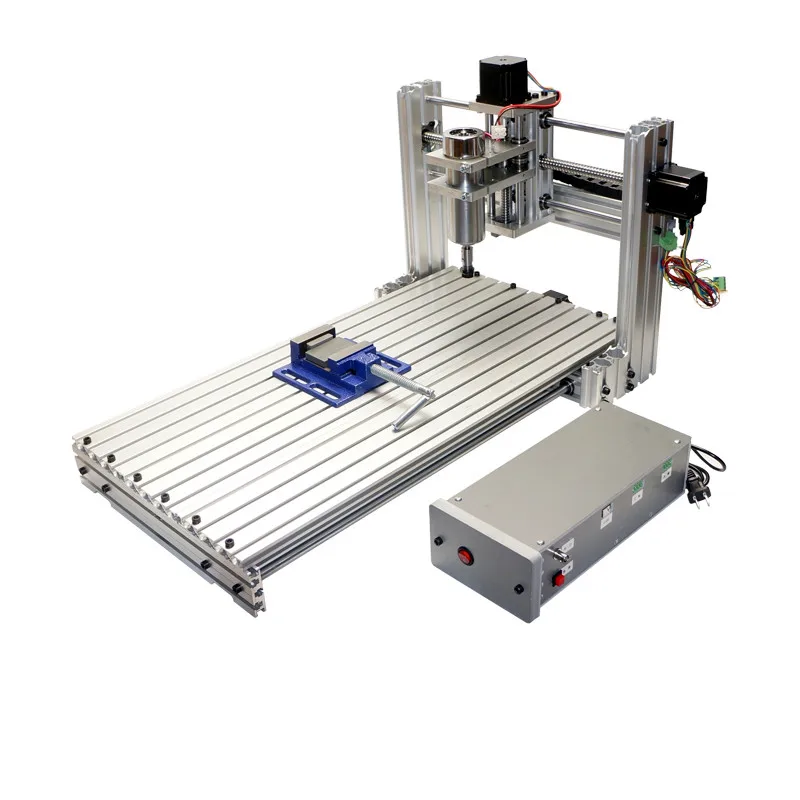

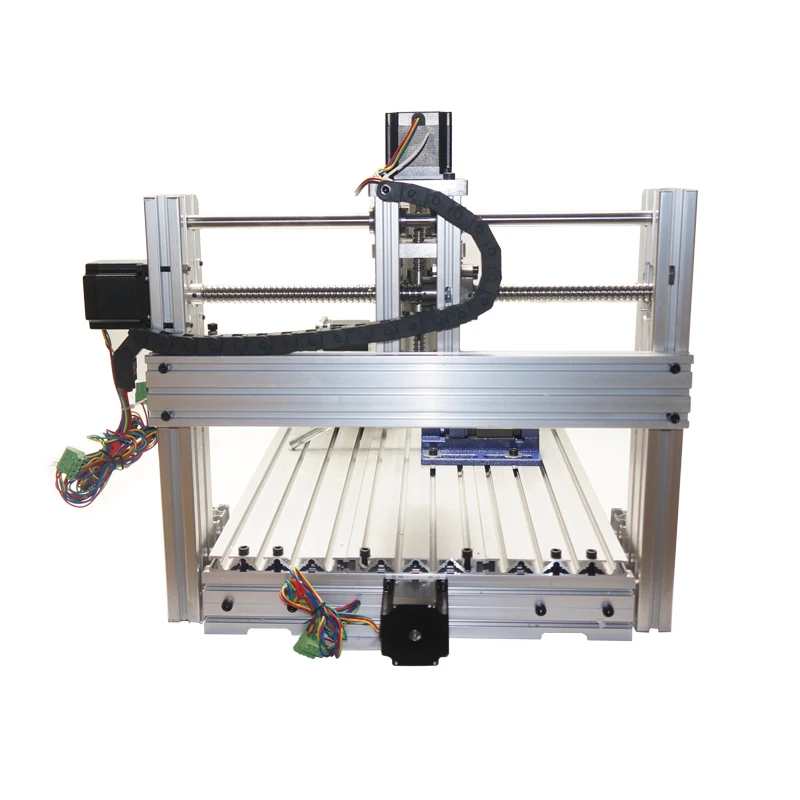

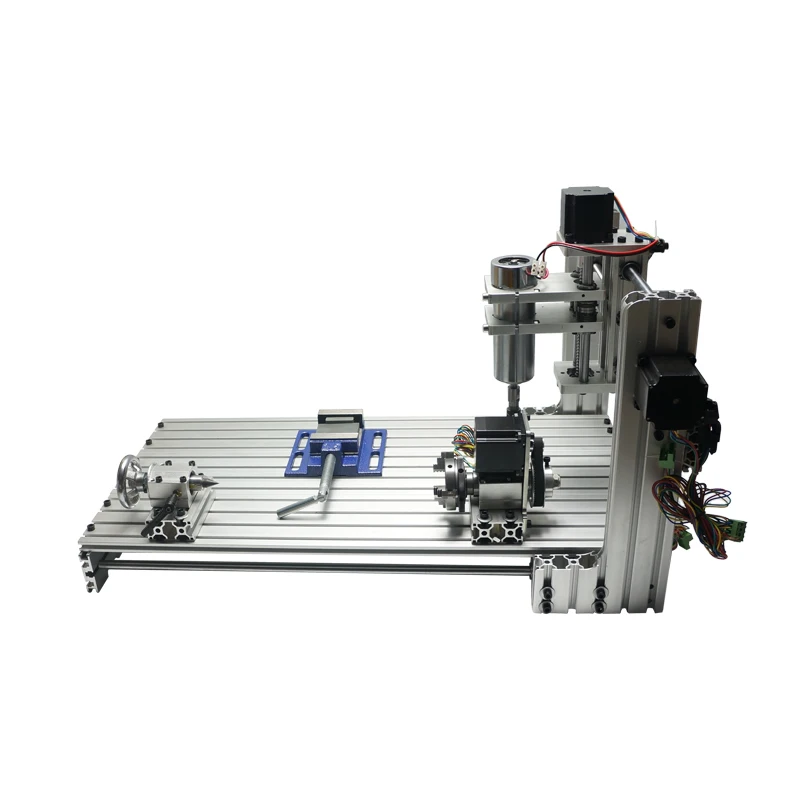

DIY CNC 3060 3axis 4 Axis CNC Router 6030 CNC Engraving Milling Machine for Woodworking Router
- Category: >>>
- Supplier: Shenzhen Liyang Welding Equipment Co. Ltd.
Share on (62087064023):
Product Overview
Description
DIY CNC 3060 3axis 4 Axis CNC Router 6030 CNC Engraving Milling Machine for Woodworking Router
Product Description
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Technical Parameters
MODEL | 3060 metal | |||
Attribute | 3axis |
| 4axis |
|
Axis | 3axis |
| 4axis |
|
Interface | USB Port |
| USB Port |
|
Spindle Motor: | 400W |
| 400W |
|
Weigh | 31 |
| 35 |
|

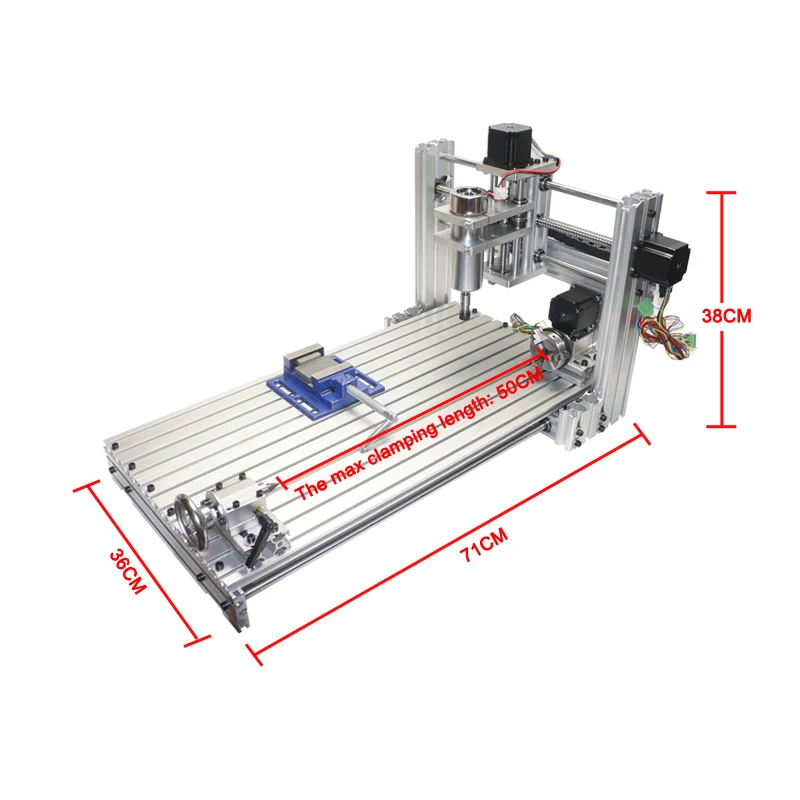

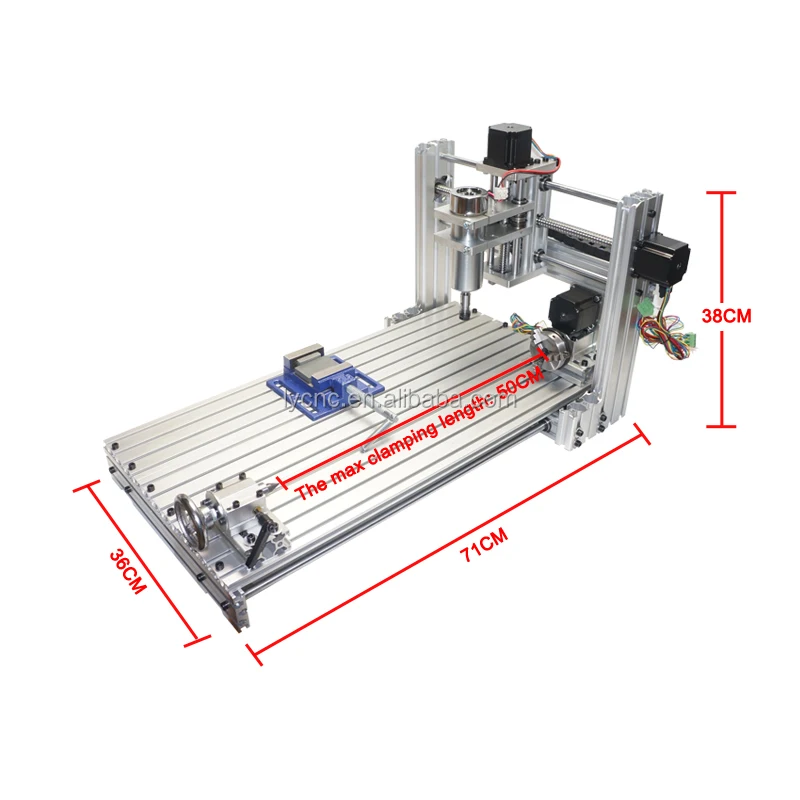

Max. working stroke | XYZ=290*570*95mm | |||
Acceptable material thickness | ≤120mm | |||
Rail type | X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis | |||
Spindle motor | 400W DC spindle , 0-9000r/min | |||
Collet type | ER11,1/8"(3.175mm) Collet | |||
Stepper motor and drive | ||||
Repeat positioning Accuracy | 0.02mm | |||
Communication interface | USB Port | |||
System requirements | Win-XP / Win 7 Win 8 Win10 | |||
Software Co patability | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) | |||
Command code | G code/.nc/.ncc/.tab/.txt | |||
Machine weight | 31kg | |||

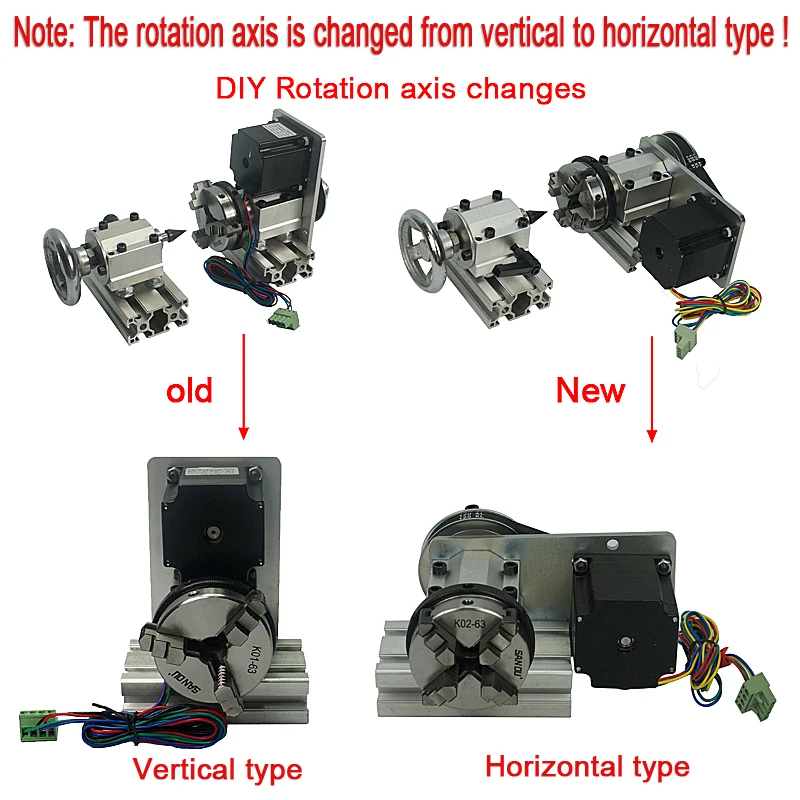

Rotation Axis (4th Axis) Description: | Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 Weight: 4.0KG | |||
Company Information
LY-CNC factory is located in Shenzhen, China.We has 10 years experiences in manufacturing and exporting CNC machines, such cnc 3020/4030/6040/9060...are hot sale in the world, especially in these countries from North and South American,European and Asian.
