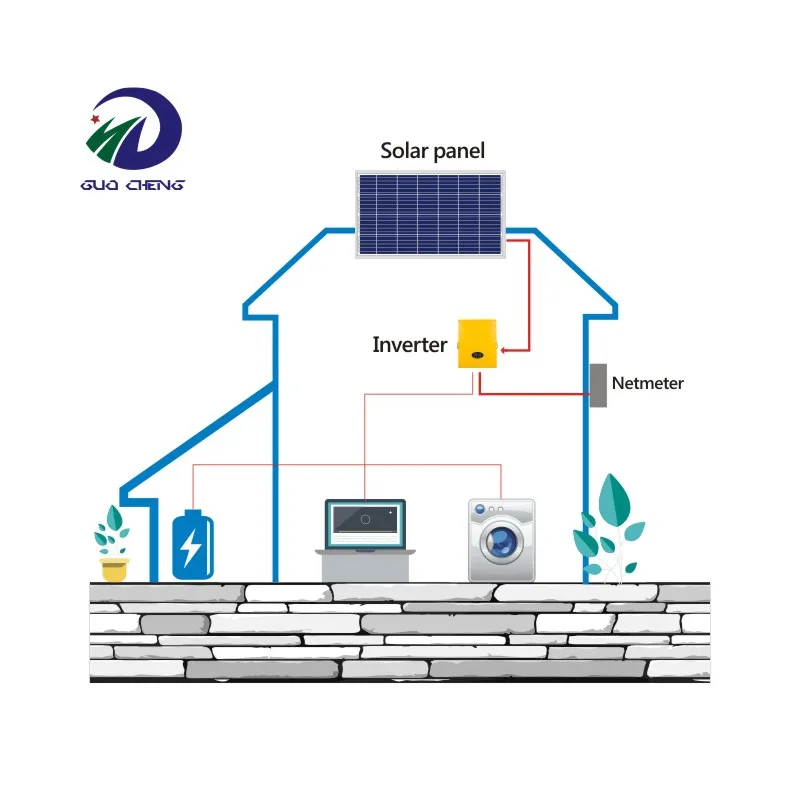

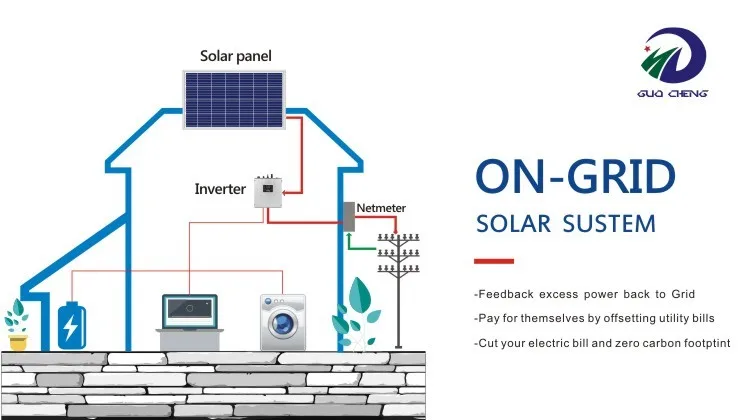

The On-Grid system can use the power generated by the public grid and the solar system in parallel as the power source for the local communication load, reducing the load shortage rate of the entire system. At the same time, the On-Grid system is to generate electricity from the solar panels without passing through the storage of the battery, and directly input into the power grid of the home grid through the grid-connected inverter, eliminating the battery, reducing the energy loss and reducing the cost of the photovoltaic system.
Serial number
System Components
specification
Quantity
1
Solar panel
Poly 280W solar module
18pcs
2
inverter
5KW
1set
3
Mounting Structure
Roof/ Gound Mounting Structure
1set
4
breaker
40A/2P
1
5
Surge protector
SPD
1
6
power cable
ZRYJV 1m*6mm2
3m
7
DC cable
PF 1m*4mm2
1m
8
Description:
1.SPD:In=20KA,Imax=40KA(8/20μs),Uc=460V,Up=1.8KV.
2.This plan needs to be modified according to actual conditions.
3.AC distribution box can be configured according to actual conditions.

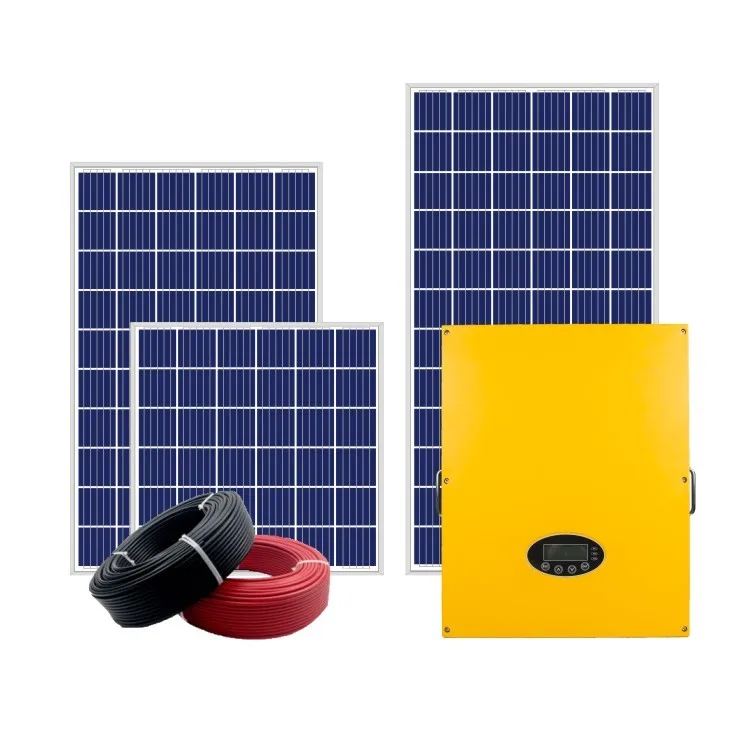

Main Component

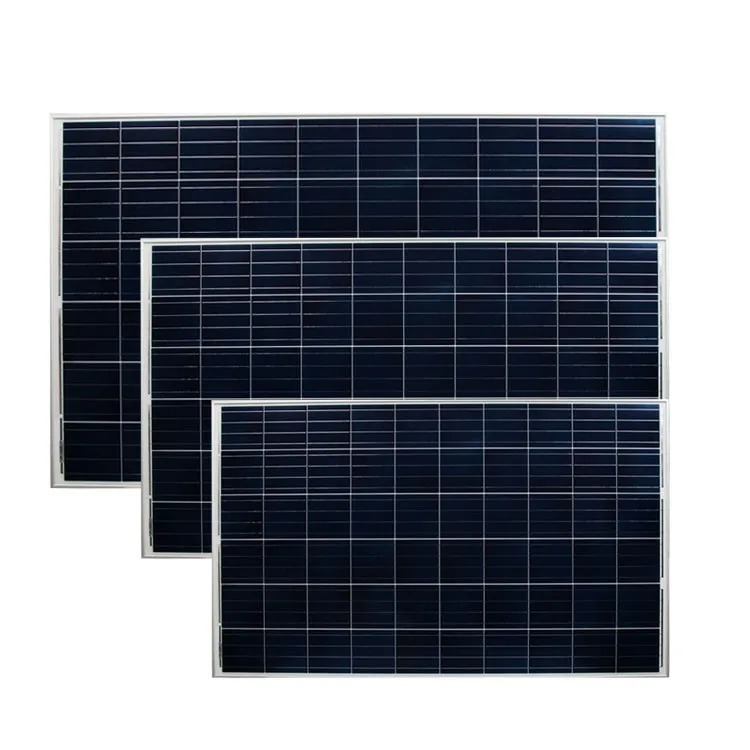

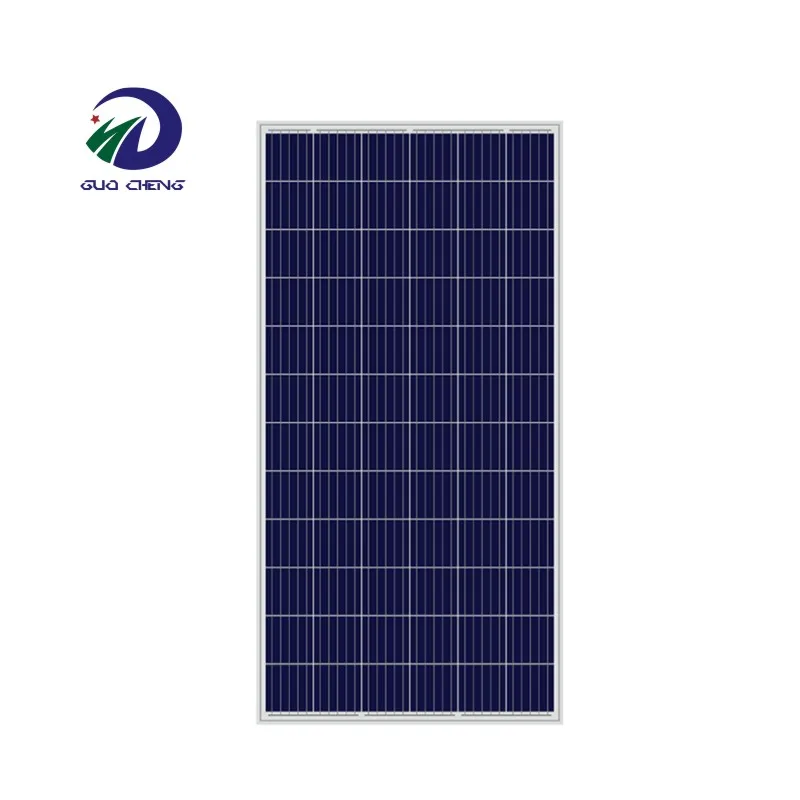

Solar panel
On-Grid system ,Our solar panels are very versatile, so according to your wishes. the specifications for solar panels are optional. Our solar panels are efficient and typically efficiencies range from 17% to 18%. I believe that we can meet your needs.

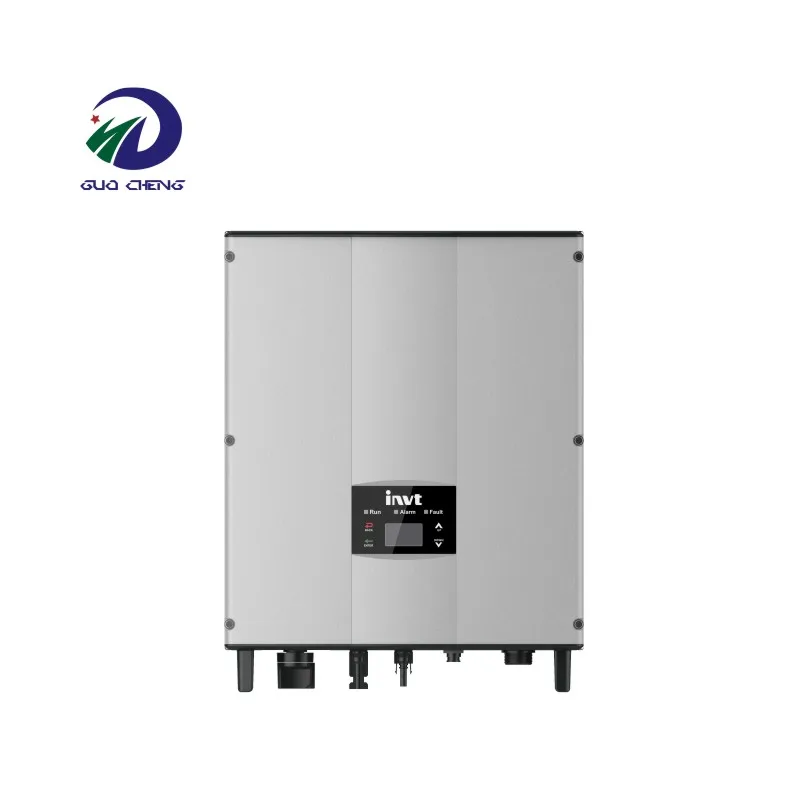

Inverter
For the inverter, we provide a high quality inverter with a maximum efficiency of over 97% and an output power of about 5 kW. Its size is 405m × 360m × 150m and its weight is less than 15 kg. It is smart and reliable. At the same time, It's very easy to operate.
Mounting Structure
For the mounting bracket, we do not only offer a single style of choice. Depending on the space you are using, we offer a customizable mounting bracket to ensure that the solar panel is safe, stable and aesthetically pleasing.

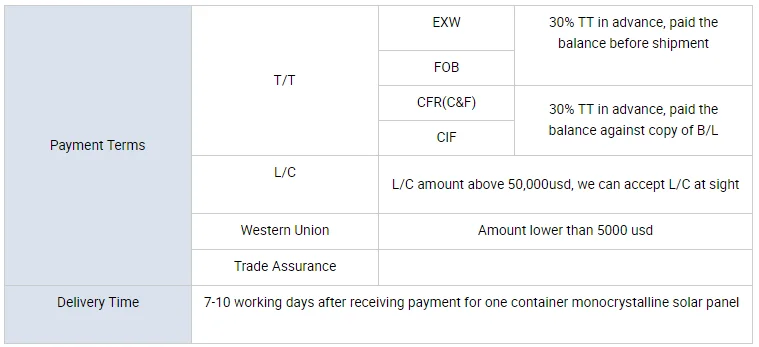

Payment & Delivery

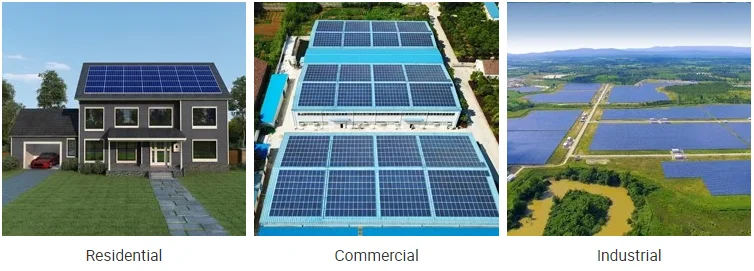

Application
Our Company
Related Products
Certifications
FAQ
Q1: Are you a manufacturer or a trading company? We are both a manufacturer and a trading company. Our factory has great production capacity. The number of solar panels produced can reach more than 10,000 pieces per day.
Q2: What is your main product? Semi flexible solar panel, SMT small solar panel, foldable solar charger bag and solar power bank and other solar products suitable for end-consumer.
Q3: How many employees in your company? We have about 100~120 employees, including office staff, R&D engineers, production line workers.
Q4: Can we request sample for your products before ordering? Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5: What is the general lead time? Sample needs 15 days, the mass production is based on your purchase quantity, which is estimated to be 3-4 weeks.
