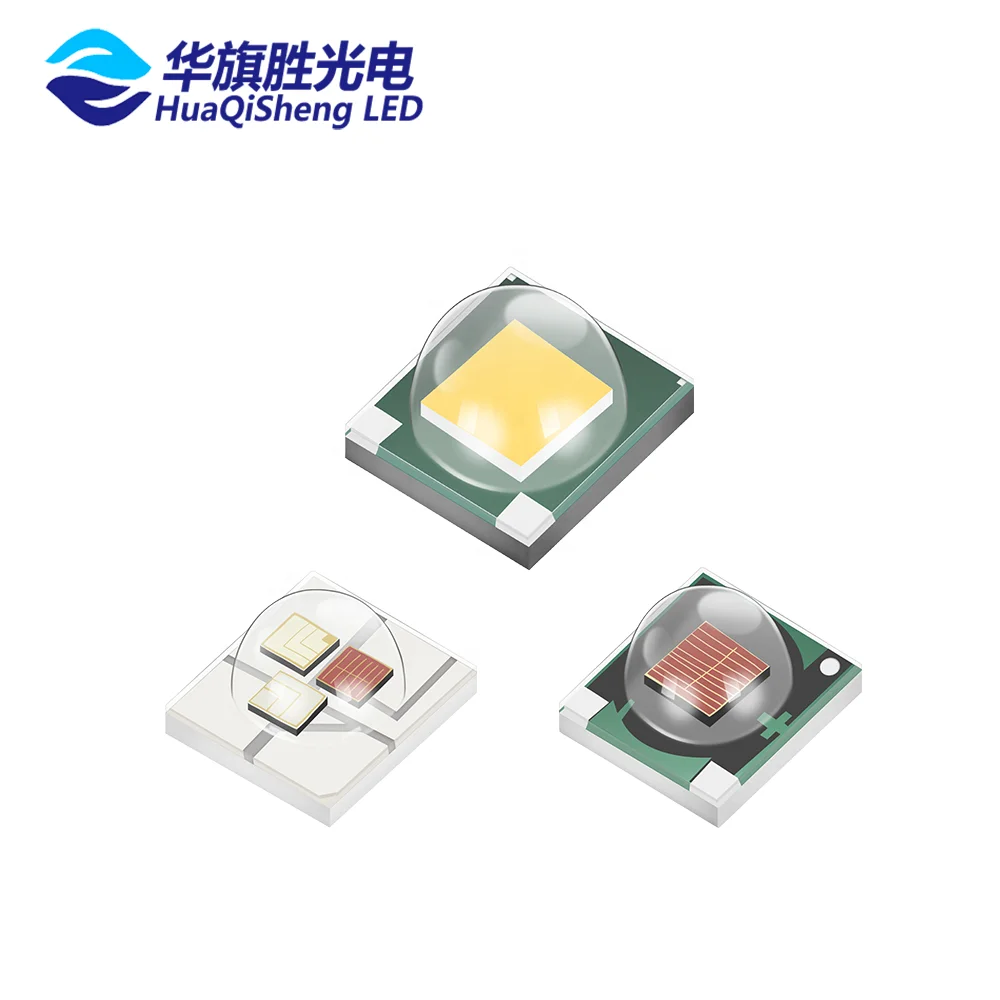

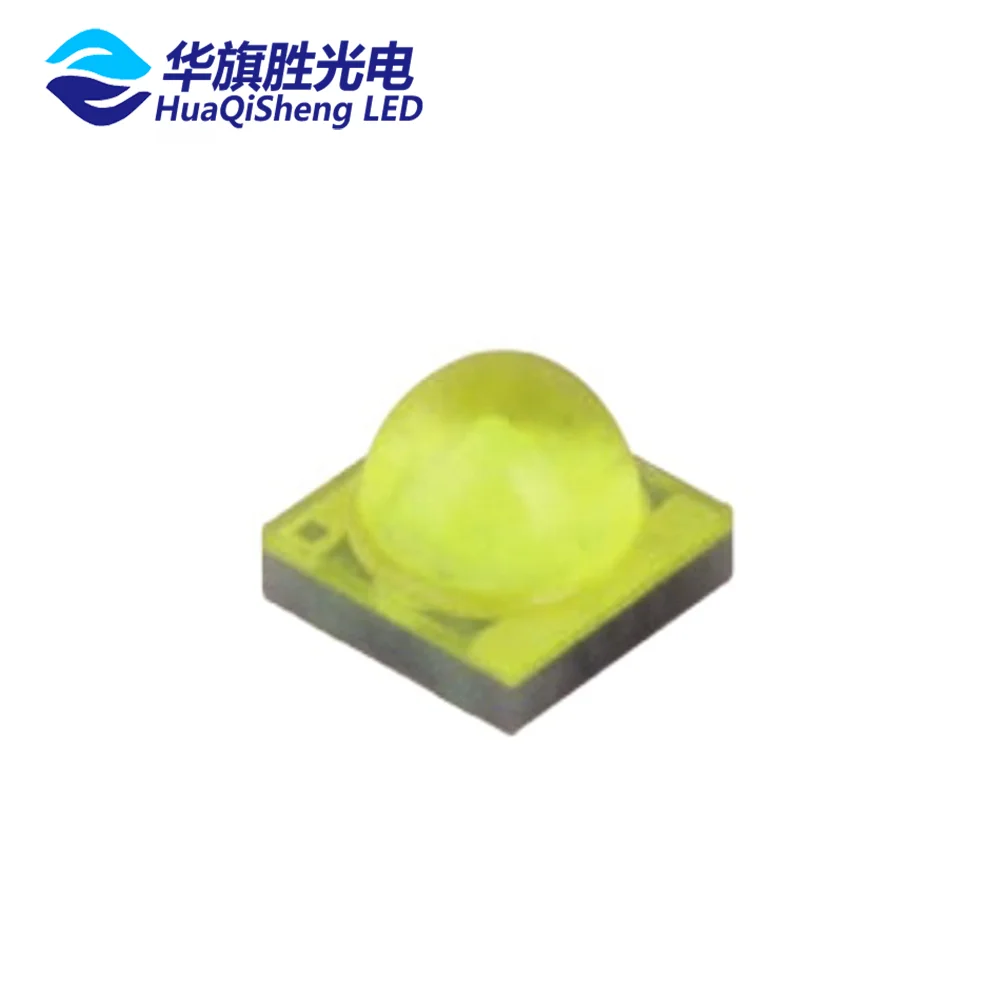

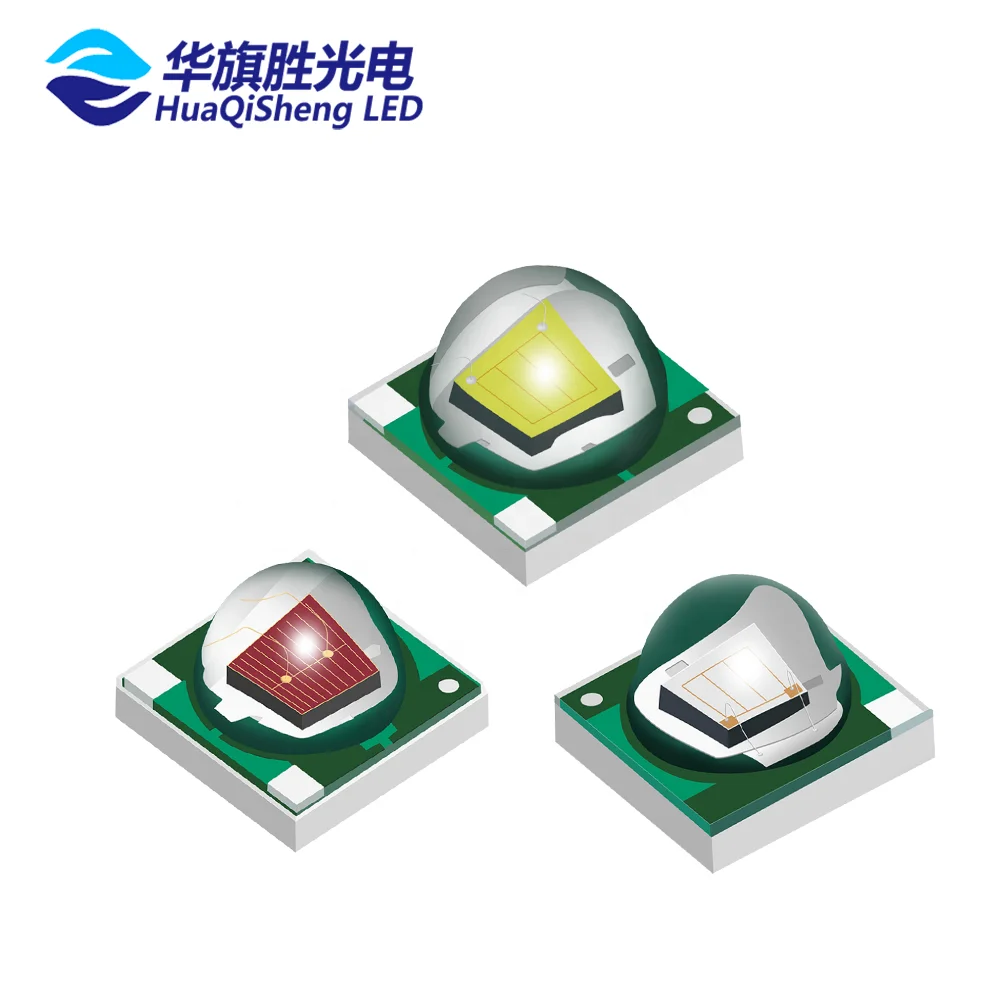

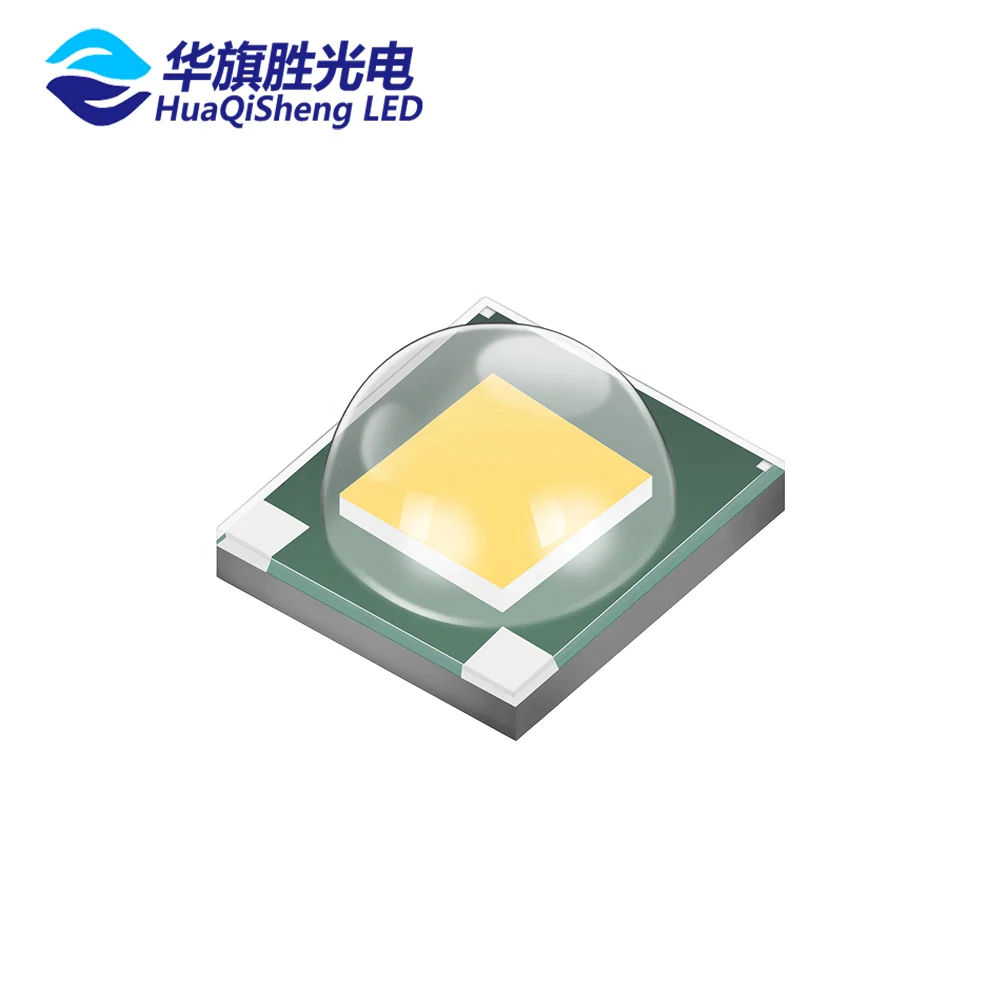

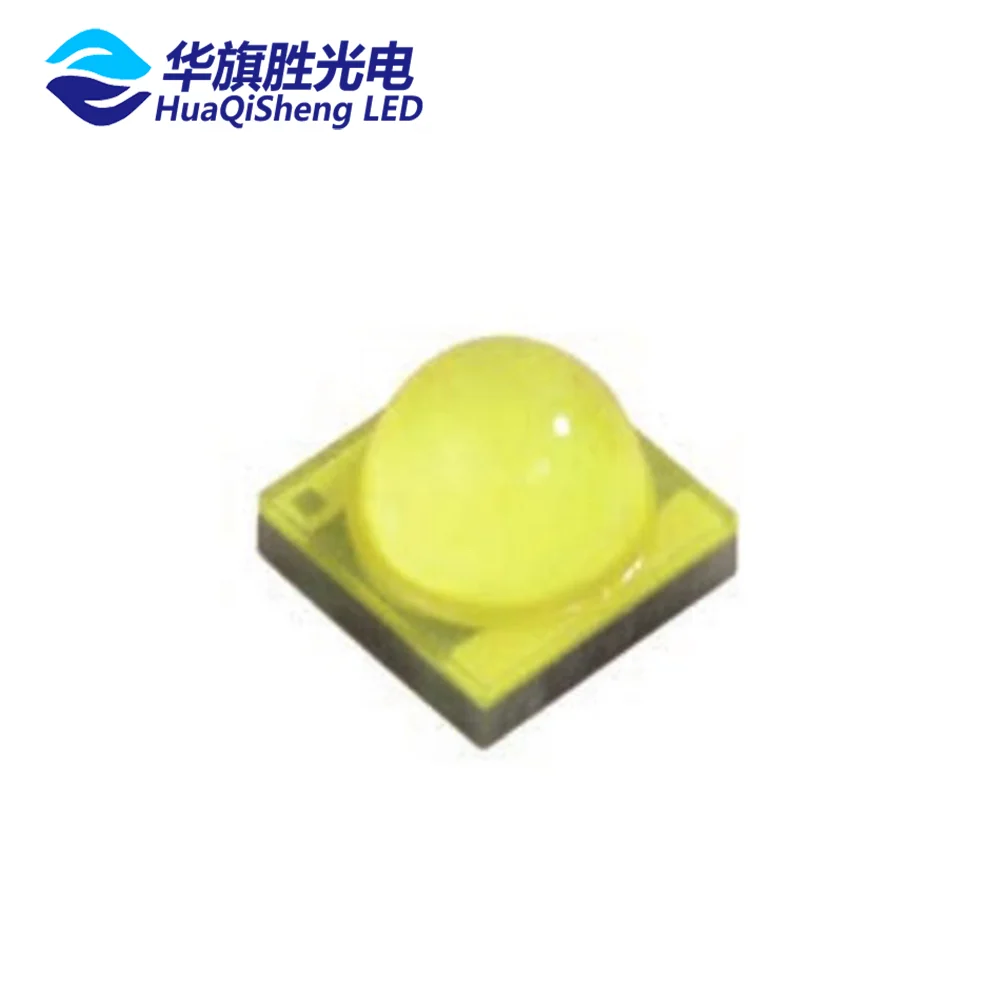

3000K 5000K 6000K 8000K White High Power SMD 3535 LED Chip 3W

Product Overview

Description

Product Name	High Power SMD 3535 LED Chip 3W				Product Model	HQS-3535-3W
Power Dissipation	3W				Light Color	White Color
Forward Voltage	3.0-3.4V				Viewing Angle	120°
Forward Current	1000mA				Operating Temperature	-40~+60 ℃
Color Temperature	5000-8000K CCT				Storage Temperature	-40~+85 ℃
Luminous Flux @ Current	350mA	700mA	1.0A	1.2A	Soldering Temperature	260℃
	120-150LM	300-330LM	350-380LM	380-400LM	Other 3535 Type	1W, 2W,3W,4W,5W





3535 SMD LED SERIES SPECIFICATION
Product Name	Power	CCT	Voltage	Current	Luminous Flux
3535 White LED	1W	6000-20000K	3.0-3.6V	350mA	120-130LM
3535 Gold Yellow LED	1-2W	2000-2200K	3.0-3.6V	350-700mA	200-220LM
3535 Warm White LED	1-2W	3000K	3.0-3.6V	350-700mA	220-240LM
3535 White LED	1-2W	6000-20000K	3.0-3.6V	350-700mA	240-260LM
3535 Warm White LED	1-3W	3000K	3.0-3.8V	350-1000mA	340-360LM
3535 White LED	1-3W	6000-20000K	3.0-3.8V	350-1000mA	390-400LM
3535 Gold Yellow LED	1-5W	2000-2200K	3.0-3.8V	700-1500mA	450-500LM
3535 White LED	1-5W	6000-20000K	3.0-3.8V	700-1500mA	560-600LM
3535 Red LED	1-3W	620-630nm	2.0-2.8V	350-700mA	60-100LM
3535 Green LED	1-3W	520-530nm	3.0-3.6V	350-700mA	70-120LM
3535 Blue LED	1-3W	460-470nm	3.0-3.6V	350-700mA	20-30LM
3535 Yellow LED	1-3W	590-595nm	2.0-2.8V	350-700mA	30-50LM
3535 Deep Red LED	1-3W	660-665nm	2.0-2.8V	350-700mA	30-50LM
3535 UV LED	1-3W	365-420nm	3.0-3.8V	350-500mA	400-1200mW
3535 IR LED	1-3W	730-1020nm	1.2-1.8V	350-700mA	150-800mW
