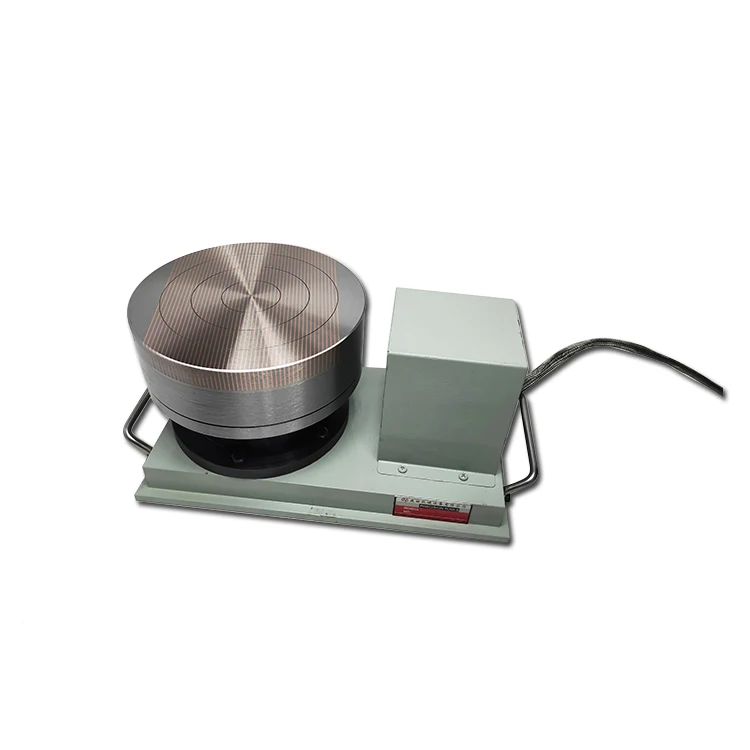

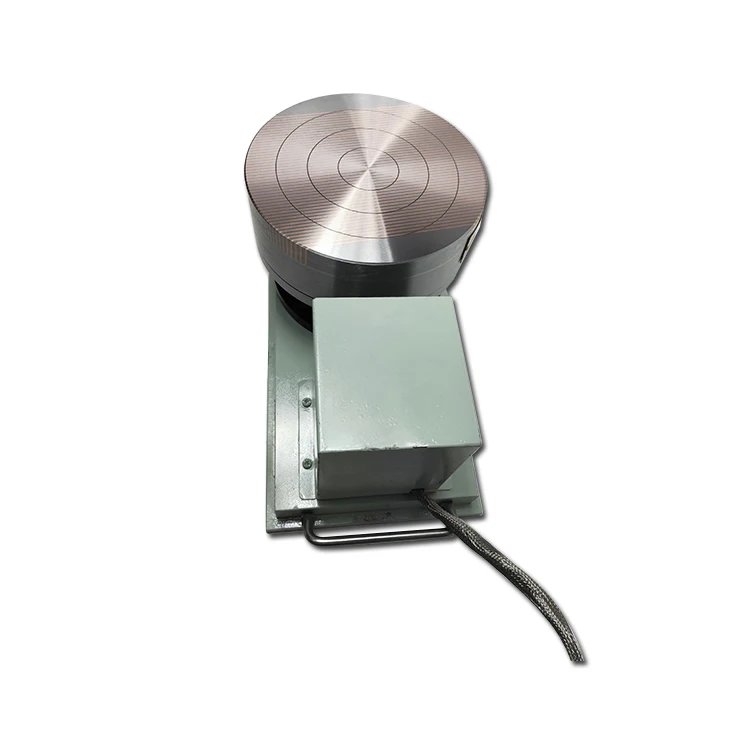

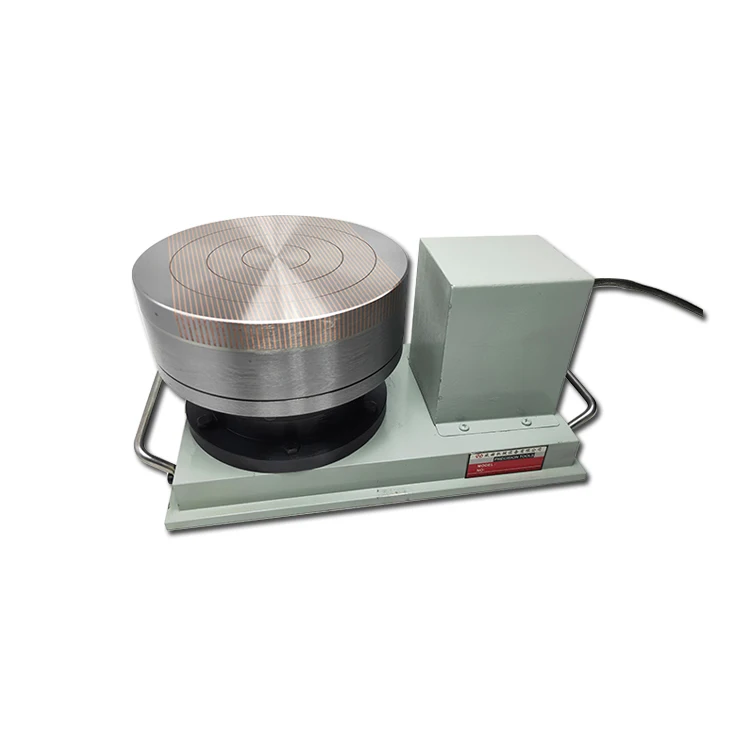

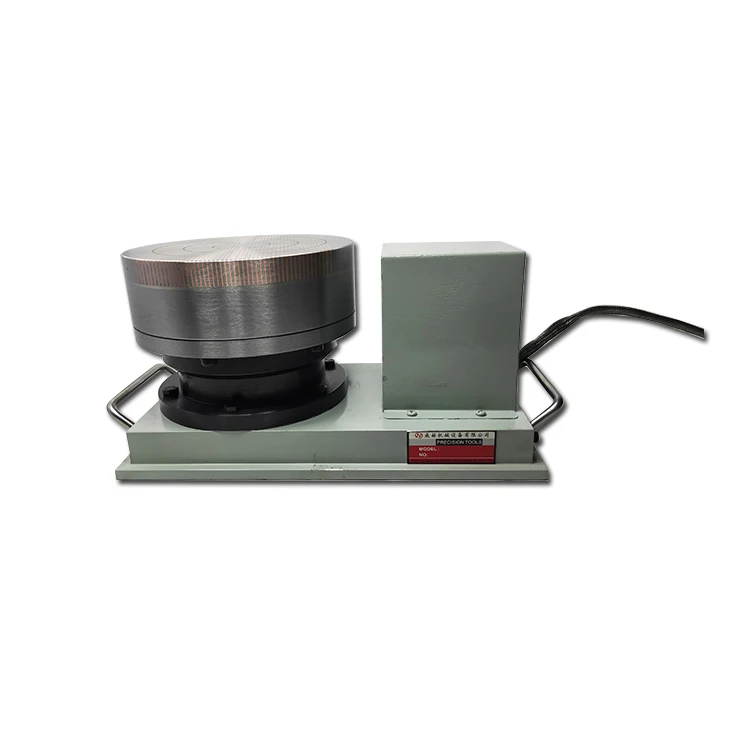

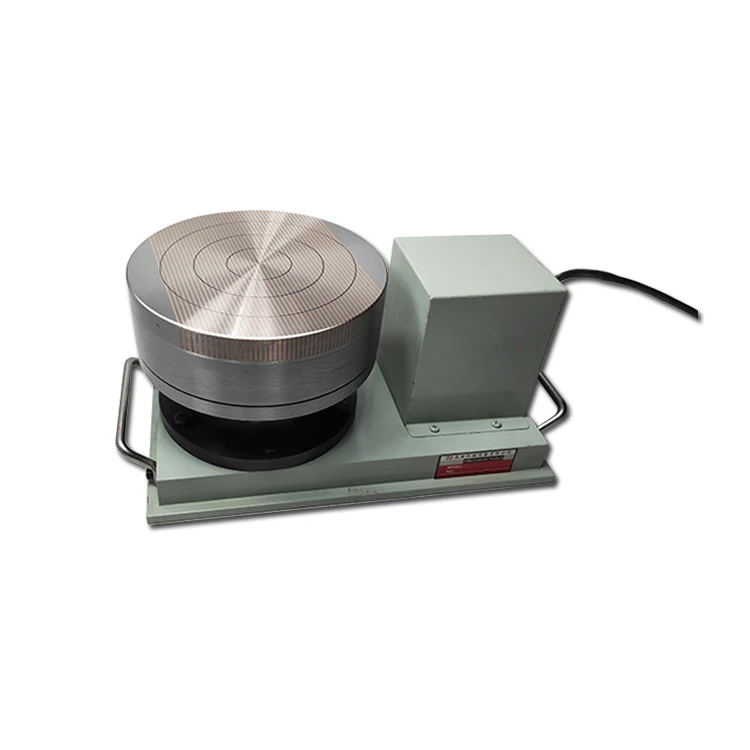

Precision electric rotary magnetic table for grinding machine

Product Overview

Description

A rotating disk is a disk that is placed on a surface grinder for holding and grinding a workpiece.
The rotating disk has the characteristics of high precision of the rotary grinding method, which can increase the grinding effect several times compared with the conventional grinding method. Grinding the spacer ring, round gasket, etc., the time is fast and the efficiency is high. The grinding precision is very high and can reach within ±0.002mm. The rotation speed of the disk can be continuously changed at any time, and other disks or mold holders can be replaced.
Stepless speed change: 0-180 r.p.m/min.

Features	specification
voltage	One-way AC voltage: 110/220V frequency: 50/60Hz
Speed range	0-150 rpm
Speed electric rate	For load -1% or less (3000 hours per minute, 0-rated torque)
Output	120W/60W
Precision	Upper plane parallelism: 0.002mm
size	160mm 200mm 250mm
