JTFM-1100/1300 fully automatic vertical Roll to Roll lamination machine is designed for waterbased glue and thermal Roll to Roll lamination multi-functions. It is our latest product, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate. It can realize the whole line automation of unwinding, lamination and winding.
Configuration & Functions:
1. Automatic High Speed Unwinder: Adopt shaftless clamping, hydraulic lifting structure, tension controlled by air brake automatically/manually. Max. Unwinding diameter up to 1300mm.
2. High Accuracy Edge/Line Correction System: Equipped with Ultrasonic Edge Correction Sensor and upmarket Edge/line Position Controller, Photoelectric Tracking/ Stroke ±75mm, which can keep the edge of roller aligned when unwinding and winding.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper jammed.
4. Drying And Heating System:The 800mm diameter large heating roller equipped with Electromagnetic Heating Device, at the same time supported with Built-in Oil Conduction Heating System and Hot Air Cycle System, can realize high speed booting and heating in 5~10 minutes, 2 times than traditional heating device meanwhile save much power consumption.
5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6. Man-machine Interface System:Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, and paper roll, accurate position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film and paper, increase laminating performance.
8. Rewinding System: AC vector frequency conversion control, matched with unwinding system, the paper roll lift is driven by double hydro-cylinder with torque adjustment system. Mirror pressing roller ensures that the paper roll is rewound tightly. Max. Unwinding diameter up to 1300mm.
Product display

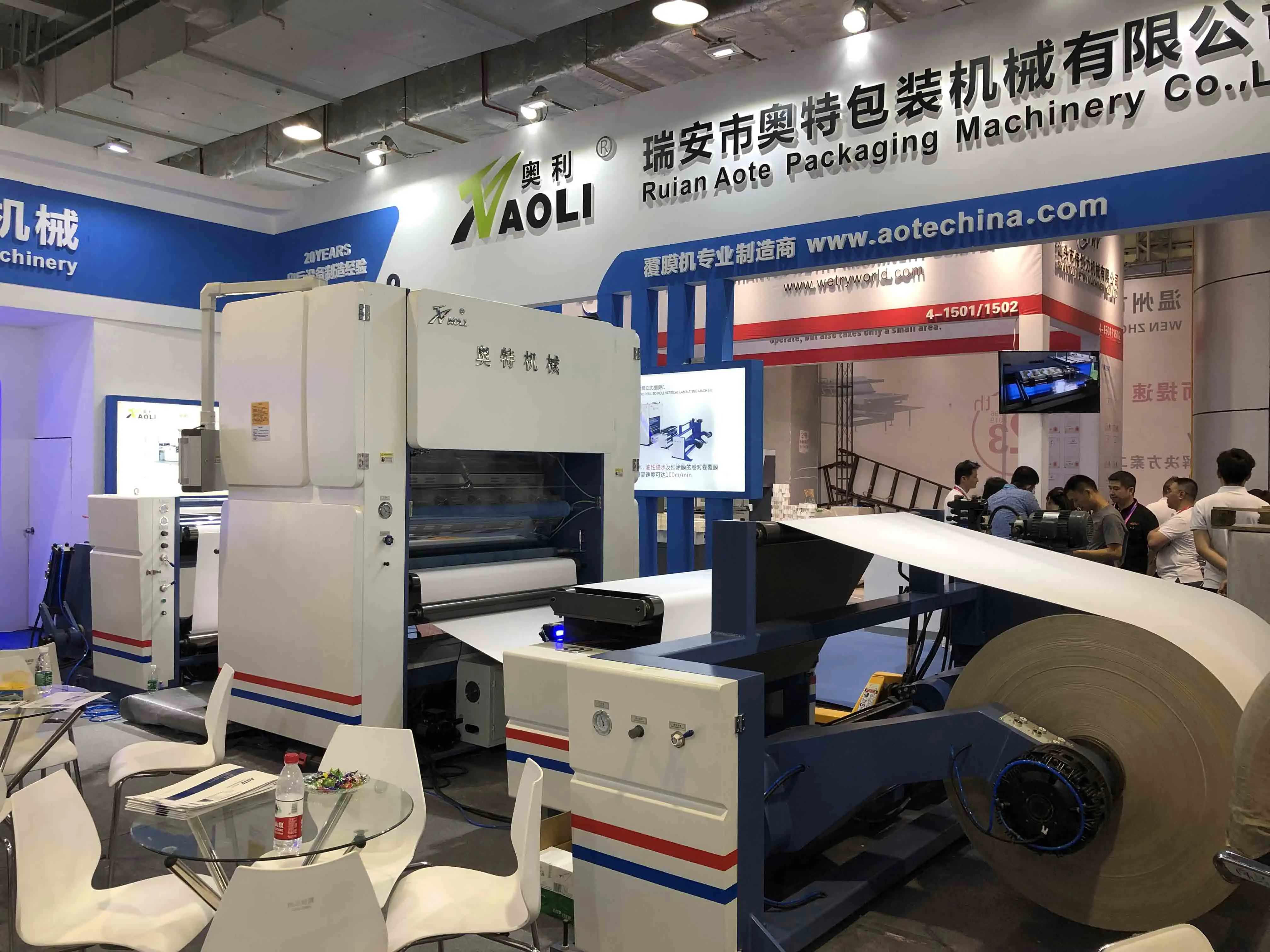

Ruian Aote Packaging Machinery Co., Ltd.
1. Unwinder Part
Adopt shaftless clamping, hydraulic liftingstructure, tension controlled by pneumatic brake automatically/manually. Max. Unwinding diameter up to 1300mm.

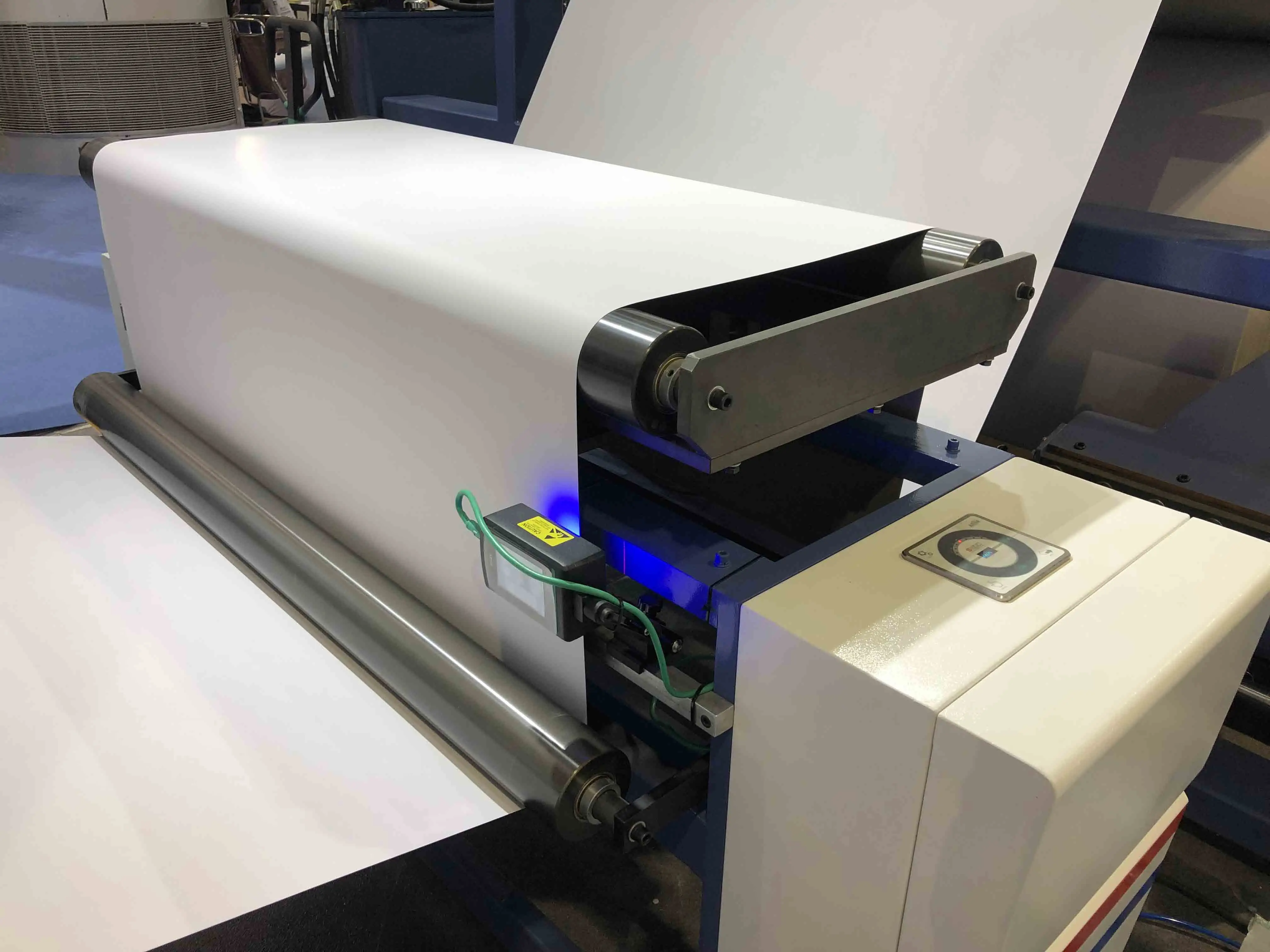

2. Edge/Line Correction Part
Adopt CCD Edge/Line Vision Sensor, with high precision and wide detection range, can effectively avoid the possibility of instability of correction. It has better detecting performance than ultrasonic or photoelectric sensor.
Equipped with Automatic Edge/Line Correction Controller, Photoelectric Tracking/ Stroke ±75mm, which can keep the edge of paper roller aligned when unwinding and rewinding.
The cylinders of Correcting Framework are non-cohesive.

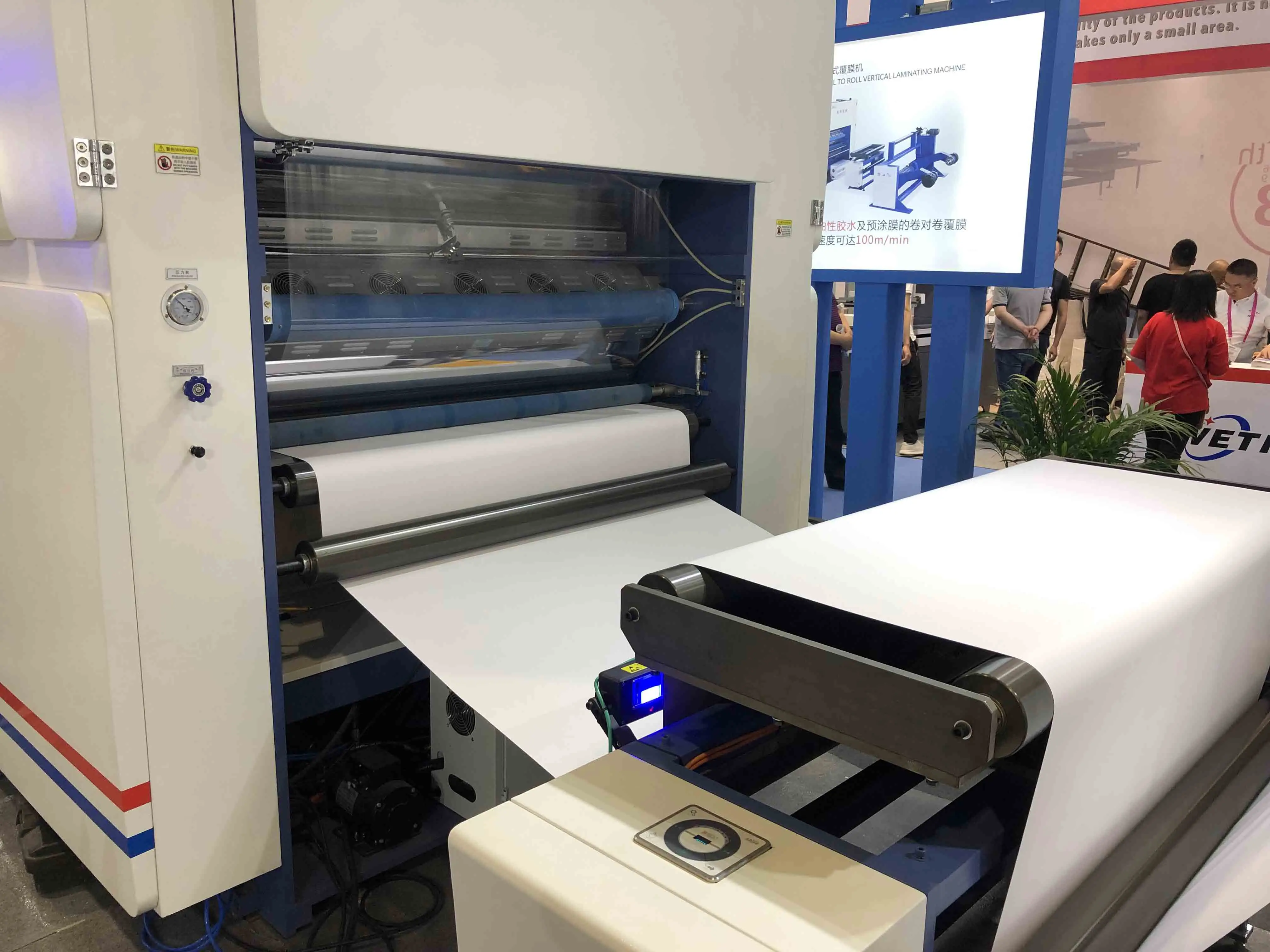

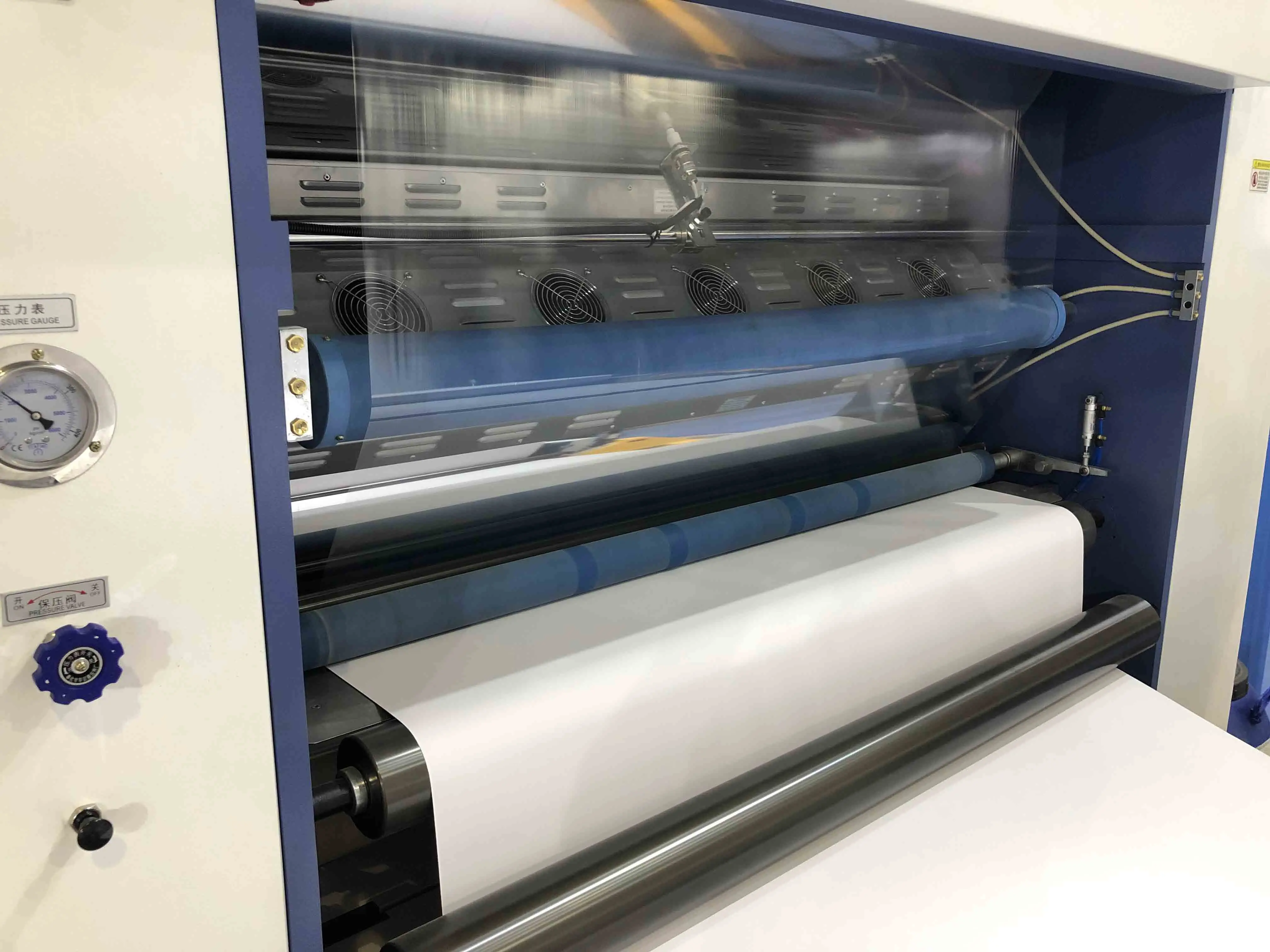

3. Lamination Main Unit
Adopt 800mm diameter big mirror heating roller, equipped with electromagnetic heating system, high heating speed and performance, at the same time the heat cycle systemand hot air cycle system can save much energy.
400mm diameter mirror laminating roller, with built-in oil heating, high heating speed and low consumption.
300mm big rubber roller improves laminating performance.

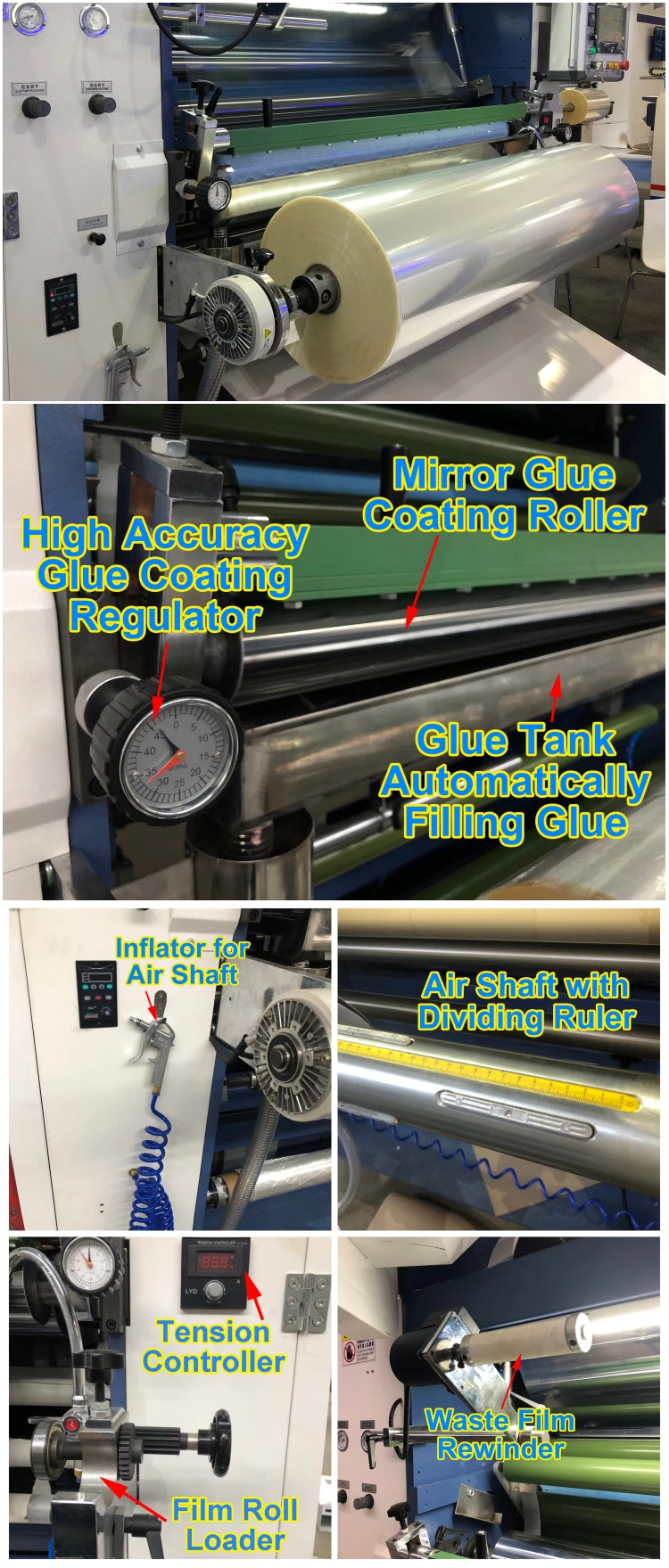

4.Glue Coating Part
Adopt high accuracy glue coating regulator, can control a erasing knife to adjust coating thickness easily and accurately, save much glue consumption. Mirror coating roller ensure the glue is even. With automatic glue filling and cycling function.

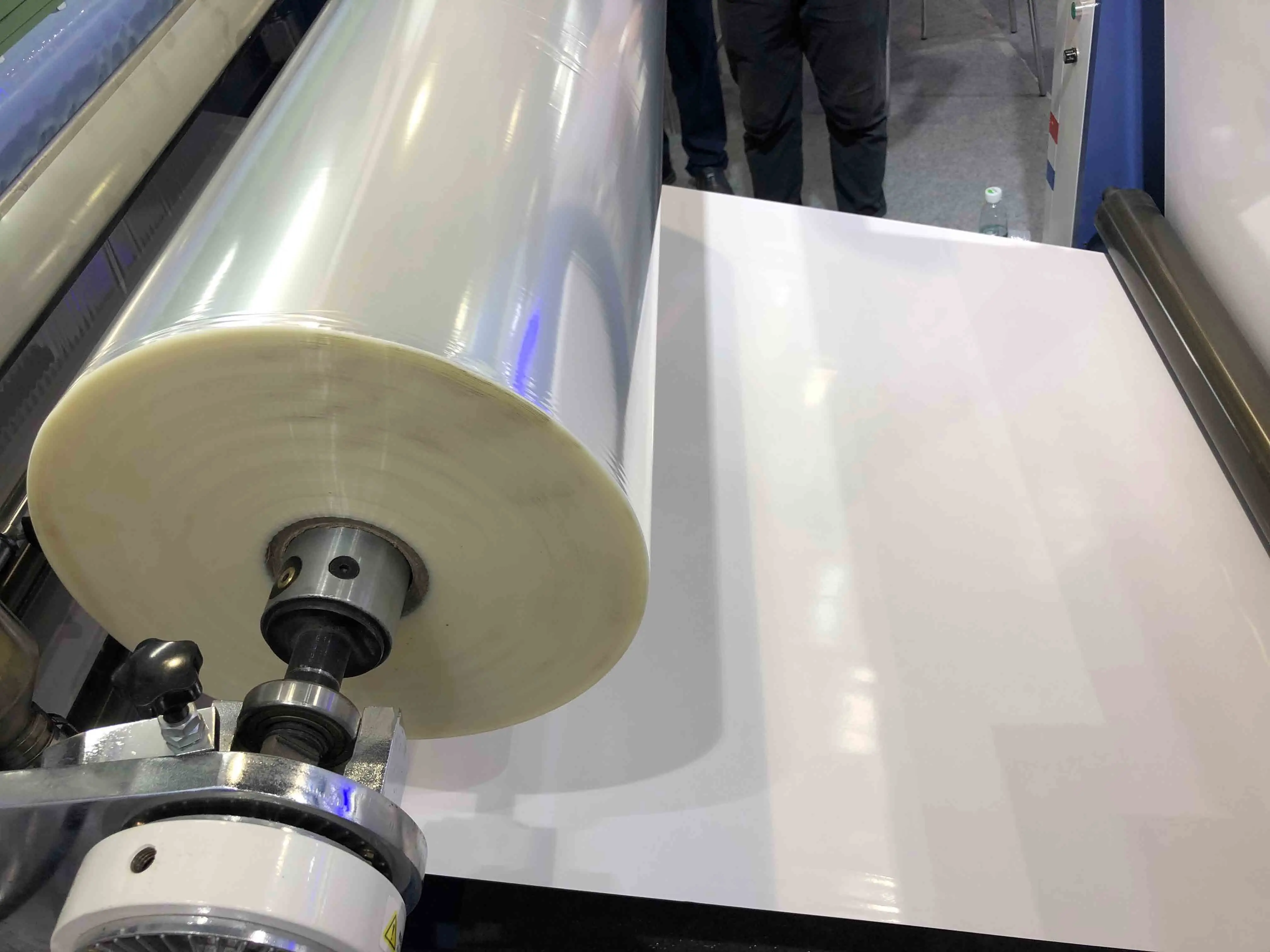

Air shaft with dividing ruler, can adjust the position of film roll accurately, easy to load film. The tension of film is adjusted accurately by the tension controller.
Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
5. Rewinding Part
AC vector frequency conversion control, matched with unwinding system, the paper roll lift is driven by double hydro-cylinder with torque adjustment system. Max. Unwinding diameter up to 1300mm. Mirror pressing roller here ensures paper is rewound tightly.
Main Parts
Touch screen
ChineseTaiwan Weinview
Encoder
Japan Omron
Inverter
China Kewo
Chain
German Renod
AC contactor
France Schneider
Intermediate relay
France Schneider
Push button switch
China Yijia
Small broken fuser
China Chint
Programming controller
Chinese Taiwan Delta
Servo drive
Chinese Taiwan Delta
Servo motor 1.1KW
Chinese Taiwan Delta
Motor 5.5KW
China Dongfang
CCD edge/line vision sensor
China Arise
Edge/line correction controller
China Arise
