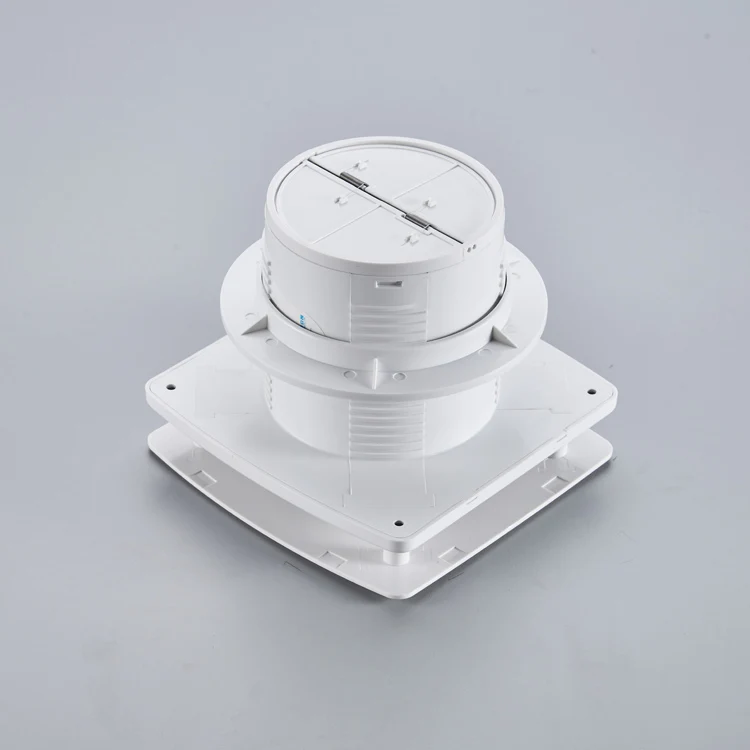

2019 China New Product Pipe Exhaust Fan Home Restaurant Ventilation With Motion Sensor

The fan is suitable for wall/window/ ceiling mounting.

Shutter, ring are optional, ring is needed for window mounting.

●Easy installation

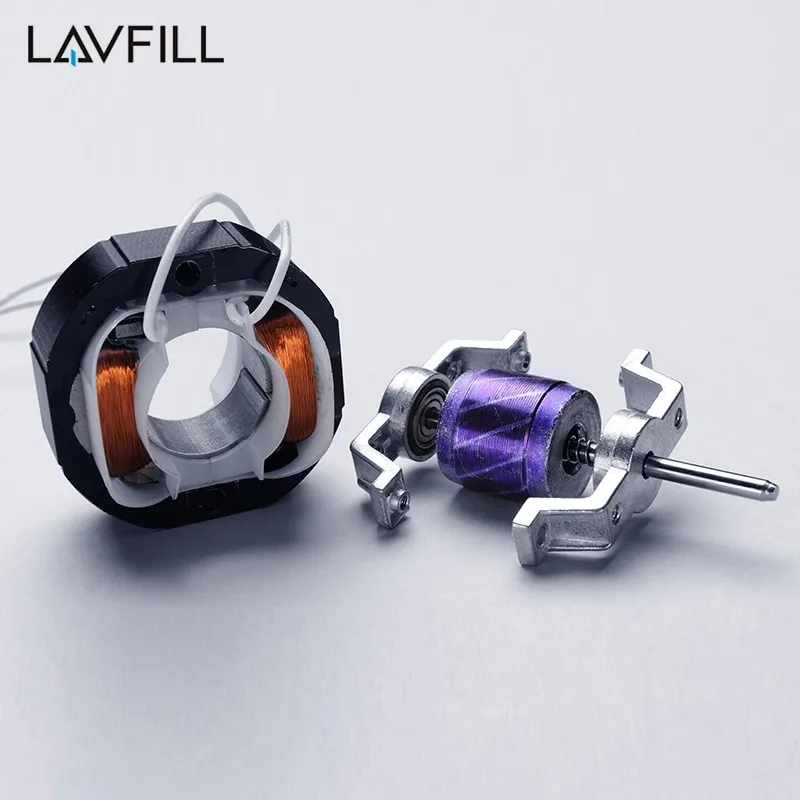

● Shaded pole motor with thermo cut-off

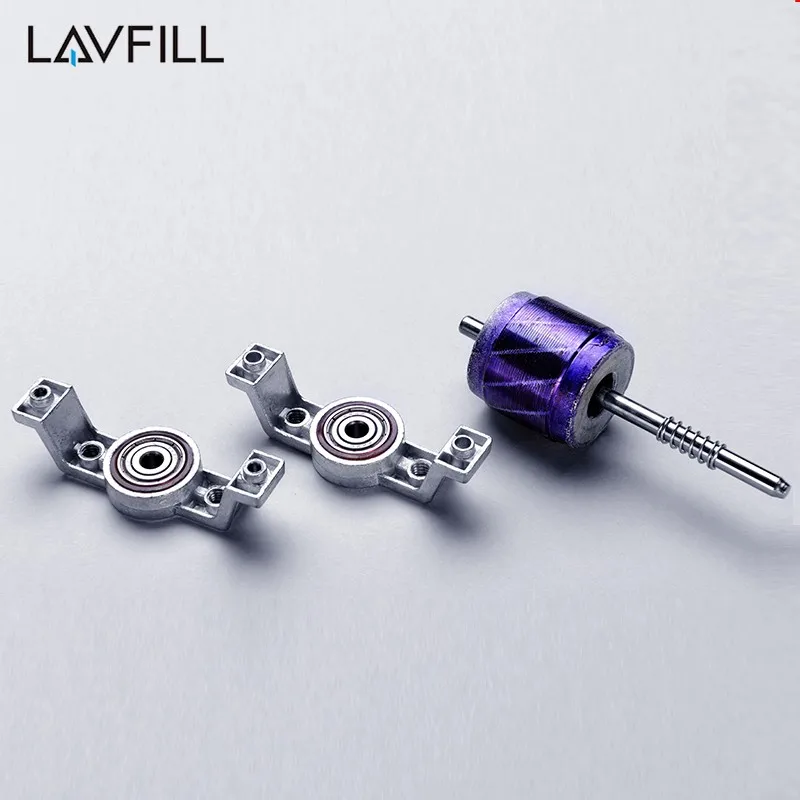

●Ball bearing motor to reduce friction for long life operation

●Modern and functional design

● Front louver for safety protection

● Safety design based on IEC requirements

●Approved by SAA TUV SASO CE RoHS

● More functions

   + With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four       LED indicators, adjustable time range 0 -30 mins, the original  factory setting is 60%, 1min.

   + With timer adjustable time range 0 -30 mins, the original factory setting is 1 mins.

   + With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins



Specification


Installation Dimension
Unit: mm
Article No.
A
B
C
D
LFWW-09Q
ø100
150
90
35
LFWW-09QT
LFWW-09QS
LFWW-09QH
LFWW-13Q
ø150
193
100
35
LFWW-13QT
LFWW-13QS
LFWW-13QH


Technical Parameter:
Article.No
Category
Rated Voltage
Rated Frequency
Power
Air Volume
Noise
LFWW-09Q
Wall Window Mount Ducted Exhaust Fan
12V~

110V~

220-240V~
50/60Hz
12W
95m³/h
34dB
LFWW-09QT
LFWW-09QS
LFWW-09QH
LFWW-13Q
18W
240m³/h
35dB
LFWW-13QT
LFWW-13QS
LFWW-13QH
Note:
T - with Timer
H - with Humidity Sensor
S - with Motion Sensor

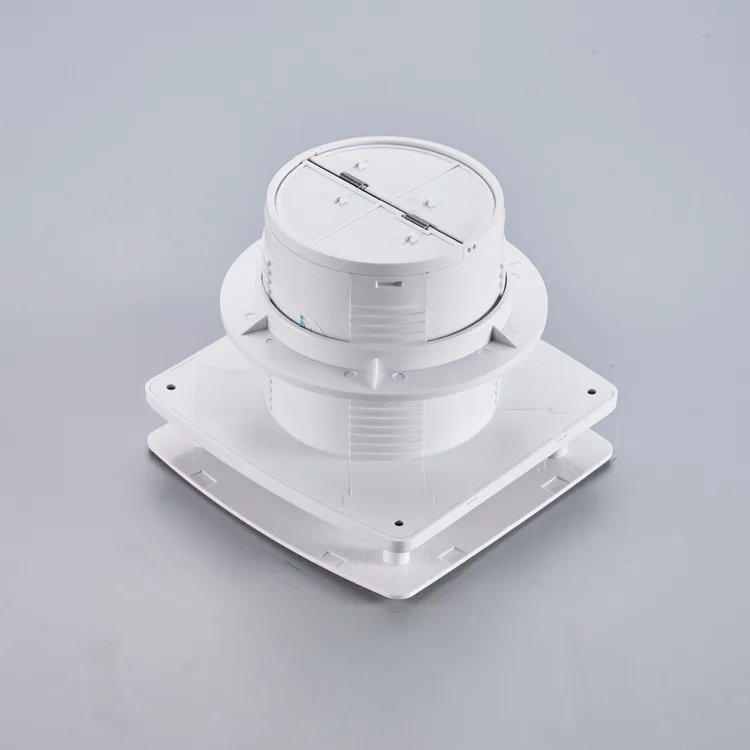

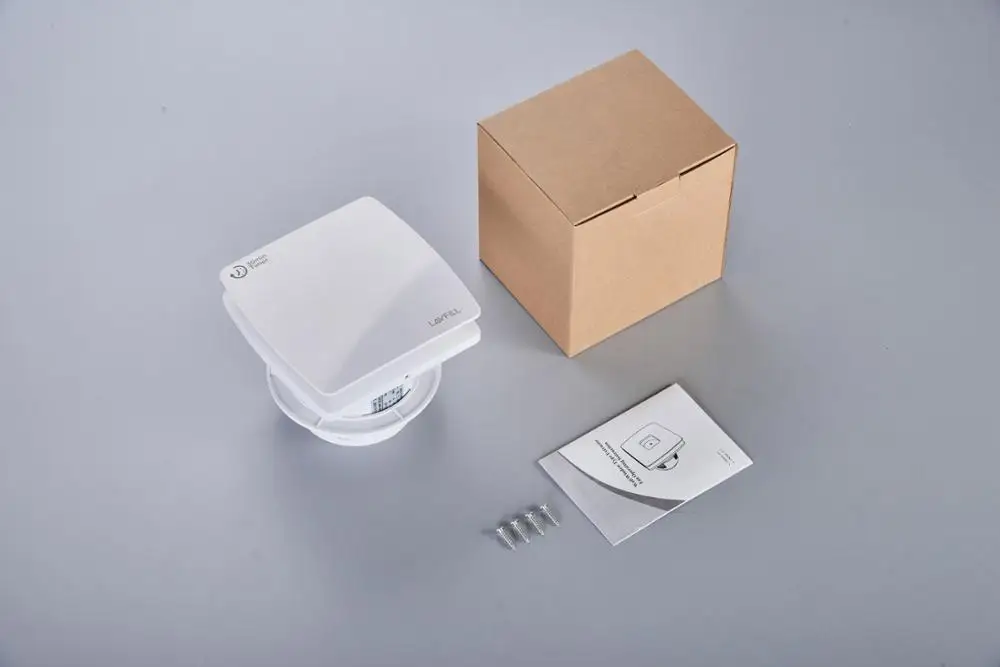

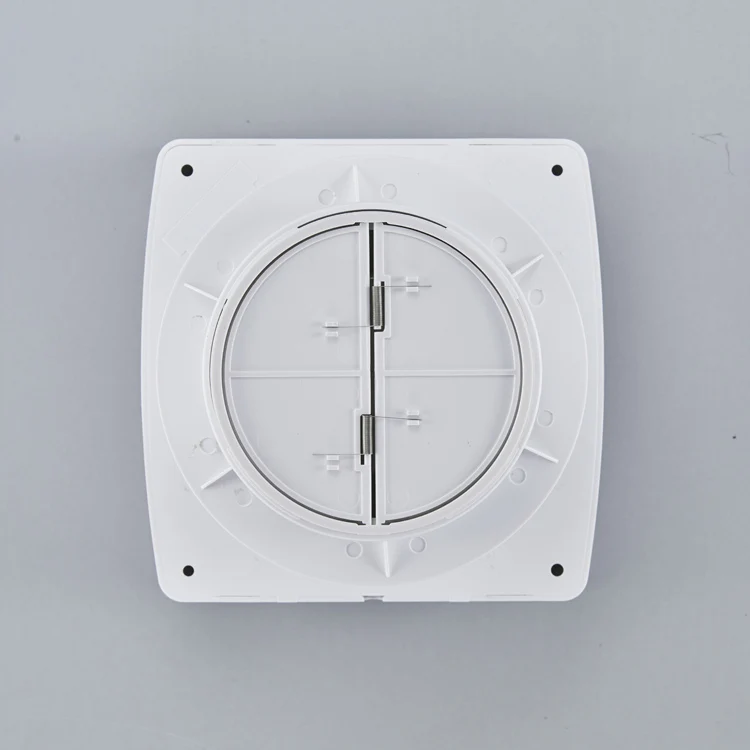

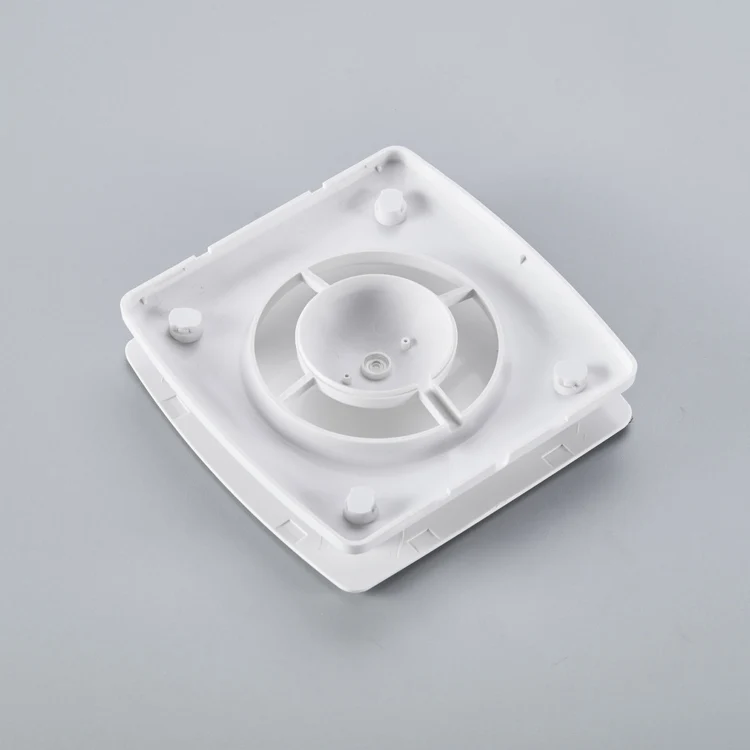

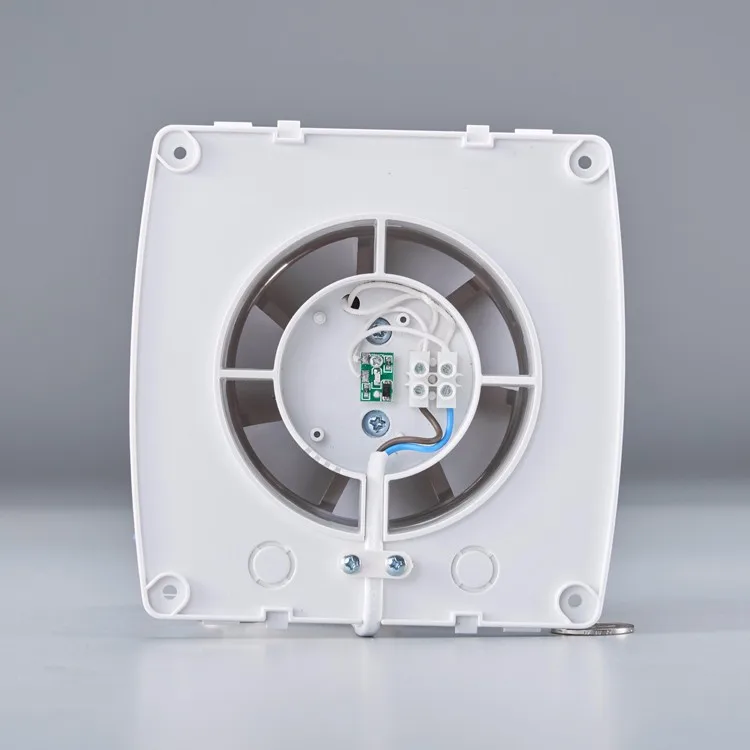

Product Display

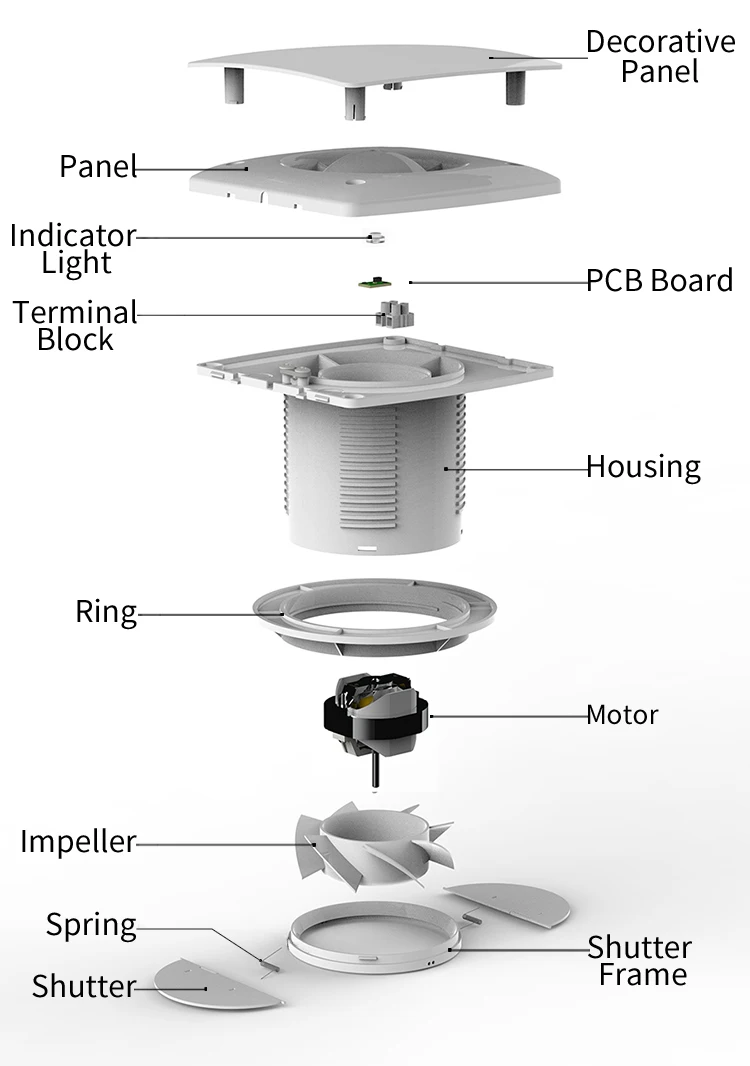

Exploded View

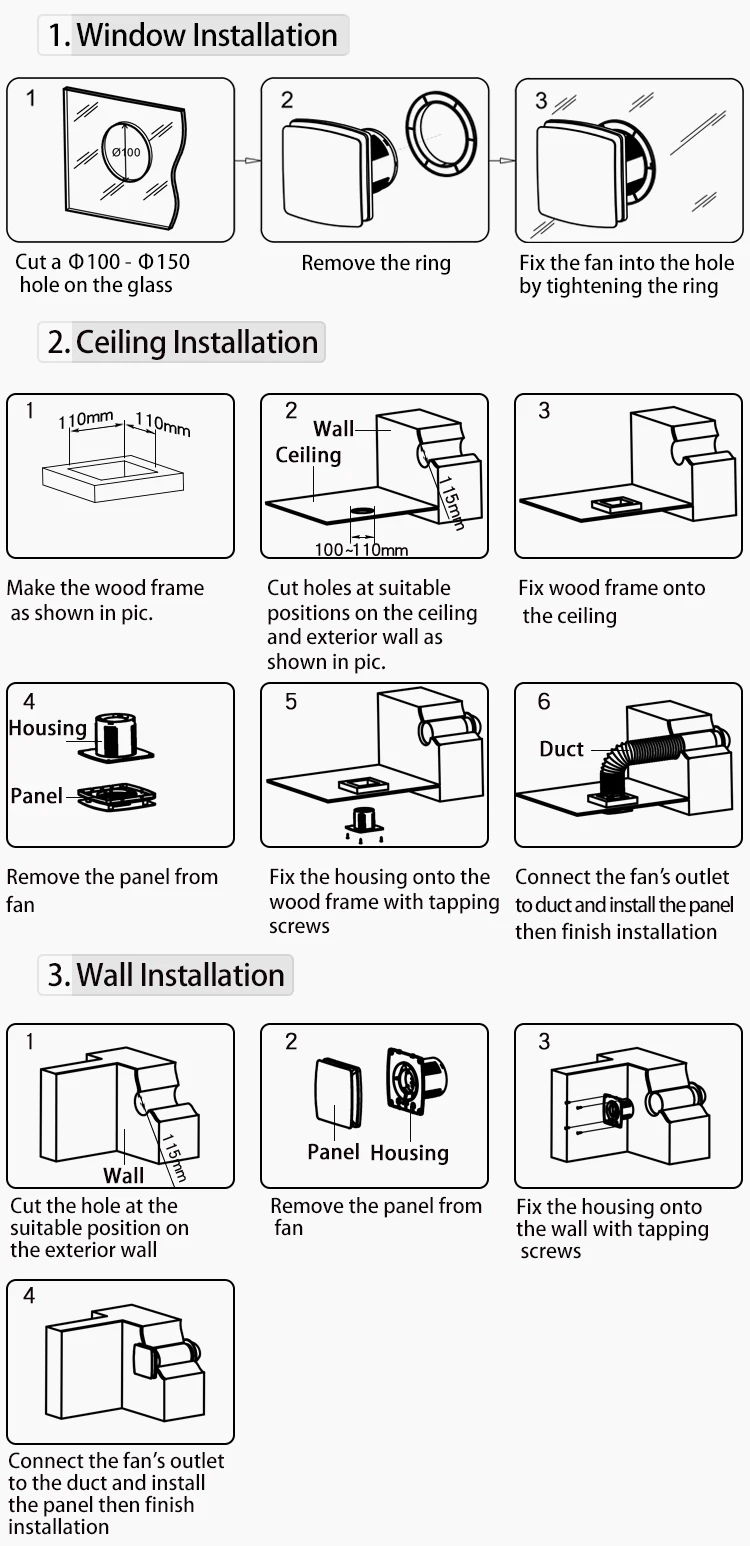

INSTALLATION




FAQ
