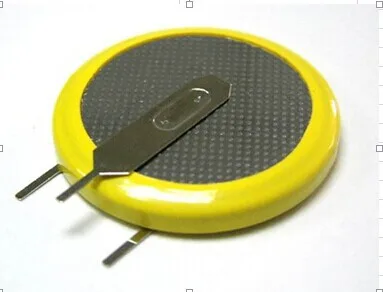

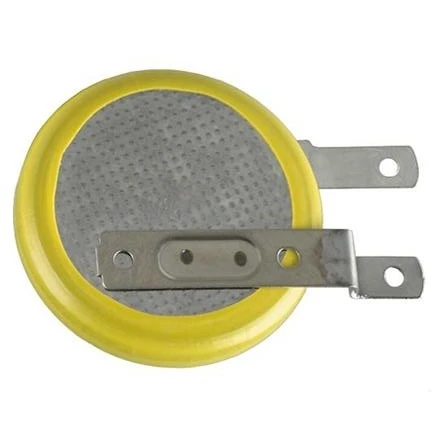

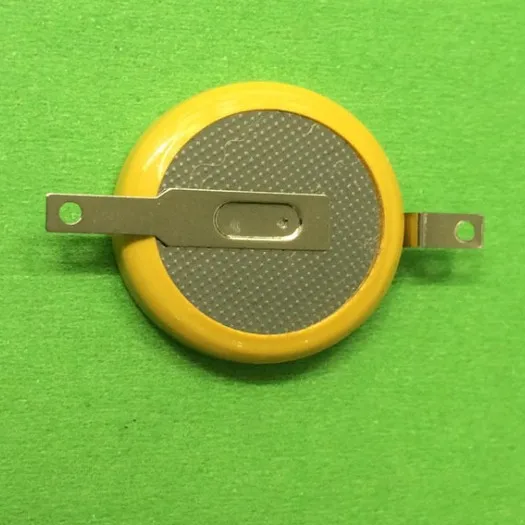

3V CR2477 lithium button cell battery with pcb tab solder pins

 1. Soldering tabs' width: 2.6mm or customized

 2. Soldering tabs' length: 3.0mm, 3.5mm or customized length

 3. Angle of two tabs: 180°, 90°, or customized angle

 4. Position of positive tabs and negative tabs: customized

 5. Soldering tabs' thickness: 0.15mm

 6. Contact type: SMT for PCB/DIP PINS for PCB

 7. Package: Tray packing and Carton

 8. Material: manganese steel and nickel plating

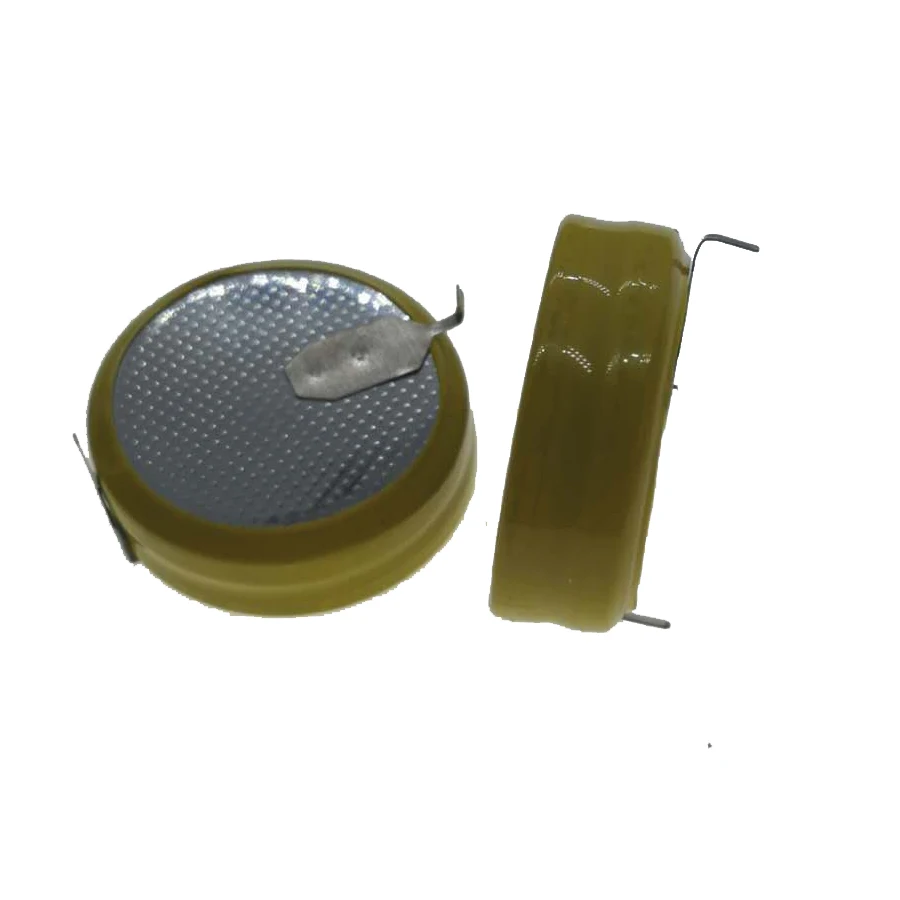

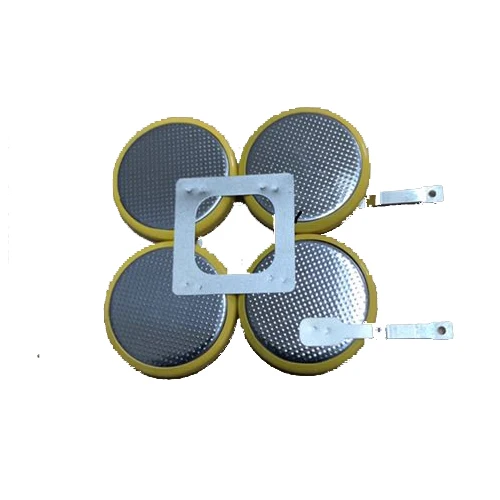

 9. We can also produce with your requirements, such as parallel battery pack, seires battery pack, etc.

                                                                                      90° angle                                                           180° angle

DRAWINGS

Notice: if there haven't your need, please contact us, we can produce with your requirements. such as parallel battery pack, seires battery pack, etc.
