  • AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding

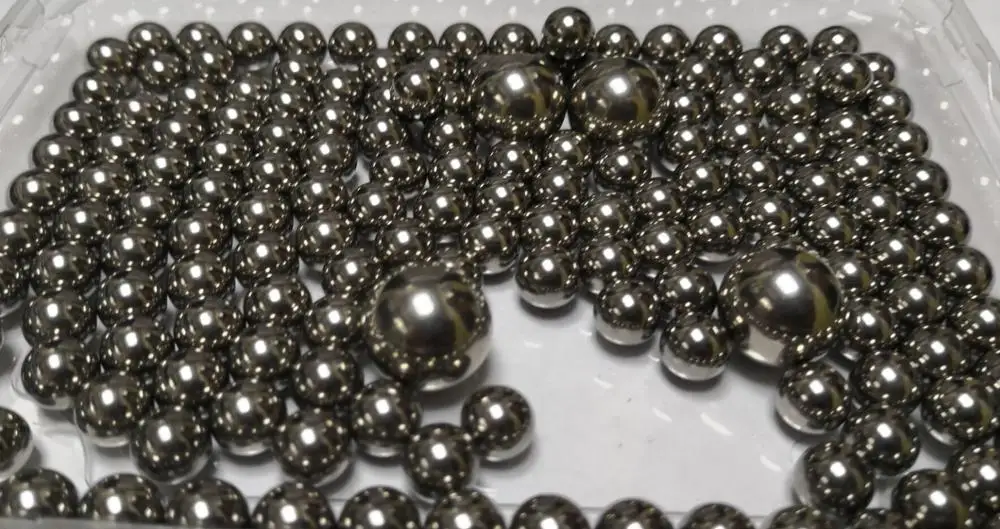

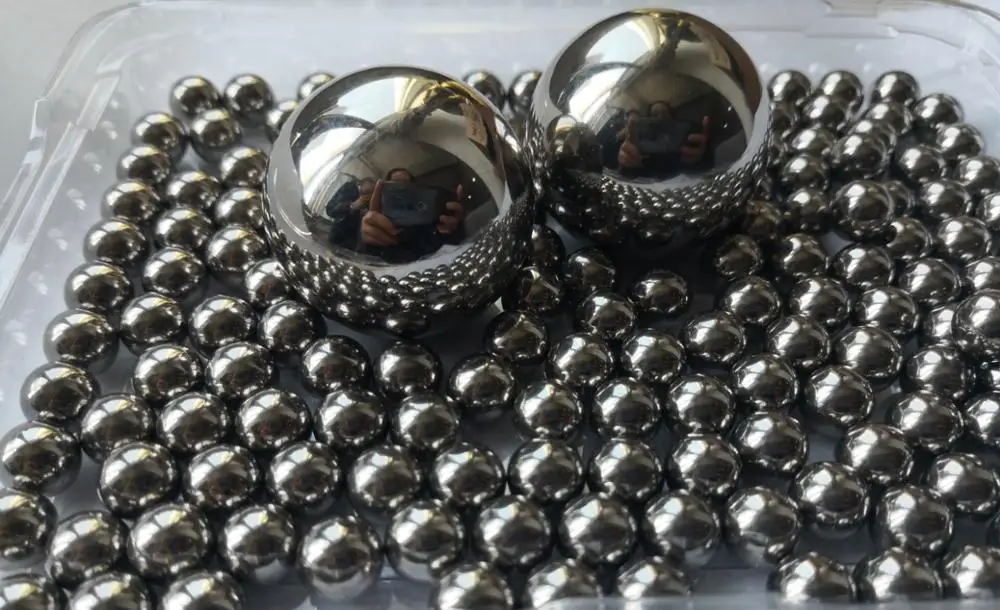

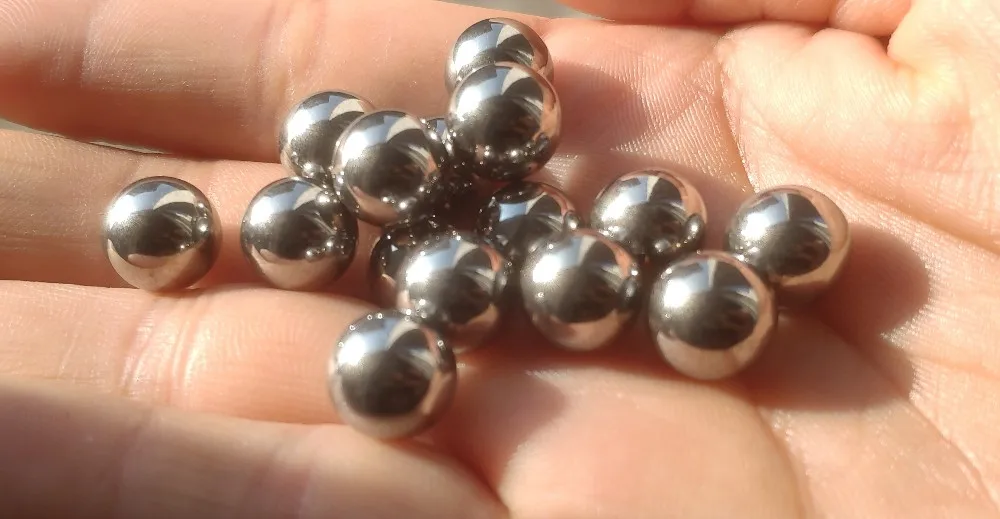

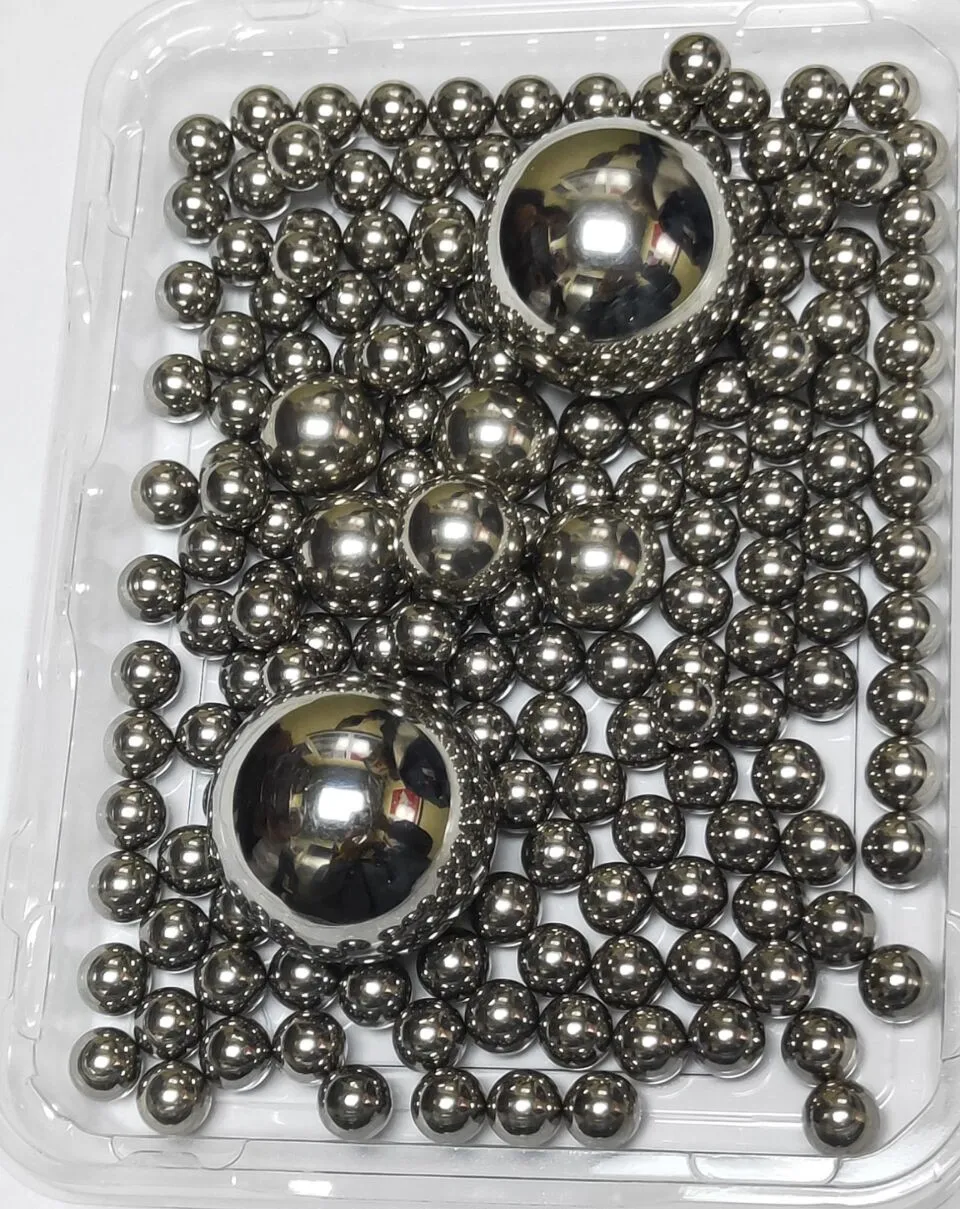

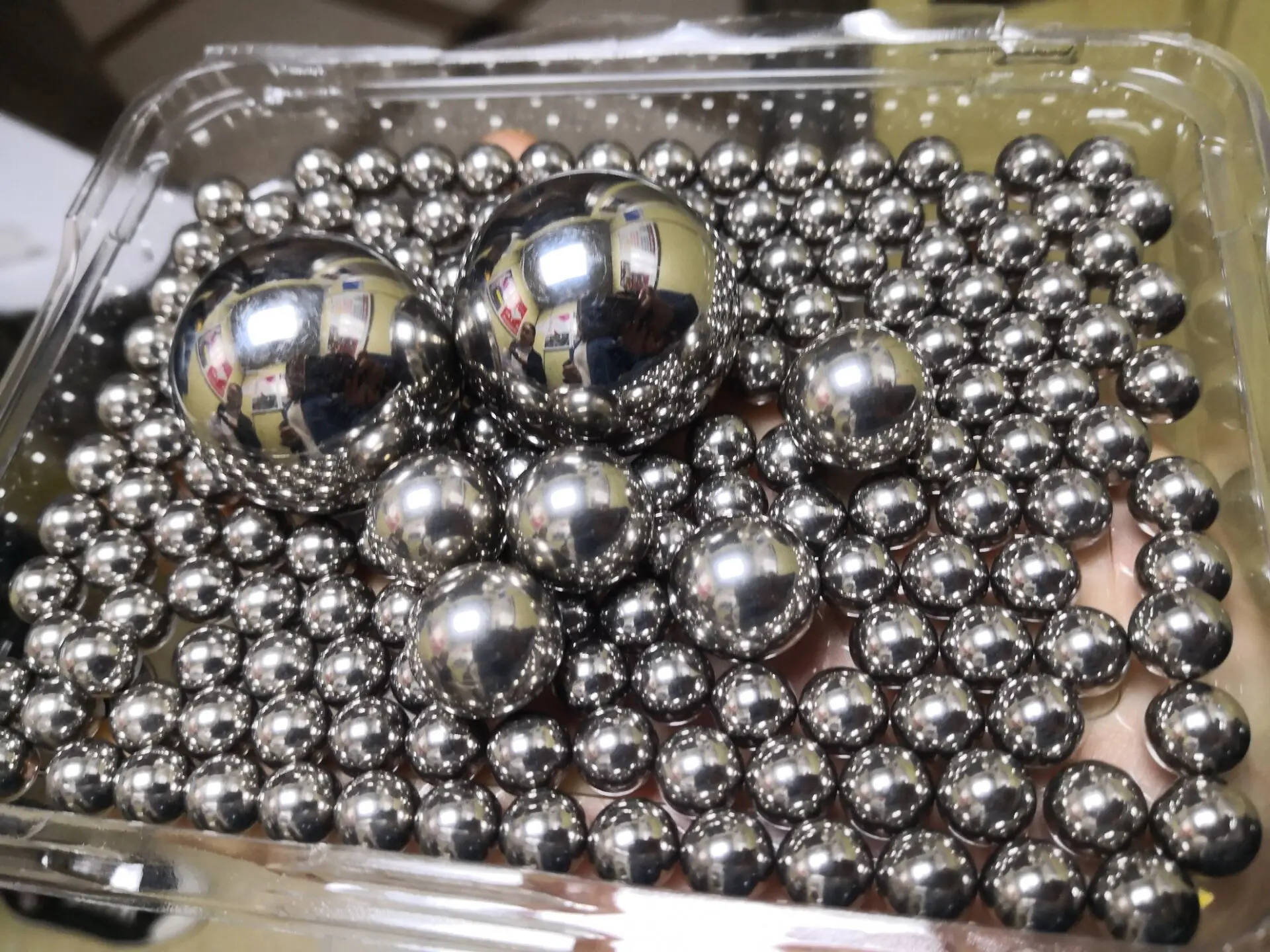

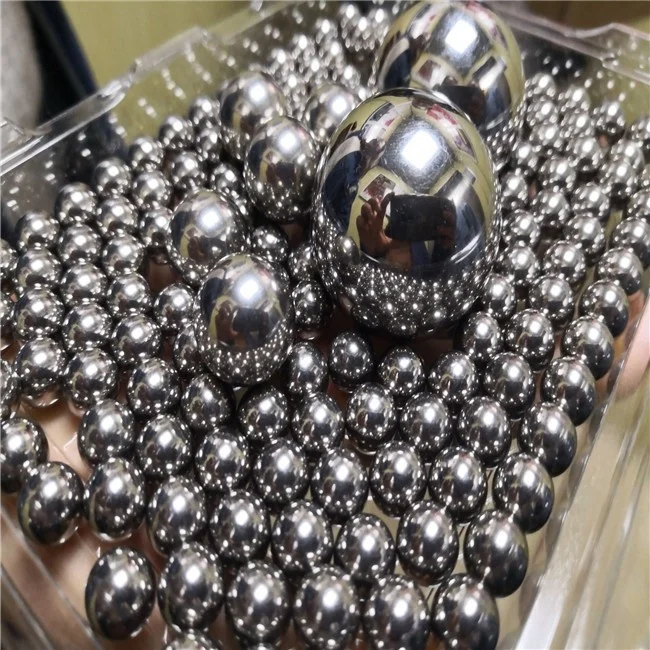

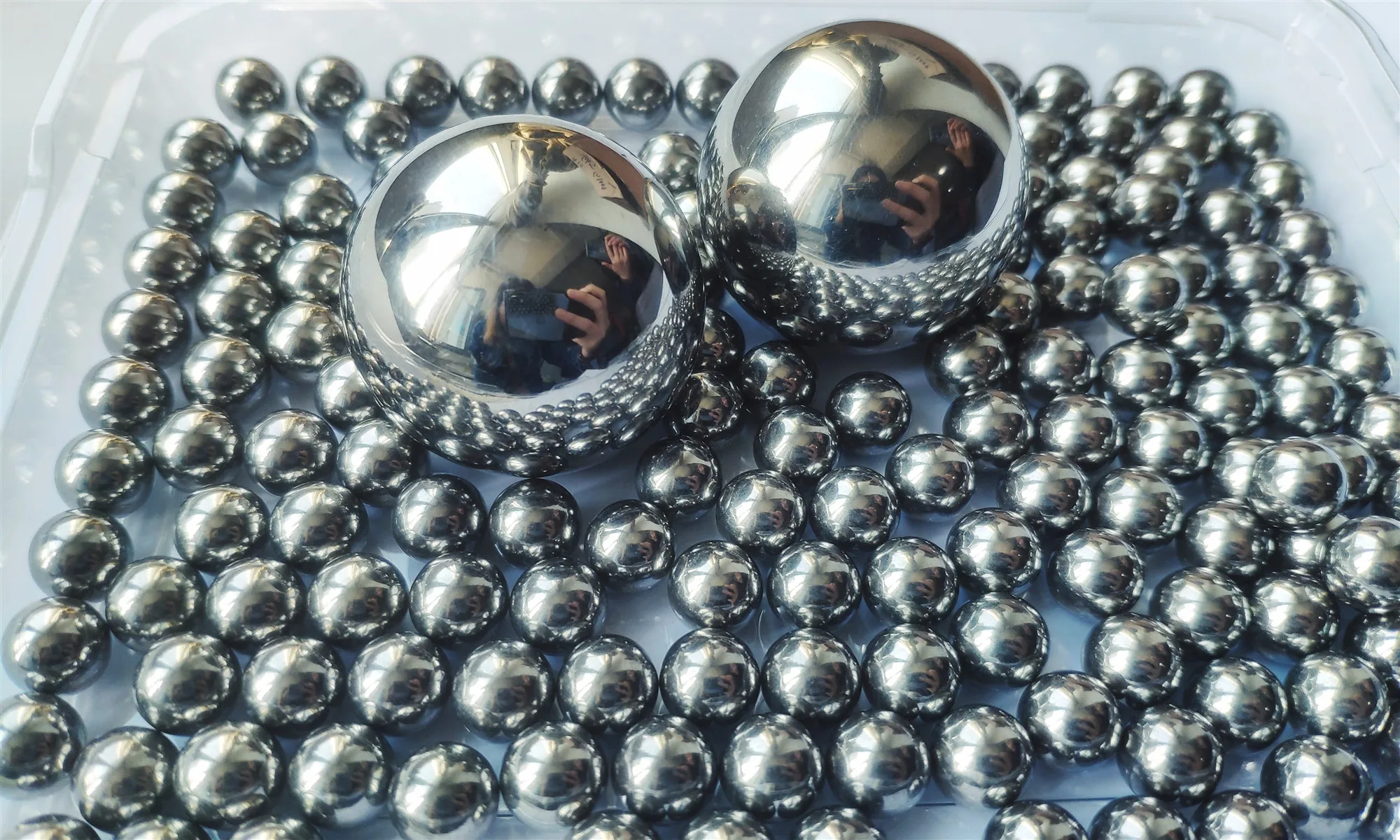

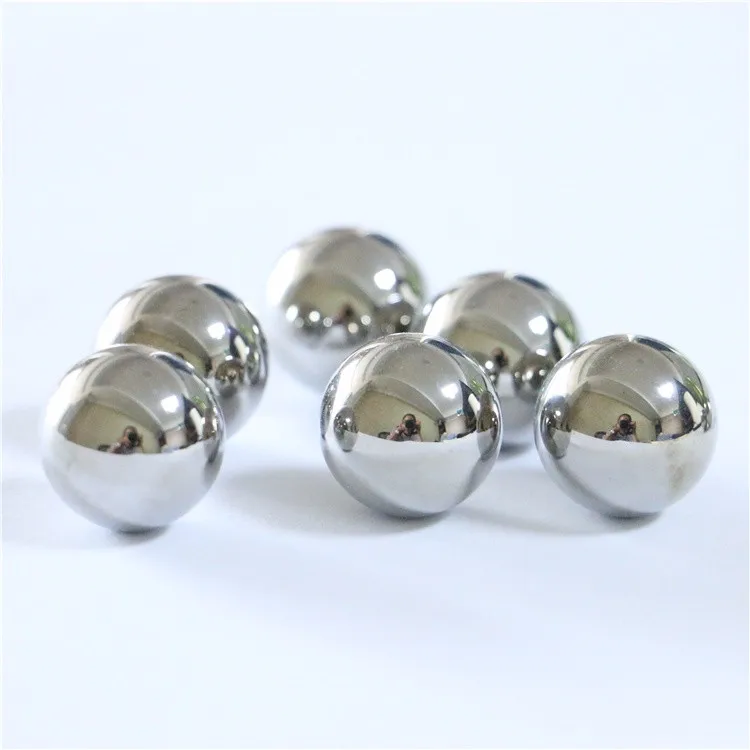

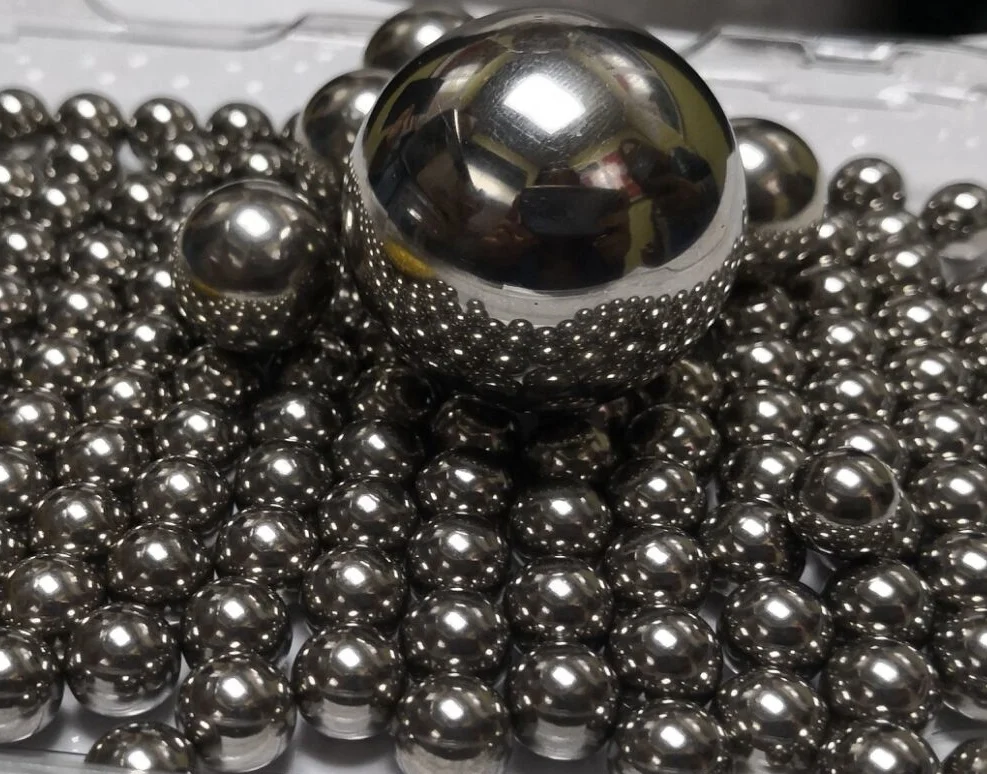

AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding
AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding

AISI 1010 1015 G500 3mm 5.15mm 7.93mm carbon steel balls for grinding

Share on (62087712364):


Price:

Quantity:


Product Overview

Description


Product Description

Carbon steel balls are made from a combination of steel and carbon, with carbon present in concentrations lower than 0.093%. The carbon acts as a hardening agent, providing additional strength, at a lower cost than alternative hardening techniques.
Our carbon steel balls come in two varieties: low unhardened carbon steel balls and low hardened carbon steel balls. Each variety has its own properties.

\t
Name
\t
High quality AISI 1010 1015 G500 G1000 carbon steel balls for chain wheel
\t
Material
\t
Carbon material
\t
Hardness
\t
HRC 55-58
\t
Certificate
\t
ISO SGS ROHS
\t
Size
\t
0.3mm-60mm
\t
Surface
\t
Bright
\t
Speciality
\t
have magnetic , metallographic structure is ferrite , package often with oil . Usually electroplating when it is out of surface , it can be plated with zinc , gold , nickle , chromr , and so on . have strong anti-wear functional

Application

1010/1015 carbon steel ball is a very common steel ball , it has low price , high hardness and wide use . usually used in bicycle , bearing , chain wheel , art ware , shelf , versatile ball , bags , small hardware , it can also be used for rubbing other medium .


Comparison:

The wear-resisting and hardness is not good than bearing steel ball(the HRC of GCR15 steel ball is 60-66); so the life is shorter relatively .


\t
INTERNATIONAL STANDARD
\t
USA
\t
GER
\t
RUS
\t
CHN
\t
1010
\t
1.1121
\t
10
\t
10
\t
1015
\t
1.1141
\t
15
\t
15
\t
Chemical Composition
\t
Material
\t
%C
\t
%Si
\t
%Mn
\t
%P
\t
%S
\t
1010
\t
0.08-0.13
\t
0.10-0.35
\t
0.30-0.60
\t
0.040 max.
\t
0.050 max.
\t
1015
\t
0.12-0.18
\t
0.10-0.35
\t
0.30-0.60
\t
0.040 max.
\t
0.050 max.
Exhibition

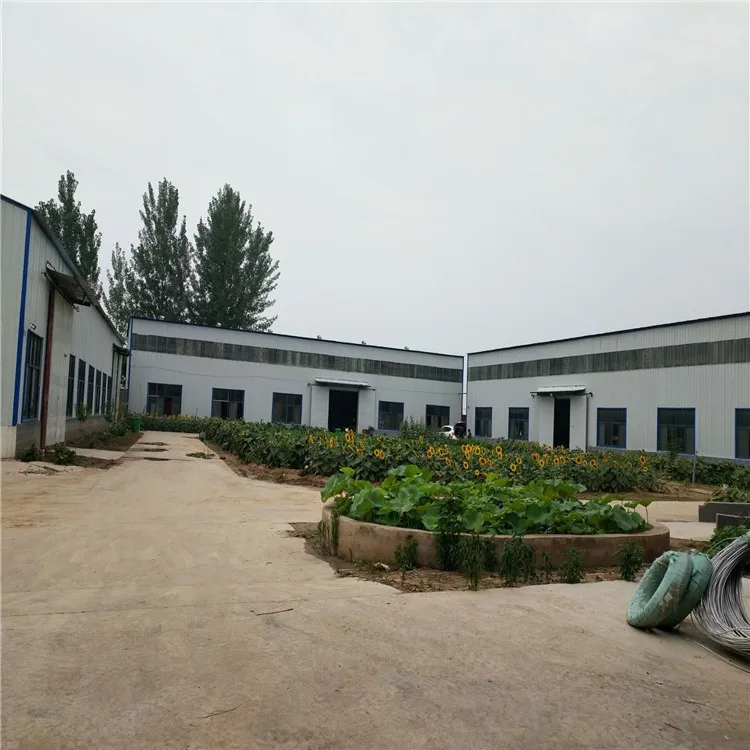

Our Company

Ningyang Xinxin Stainless Steel Ball Manufacture Co., Ltd

one of famous and professional stainless steel ball factory from china .

We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in Henan province (10000 square meters ) .
With over 20years history,our factory have good reputation from our customers and government,so our factory passed ISO9001:2008 and our products got SGS,RHOS Certificates .

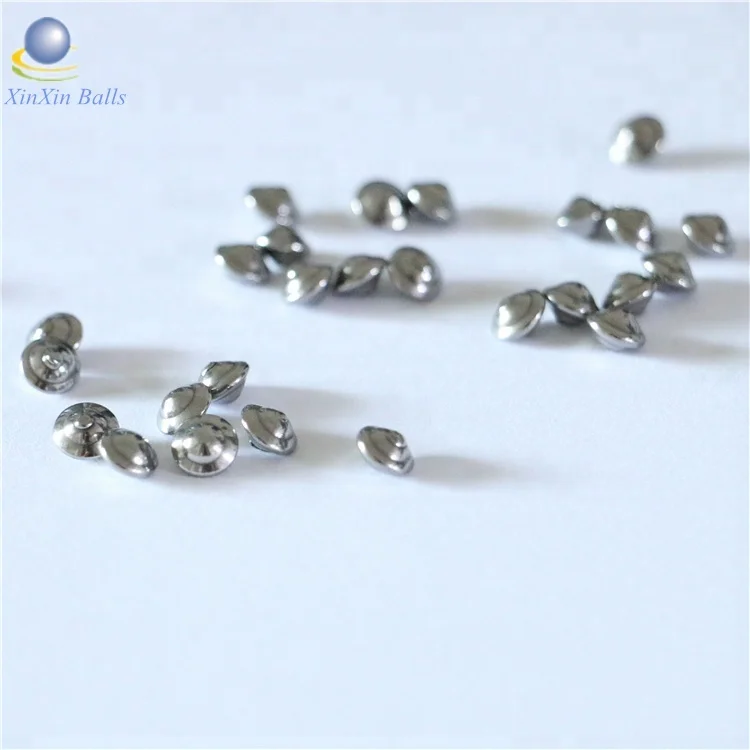

We mainly produce stainless steel ball (201, 304, 316, 420,420C,440C,430). also produce chrome steel ball (AISI52100,100CR6,GCR15),carbon steel ball(1015,1010,1045,1085), copper brass balls, plastic ball,glass ball,Tungsten carbide ball, flying saucer ball, polishing media ball,ceramic ball,Aluminum ball and other kinds of material ball.


We have advanced production equipment and consummative instruments. We use perfect equipment to detect the roundness, libration size and the quality of the surface of steel balls.
Welcome to visit our factory and looking forwarder to cooperate with you !

Certifications

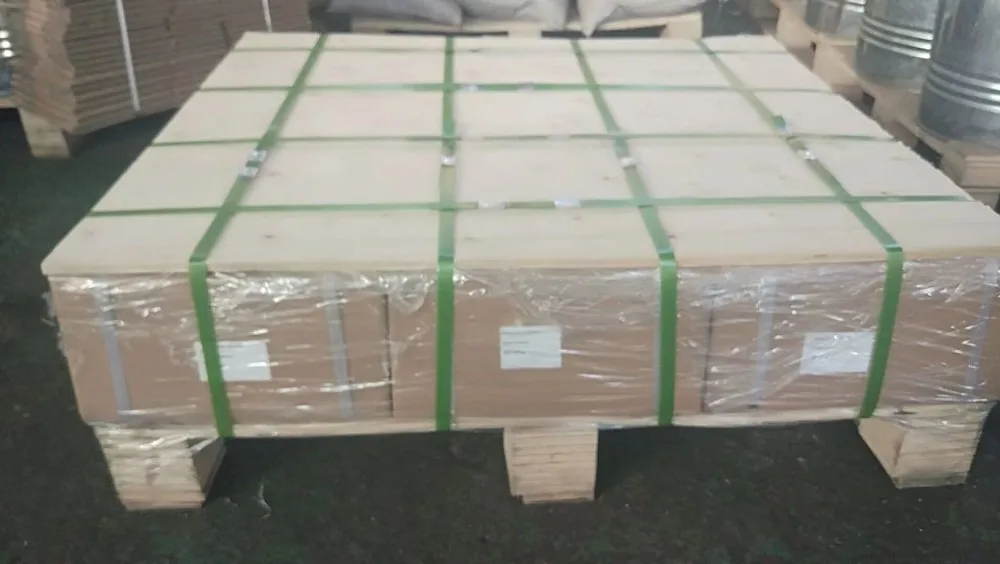

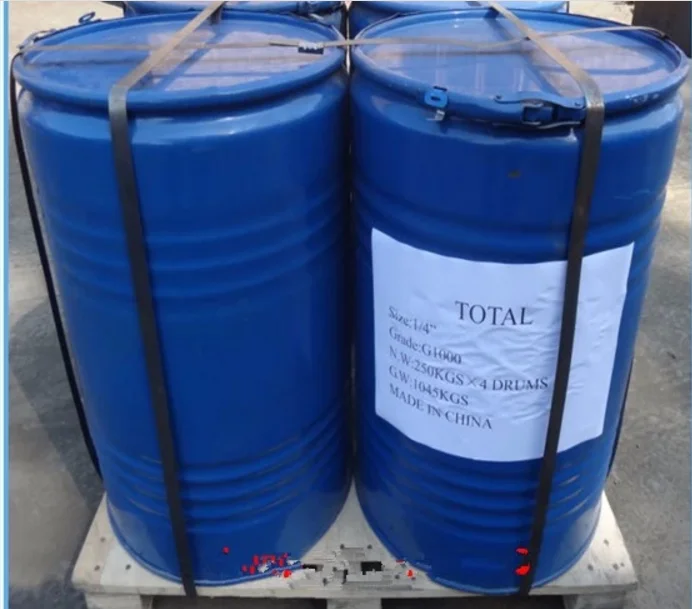

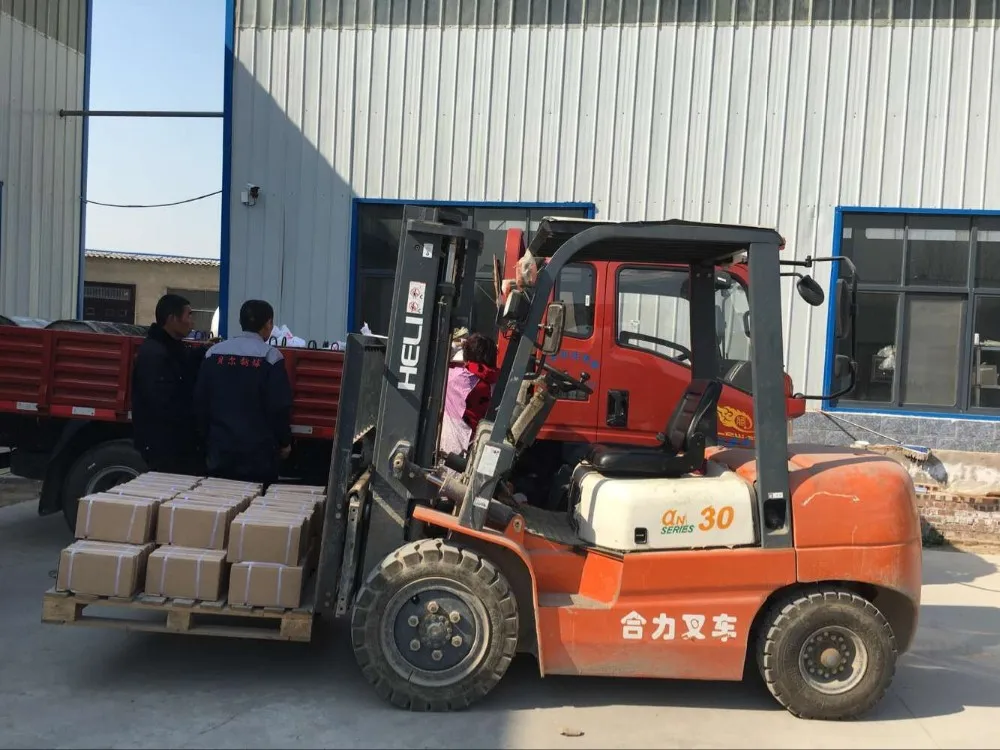

Packing & Delivery

Port:Qingdao seaport Shanghai seaport or Ningbo seaport

Lead Time :3-25 working days

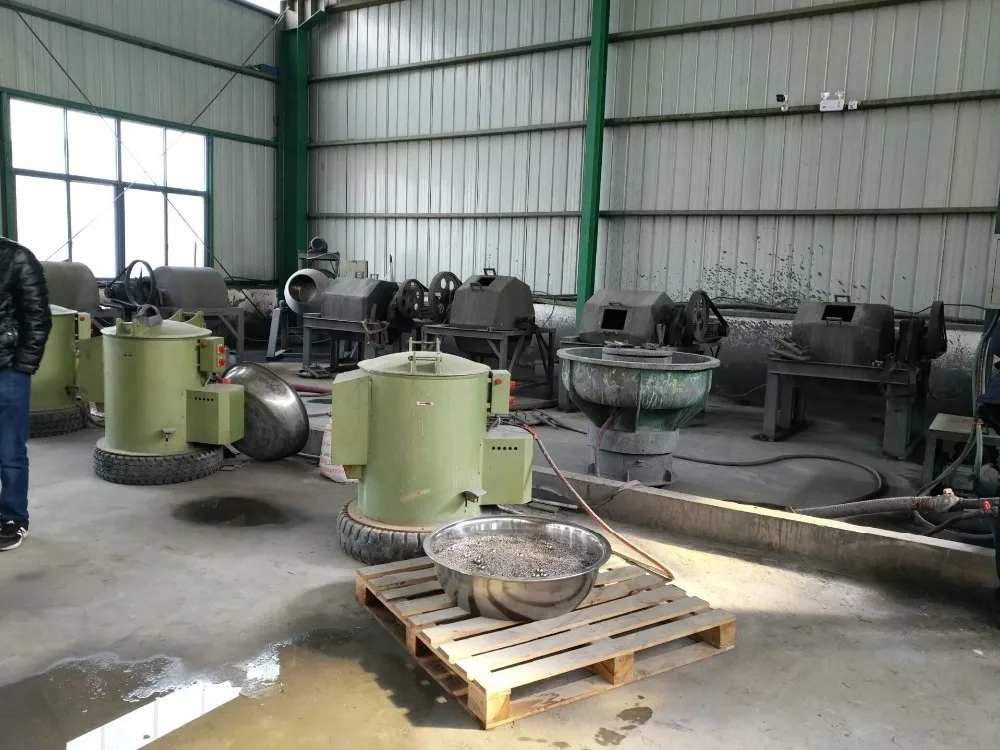

Producting line

Cold heading

 In the first step, heading machines cut wire into short lengths and form it into spherical shapes between dies.

Grinding

Slow, meticulous grinding assures proper sizing and sphericity, with tolerances as closeas ±0.0001

Heat treatment

Carbon steel balls are next carburized and hardened. Heat treatment imparts the desired hardness and case depth.

Polishing ,cleaning

Several proprietary lapping processes can bring balls to the requirements of ISO 3290 Grade10 - 48.

Related Products

Satellite ball

Plastic ball

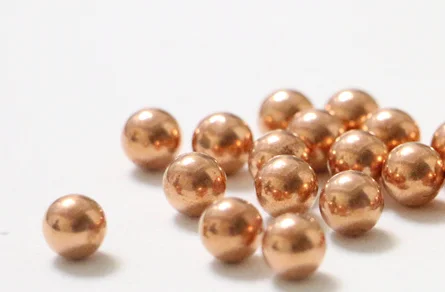

Copper/Brass ball
