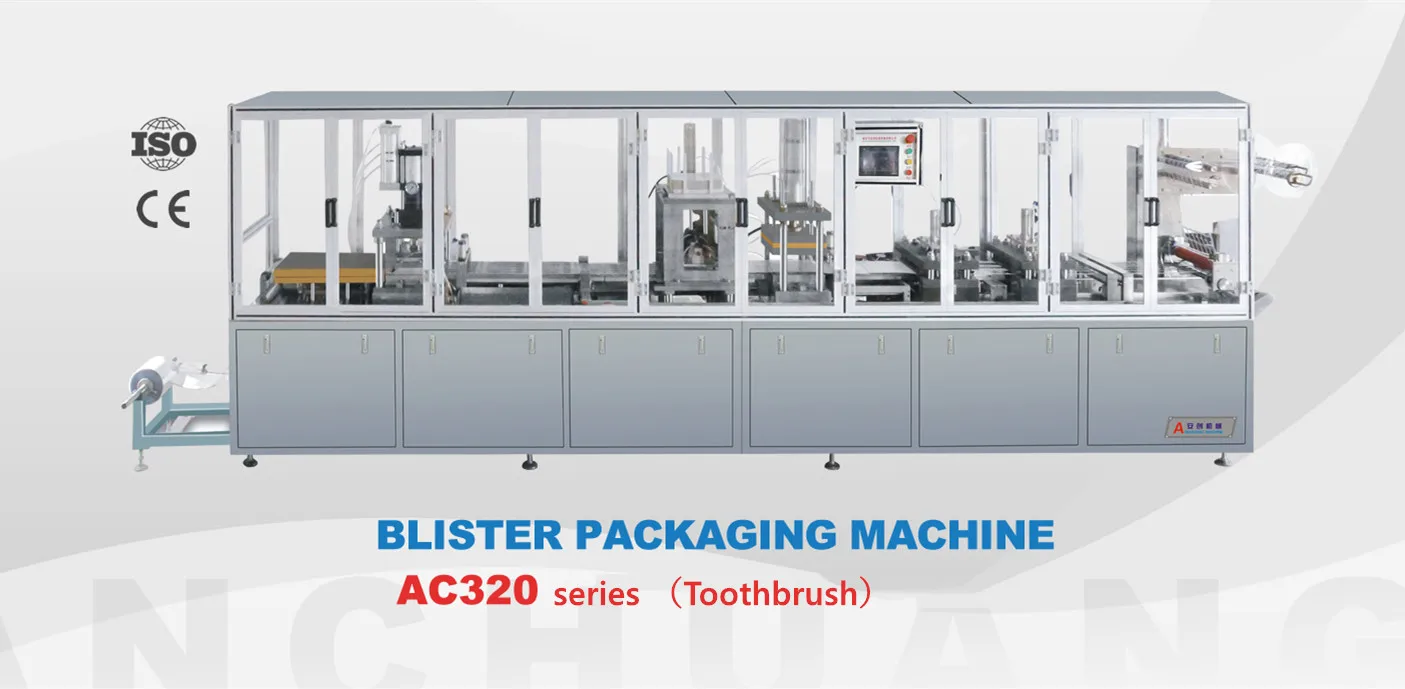

AC-320B High Speed Automatic Blister Paper Card Packing Machine for Toothbrush
AC-320B is suitable for full sealing blister paper packaging
Such like comoodity--toothbrush, stationery--pencil,eraser,solid glue, cosmetic--lip blam, oil, kitchen supplie--gas lighter and so on.
Product Paramenters
Production speed | 8-13 cycles/min |
Stroke range | 30mm-260mm |
Max forming area | 300mm*250mm |
Max forming depth | 40mm |
Forming heating power | 3kw(*2) |
Heat sealing power | 3.5kw |
Total power | 13kw |
Worker | 2 person |
Air consumption | ≥0.5m³/min |
Air Pressure | 0.5-0.8mpa |
Packing material（PVC）(PET) | thickness 0.15mm-0.5mm |
Max paper dimension | 320mm*255mm*0.5mm |
Total Weight | 3300kg |
Machine dimension(L*W*H) | 6200mm*800mm*1880mm |
Total Weight | 3300kg |
Machine dimension(L*W*H) | 6200mm*800mm*1880mm |
Production Process &Detial

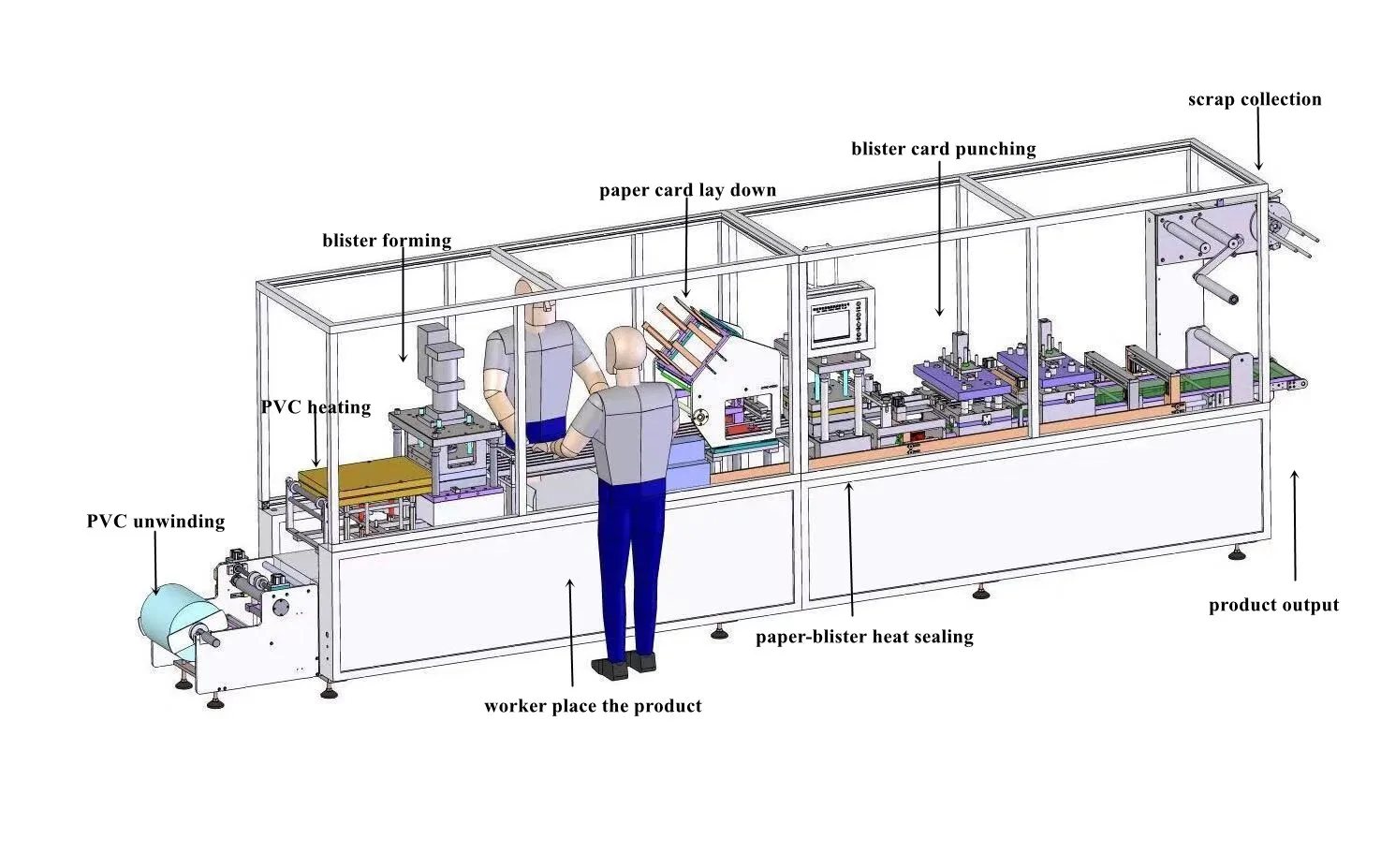

The production process is PVC heating---Blister card forming---manual place product---paper card lay down ---blister and paper card sealing----blister paper card cutting--------product output
Optional: Euro-hole device, labeling machine

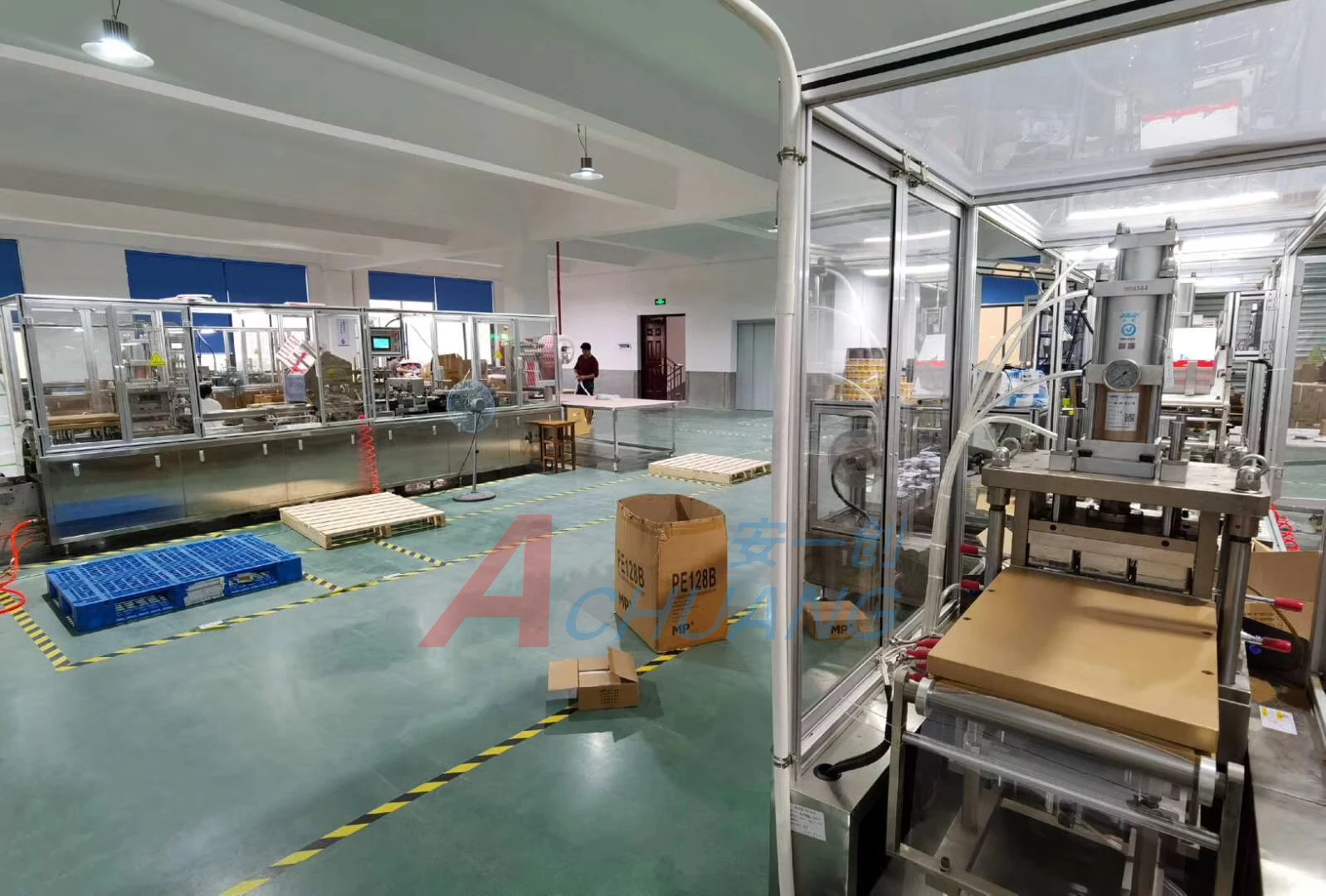

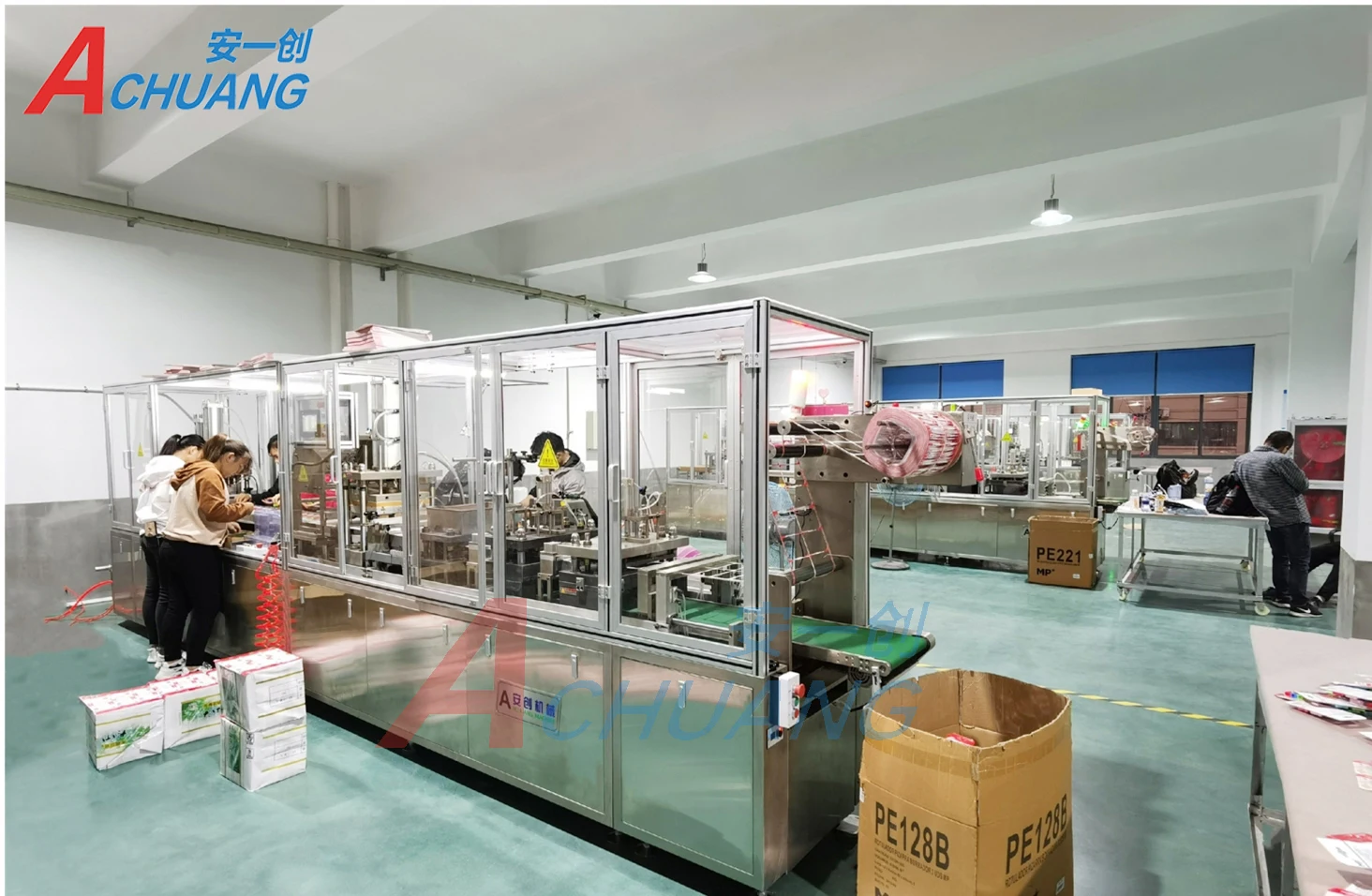

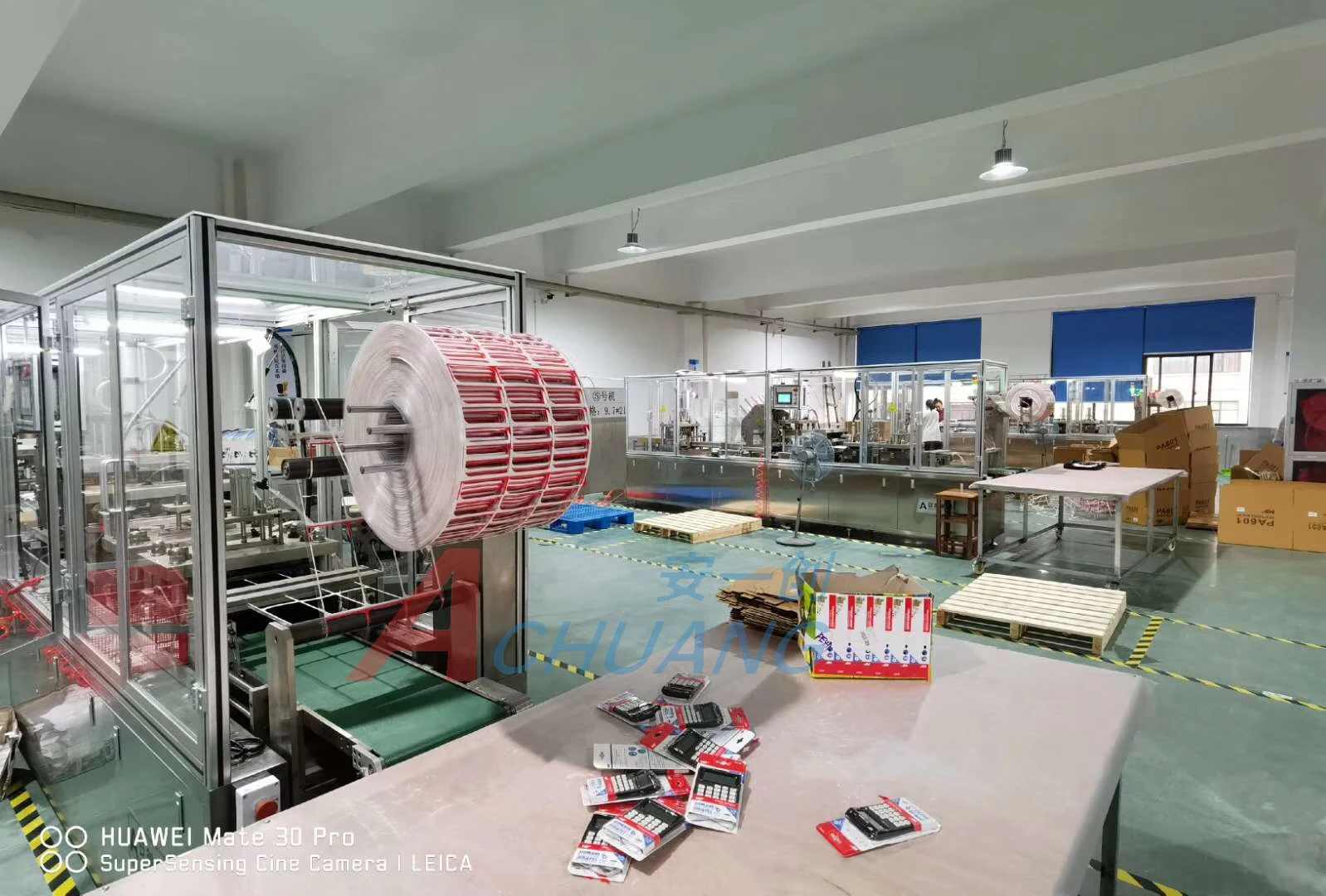

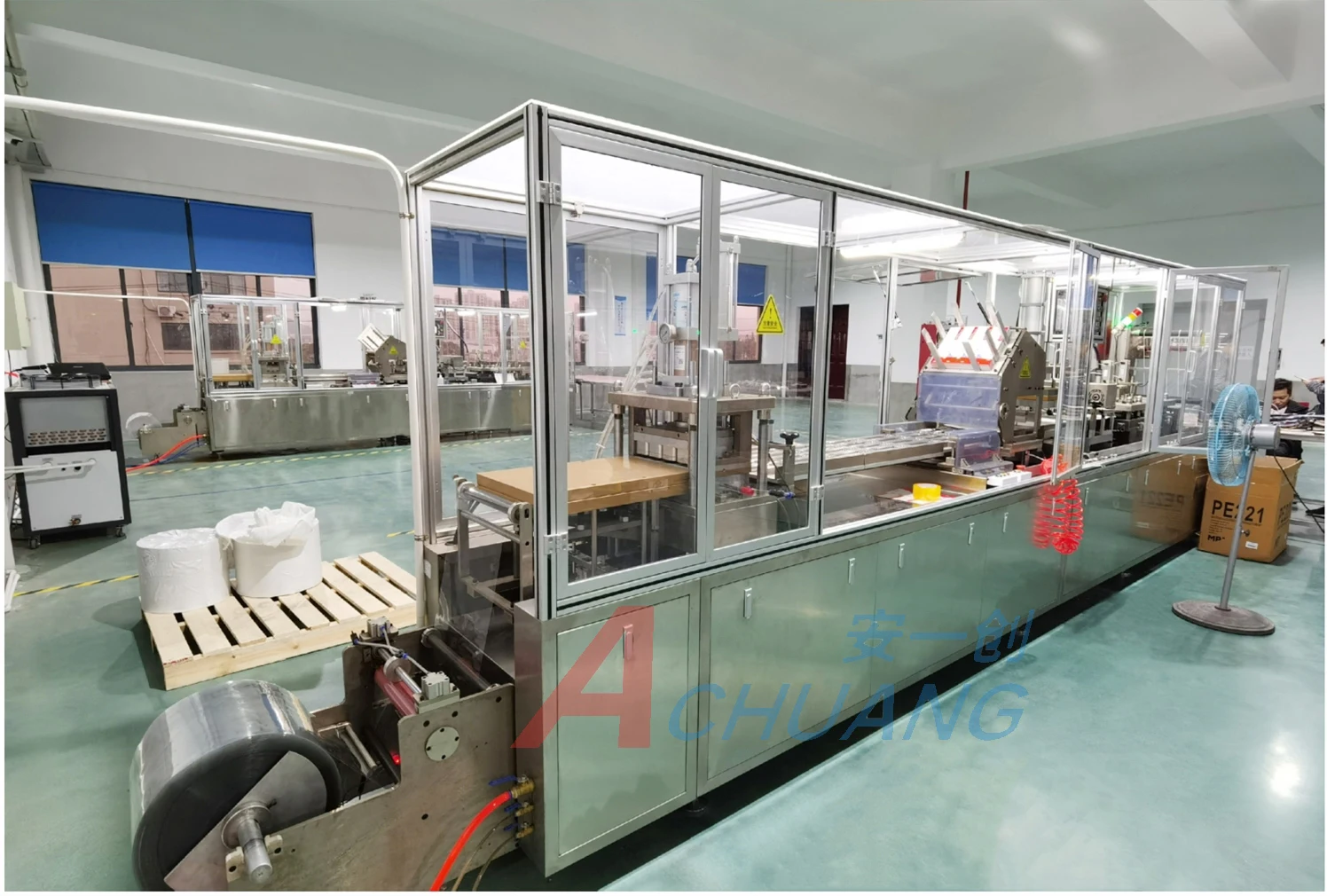

AC-350 Machine Real shot as below:
-stainless body -protection cover - 1 fully machine line from blister forming to paper blister card sealing.
