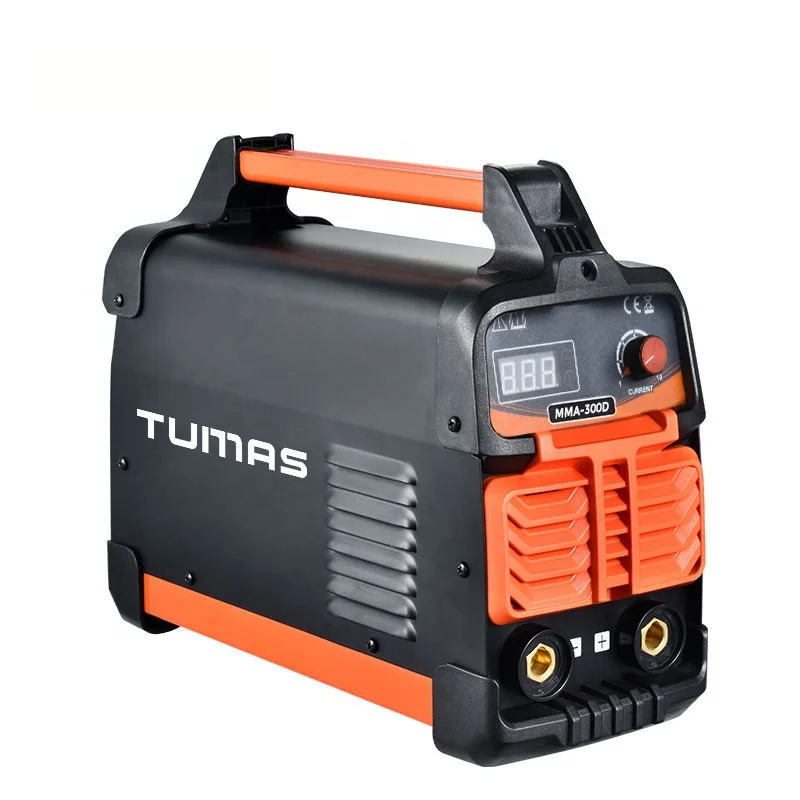

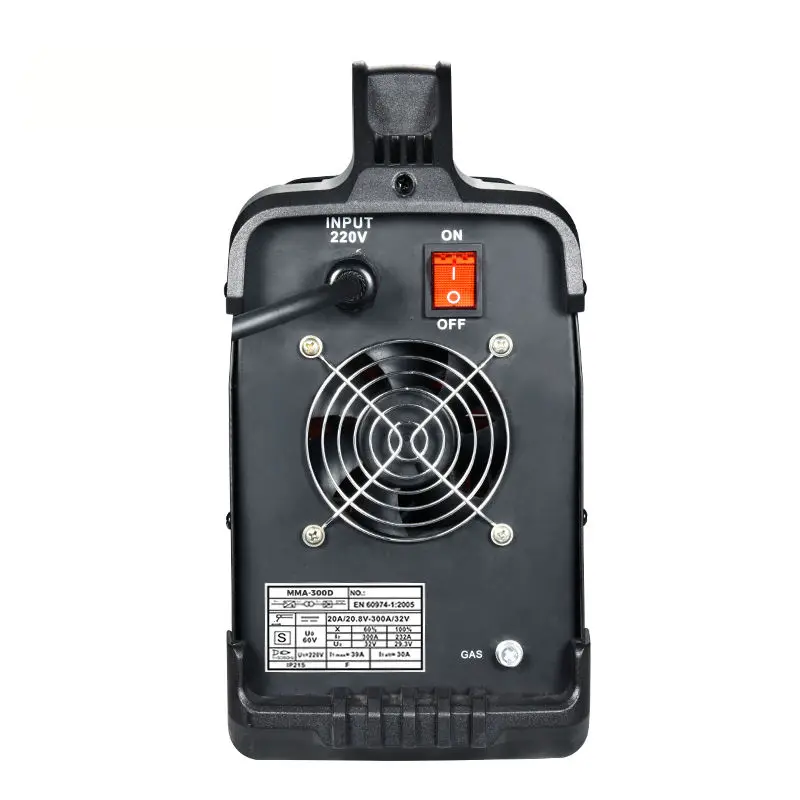

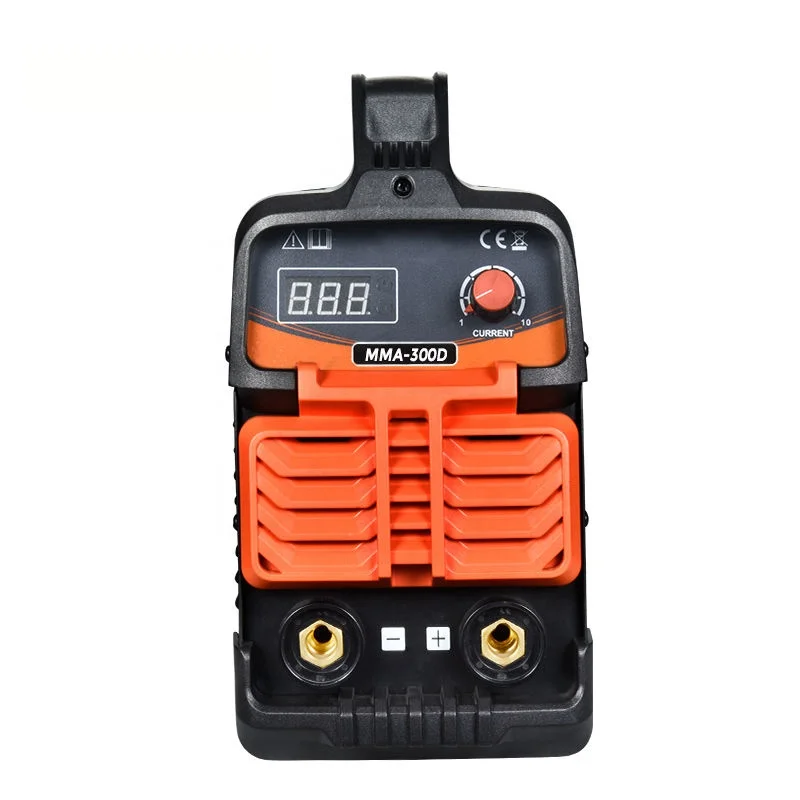

waterproof welding machine

Product Overview

Description



Model	MMA-200D	MMA-250D	MMA-300D
Type	IGBT 1 PCB	IGBT 1 PCB	IGBT 1 PCB
Rated Input Voltage(V)	220V(110V Support)	220V(110V Support)	220V(110V Support)
Rated Input Frequency(Hz)	50/60	50/60	50/60
Rated Input Power(KVA)	5	5.7	6.6
Non-load Voltage(V)	60	60	60
Output current range(A)	20-200	20-250	20-300
Rated Duty Cycle(%)	60%	60%	60%
Efficiency(%)	85%	85%	85%
Class of Insulation	F	F	F
Shell protection grade	IP21	IP21	IP21
Suggested Electrode Max.(mm)	1.6-3.2	1.6-3.2	1.6-4.0
Connector Size	35-50mm	35-50mm	35-50mm
Input power cable	1.8m	1.8m	1.8m
N.W./G.W.(kg)	4.3/6.1	4.5/6.3	4.7/6.5
Machine Size(LxWxH mm)	380*155*260	380*155*260	380*155*260
Package Dimension(LxWxH mm)	470*210*335	470*210*335	470*210*335
Package	color box+foam	color box+foam	color box+foam
Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual
