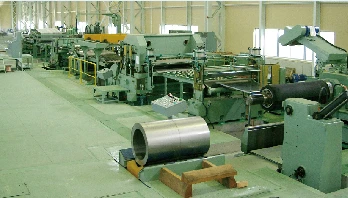

Sheet Metal Cut To Length Machine With High Accuracy 2.5*1250

Product Overview

Description

Sheet Metal Cut To Length Machine With High Accuracy 2.5*1250

1. Main technical parameter:

1.1 Technical parameter:

1.1.1 Application material: Cool rolled steel

1.1.2Tensile strength: σb≤450Mpa;

1.1.3Yield strength:  σs≤245Mpa;

1.1.4Material thickness: 0.5-2.5mm(Max.)

1.1.5Material width: 700-1250mm(Max.);

1.1.6Rolled coil inner dia.: 508mm;

1.1.7: Rolled coil outer dia.: 800-1500mm(Max.)

1.1.8: Weight of rolled coil: 10 T(Max.)

1.2 Finished products parameter:

1.2.1 Specified length :500-3000

1.2.2Tolerance of diagonal line: ±1.5mm(L≤2000mm)

1.2.3 Tolerance: L=±1.0mm(L≤2000mm)

Other technical parameter:

Power supply: 380V/50Hz/3Ph

Linear speed: 80

Power capacity: approx.: 80KW

Stacking height;350 mm

Stacking weight:5T

Compressed air: pressure P= 0.8mpa

Cover area for production line: approx.: 28m*8.5m

Unit direction and line elevation:

(1) Direction of the unit is from right to left (facing the operation platform);

(2) Operating height line: +800mm.

2. Production line’s equipment configuration and function description:

Transverse liner: coil→ feeding → unwinding → feeding → pre-levelingl machine → looping → correction →precise leveling machine → measurement → shearing machine → stacking.

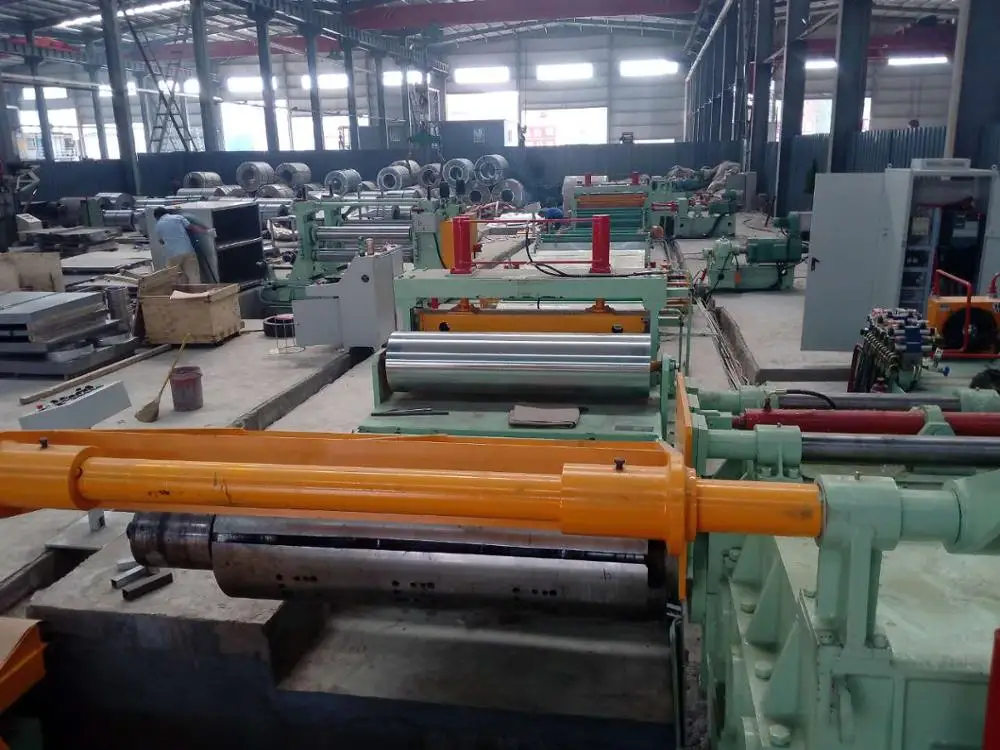

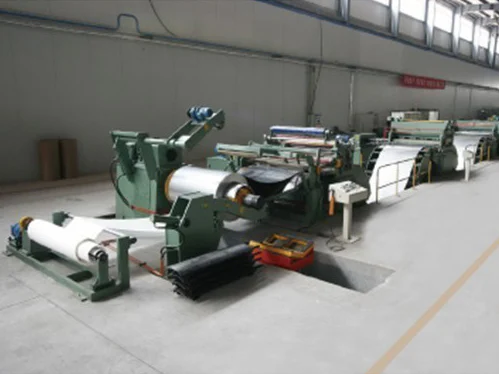

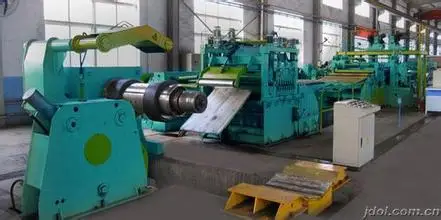

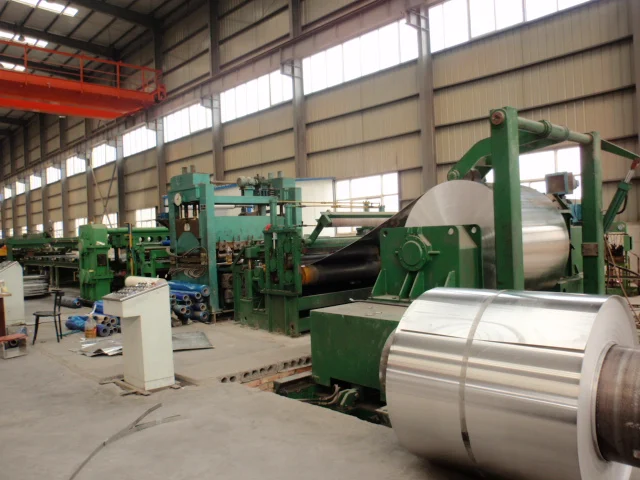

 Other Model of Sheet Transverse Shear Line or Cut to Lenght Machine



Samples of Cutting steel sheets

 Worshop



Company Information



Packaging & Shipping



FAQ



Q: Can your machine be customized ?
A: Yes, we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A:Please kindly supply the following information as below:

1. What is the coil thickness (min-max)?

2. What is the coil width (min-max)?

3. What is your steel material?

4. Weight of your coils (max)

5. How many pieces need to slit for max thickness

6. How many tons you need per day or per month

Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.

Q: Payment terms, MOQ, warranty, FOB...
A: Payment terms: 30% down payment against order
Minimum order quantity: 1 set
Delivery time: 2-4 months after receipt of formal order
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time.
