Wholesale heavy duty crimped wire mesh,65Mn vibrating screen mesh

   Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Weaving style:
Plain weave Double crimped Intermediate crimped Flat top crimped

1.No tearing and abrasion     2.Placed above rubber beads to avoid metal to metal contact

3.Corrosion resistance           4. High temperature resistance

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:

The screen selected must achieve a compromise amongst these factors.

When ordering screens the following technical aspects should be taken into account :

Thickness of wire

Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

Open Area

This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Mesh

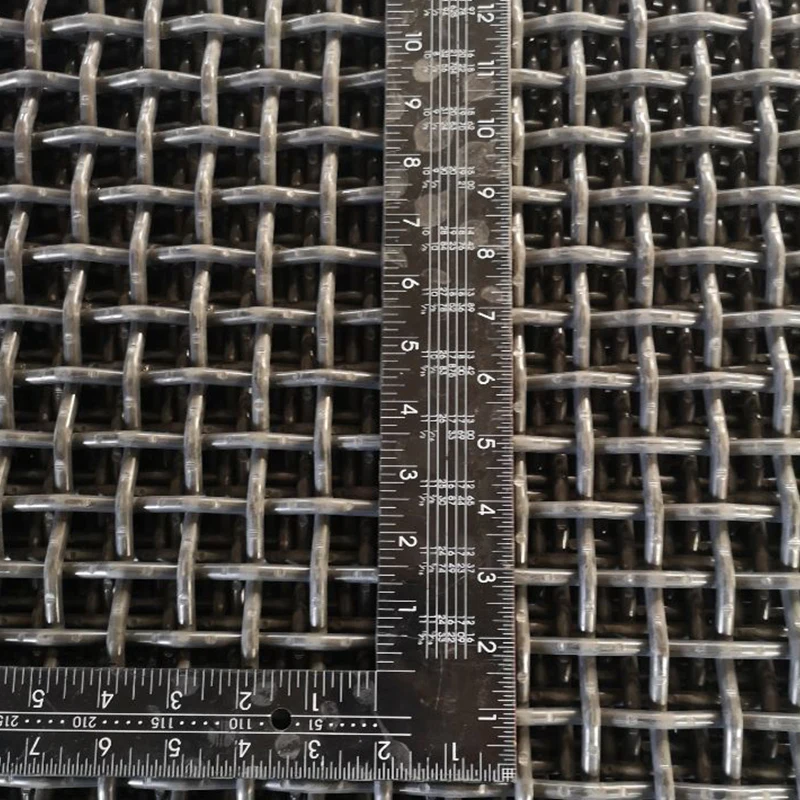

The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

Aperture or Opening Width

This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

Pre –Crimped Wire Screens
( Wire Crimped before weaving )
These are generally used for 10 mesh and coarser . Pre –crimped wire screens have very accurate opening and are tightly woven. The wires have very little movement, resulting in:
Pre-crimped wire screens are generally preferred when accurate sizing is important and for vibrating screens where tightness is important.
Hooks and Hooks Strips on Vibrating Screens

Stainless parameters

Carbon steel parameter:

  Our Customer Relationship Management (CRM) owns a professional team,that not only takes care of clients needs,but also can coordinate the operation between sales department and the factory . It has been proven that this provides more efficient services to our clients .


  Lianfa Company also have our own research and products development force, We put significant investment into equipment and technology upgrades every year.We will continue to focus on innovation and products research to create more value for our clients .

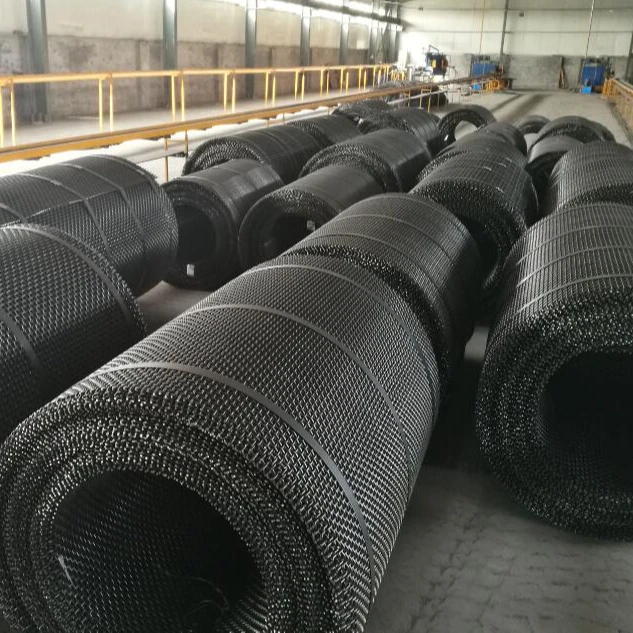

Each specification on one plywood pallet , iron pallet or rolls , surface treatment is processed with anti-rust paint or as your request .

Q: Are you Trading Company or Manufacturer?

A: Anping County Lianfa Hardware Wire Mesh Products Co;Ltd founded in 1997 year, more than 100 employees, Mining Screen Branch is a separate exporting factory which is professional at knurling, weaving and dealing surface. We introduced sets of machines with advanced technics from Canada and Germany and export the products to developed countries such as America, the UK, Canada, Australia, Japan, South Korea, etc.

Q:Could you Please send us the samples?

A: Yes, We can send the free samples, if the samples within 10kg.

Q:What is your terms fo payment?

A:If total amount≤3000USD. 100% T/T in Advance or western union .

If Amount>3000USD,30% deposit and the balance against the copy of B/L,after sending picture of products to you .

We can also accept the follow Terms of payment: L/C at sight,90L/C,DP,DA and other payment.
