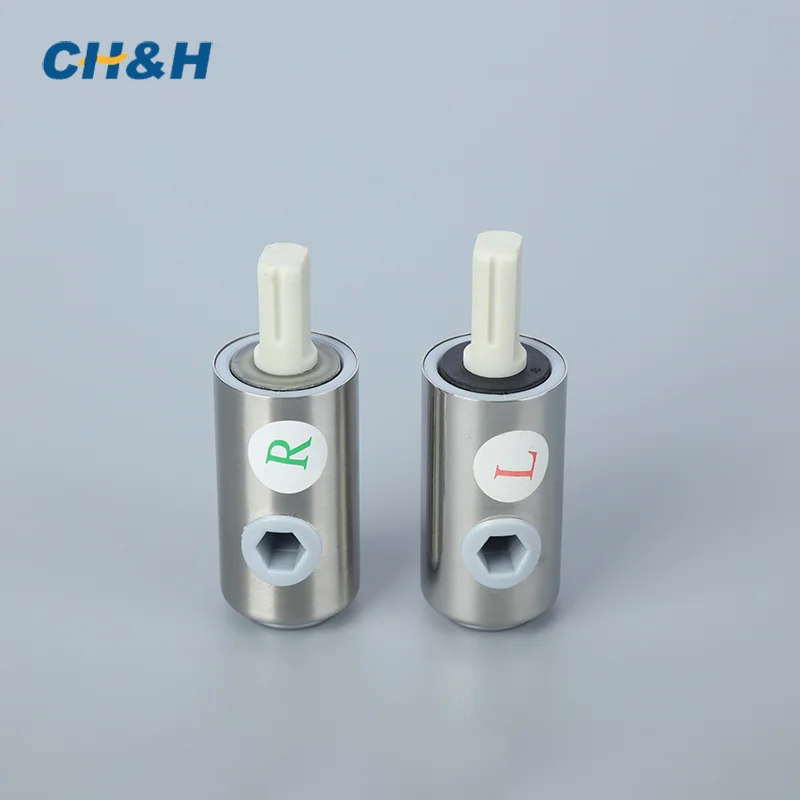

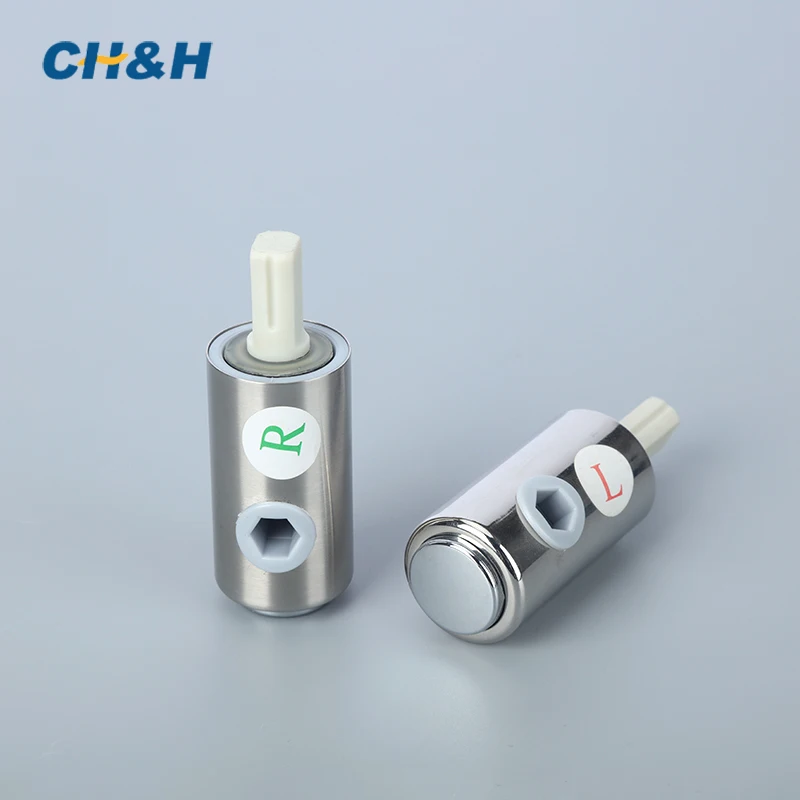

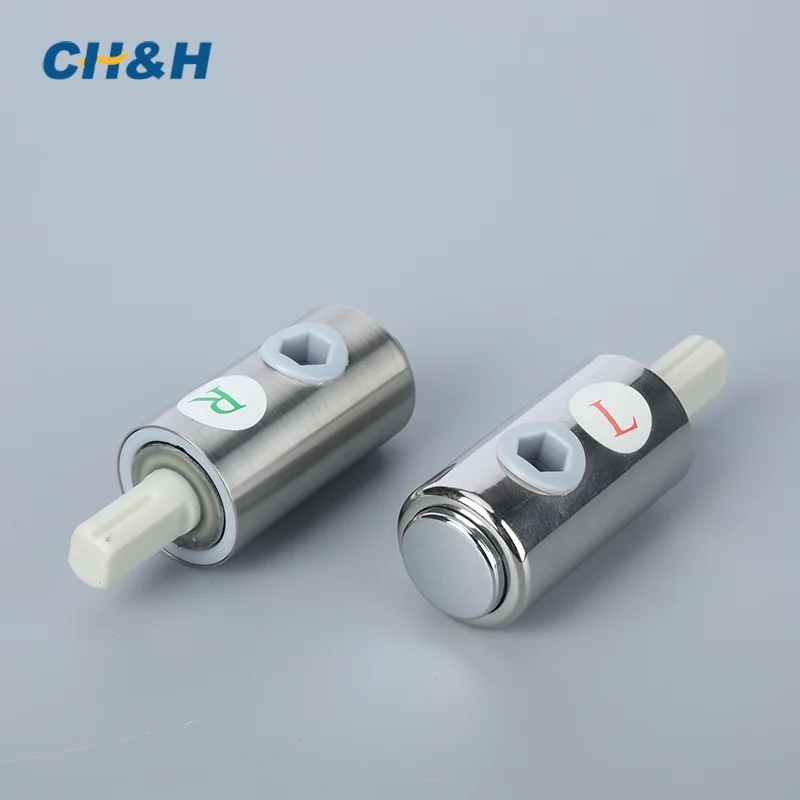

Long service life stainless steel soft close toilet seat hinges damper

Product Overview

Description

 Long service life stainless steel soft close toilet seat hinges damper

1.Damper Advabtage

Long service life, stable performance (Damper Property), no leakage, all products passed the test, quality qualified.

Experienced development teams design and develop new projects according tocustomer drawings.

Professional project engineers and after-sales personnel ensure the implementation of the project and the normal operation of the product.

(Damper Specifications)

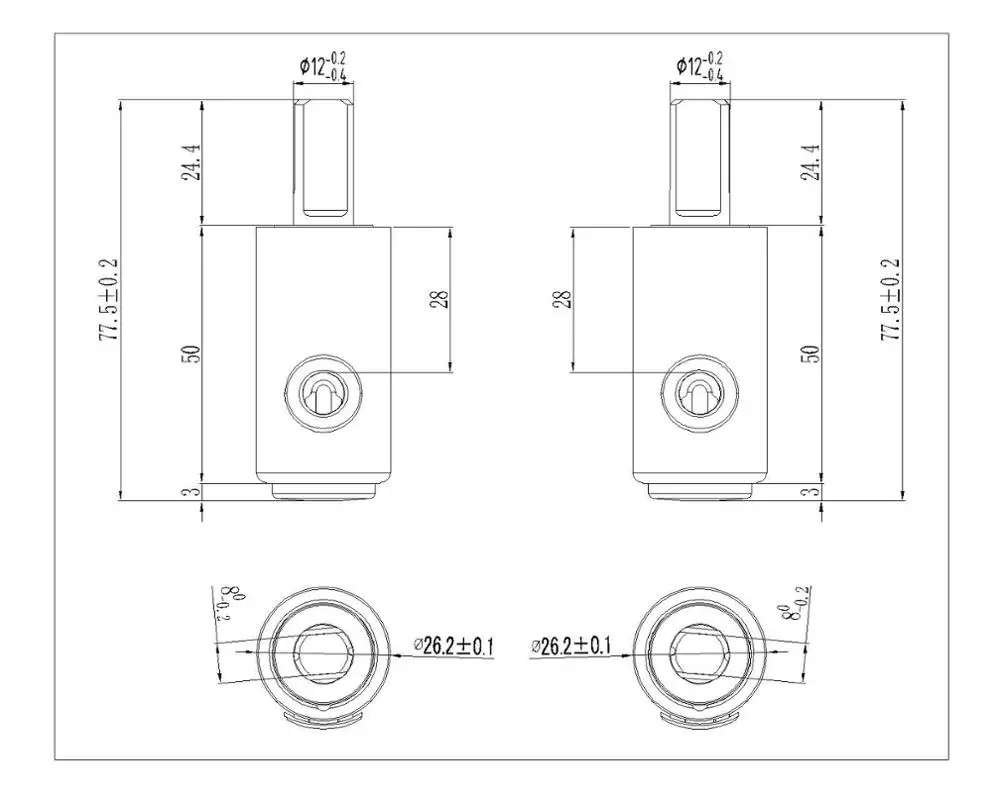

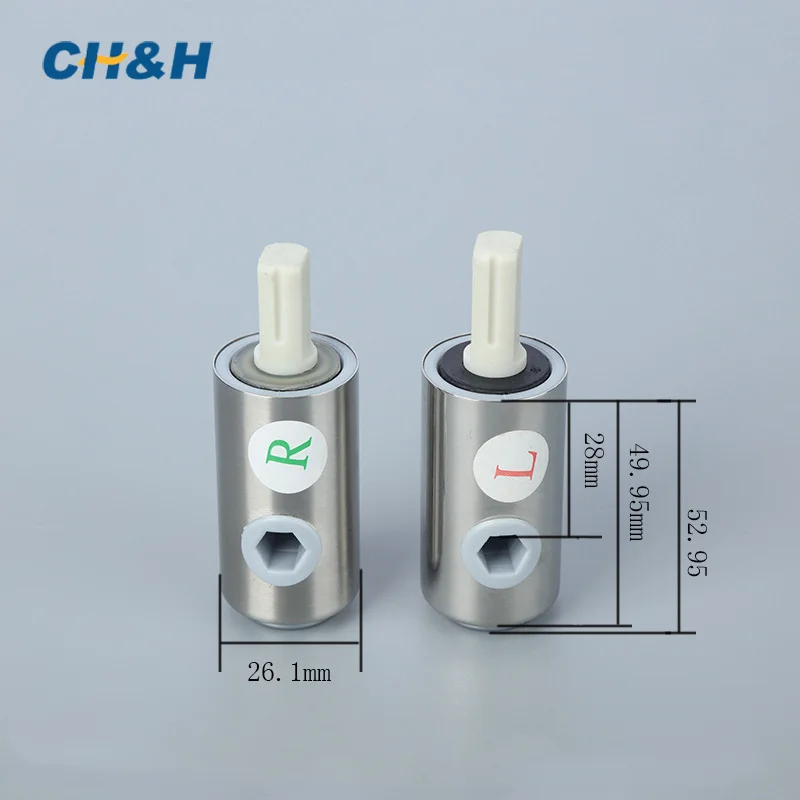

2.Damper Specifications

2.1 Electrical parameters of materials used



Hinges/Shells	Bottom	Seal ring	Damping oil	Action angle	Group value range	working temperature	Service life
Stainless steel	Nylon	NBR	silicone oil	110°	25-35 kgf.cm	-30-130 °C	50000 pcs

2.2technical requirement:

• Product parameters

Model	torque
ZX-23.26	25-35 kgf.cm

• Product Rotation Direction:

Clockwise Damping for Products, labeled as R.

Counterclockwise  Damping for Products, labeled as L.

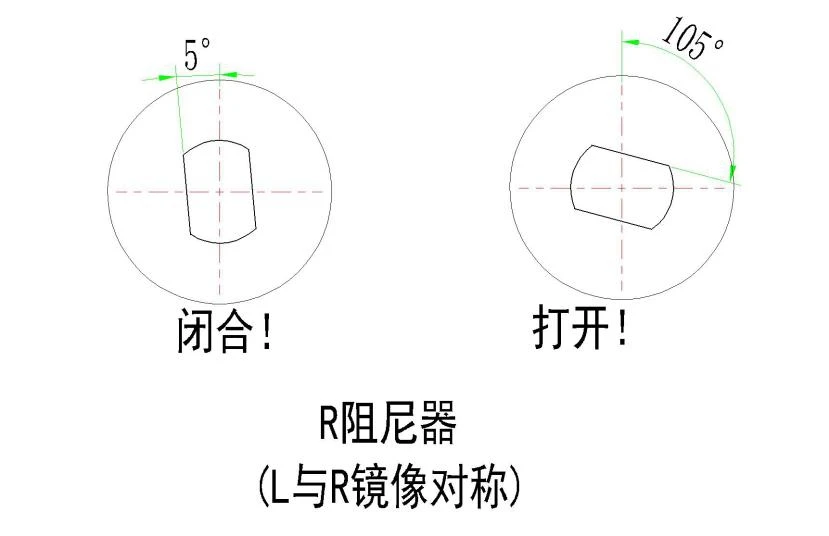

• Action angle:110degrees
• Rotary axis start position Rotary axis stop position
• Rotary axis (stop state)





• Specification Parameters:

project	parameter
Maximum use angle	120°
Service temperature	-30-130°C
Product Shell Material	Stainless Steel
Rotary shaft material	nylon
Use oil	silicone oil





• Speed characteristics:

Torque is proportional to speed. With the increase or decrease of speed, the static torque is different from the standard value at startup.

• Temperature characteristics: Torque change is proportional to ambient temperature

Note: When customers order directly, please note the required torque/resistance value of damper.
