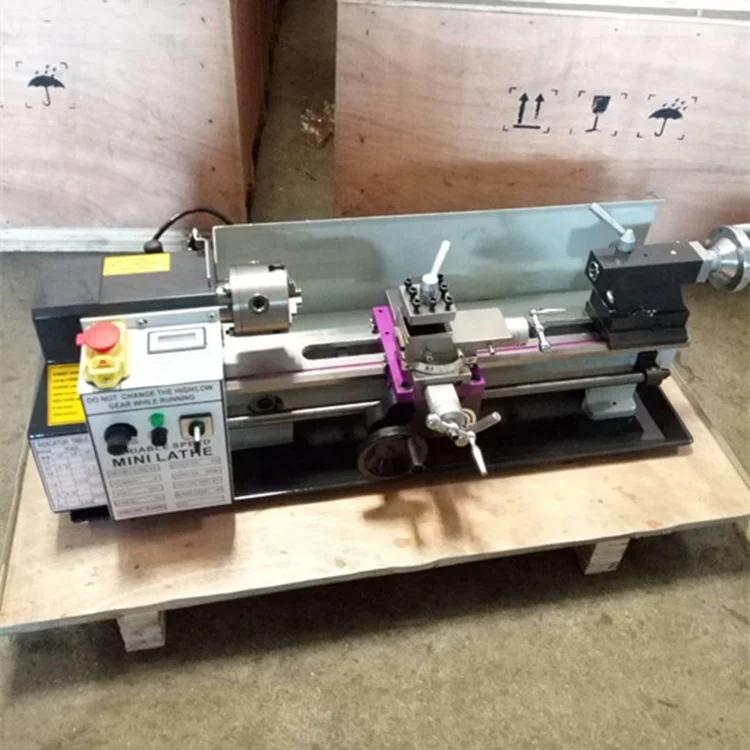

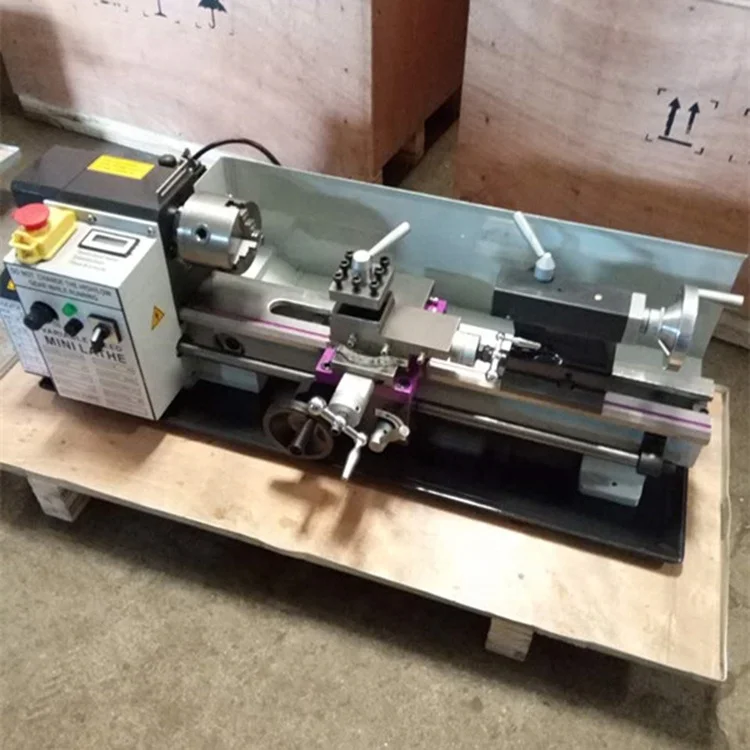

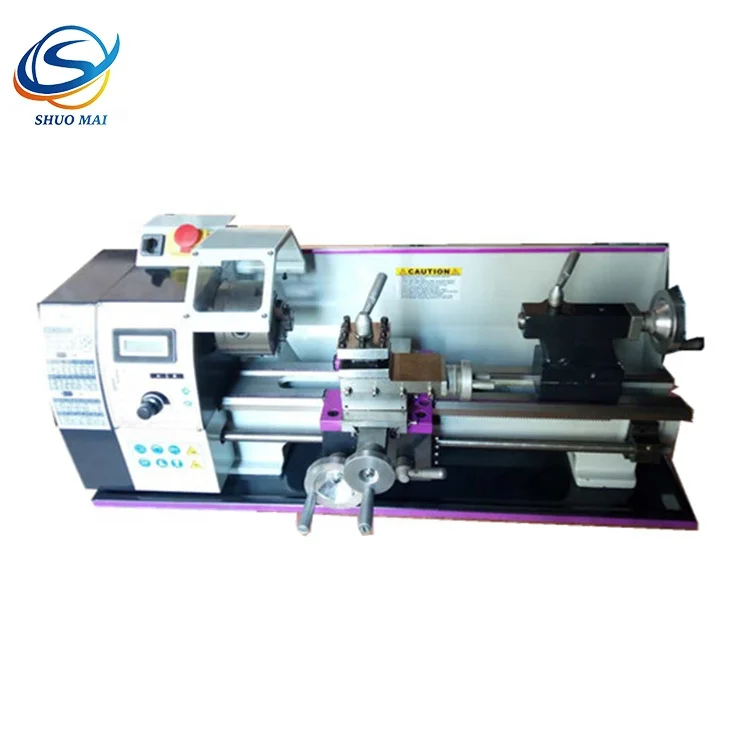

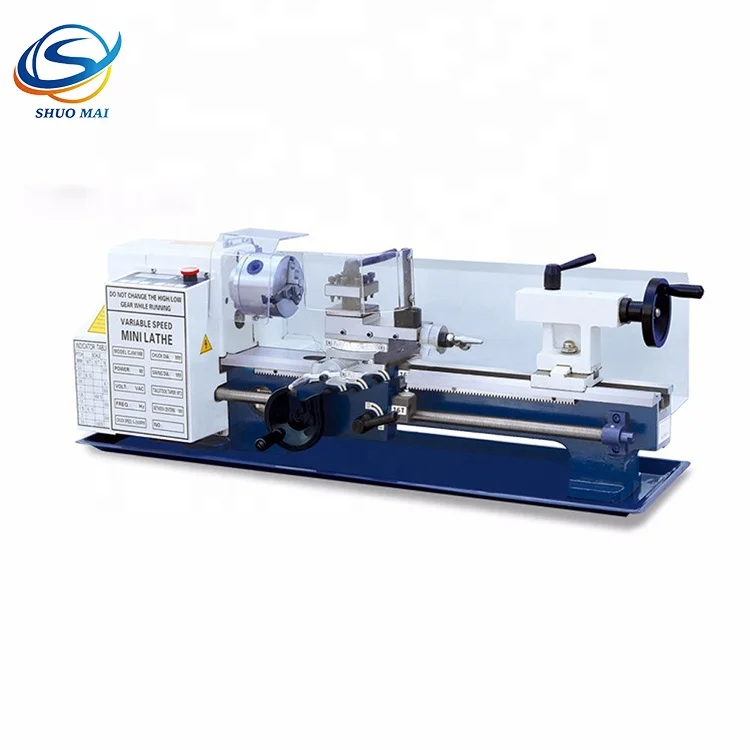

Cheap CJ0618 mini metal lathe machine price

Product Overview

Description

Product adwantage:

· Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.

· Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.

· By adjusting the speed switch can control the spindle speed 100 to 2500RPM.

· Machine is equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.

· Machine using four-way rotating turret, which can be four common turning.

· Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.

 Features

1. This machine DC motor drived.
2. The spindle speed readout is infinitely variable from 100 to 2500RPM.
3. Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
4. The feed can be adjusted according to the requirement of different workpieces.
5. This can be used as mini precision parts processing, sample processing, and modeling works.
6. Automatic feeding.
7. 550w strong power, 350mm processing distance, DIY processing of metal, wood.
8. With high precision, can turn out the standard qualified works.
9. Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
10. Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on.
11. Automatic tool, Infinitely variable, professional tool post.



Variable Speed Gear:	Plastic Nylon
Spindle Taper:	MT3
Tail Stock Taper:	MT2
Distance Between Centers:	14" (350mm)
Swing Over Bed:	7" (180mm)
Chuck Diameter:	3.93" (100mm)
Spindle Bore:	0.8" (21mm)
Cross Slide Travel:	2.56" (65mm)
Top Slide Travel:	1.38" (35mm)
Range of Metric Threads:	0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy:	0.0004" (0.01mm)
Spindle Speed:	100-2500 RPM Infinitely Variable
Power Of Motor:	0.75HP/550W/110v
Net Weight:	50kg
Product Dimensions:
Width:	8"(203.2mm)
Length:	30.5"(774.7mm)
Height:	10.5"(266.7mm)



Zaozhuang Shuomai Industrial and commercial Co., Ltd is a foreign-oriented enterprise engaged in the development, design, manufacture, sales and import and export of metal cutting machine tools. Metal cutting machine tools include two major categories, one is CNC lathe, CNC machine center, CNC drilling machine, CNC milling machine, the other is the ordinary machine tools, include lathe machine, radial drilling machine, vertical drilling machine, drilling milling machine, metal band saw, grinding machine, hydraulic machine, boring machine and so on, more than 100 kinds of specifications. Market coverage of the country and exported more than 30 countries and regions.
