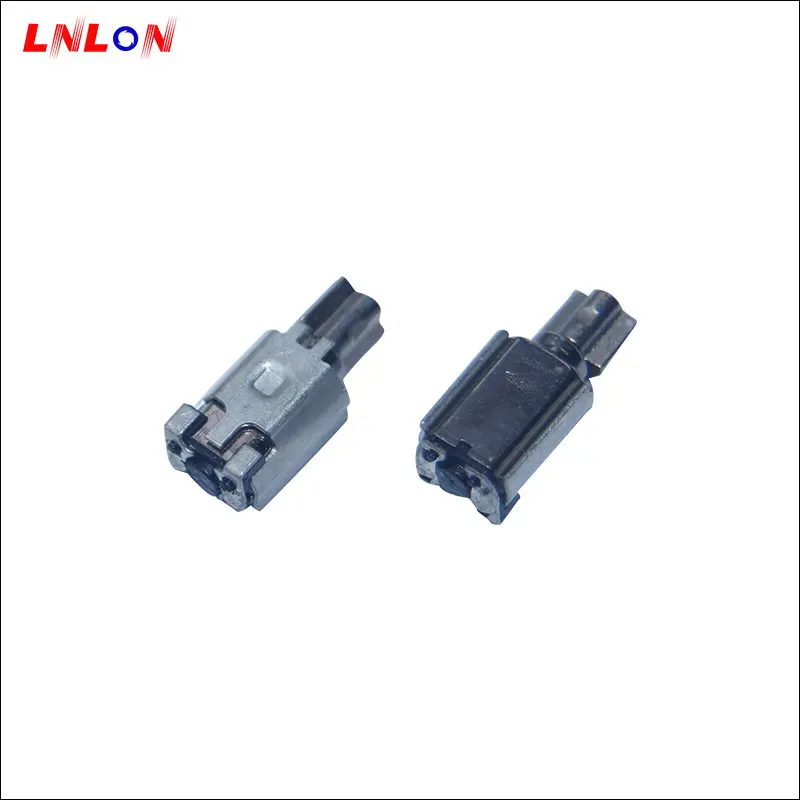

Небольшие Электродвигатели постоянного тока 2,7 в, миниатюрный вибромотор SMD для медицинского устройства
- Category: Vibration Motor >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (62088331476):
Product Overview
Description
Small 2.7v Dc Electric Motors , Mini SMD Vibration Motor For Medical Device
| model | S3070P-300070720-0002 |
| size | 11*4.4*3.4mm |
| rated voltage | 2.7V |
| starting voltage | 2.3V DC Max |
| operating voltage | 2.3~3.2V DC |
| rated speed | 14000±2500rpm |
| rated current | 85 mA Max |
| stall current | 90 mA Max |
| Vibration Strength | 0.4G @100g jig |
| response time | about 40mS |
| life | 2.7V, 2.5S on,2.5S off,300000 cycles |
| terminal resistance | 33Ω±6Ω |
| insulation resistance | 1MΩ Min |
| mechanical noise | <45db(A) Max |

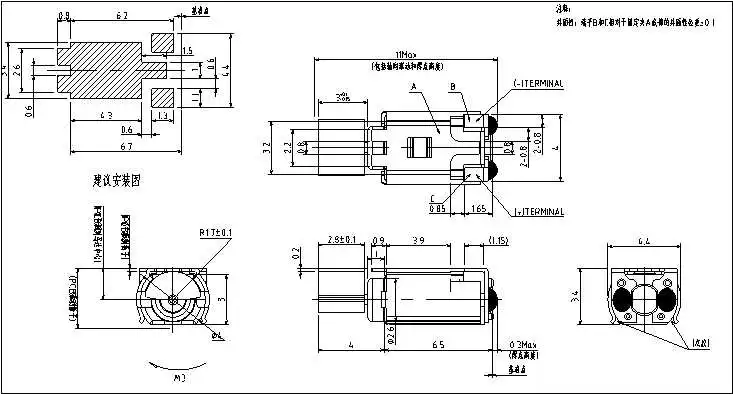

Outline Drawing:
Reliability condition:
1. 3V, 2.5S on,2.5S off,300000 cycles;
2. low temperature storage test: -40±2℃,96H;
3. high temperature storage test: 80±2℃,96H;
4. humidity exposure: temperature: 60±2℃,humidity:90~95%RH,exposure time:96H.
Why choose us?
1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.
2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.
3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.
4. Service: Professional service window for business, technology and quality.
Fore more mini SMD vibration motors, please contact us.
