Beacon Label 3M Sticker QR Code Available BLE Tag Bluetooth iBeacon E8
- Category: >>>
- Supplier: Shenzhen Thingoo Co. Ltd.
Share on (62088456354):
Product Overview
Description
-----E8 tag Beacon-----
Beacon Label 3M Sticker QR Code Available BLE Tag Bluetooth iBeacon E8
Specification
We design and manufacture the E8 beacon tag.We made it as the Accelerometer Sensor BLE beacon devices with size 36.5*23.7*5mm.
E8 is a low energy beacon,with UUID,Major,Minor programmable.You could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET+ ".And even regrammed of firmware upgrade On The Air.
We offer SDK/API download link for free,also cloud platform is available.
Each device has the unique serial number labeled on the case.
E8 is a low energy beacon,with UUID,Major,Minor programmable.You could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET+ ".And even regrammed of firmware upgrade On The Air.
We offer SDK/API download link for free,also cloud platform is available.
Each device has the unique serial number labeled on the case.
Print QR code/logo is acceptable.
The product has been CE and FCC certificated.
The product has been CE and FCC certificated.
Usually we have samples in stock,they will be shipped by DHL.Which will take 3-7 days for arrival.
What can the accelerometer sensor do?--Activity monitoring
The acceleration sensor data will be broadcast by x,y,z 3-axis.E8 Beacon tag can advertise sensor data ONLY when an object (E8 attached) is moving or after an object has fallen.Here you could activate a certain broadcasting frame if E8 attached object moves,you can use E8 beacon sensor for Asset tracking,Activity monitoring,etc.
Contact us to get more info about the trigger settings:Send me an inquiry or find me at Skype:sara.minew
Feature Sheet:
| Item/E8 Beacon Tag | Value | Remarks |
| Chipset | nRF52832 | |
| BLE | 5 | Low power consuption |
| System | ios7.0/ Android 4.3 above | |
| Protocal | iBeacon,eddystone | UUID Major, Minor,tx power;uid,url,broadcast interval |
| Battery | CR2032 | 1 year battery life |
| Transmission Range | 50m | |
| Size | 36.5*23.7*5mm | Ultra-thin,with key ring hole |
| Accessories | Adhesive | 3M |
| Antenna | 50 ohm | on PCB |
| How to turn on the device | Take off the battery sheet | |
| Status | In stock | |
| Certification | CE,FCC | |
| Usage | Asset Tracking,Activity monitoring.. | Exhibition,soccer field,parties,ect |

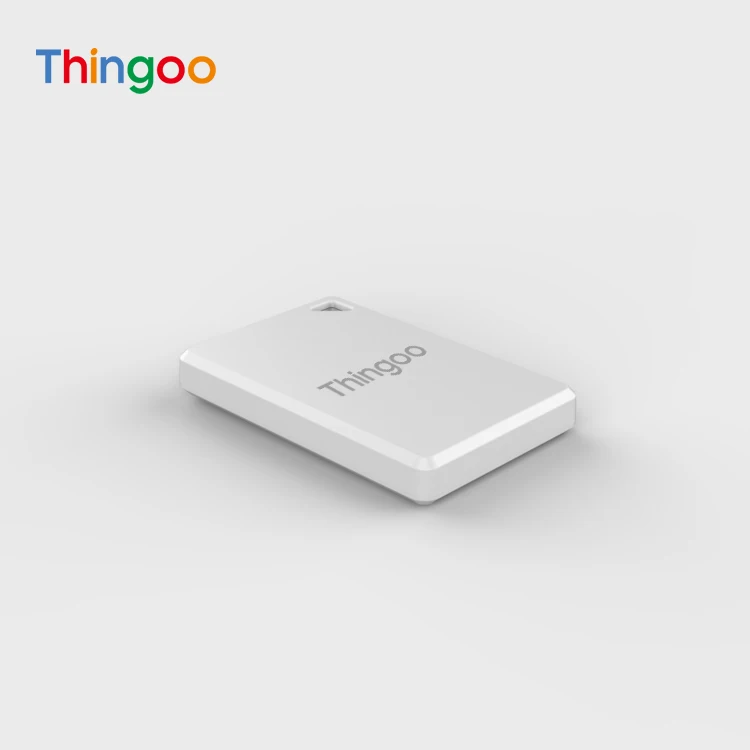

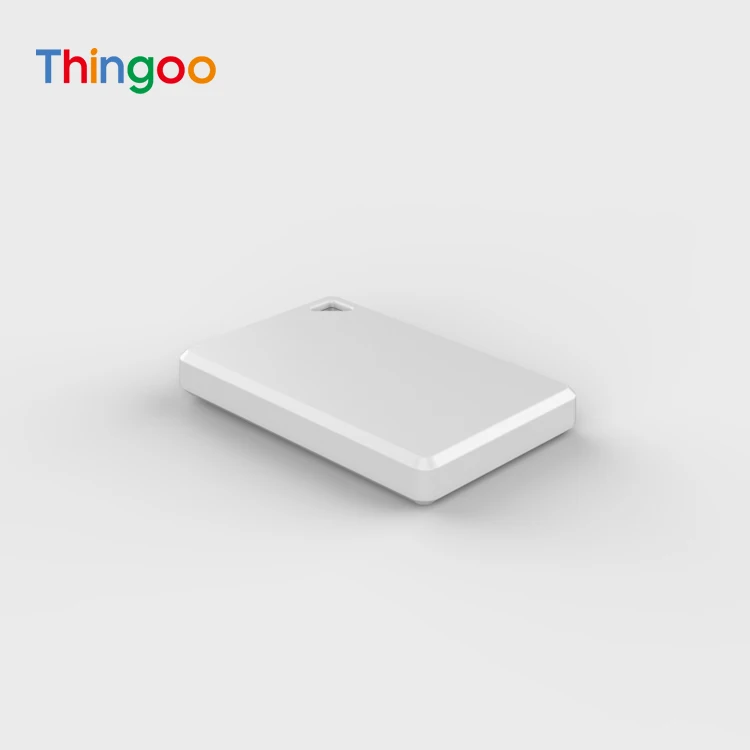

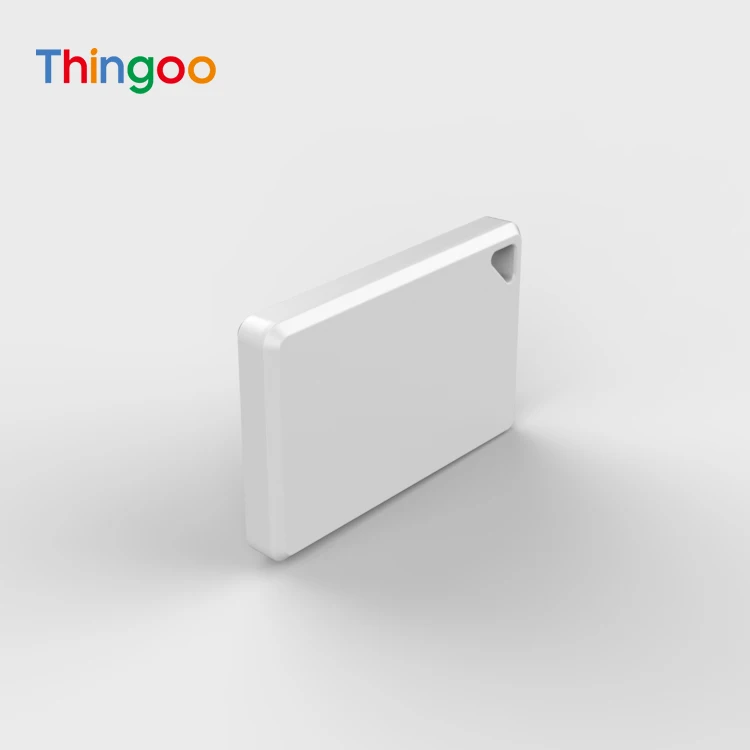

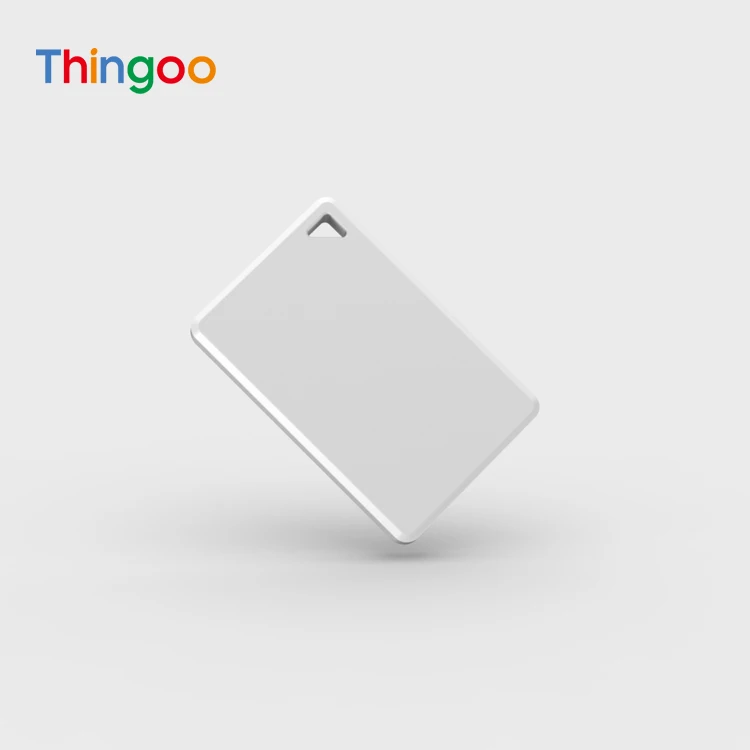

Product image
Application:BeaconSET+
Please download the app "BeaconSET+" from App Store or Google Play.
In order to get the specification and configuration guide of this Beacon,please send me inquiry or find me at sara.minew.
Use cases
As you know,beacon tags can do a lot of work such as indoor location,map guide,asset namagement,ect.We list some use cases for your reference.
| TRACKING | NAVIGATION | SERVICES |
| Item tracking | Indoor positioning | Contactless ticket and payment |
| Staff tracking | Robotic navigation | Check-in control |
| Customer tracking | Store mapping | Location based service |
| Moveable tools tracking | Parking space advisor | Location dependent content |
| Vehicles tracking | Seat locator | Loss protection |
| Movement patterns | Room navigation | Security alerts |
Certification
Packaging & Shipping
For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders: bulk orders usually take about 2 to 3 weeks after payment received.
| Details | Industrial Box | Master Carton |
| Quantities (i6) | 50 pcs/box | 500 pcs/box |
| Size | 30.5*11*7.5cm | 32*23.5*40cm |
| Gross Weight | 700g | 7kg |
Related products
C7-Card Beacon E7-Waterproof Beacon BLE&Wifi Gateway
Company information
Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application. Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time. By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier. This is achieved by connecting our products to users' smart devices and target objects in a WiFi covered space, with Bluetooth functions on. Thus people could position, find, track, receive messages, check status and control target objects. We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.
FAQ:
1.How to order samples?
-You can contact us by sending an inquiry on Alibaba.
-Contact us on Skype:sara.minew/whatsapp:+86 13632786653
-You can pay the samples via Paypal/Alibaba Trade Assurance/TT, samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
2.What service we will offer after sample order?
The following technical data and documents will be provided.
1.SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
3.How long will it take for producing volume orders?
-If we have pcb in stock,the lead time is 2-3 weeks
-If there is not enough pcb in stock,the lead time is 3-4 weeks.
4.Can you customize the logo/mac address on the interface of E8?
-Yes.
5.Can you make pre-configuration (pre-program the uuid,major,minor,etc)?
-Yes,we can make pre-configuration in our factory with free of charge.
