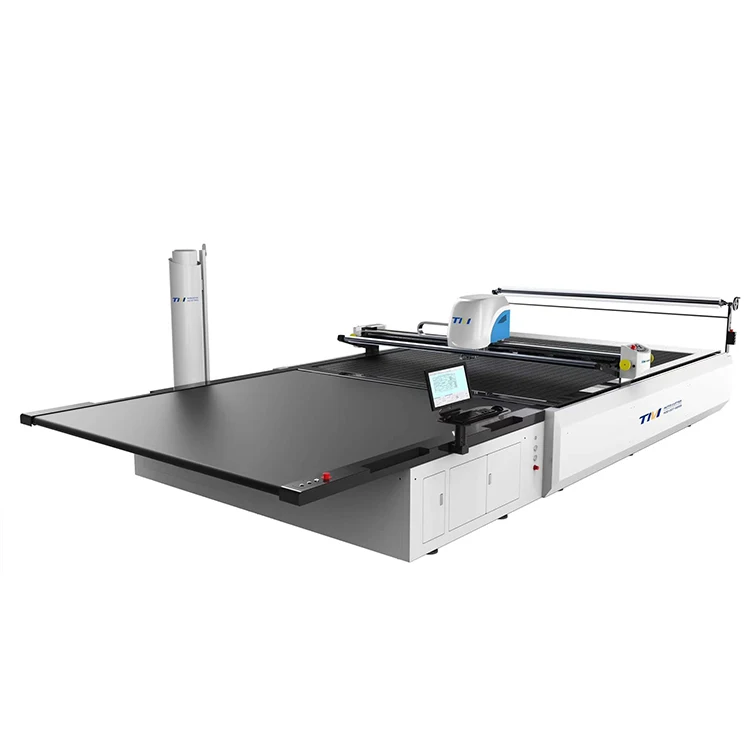

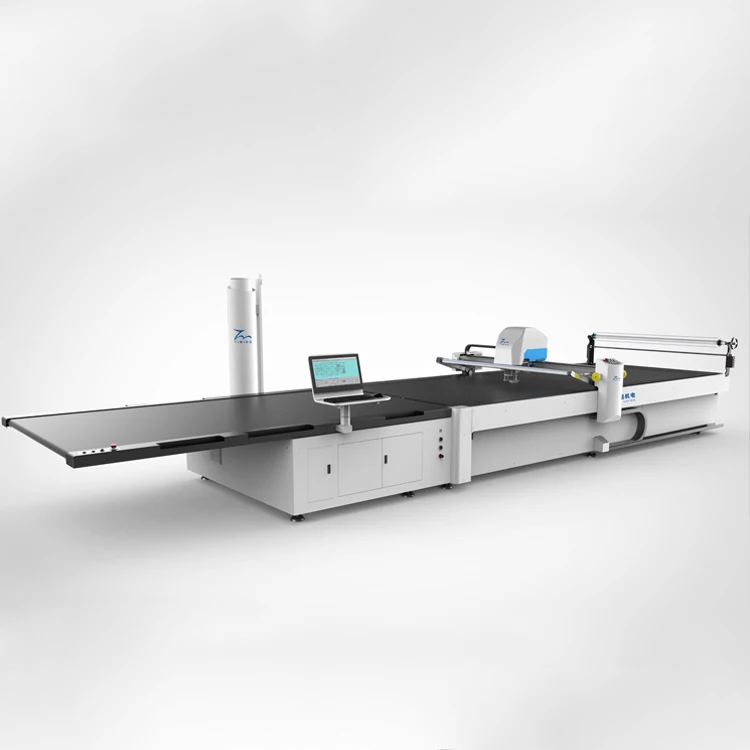

TMCC 2633 в винтажном китайском стиле; Оптовая продажа с фабрики большой станок с ЧПУ автоматическая Станина для резки с компьютерным управлением
TMCC-2633 в винтажном китайском стиле; Оптовая продажа с фабрики большой станок с ЧПУ автоматическая Станина для резки с компьютерным управлением
TMCC-2633 в винтажном китайском стиле; Оптовая продажа с фабрики большой станок с ЧПУ автоматическая Станина для резки с компьютерным управлением
TMCC-2633 в винтажном китайском стиле; Оптовая продажа с фабрики большой станок с ЧПУ автоматическая Станина для резки с компьютерным управлением

TMCC 2633 в винтажном китайском стиле; Оптовая продажа с фабрики большой станок с ЧПУ автоматическая Станина для резки с компьютерным управлением

Share on (62088482928):


Price:52 000,00 $ - 55 000,00 $

Quantity:


Product Overview

Description



Product Description


































































































Cutting Height



3cm / 5cm / 7cm / 9cm (after vac-sorb)



Cutting Window



length (no limitation)



width (no wider than the fabric width)



Working Width (Y)



1700mm/2000mm/2200mm/Customized



Table Width



1800mm /2100mm/2300mm/Customized



Nominal Working Length (X)



2500mm Standard / 3300 Lengthen optional



Electricity



Three phase 380V, 50~60Hz



Rated Power Consumption



18kw



Cutting way (method)



up and down repeatedly cutting



CAD&CAM Connect way



Ethernet communication / USB Flash memory



Max speed of blade working



4000rpm/min



Motor driver of CNC system



TECO TAIWAN / PANASCNIC JAPAN (Optional)



Motor drive of pneumatic system



SMC JAPAN



Deceleration system



Planetary Gear



4 sets servo motor  X,Y,Z,T



400W-2KW



Compressed Air



0.55Mpa 160L/min



Cutting Speed



max.60000mm/min



Acceleration



0.6~0.8g (N/ Kg)



Noise Level



< 75 dbA



Functional Temperature:



-10 ℃- 45℃



Humidity:



5- 95%, not condensing



Machine Dimension



Length/Width/Height(approx.) : 5.35m/ 2.45m/1.5m
Weight(approx.): 2100kg



Remark:Customization is available. The specification is subject to change without notice.



_08









Company Information







Packaging & Shipping







FAQ




1.  Are you trading company or manufacturer?


We are manufacturer, our factory is located in Wuhan city, Hubei province ,China





2.  How many years does your factory work on the cutter?


We have been working on motion control system since 2004, started auto cutter development and research in 2012





3.What languages are supported?


English/Vietnamese/Romanian and Chinese in menu


If other language in need, contact your sales window for details.





4.What about the warranty?


12 months from the date of installation.





5.Should I prepare a computer?


One computer (DELL/LENOVO optional) in pack, no need to pay extra.





6. How thick your machine can cut?


Up to 9cm after compressed by vacuum.


There are 3cm,5cm,7cm,9cm models available, choose the right model according to material graphic marker nesting/yield and factory plan.





7.Will you send engineer for installation and training at overseas factory? What’s the cost?


Yes, we will send engineer(s) for the cutter installation and training. NO labor cost, but round tickets and accommodations should be organized by the customer.
