Price:$68,000.00 - $70,000.00

Quantity:


Product Overview

Description


Product Description

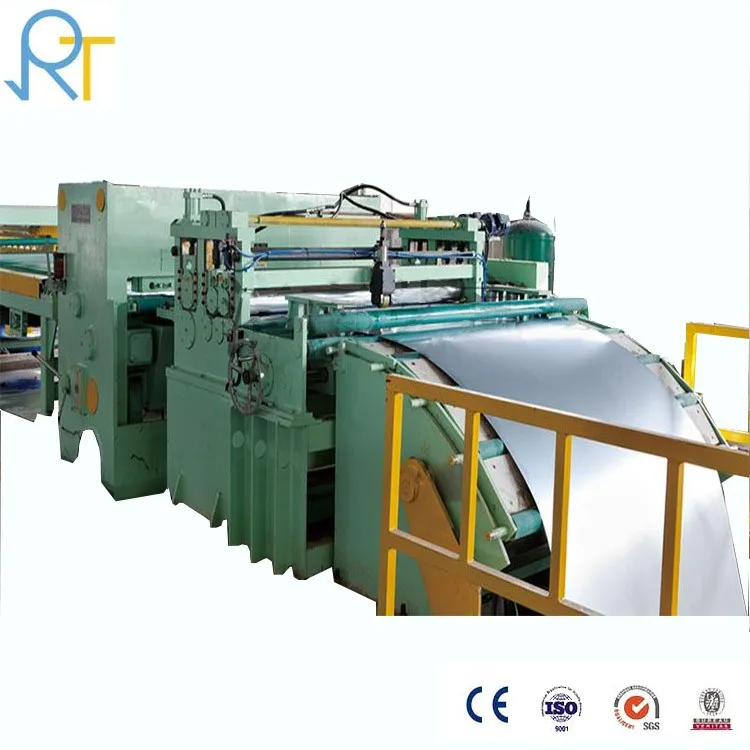

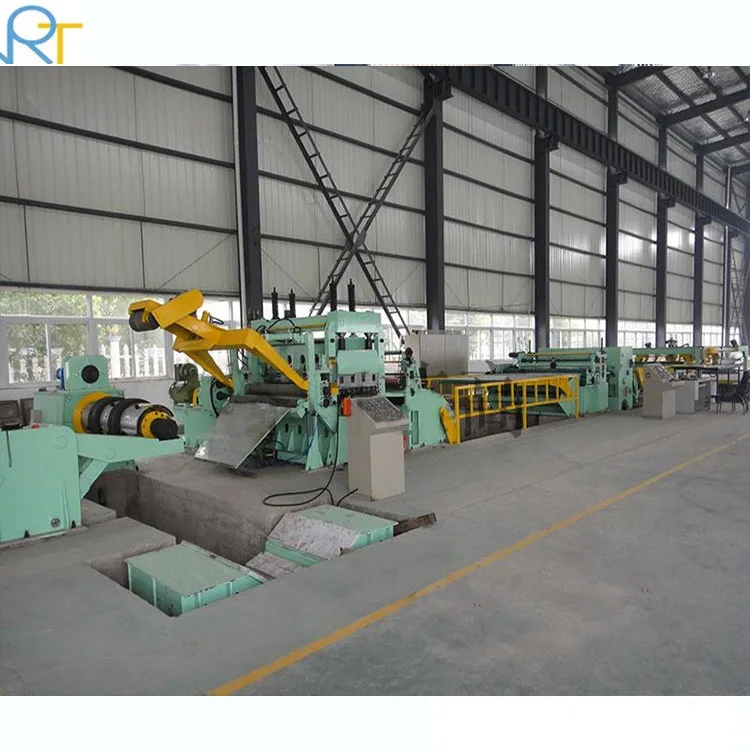

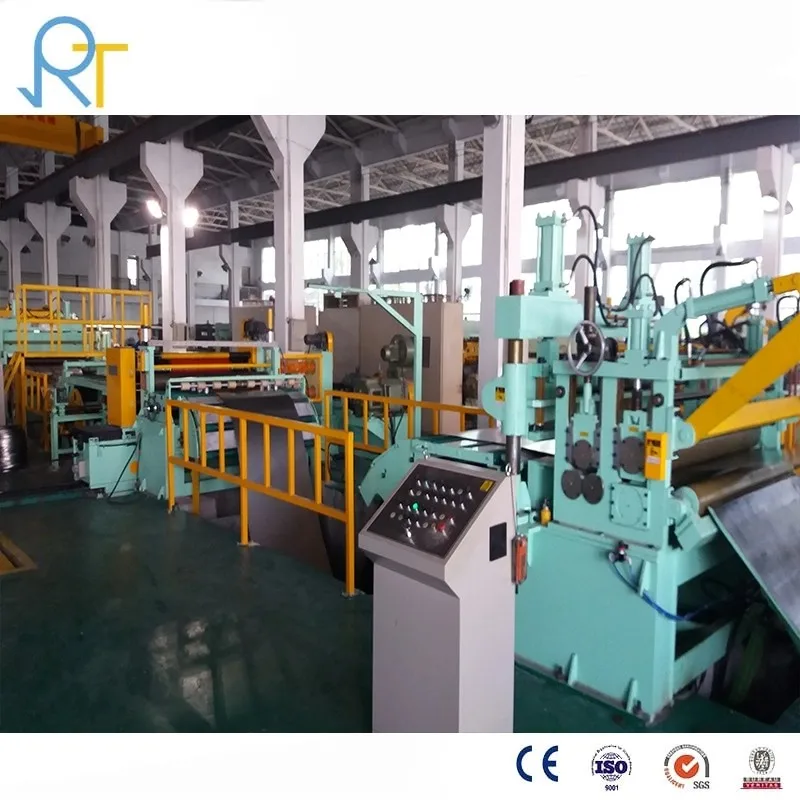

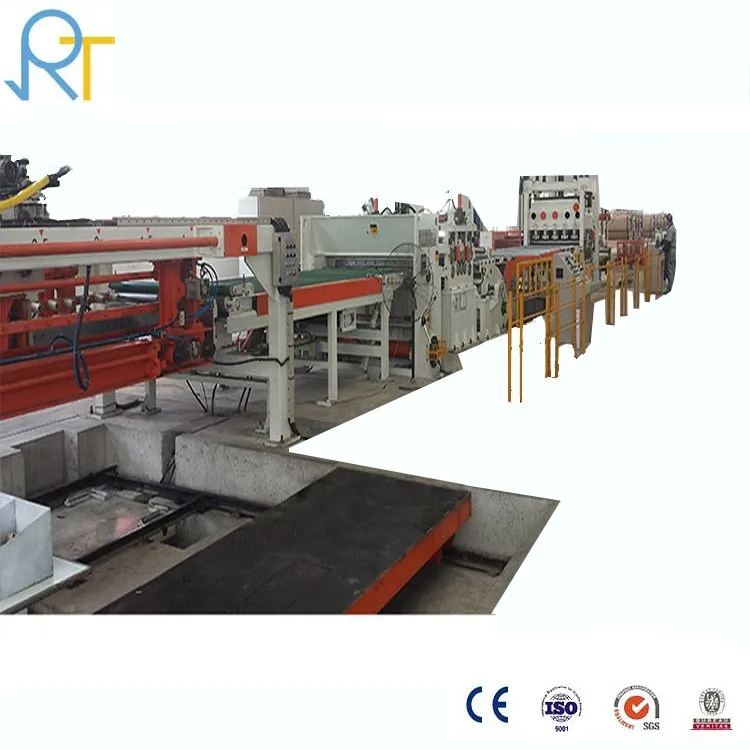

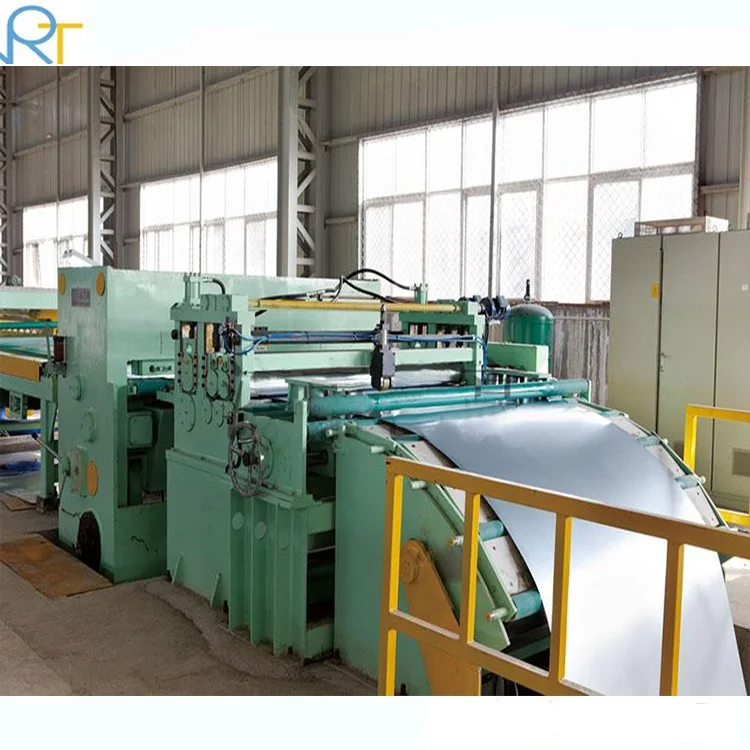

Features of Cut to Length Line


1. Our cut to length line uses a roll feeding, AC servo drive.

2. It has a fully digital length control system that ensures fast positioning with little error.

3. It has a hard chrome plated surface and is durable and abrasion resistant.

4. It is used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.

5. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.

Advantage

1. High degree of automation, easy & reliable operation

2. High length precision, high sheet flatness

3. Good order stacking

Detailed Information

Technical Data
\t
ECL series cut to length line is composed of the followings:
\t
1
\t
Entry coil car
\t
1 set
\t
2
\t
Uncoiler
\t
1 set
\t
3
\t
Outboard support
\t
1 set
\t
4
\t
Feeding table
\t
1 set
\t
5
\t
Leveler
\t
1 set
\t
6
\t
Loop table
\t
1 set
\t
7
\t
Side guide
\t
2 pairs
\t
8
\t
Servo feed roll
\t
1 PC
\t
9
\t
Shear
\t
1 PC
\t
10
\t
Conveyor belt
\t
1 set
\t
11
\t
Stacker
\t
1 set
\t
12
\t
Blower
\t
1 set
\t
13
\t
Hydraulics
\t
1 set
\t
14
\t
Electrics
\t
1 set
\t
Model
\t
Coil thickness(mm)
\t
Coil width(mm)
\t
 cut tolerance
(mm)
\t
Line speed(max)(m/min)
\t
Shear number(max)(spm)
\t
Coil weight(ton)
\t
ECL-2X1300
\t
0.2-2
\t
300-1300
\t
+/- 0.3
\t
60
\t
50
\t
7/15
\t
ECL-2X1600
\t
0.2-2
\t
400-1600
\t
+/- 0.3
\t
60
\t
50
\t
7/15
\t
ECL-2X1850
\t
0.2-2
\t
900-1850
\t
+/- 0.3
\t
50
\t
40
\t
20
\t
ECL-3X1600
\t
0.5-3
\t
400-1600
\t
+/- 0.3
\t
50
\t
40
\t
15
\t
ECL-3X1850
\t
0.5-3
\t
900-1850
\t
+/- 0.3
\t
50
\t
40
\t
20
\t
ECL-3X2000
\t
0.5-3
\t
900-2000
\t
+/- 0.3
\t
45
\t
40
\t
30
\t
ECL-6X1600
\t
1-6
\t
600-1600
\t
+/- 1
\t
25
\t
20
\t
20
\t
ECL-6X2000
\t
1-6
\t
900-2000
\t
+/- 1
\t
25
\t
20
\t
30
\t
ECL-8X2000
\t
2-8
\t
900-2000
\t
+/- 1
\t
20
\t
20
\t
30
\t
ECL-12X2000
\t
3-12
\t
900-2000
\t
+/- 1.5
\t
20
\t
10
\t
30
\t
ECL-16X2000
\t
4-16
\t
900-2000
\t
+/- 2
\t
15
\t
8
\t
30
