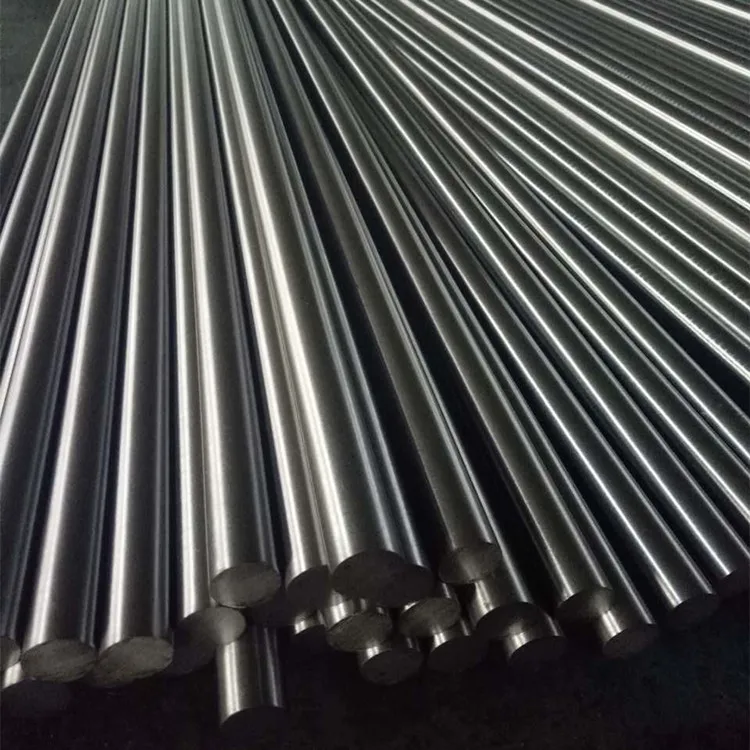

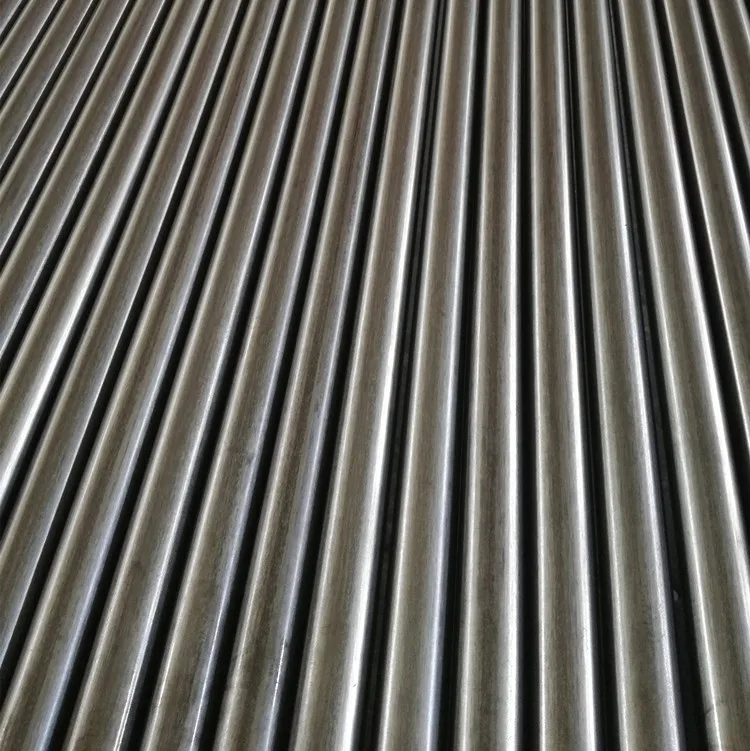

Китайский поставщик, холоднотянутый S45Cr AISI 1045 SAE 1045 c45, круглая углеродистая сталь

Share on (62088545468):


Price:690,00 $ - 730,00 $

Quantity:


Product Overview

Description



Product Description


Product
Steel round bar
12mm to 100mm
Steel square bar
16*16mm to 100*100mm
Hexagonal steel bar
14mm to 100mm
Delivery condition
Hot rolled + Q&T, cold drawn + Q&T, Q&T+ Peeled, Q&T+ Peeled+ Grinding
Heat treatment
Quenching and Tempering
Surface treatment
Shot blasting, Straightening,Cold drawing, Peeling & Turning, Grinding
Sizes tolerance
ISO898 for hot rolled
h9, h10, h11 for cold drawn and peeling
Certificate
ISO9001
MOQ
1 ton each diameter according to stocks
Delivery time
Within one month in general
Payment term
T/T, L/C, D/P etc.






1. Material:



GB
ASTM/SAE/AISI
DIN
SCM
AS /NZS1444
Type
45# / S45Cr /S45C-Ti
AISI 1045 / SAE 1045 / ASTM 1045
C45 / CK45
S45C
AS 1045
Carbon steel


2. Chemical composition (taking American standard as an example, other standard material components refer to this standard):



Material
Chemical Composition %
ASTM/SAE/AISI
C
Si
Mn
S
P
Cr
Mo
Ni
AISI 1045 / SAE 1045 / ASTM 1045
0.42-0.48
0.15-0.35
0.50-0.80
0.035 max
0.035 max
0.40 max
0.035 max


3.Mechanical properties:

(taking American standard as an example, other standard material components refer to this standard)



GB(National standard)
Mechanical Properties
Yield Strength (MPa)
Tensile Strength (MPa)
Elongation
Reduction of area
AKV (J)
45# / S45Cr /S45C-Ti
355 min
600 min
16% min
40% min
39 MIN

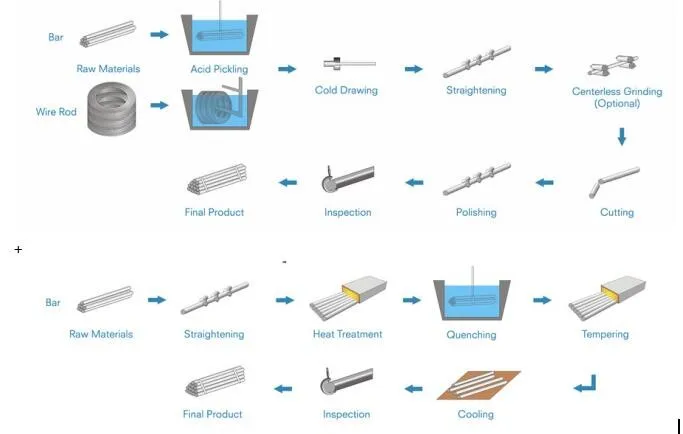

Production






Processing




OR





About Quenched & Tempered steel bar

Quenching and Tempering, abbreviated as Q&T is a king of processing that strengthen or harden steel bars by heating the materials and then cooling in water, oil or other liquid medium, that rapidly the change from austenite to perlite to get the proper properties for various usage. The quenched & tempered steel bar materials are usually with carbon from 0.30% - 0.60%, it is widely used as merchant bars in components of various machines.



Our advantage of Quenched & Tempered steel bars.

1.Consistent mechanical properties
2.Deep mechanical properties (from surface to the center according to your requirement)
3.Even hardness on the whole bars
4.Tougher and Increased strength
5.No brittle, UT testing
6.Precision size tolerance
7.Good straightness
8.Good Roughness
9.Professional technical service
10.Competitive price
11.Fast delivery



Main products


1)Hot rolled and Quenched & Tempered steel round bars

2)Cold drawn and Quenched & Tempered steel round bars

3)Cold drawn + Quenched & Tempered + Straightened steel round bars



4)Peeled and Quenched & Tempered steel round bars

5)Quenched & Tempered steel square bars

6)Quenched & Tempered steel hexagonal bars

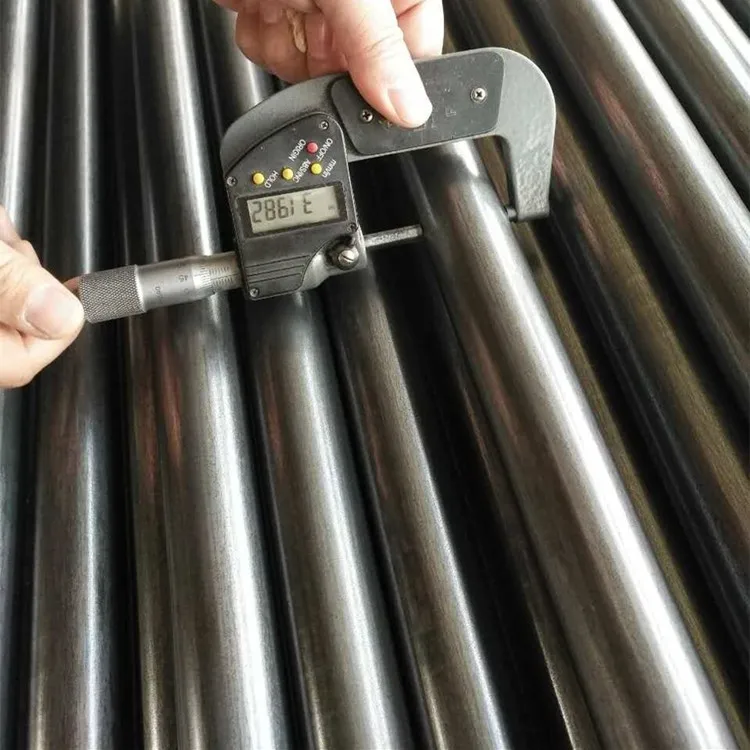

Inspection


To guarantee our cold drawn round steel bars quality, we establsh our own laboratary.

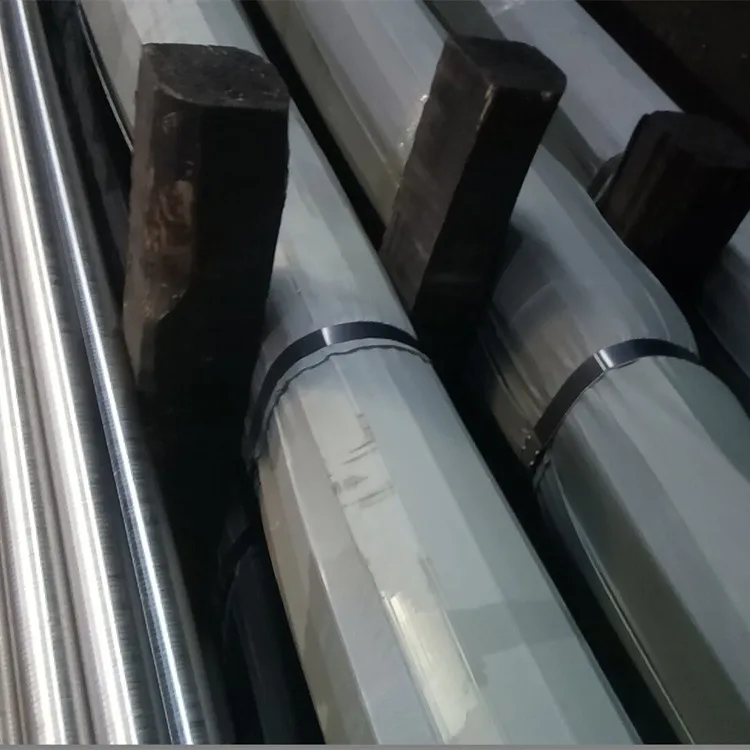

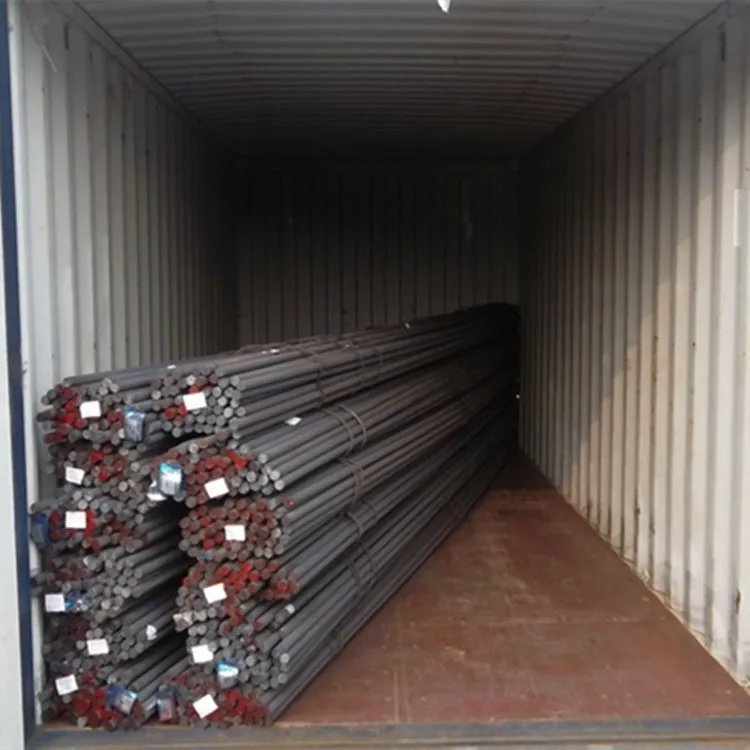

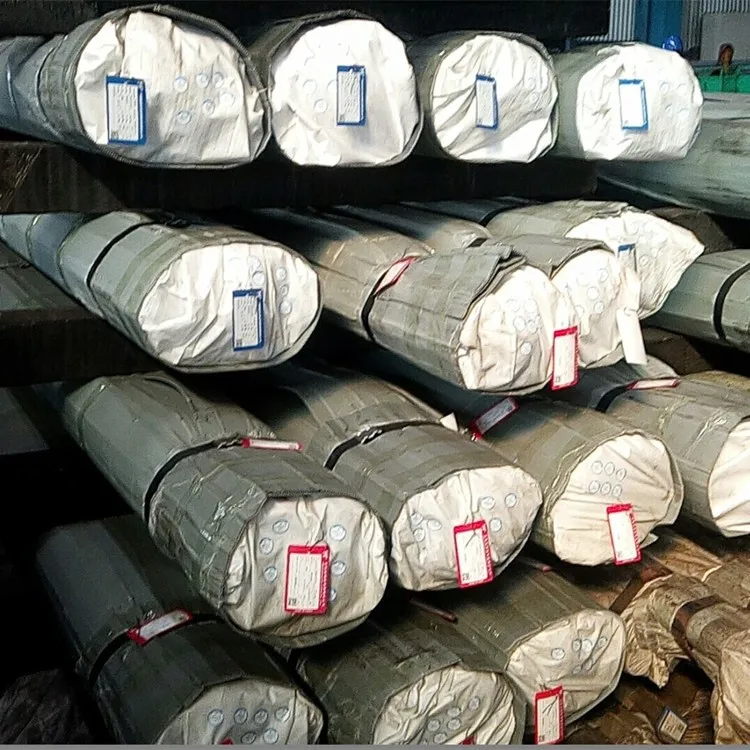

Packing and Delivery


We pays much attention to the packing by use film wrapped inside, Nylon plastick packing ourside, stamped, wooden blocks in the bottom. We can also use wooden box packing according to your requirements.





Application


Q&T steel bars are widely used to produce various components such as:

Bolts:

high strength stud bolt, threaded rods, wind power bolt, prestressed anchor bolts, post stressed anchor bolt, steel tie rod, tie bar, tension rod, tension bar etc.

Shafts: shaft, axle shaft, crankshaft, shaft for sleeve, linear shaft, pump shaft, rotor shaft, sensor shaft, spline shaft, drive shaft, mandrel shaft, transmission shaft, screw rod etc.

Hydraulic components:hydraulic shafts, piston rod, flanges, gear, pin etc.

Raw materials steel bars used for CNC machines, precision CNC machines etc.



axis pin

axle shaft

crankshaft



steel round bar

steel bar for CNC machine

stud rods



FAQ


Q: Are you trading company or manufacturer ?

A: We have our own factory with complete production equipment and inspection facilities.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us sa bellow:
