2 CORE OUTDOOR FTTH FIBER CABLE WITH 0.4MMX7 GALVANIZED STEEL WIRE
- Category: Telecommunications >>>
- Supplier: Ningbo Yuxin Optical Fiber Cable Co. Ltd.
Share on (62088588362):
Product Overview
Description
2 CORE OUTDOOR FTTH FIBER CABLE WITH 0.4MMX7 GALVANIZED STEEL WIRE

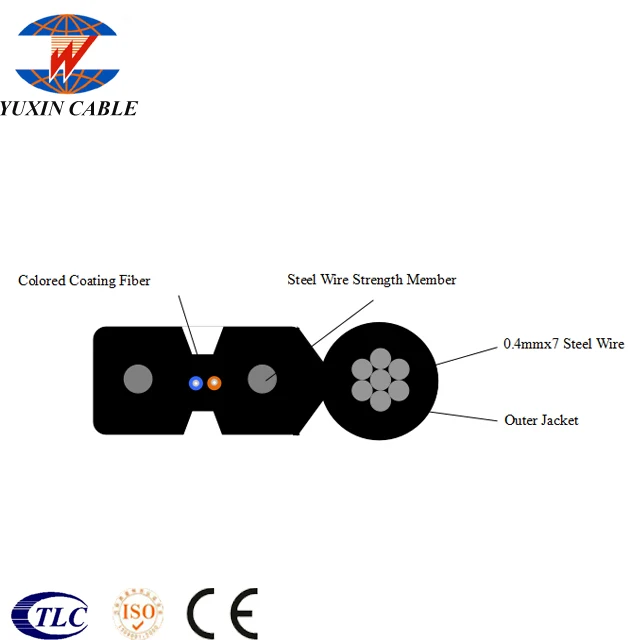

Introduction:
The optical fiber unit id positioned in the centre.Two parallel Fiber Reinforced Plastics(KFRP) Or Steel Wire are placed at the two sides.A steel wire as the additional strength member is also applied ,then, the cable is completed with a black or color LSZH sheath.
Main Technical Parameters:
Fiber Parameters:
No. | Items | Unit | Specification | ||
G652D,G657A1,G657A2 | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | |
1550nm | μm | 10.1±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
6 | Coating Non-Circularity | % | ≤6.0 | ||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 | |
1550nm | dB/km | ≤0.21 | |||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | |
1turn×10mm radius @1625nm | dB | ≤1.5 | |||
Cable Parameters:
Items | Specifications | |
Fiber Count | 2 | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue,Orange | |
Strength Member | Dimension | 0.45mm |
Material | steel wire | |
Self-Supporting Member | Dimension | 0.4mmX7 |
Material | Galvanized Steel Wire | |
Jacket | Dimension | 5.2±0.2mm×2.1±0.1mm |
Material | LSZH | |
Color | Black | |
Mechanical and Environmental Characteristics:
Items | Unite | Specifications |
Tension(Long Term) | N | 500 |
Tension(Short Term) | N | 1000 |
Crush(Long Term) | N/10cm | 1000 |
Crush(Short Term) | N/10cm | 2200 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |

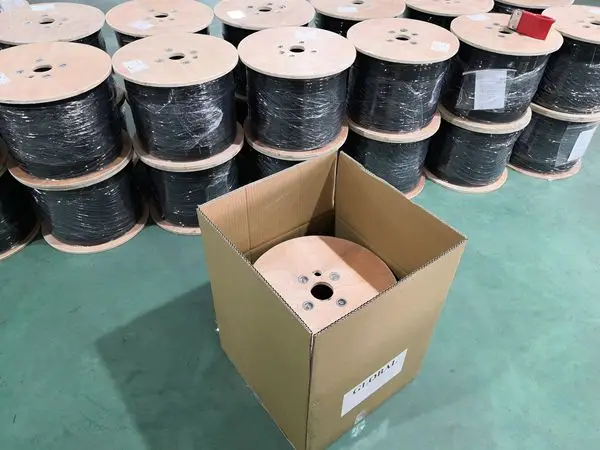

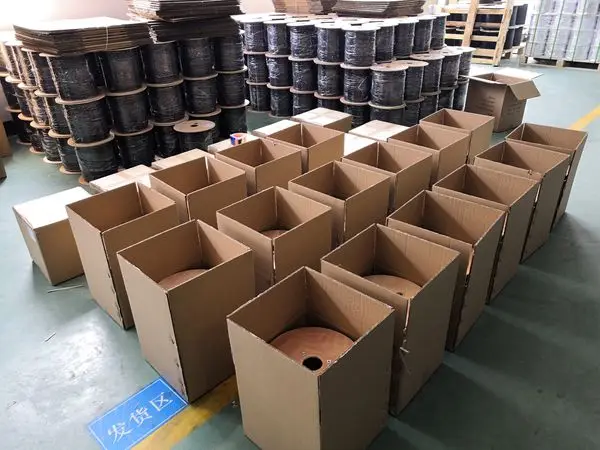

Pictures of Real Products:
